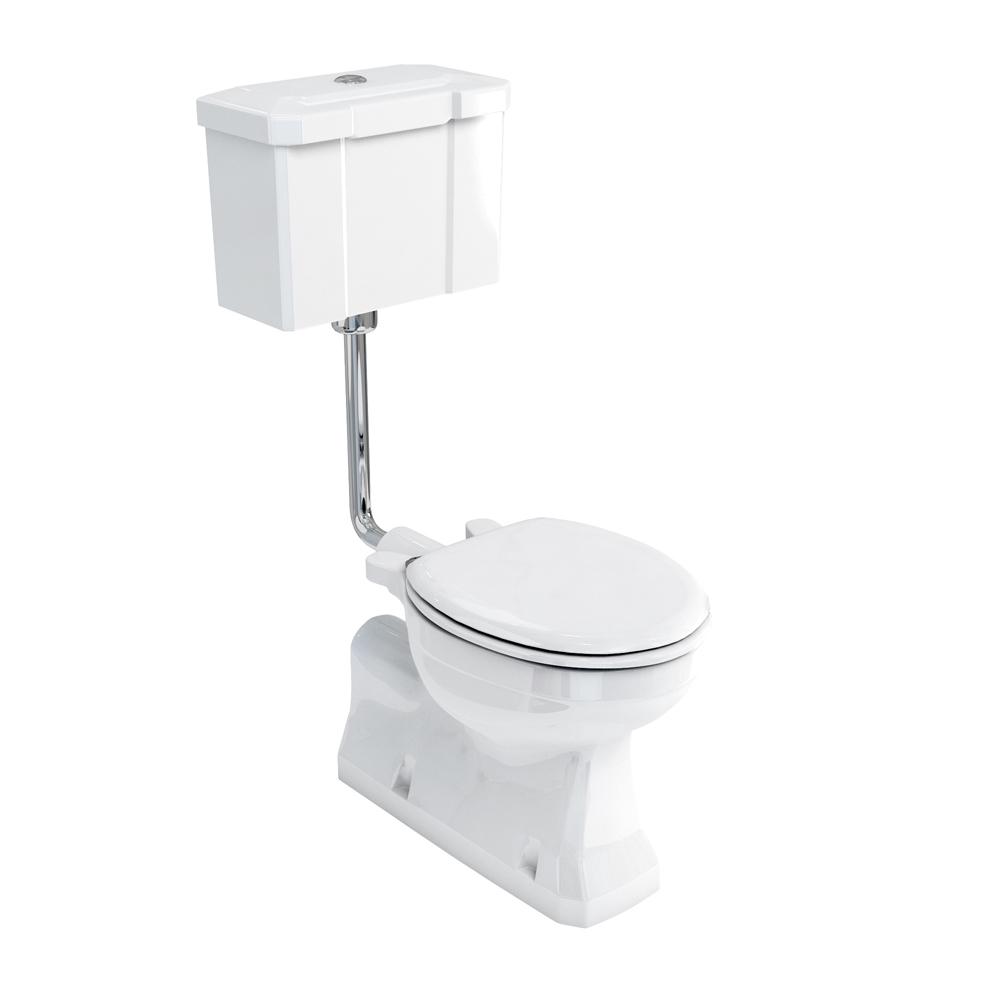

Burlington Concealed Outlet Low-Level Pan with Rear Or Bottom Entry Push Button Cistern

by Burlington
Save £114.01
£455.01
£341.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

C25+P19+T31 CHR
  • C25: Close Coupled / Low level cistern 44cm Top Button (incl. back entry cistern fittings)
  • P19: Burlington low level S trap pan for floor mounted outlet pipe
  • T31 CHR: Low level flush pipe kit including flush pipes and reverse screw cistern connector

Additional Information

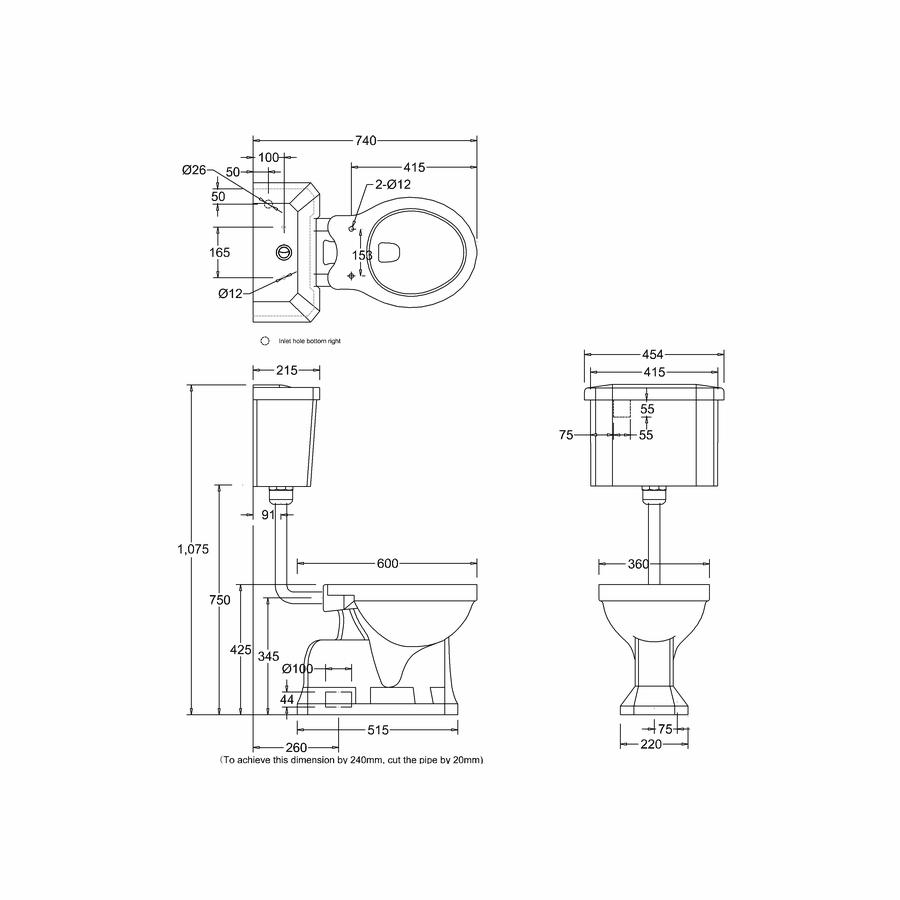

Low level wc with fully concealed soil pipe. The pan can be located over the floor located soil pipe by cutting the horizontal flush pipe to length : min : 26cm, max 33cm

If using the extended depth cistern ( C30 ) with ceramic lever flush the wall to soil pipe center distances are : min 29 cm, max 36 cm

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug

S trap standard height pan - height from floor to pan rim is 40cm

Cistern can be used with optional decorative Ornate Brackets T32 CHR

Low level wc must be used with standard Burlington toilet seats

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS EN 997:2012 WC pans and WC suites with integral trap
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr

Available Spare Parts

  • SP616: 44cm Cistern Lid for C25
  • SP965: Brass decorative cover of cistern connection for product T31 CHR
  • SP890: Flush pipe of product T31 CHR
  • SP160: L shape bracket(pair) of T31CHR

Specification

Product Type Traditional
Overall height 107.5cm
Material C25: Cistern - Vitreous china
P19: Trap - Vitreous china
T31 CHR: Fittings - Brass
Size C25: 520 x 327 x 205mm
P19: 530 x 410 x 360mm
T31 CHR: 221 x 38 x 461mm
Nett Weight C25: Cistern - 14.5kg
P19: Trap - 19.25kg
T31 CHR: Fittings - 1.19kg
Gross Weight Including Packaging C25: Cistern - 16.25kg
P19: Trap - 21.65kg
T31 CHR: Fittings - 1.64kg
Packed Dimension C25: 225 x 540 x 370 = 0.045 m3
P19: 380 x 550 x 438 = 0.0915 m3
T31 CHR: 505 x 240 x 70 = 0.0085 m3
Colour C25: Cistern - White
P19: Trap - White
T31 CHR: Fittings - Crome plated
Barcode T31 CHR: 5055806007048
P19: 5055806012974
C25: 5055806012929
Packed Dimension C25: 225 x 540 x 370 = 0.045 m3
P19: 380 x 550 x 438 = 0.0915 m3
T31 CHR: 505 x 240 x 70 = 0.0085 m3
Colour C25: Cistern - White
P19: Trap - White
T31 CHR: Fittings - Crome plated

Downloads

Click for Instructions T31 CHR (English)

Click for Instructions C25 (English)

Click for Instructions T31 CHR (French)

Click for Instructions C25 (French)
