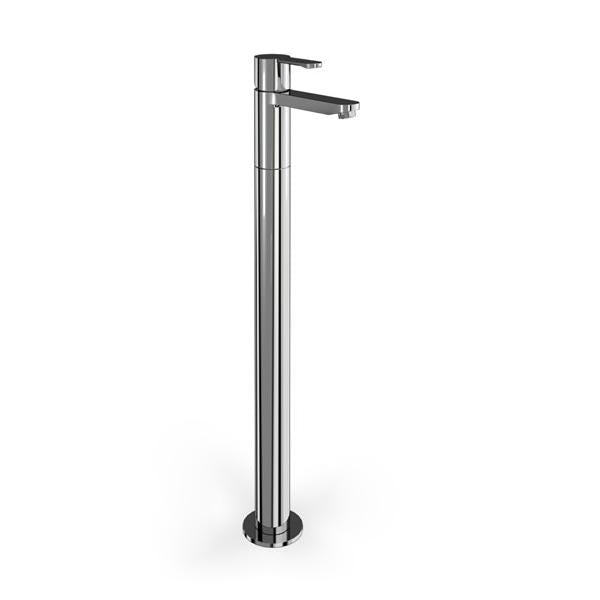

Clearwater Crystal Single-Lever Bath Filler on Stand Pipe Floor Standing

by Clearwater
Save £155

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

  • CTA5: Crystal single lever bath filler
  • W24: Crystal single shroud

Additional Information

Mixers are fitted with a flow Straightener for low pressure installations

Spare high pressure aerator is provided with every mixer for high pressure installations

All mixers work on 0.2 bar to 5 bar pressure


10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
Chrome plated to EN248:2002
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (Straightener) 12.02 18.88 26.76 37 46.61
Spout (aerator) 7.62 11.87 16.75 23.56 28.97

Available Spare Parts

  • SP197: Aerator for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SPW4: Cap & grub screw for crystal taps
  • SP591: Cartridge for CTA5, CTA14
  • SP822: Fixing nut of product CTA1, CTA2, CTA3, CTA4, CTA5, CTA8, CTA9, CTA10, CTA11, CTA12, CTA13, CTA14
  • SP812: Flexible pipes (hot & cold) - pair for product CTA5, CTA14
  • SP196: Flow straightener for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SP929: Wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H


Finish Chrome plated
Product Type Modern
Overall Height 903
Material CTA5: Tap - Brass
W24: Shrouds - Brass
Size CTA5: 430 x 275 x 215mm
W24: 1035 x 1035 x 7375mm
Barcode CTA5: 5055806002791
W24: 5055806008403
Nett Weight CTA5: Tap - 1.9kg
W24: Shrouds - 5.76kg
Gross Weight Including Packaging CTA5: Tap - 2.2kg
W24: Shrouds - 5.86kg
Packed Dimension CTA5: 430 x 275 x 215 = 0.0254 m3
W24: 575 x 240 x 95 = 0.0131 m3
Colour CTA5: Tap - Chrome plated
W24: Shrouds - Chrome plated


Click for Instructions CTA5 (English)

Click for Instructions W24 (English)

Click for Instructions CTA5 (French)

Click for Instructions W24 (French)
