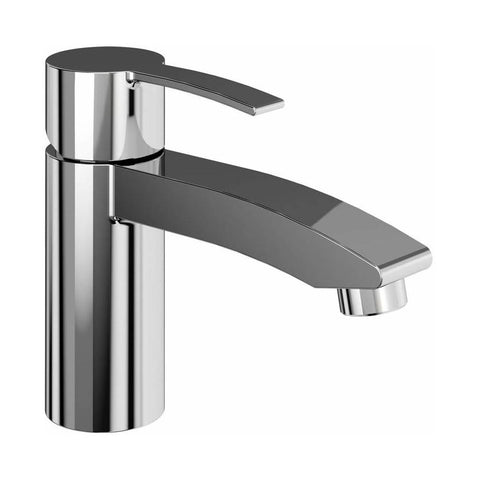

Clearwater Sapphire Chrome plated Single-Lever Bath Filler

by Clearwater
Save £100
£399.00
£299.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

CTA14
  • CTA14: Sapphire single Lever bath filler

Additional Information

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

All mixers work on 0.2 bar to 5 bar pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
Chrome plated to EN248:2002
EN817:2008
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
EN200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (Straightener) 7.74 14.65 21.83 31.96 39.83
Spout (aerator) 6.74 11.45 16.45 23.51 28.83

Available Spare Parts

  • SP197: Aerator for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SP591: Cartridge for CTA5, CTA14
  • SP822: Fixing nut of product CTA1, CTA2, CTA3, CTA4, CTA5, CTA8, CTA9, CTA10, CTA11, CTA12, CTA13, CTA14
  • SP812: Flexible pipes (hot & cold) - pair for product CTA5, CTA14
  • SP196: Flow straightener for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14

Specification

Finish Chrome plated
Product Type Modern
Overall Height 162
Material Tap - Brass

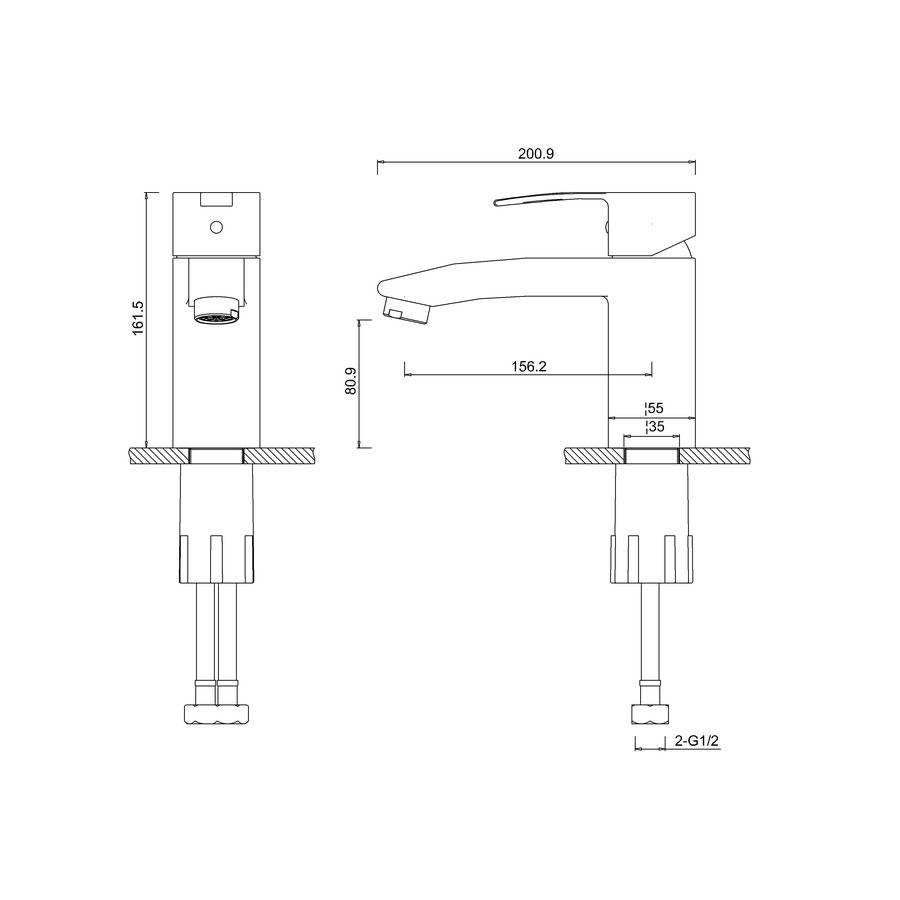

Size 201 x 55 x 162mm
Barcode 5055806002739
Nett Weight Tap - 2kg
Gross Weight Including Packaging Tap - 2.3kg
Packed Dimension 430 x 275 x 215 = 0.0254 m3
Colour Tap - Chrome plated

Downloads

Click for Instructions CTA14 (English)

Click for Instructions CTA14 (French)
