Hansgrohe Sbox Rim and Tile Mounted Bath Basic Set

Save £92.00
Original price £373.00
Current price £281.00
CODE: 13560180+28016000+28021000

Description

Product Features
  • Suitable for rim mounted or tile surround installation
  • Designed to run 1 function
  • Connection thread 1/2"
  • Connection hose length: 600 mm
  • Operating pressure: min. 1 bar/max. 10 bar
  • Bath rim width at least 100 mm
  • Drilling diameter on bath tub or tiled surround: two drilled holes ø 50/51 mm and connection by sawing out required
  • Clamping range: 0 - 30 mm
  • WRAS 1907041
Product Features of Installation plate

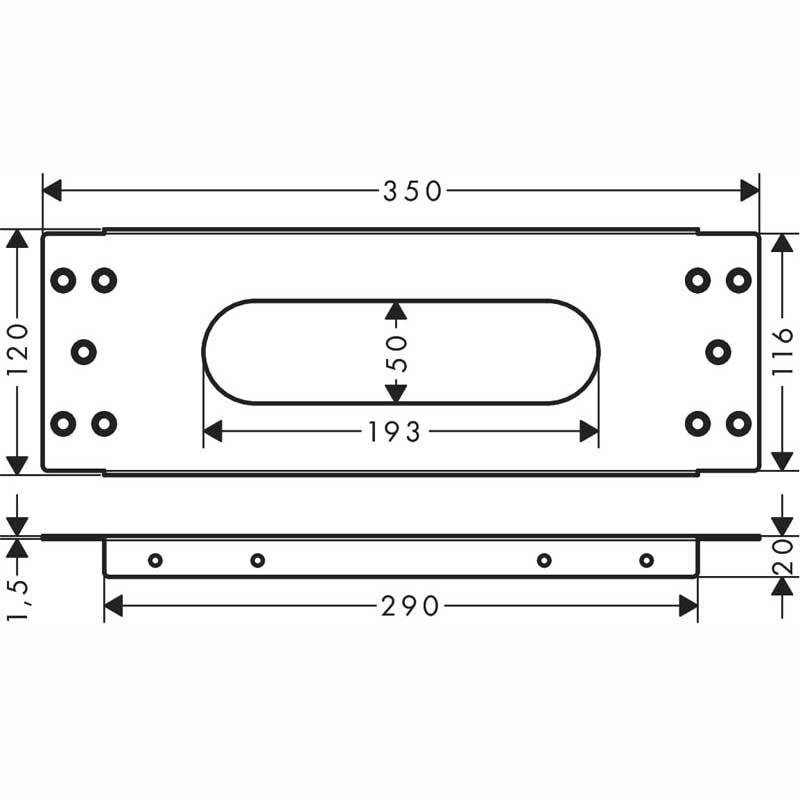

  • Dimension: 350 x 120 mm
Product Features of Mounting Angle Set

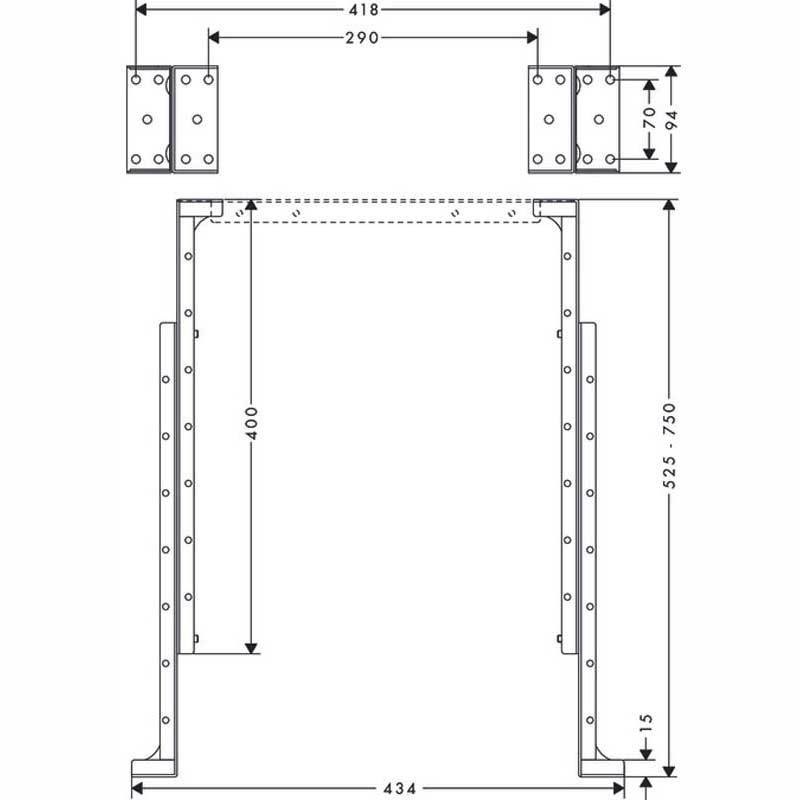

  • Minimum mounting height: 400 mm
  • Maximum mounting height: 750 mm
  • Packing unit: 2 pieces

Illustrated Code

13560180+28016000+28021000

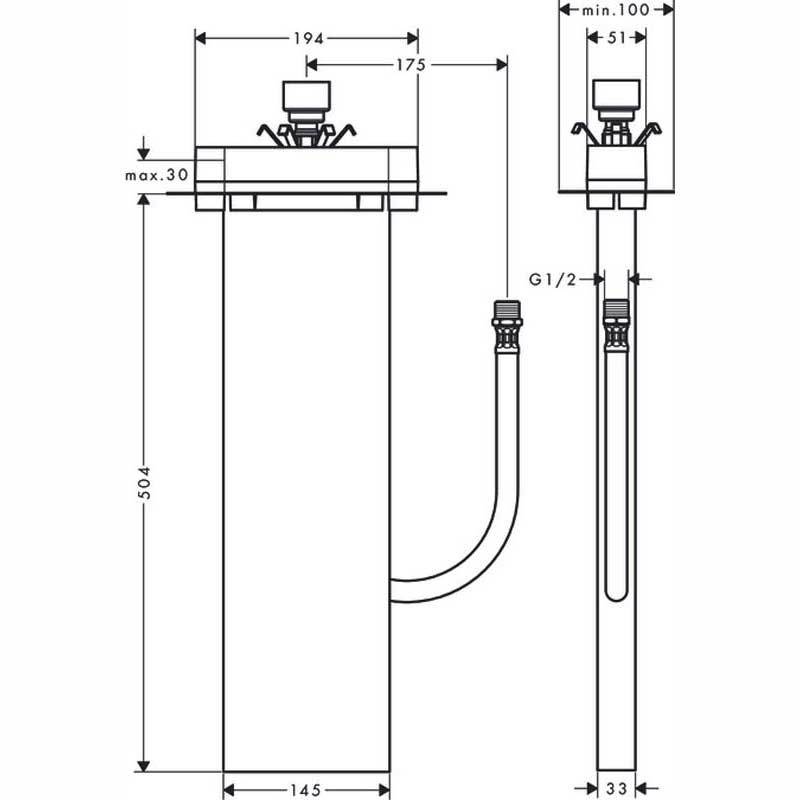

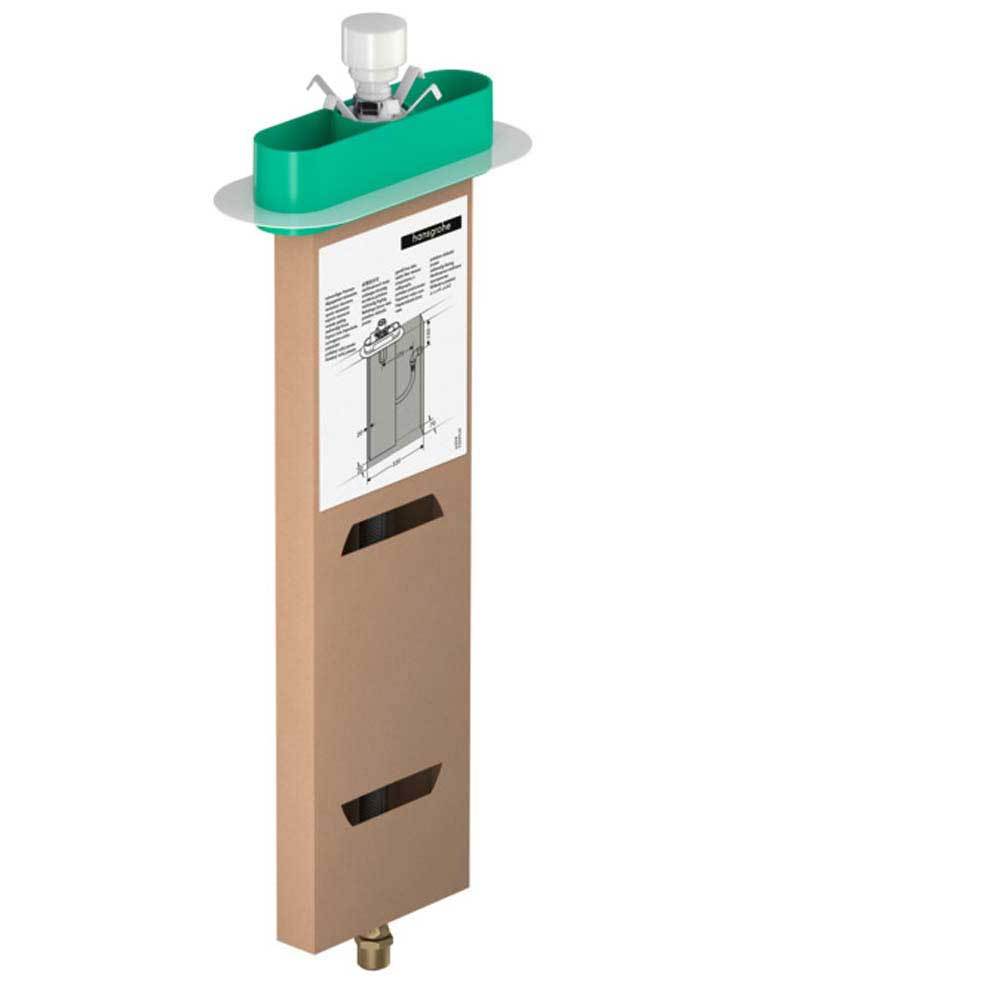

  • 13560180: Rim And Tile Mounted Bath Basic Set

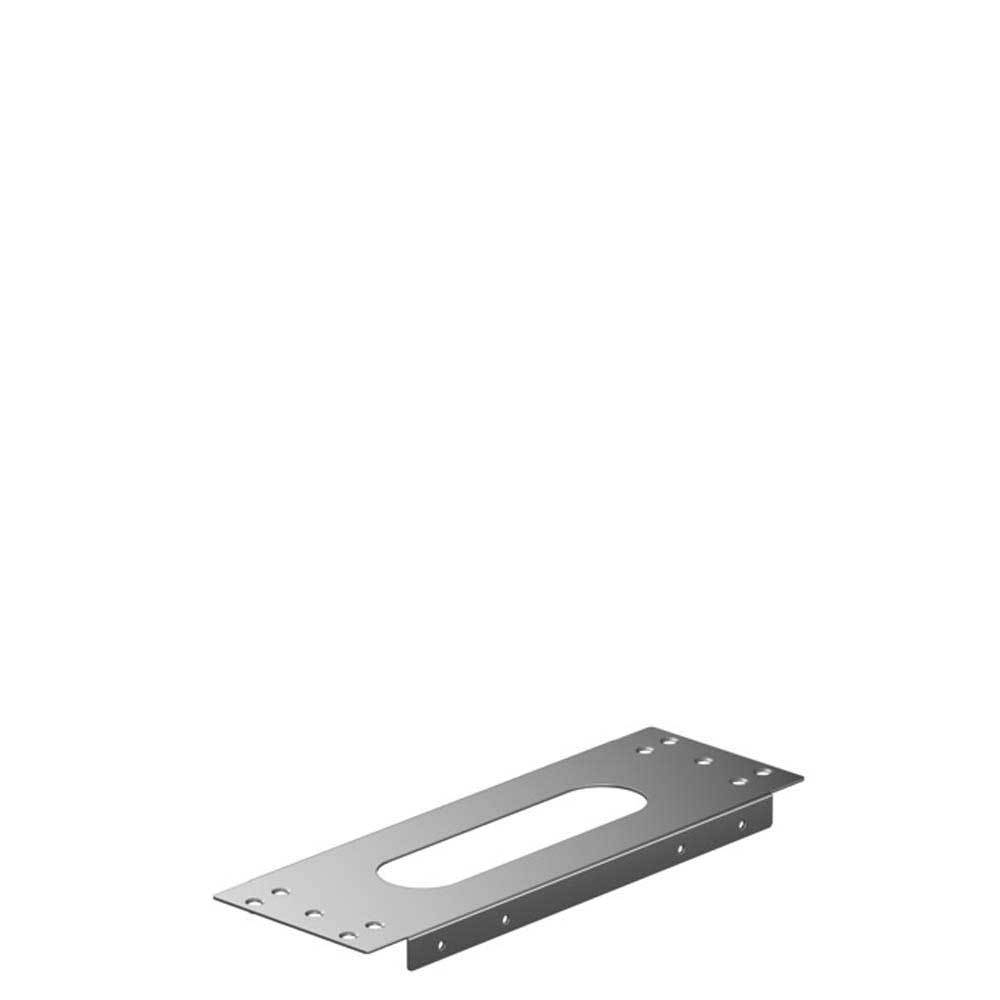

  • 28016000: Installation Plate For Tile Mounted Installation

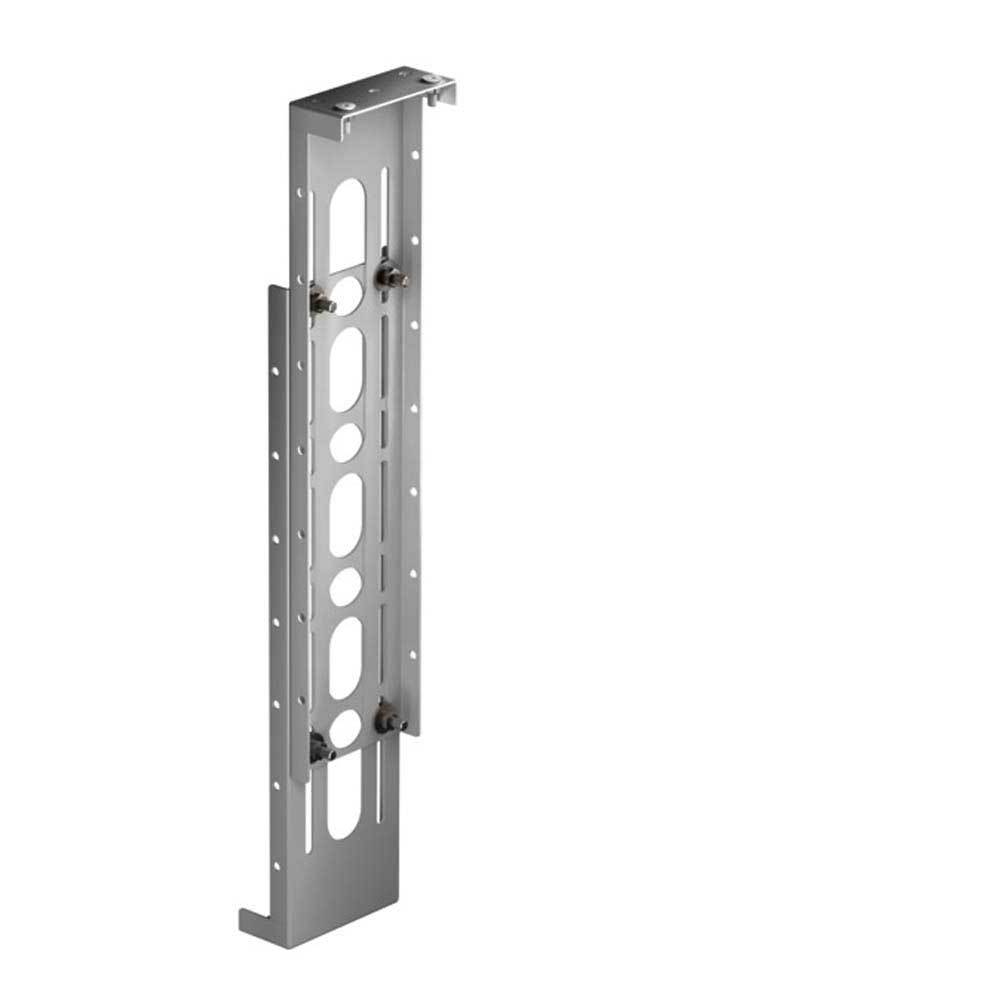

  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

13560180+28016000

  • 13560180: Rim And Tile Mounted Bath Basic Set
  • 28016000: Installation Plate For Tile Mounted Installation

13560180+28021000

  • 13560180: Rim And Tile Mounted Bath Basic Set
  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

13560180

  • 13560180: Rim And Tile Mounted Bath Basic Set

28016000+28021000

  • 28016000: Installation Plate For Tile Mounted Installation
  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

28016000

  • 28016000: Installation Plate For Tile Mounted Installation

28021000

  • 28021000: Mounting Angle Set For Installation Plate For Tile Mounted Installation

Downloads

Click for 13560180 Data Sheet

Click for 28016000 Data Sheet

Click for 28021000 Data Sheet
