Hudson Reed Revive Vertical Double Panel Radiator 180cm x 52.8cm

Save £146.00
Original price £666.00
Current price £520.00
CODE: HL327

Description

Product Details

  • Height: 1800 mm
  • Width: 528 mm
  • Depth: 78 mm
  • Finish: High Gloss White, Anthracite
  • Guarantee: 5 year

Product Features

  • Add a stylish feature to any room with this high gloss white radiator
  • All heating products come complete with fixing screws
  • Valves sold separately
  • After installating any new radiators; when refilling the system it is recommended a suitable inhibitor is used
  • All tappings are 1/2" British Standard Pipe
  • We recommend pipework is not installed until receipt of radiator or heated towel rail

Technical Specification

Product Material Steel
Wall to Centre of Tappings 51
RAL Number 9016
BTU @ 50°C 5457
Thermal Output @ 50°C (Watts) 1599
Type Of Heat Water
Mount Type Wall Mounted
Number Of Heat Settings 1
Number Of Sections/Panels 18
Product Orientation Vertical
Brackets Included Yes
Assembly Required No
Commercial Use No
Projection 11cm
Installation Required Yes
BTU @ 30°C 2990
Thermal Output @ 30°C (Watts) 876
BTU @ 60°C 6914
Thermal Output @ 60°C (Watts) 2026
Pipe Centres - If Horizontal 618

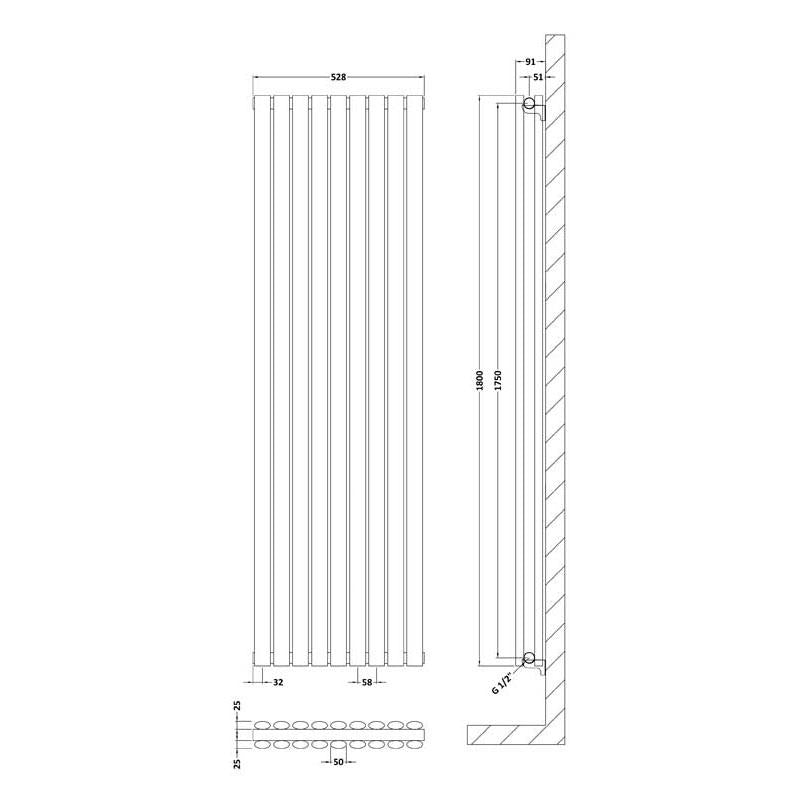

Illustrated Code

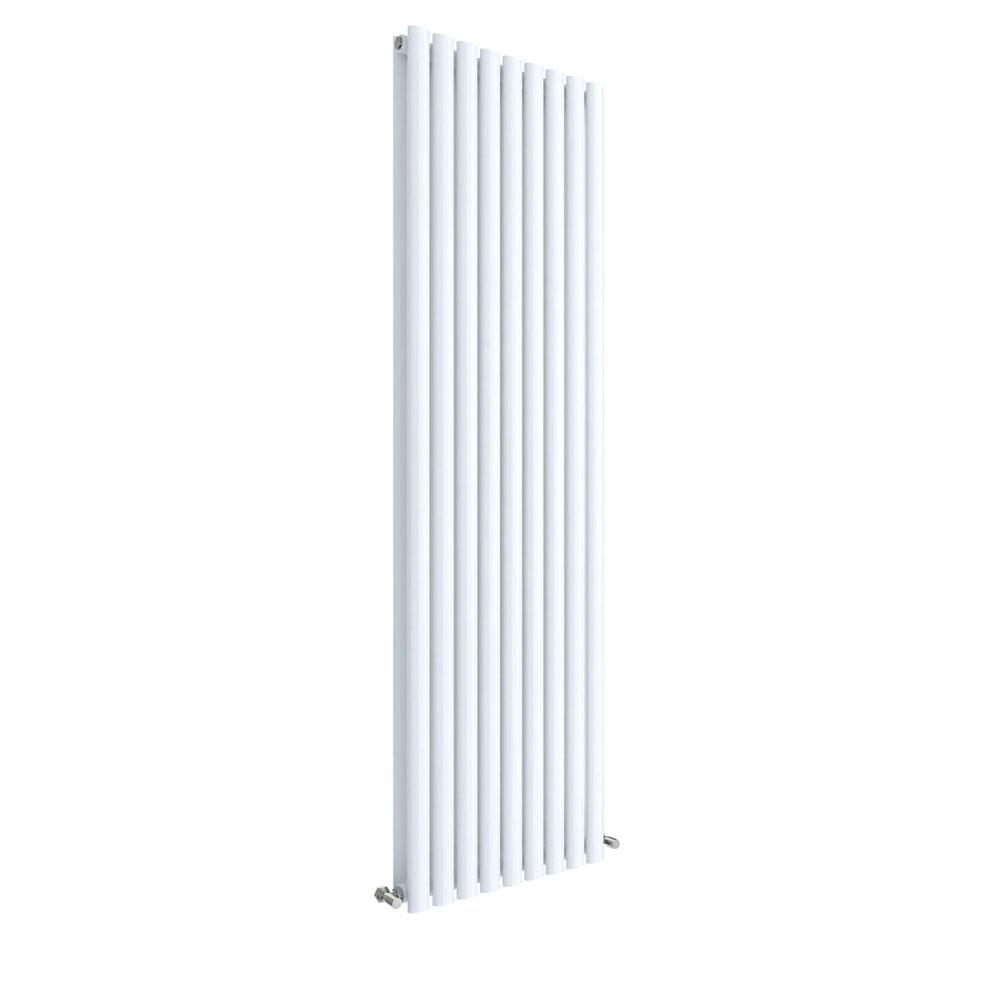

HL327

  • HL327: Revive Double Panel Vertical Double Panel Radiator 1800 x 528

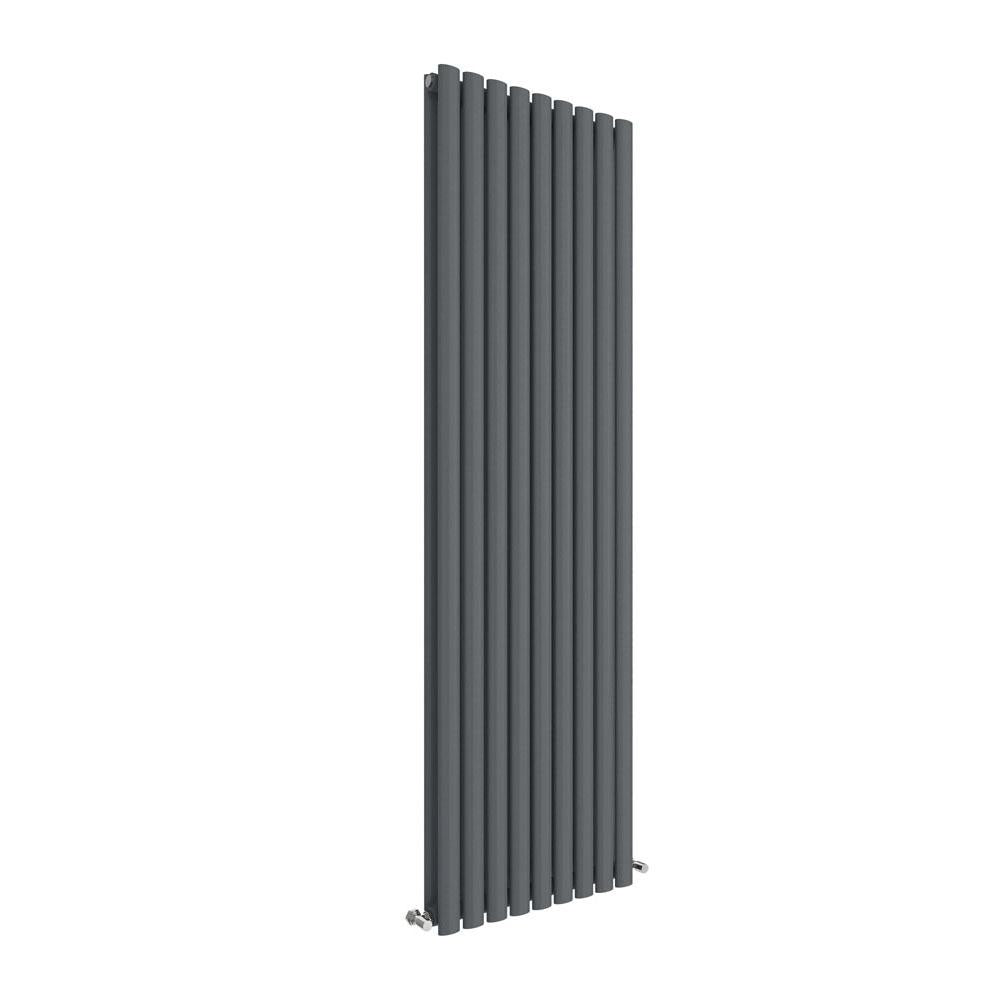

HLA81

  • HLA81: Revive Double Panel Vertical Double Panel Radiator 1800 x 528

Downloads

Click for HL327-Technical Specification

Click for HL327-Fitting-Instruction
