by Hudson Reed
Save £100.40
Original price
£452.40
Current price
£352.00
CODE: HLW95
Description
Product Details
- Height: 1785 mm
- Width: 413 mm
- Depth: 110 mm
- Finish: Anthracite
- Guarantee: 5 Year
Product Features
- A unique and stunning focal point to any room
- All heating products come complete with fixing screws
- Valves sold separately
- After installating any new radiators; when refilling the system it is recommended a suitable inhibitor is used
- All tappings are 1/2" British Standard Pipe
- We recommend pipework is not installed until receipt of radiator or heated towel rail
Technical Specification
Product Material | Steel |
Wall to Centre of Tappings | 65 |
Packaging Volume (L) | 116.1 |
RAL Number | 7016 |
BTU @ 50°C | 2164 |
Pipe Centres - If Vertical | 503MM |
Thermal Output @ 50°C (Watts) | 634 |
Type Of Heat | Water |
Mount Type | Wall Mounted |
Number Of Heat Settings | 1 |
Number Of Sections/Panels | 7 |
Product Orientation | Vertical |
Brackets Included | Yes |
Assembly Required | No |
Commercial Use | No |
Projection | 205MM |
Installation Required | Yes |
BTU @ 30°C | 1345 |
Thermal Output @ 30°C (Watts) | 394 |
BTU @ 60°C | 2741 |
Thermal Output @ 60°C (Watts) | 752 |

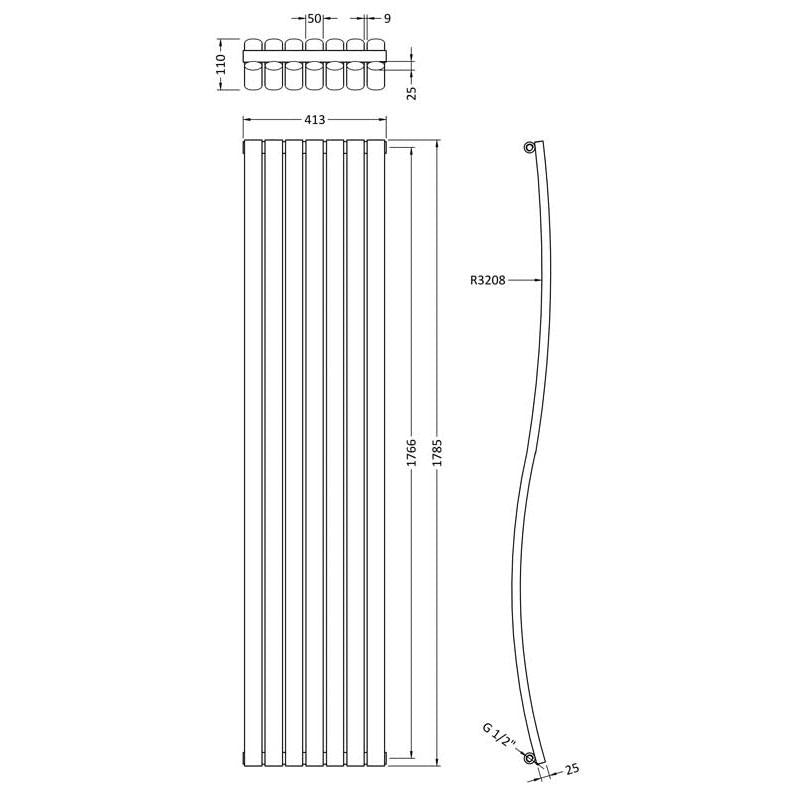

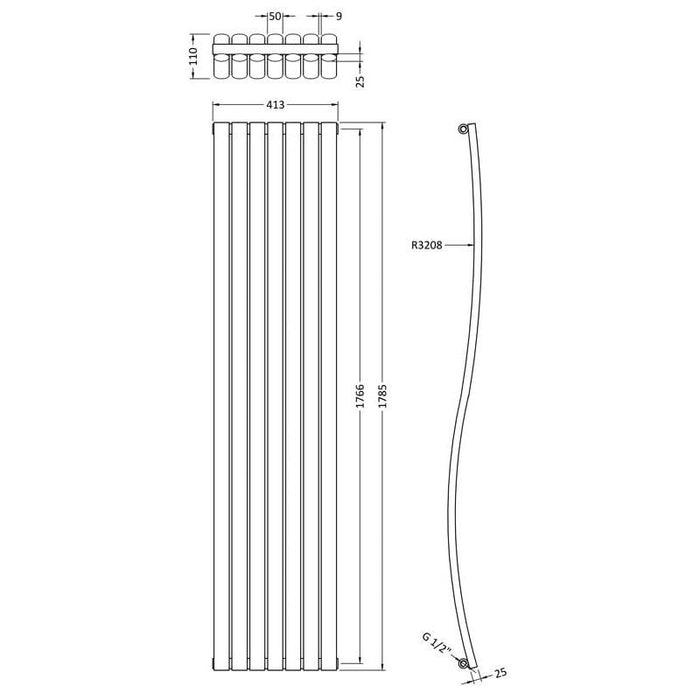

Illustrated Code
HLA95
|
