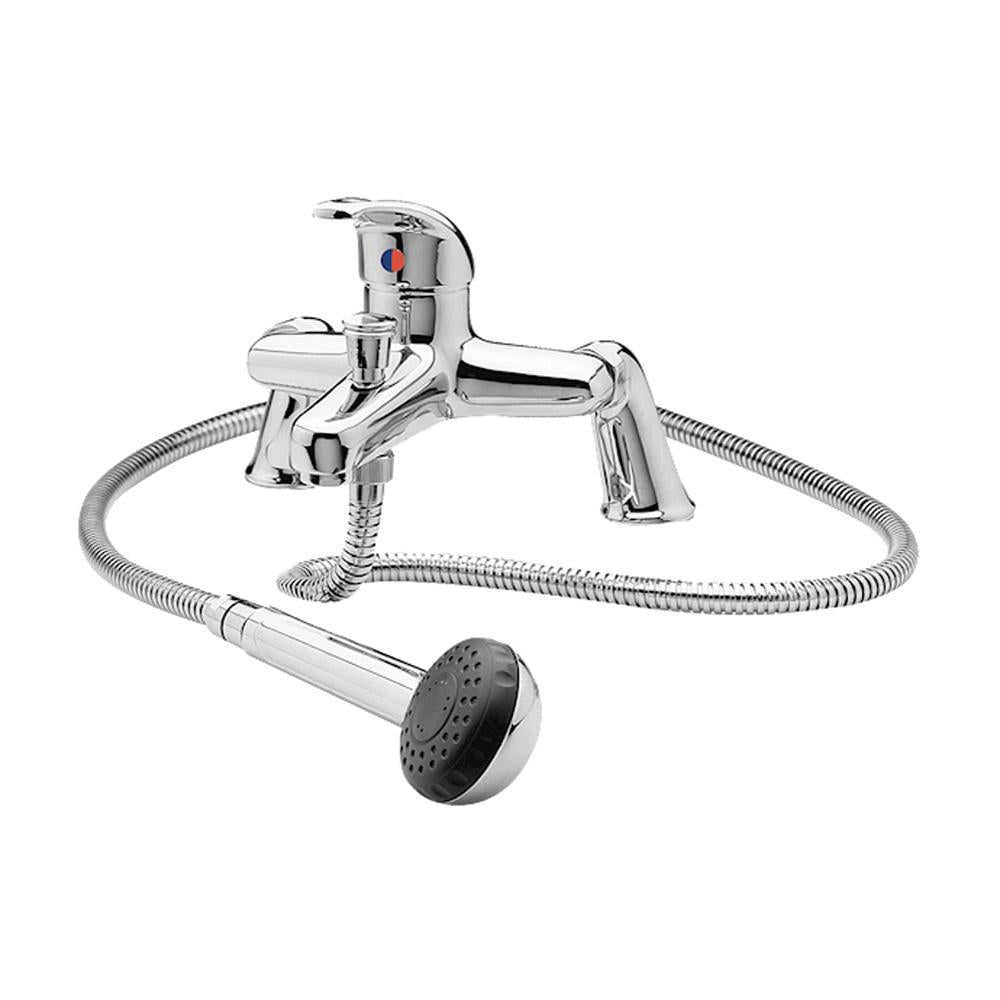

Nuie Eon Deck Mounted Bath Shower Mixer

by Nuie
Save £13.00
Original price £124.00
Current price £111.00
CODE: DTY304

Description

Description

  • Height: 175 mm
  • Width: 220 mm
  • Depth: 190 mm
  • Finish: Chrome
  • Guarantee: 5 Year

Features & benefits

  • Simplicity at its finest, without compromising on quality
  • Includes shower kit & wall bracket
  • Ceramic disc technology for long life and smooth operation
  • Manufactured from high quality brass & ABS with a luxury chrome finish

Technical Specification

Includes Waste Waste Not Included
Pipe Centers 180 MM
Valve/Cartridge Type
  • 1/4 Turn Ceramic Disc
  • Single Lever Cartridge
Product Material BRASS/ABS
Mount Type Both Deck and Wall
Pipe Size 22 mm (3/4" BSP)
Control Type Manual
Operating Pressure 1.0
Flow Rate 0.1Bar l/m (Taps) 3 l/min
Flow Rate 0.5Bar l/m (Taps) 8 l/min
Flow Rate 1Bar l/m (Taps) 11 l/min
Flow Rate 2Bar l/m (Taps) 14 l/min
Flow Rate 3Bar l/m (Taps) 18 l/min
WRAS Approved (Taps) NO
TMV2 Approved (Taps) No
TMV3 Approved (Taps) No
Tap Installation Holes 2
No. Of Handles 1
Height Of Spout 43MM
Hose Included Yes
Tap Spout Projection 105MM
Cartridge Included Yes
Cartridge Material Plastic
Assembly Required No
Handset Included Yes
Installation Required Yes

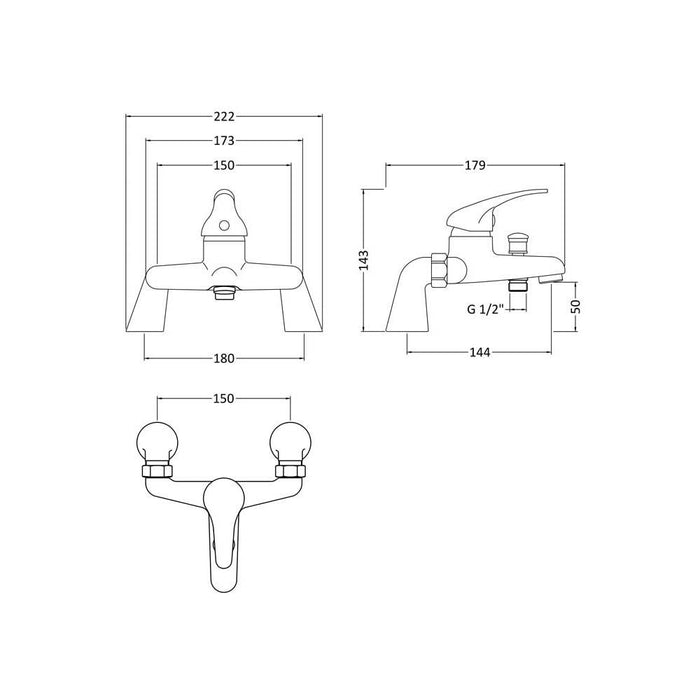

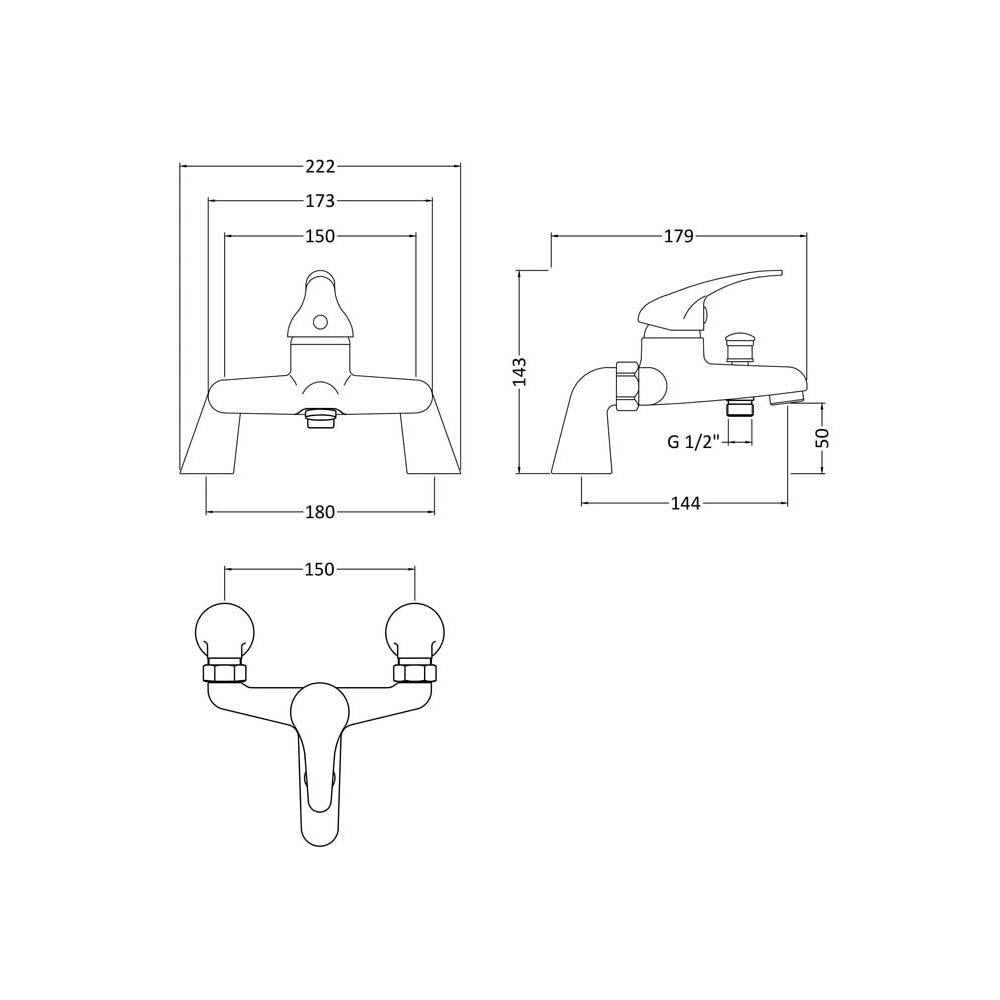

Illustrated Code

DTY304

  • DTY304: Single Lever Bath Shower Mixer

Downloads

Click for DTY304 Data Sheet

Click for DTY304 Fitting Instruction Data Sheet
