Sottini ( new Ideal Standard ) Isarca Square Basin & Optional Pedestal - 1TH (Various)

by Sottini
Save £25.00
Original price £174.00
Current price £149.00
CODE: U849701 / E074601

Description

The Sottini Isarca range is now discontinued but it has been replaced with the Ideal Standard Concept Air.

The Isarca Square Basin offers an ultra modern, fresh design which incorporates thin ceramic walls for a light, sleek look. The Isarca range has limitless versatility and a design matched, cross category offer with new storage and bathing options. (This range has been renamed under Ideal Standard Concept Air Cube).

  • Part Of An Extensive Range
  • Furniture Unit Compatibility
  • Wall Hung, Countertop or Pedestal / Semi Pedestal Use
  • Finish: White (01)
  • Material: Fine Fireclay
  • Weight: 14.00Kg
  • Width: 500mm, 550mm, 600mm
  • Depth: 450mm, 460mm
  • Capacity: 4.9 Litres, 5.6 Litres, 6 Litres

Special Notes

Washbasin wall mounted using E0157 wall fixing set, with semi pedestal fixed to wall with brackets supplied or full pedestal mounted using 2 screws through the back of wall (not supplied). When fitted to furniture washbasin must be secured to wall with E0157 wall fixing set. Can be used with dedicated Concept Air basin unit - see furniture section.

Illustrated Code

U849601+U854401

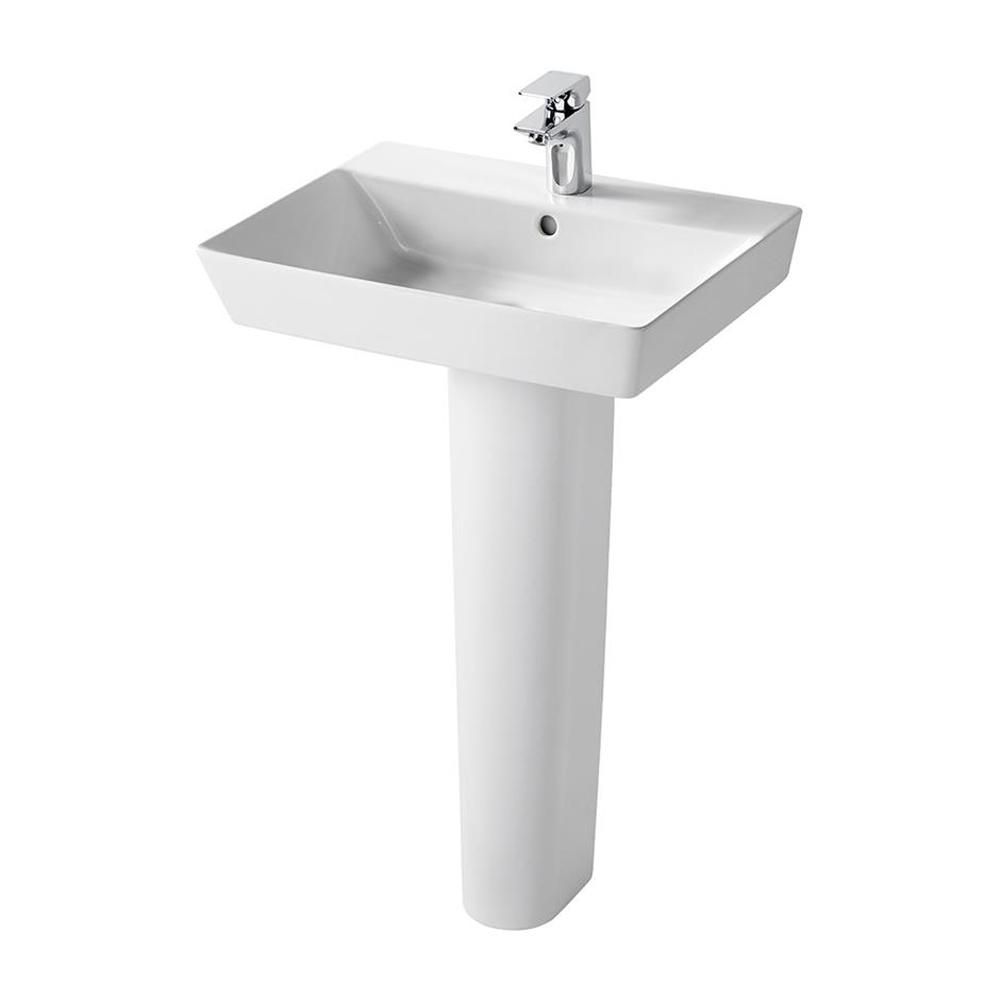

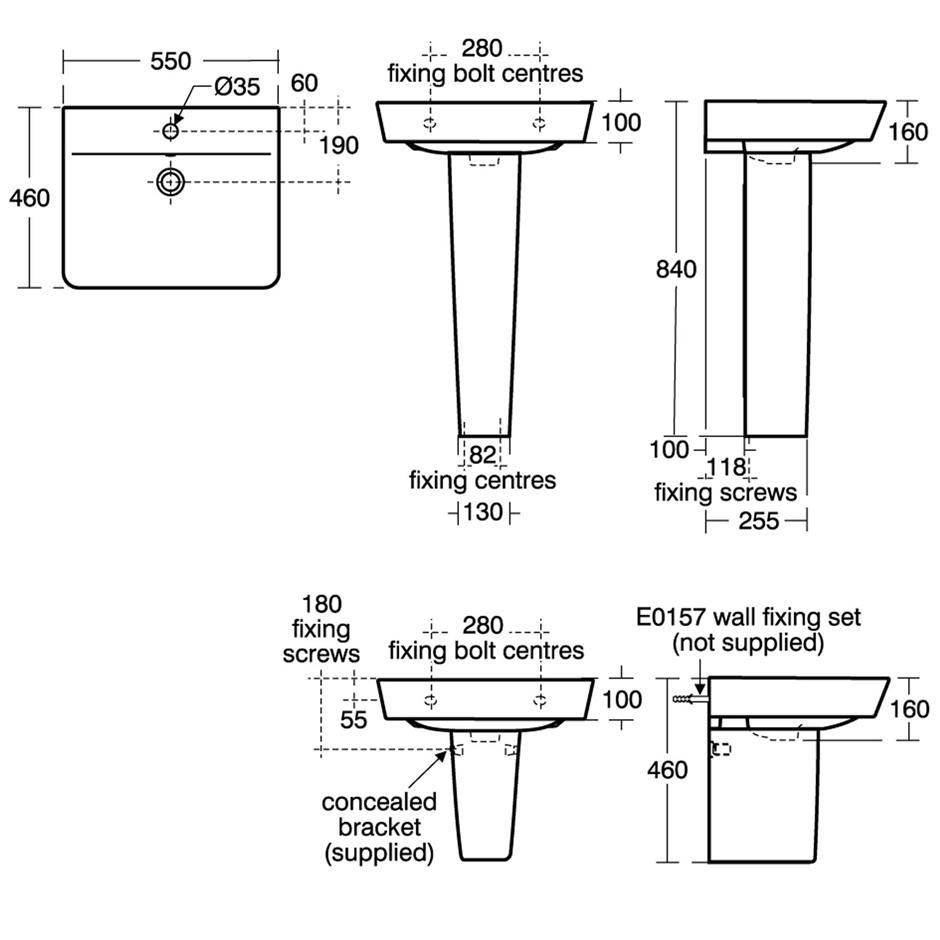

  • U849601: Isarca 55cm Basin - One Taphole
  • U854401: Isarca Full Pedestal

U849601+U854501

  • U849601: Isarca 55cm Basin - One Taphole
  • U854501: Isarca Semi-Pedestal

U849601

  • U849601: Isarca 55cm Basin - One Taphole

U849701+U854401

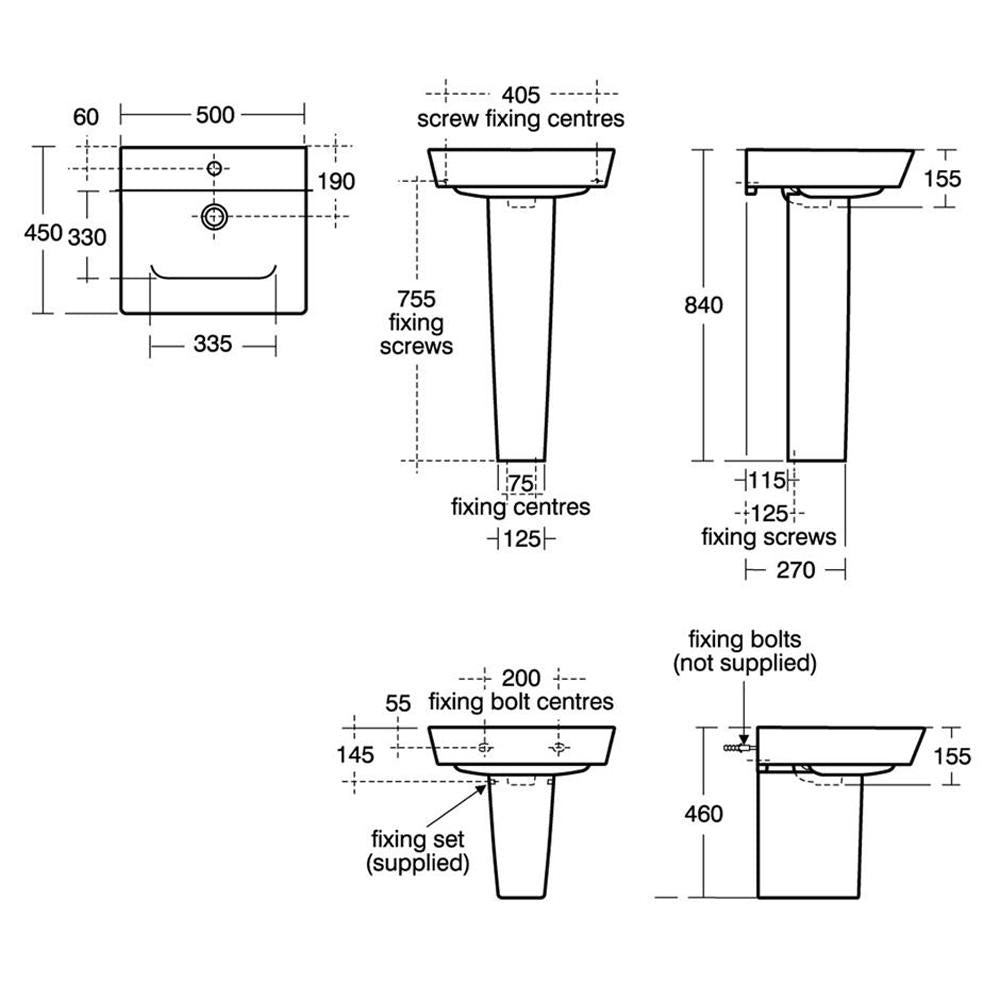

  • U849701: Isarca 50cm Basin - One Taphole
  • U854401: Isarca Full Pedestal

U849701+U854501

  • U849701: Isarca 50cm Basin - One Taphole
  • U854501: Isarca Semi-Pedestal

U849701

  • U849701: Isarca 50cm Basin - One Taphole

E076601+E078101

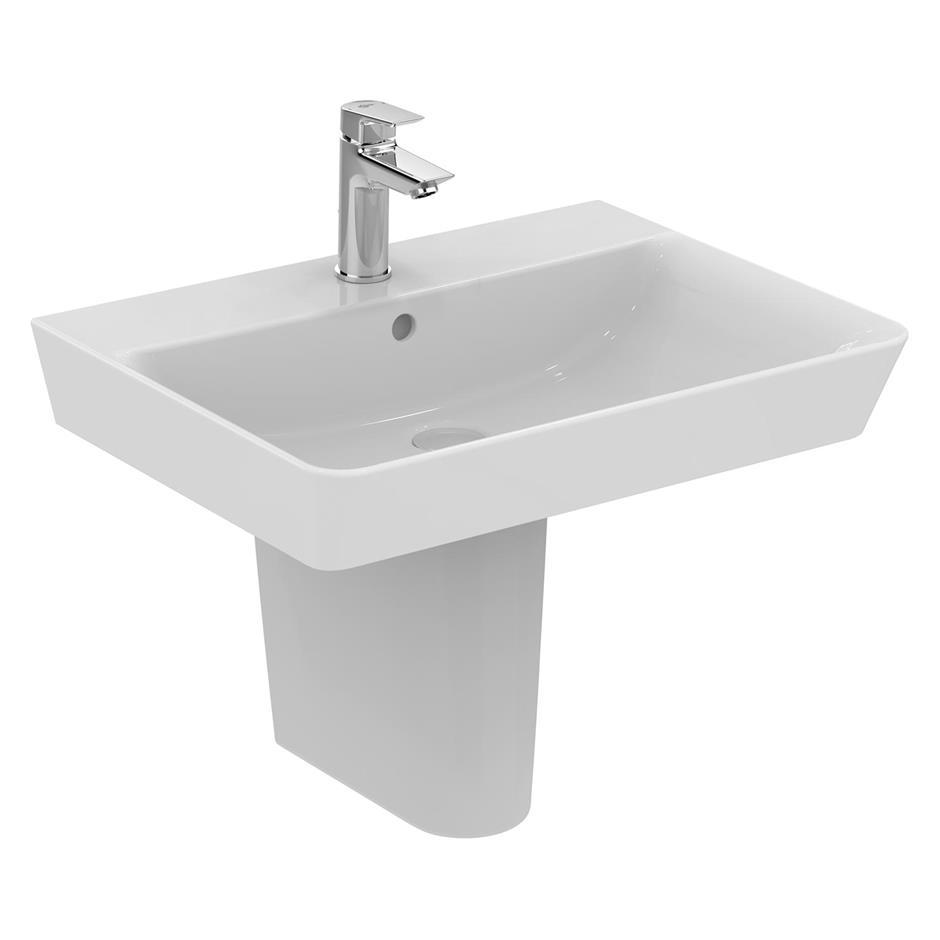

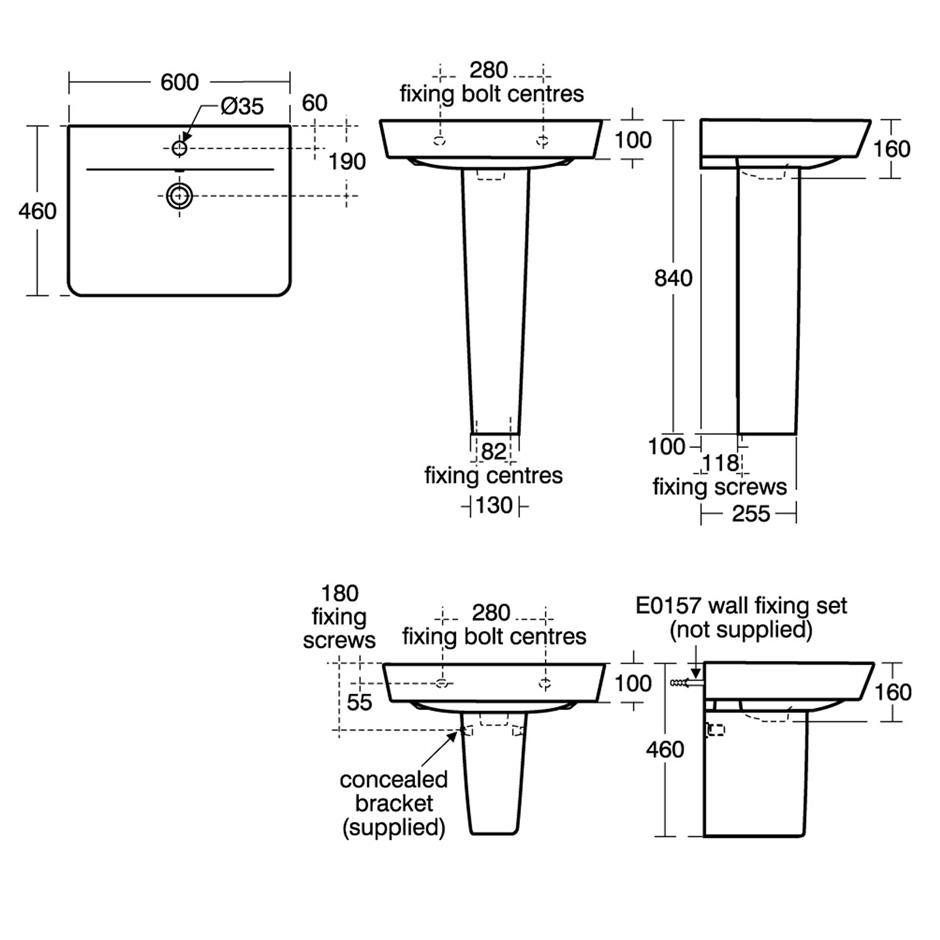

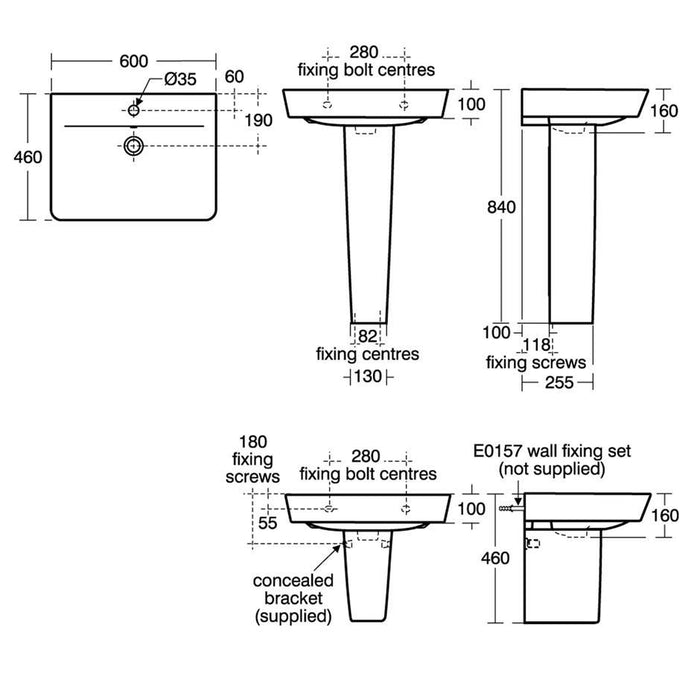

  • E076601: Ideal Standard Concept Air Cube 60cm Basin - One Taphole
  • E078101: Ideal Standard Concept Full Pedestal

E076601+E077201

  • E076601: Ideal Standard Concept Air Cube 60cm Basin - One Taphole
  • E077201: Ideal Standard Concept Semi Pedestal

E076601

  • E076601: Ideal Standard Concept Air Cube 60cm Basin - One Taphole

 U854401

  • U854401: Isarca Full Pedestal

U854501

  • U854501: Isarca Semi-Pedestal

Downloads

Click for U849601 Data Sheet

Click for U849701 Data Sheet

Click for E076601 Data Sheet
