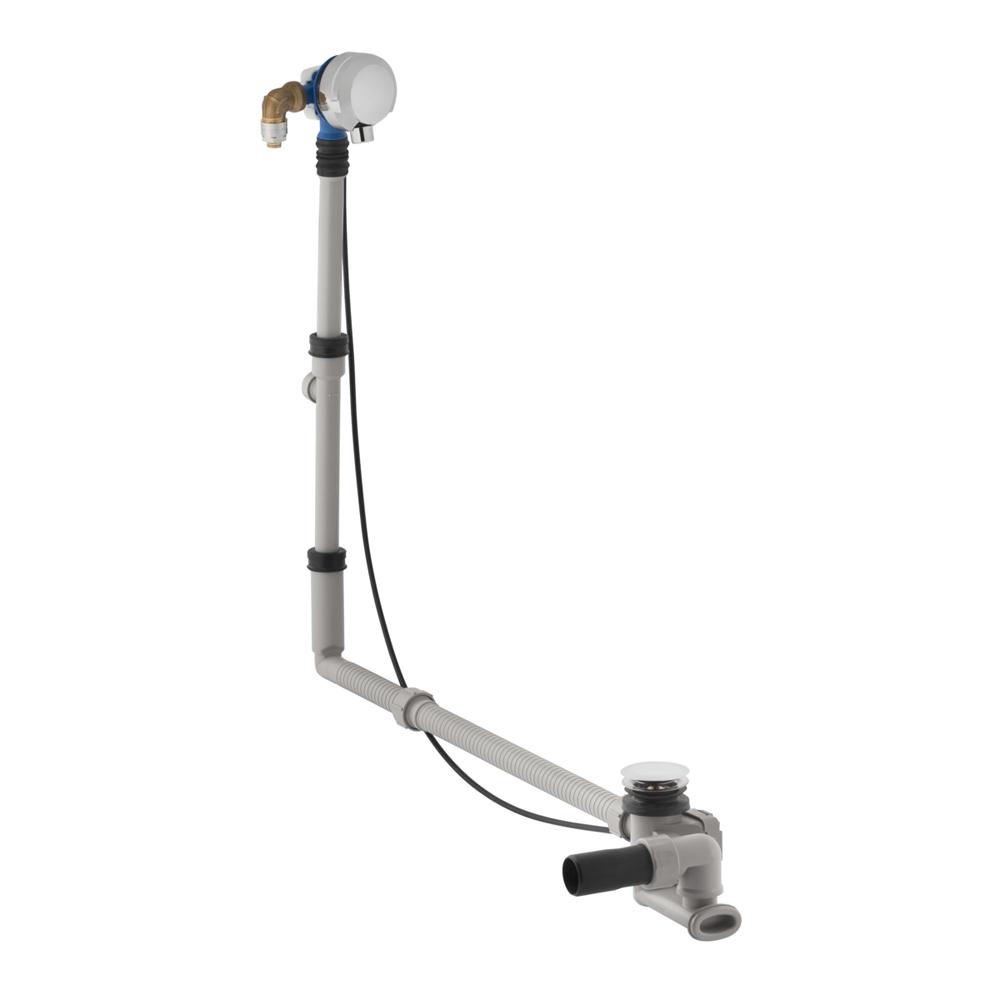

Geberit 70cm Bathtub Drain with Turn Handle Actuation and Inlet

by Geberit
Save £37.73
Original price £318.73
Current price £281.00
CODE: 150.713.21.1

Description

Characteristics

  • Quality-monitored in accordance with EN 274-3
  • With overflow and inlet

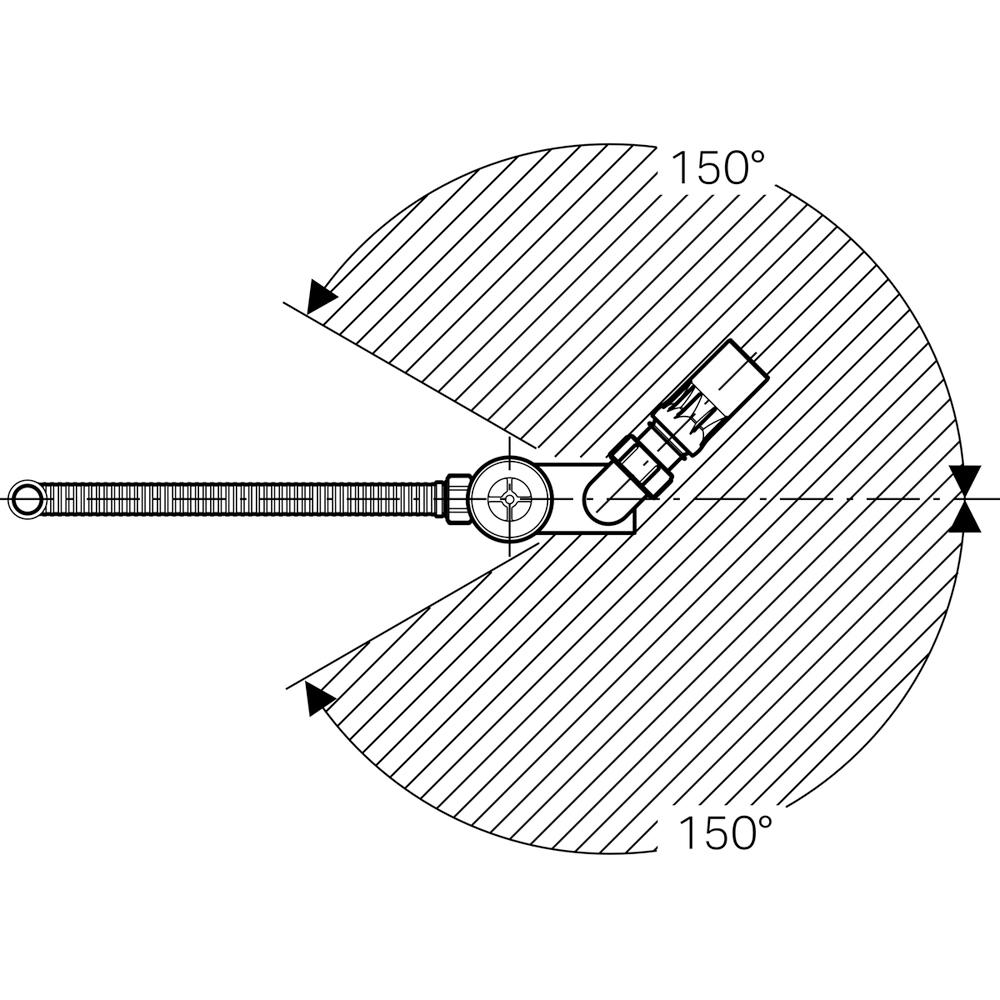

  • Inlet jet can be aligned
  • Double-sided seals on drain and overflow
  • Overflow head with extendible mount can be fastened

Technical data

  • Line noise at 3 bar : 15 dB(A)
  • Sound class : 1
  • Inlet capacity : 0.35 l/s
  • Discharge rate : 0.85 l/s
  • Overflow discharge rate : 0.6 l/s
  • Depth of water seal : 50 mm

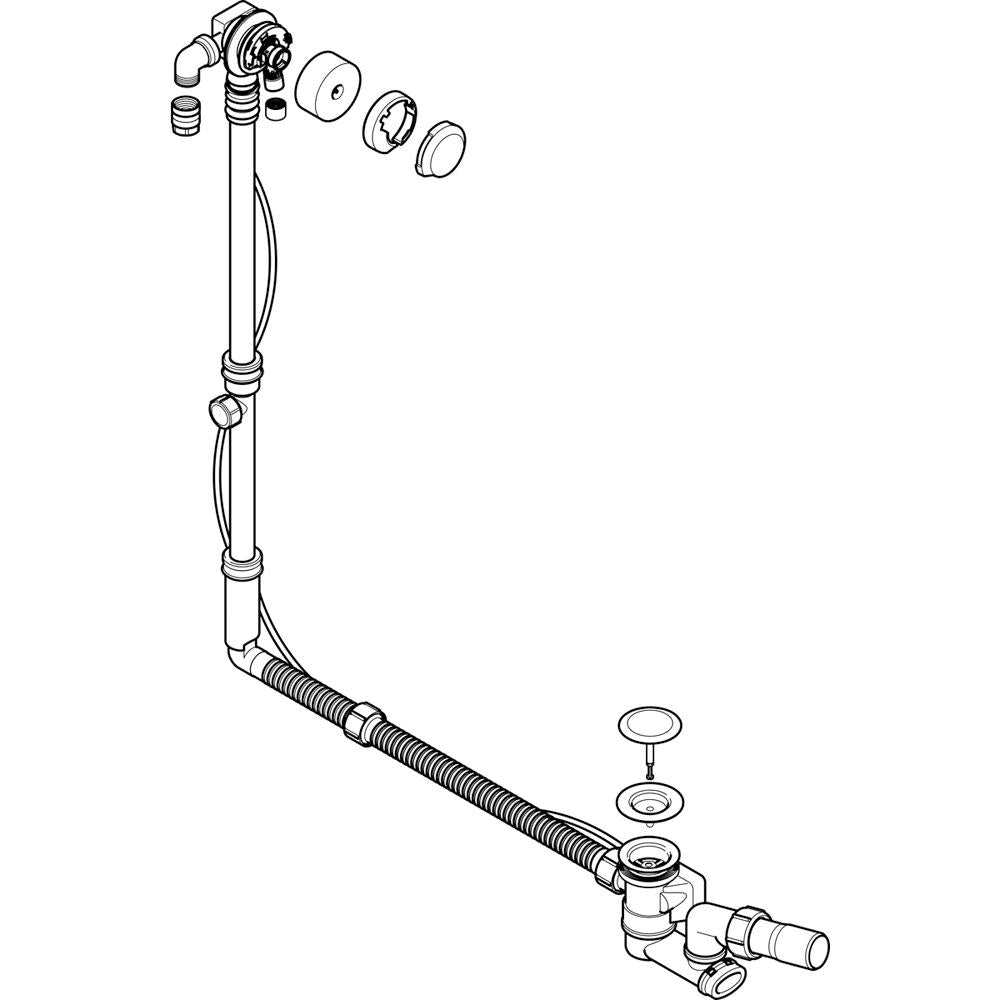

Scope of delivery

  • Waste outlet
  • Trap
  • Overflow head with inlet
  • Elbow tap connector 90° with male thread G 3/4" and Euro cone ø 20 cm, rotatable
  • T-piece, in overflow
  • Straight connector made of PE-HD, ø 43 mm
  • Ready-to-fit set
  • Protection box
  • Fastening material

Application purposes

  • For bathtubs made of steel, plastic or cast iron
  • For custom-size bathtubs
  • For bathtubs with valve hole ø 52 mm

Spare Parts

Art. No. Description
240.465.00.1 Waste outlet set for Geberit bathtub drain
854.454.00.1 Geberit connection bend with union nut made of PE: d=40-50mm
241.995.00.1 Geberit compression joint
241.675.00.1 Geberit straight connector with union nut
240.464.06.1 Extension to overflow pipe, for Geberit bathtub drain: Rg=40 x 1/8", granite grey
240.463.06.1 Geberit overflow bend: granite grey
854.406.06.1 Geberit union nut: granite grey
894.050.16.1 Geberit compression ring: black
891.210.00.1 Geberit compression seal
150.245.06.1 Geberit overflow pipe with supplementary connection and sleeve: granite grey
252.888.06.1 Geberit union with blind plug: granite grey
854.713.00.1 Geberit flat gasket
240.462.00.1 Geberit sleeve
240.461.00.1 Geberit bellows for overflow head
240.609.00.1 Geberit union connector for Euro cone: d=20mm
240.598.00.1 Geberit elbow adaptor 90° with plug-in connection and Euro cone
241.712.16.1 Section seal for Geberit bathtub drain with push actuation Push Control: black
241.506.00.1 Geberit inlet,complete

Product Details

Art. no. Surface / Colour
150.713.21.1 Gloss chrome-plated

Downloads

Click for Data Sheet

Click for Installation instructions
