Tavistock Opal Back to Wall WC Unit

Back to Wall Unit

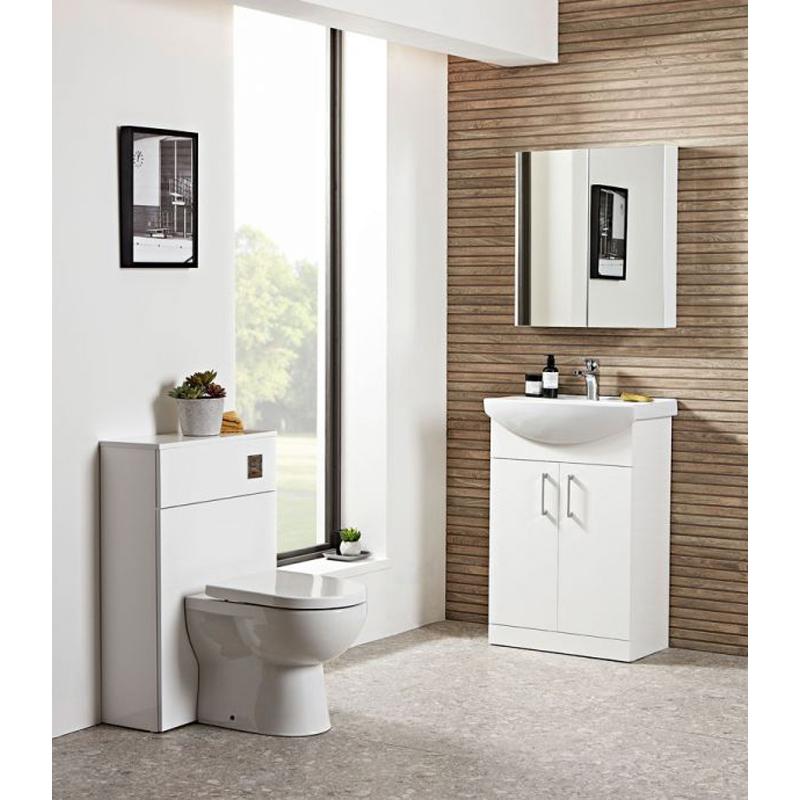

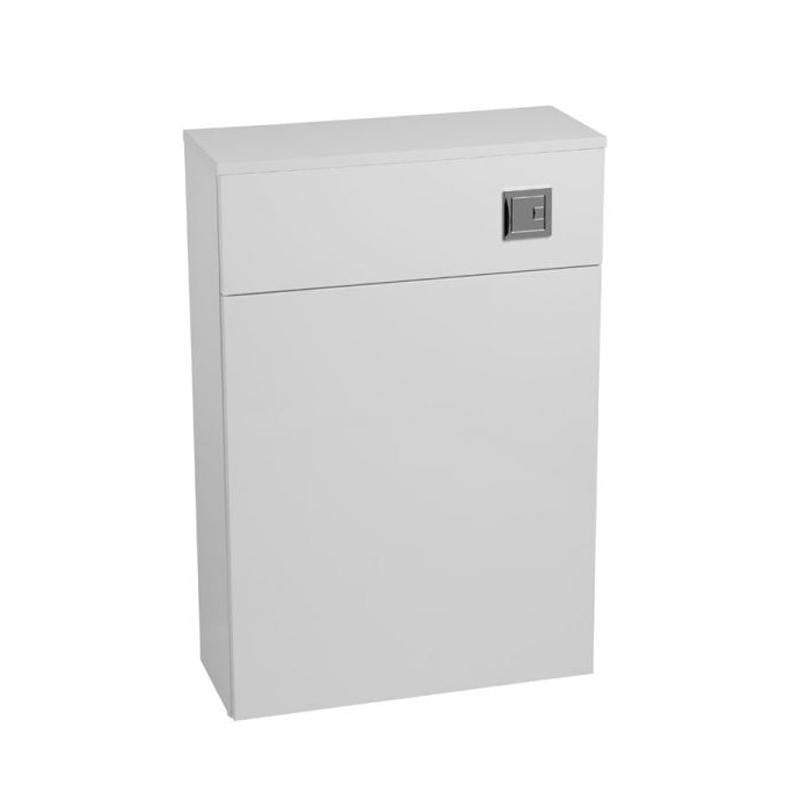

This gloss white finish 500mm back to wall unit with a gloss white worktop offers a clean and affordable look for bathrooms where space is at a premium. The versatile Opal range also allows you the option of creating a fitted look by coordinating this unit with a Opal freestanding unit of your choice.

Team the Opal back to wall unit with any of the Tavistock back to wall WC pans to create your own personalised look in your bathroom.

The Opal back to wall unit is compatible with both Tavistock Vortex and Apex cisterns. Can be used with Ellipse and Square push plates should you wish to upgrade. Cistern and push plate pricing can be found below under additional items.

• Supplied with worktop
• 10 year guarantee

Unit size: 570(w) x 840(h) x 235(d)mm

Cistern

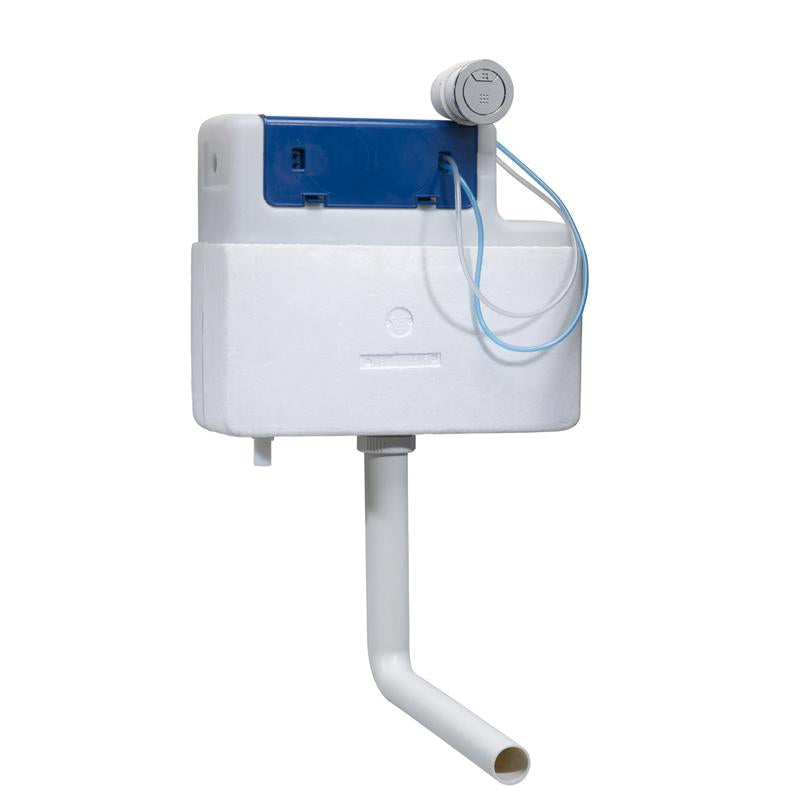

The Vortex cistern is compatible with all Tavistock back to wall pans and furniture units. The Vortex dual flush concealed cistern has a bottom entry inlet and is provided pre-assembled. Featuring a pneumatic dual flush valve 3/6L cistern is ideal for slimline and low height furniture as it is only 135mm deep. The cistern has top and front access and is suitable for 0.2-10.0bar working pressure range.

You can opt to upgrade the flush button on your Vortex cistern to a square dual flush button or alternatively an Ellipse push plate. Both buttons have a chrome finish and feature pneumatic dual flush. (See additional items below for pricing).

WRAS approved

Features

• 3/6 litre adjustable dual flush options
• Pneumatic flush valve
• Push button operation
• Top & front access
• 0.2 - 10.0bar working pressure range
• 200,000 cycle endurance tested
• Rigorously tested before leaving factory
• 90 degree flush pipe for neat installation
• Designed to work with low height furniture
• Ideal for slimline furniture at only 135mm deep
• Constructed from high density polyethylene with polystyrene insulation jacket to prevent condensation and allow for quiet re-filling
• WRAS approved.

Cistern size: 434(w) x 365(h) x 135(d)mm

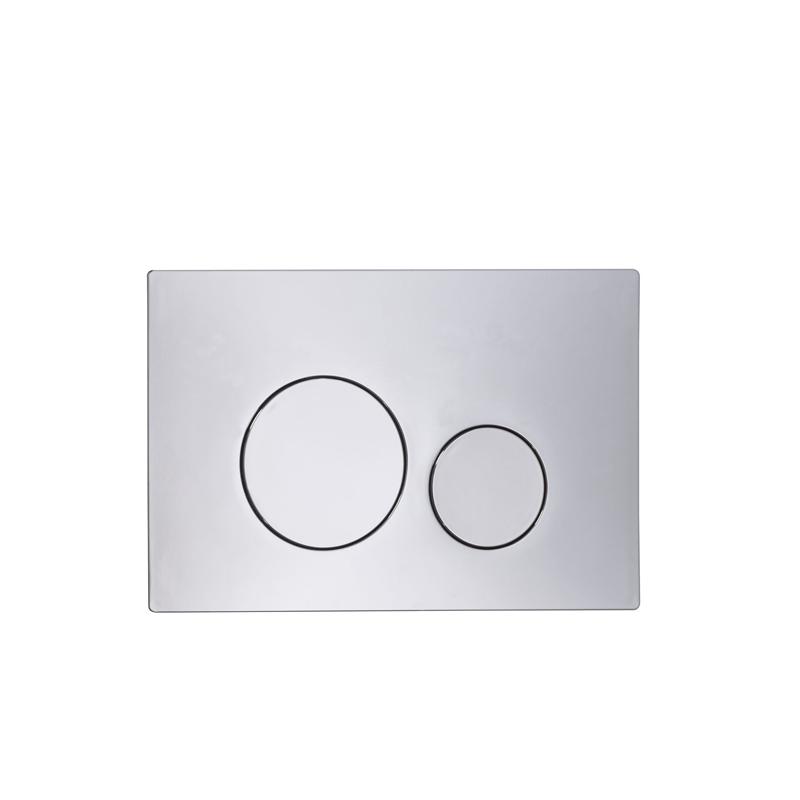

TR9012

A chrome dual flush plate with a circular button design. Designed to be used with the In-wall cistern and wall hung WC frames .

Features

• Dual flush
• Chrome finish

Size: 210(w) x 137(h)mm

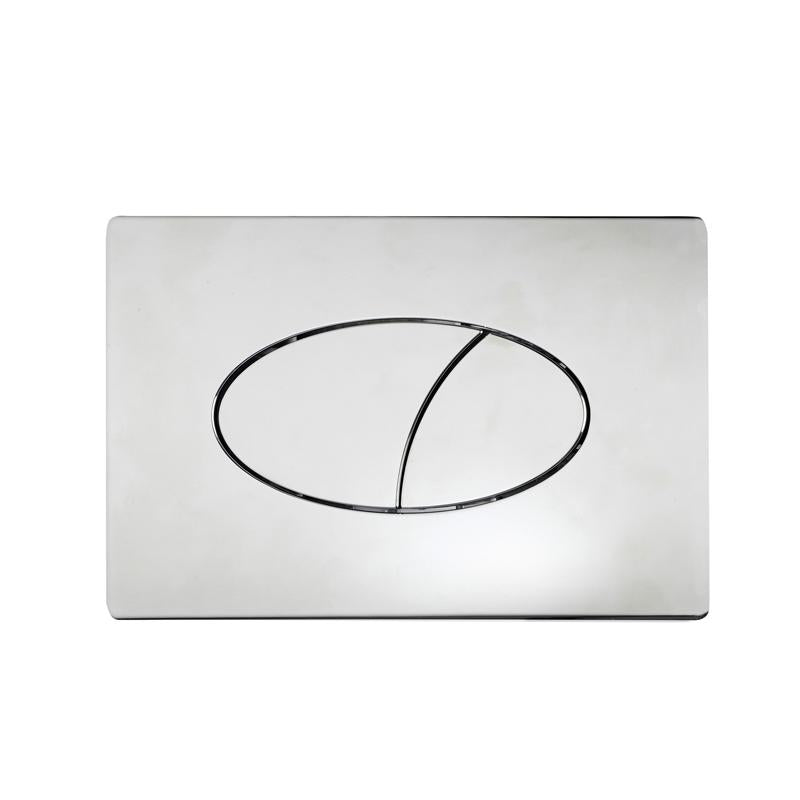

TR9004

A chrome dual flush plate with an elliptical button design. Designed to be used with concealed cistens and wall hung WC frames.

Features

• Dual flush
• Chrome finish

Size: 240(w) x 142(h)mm

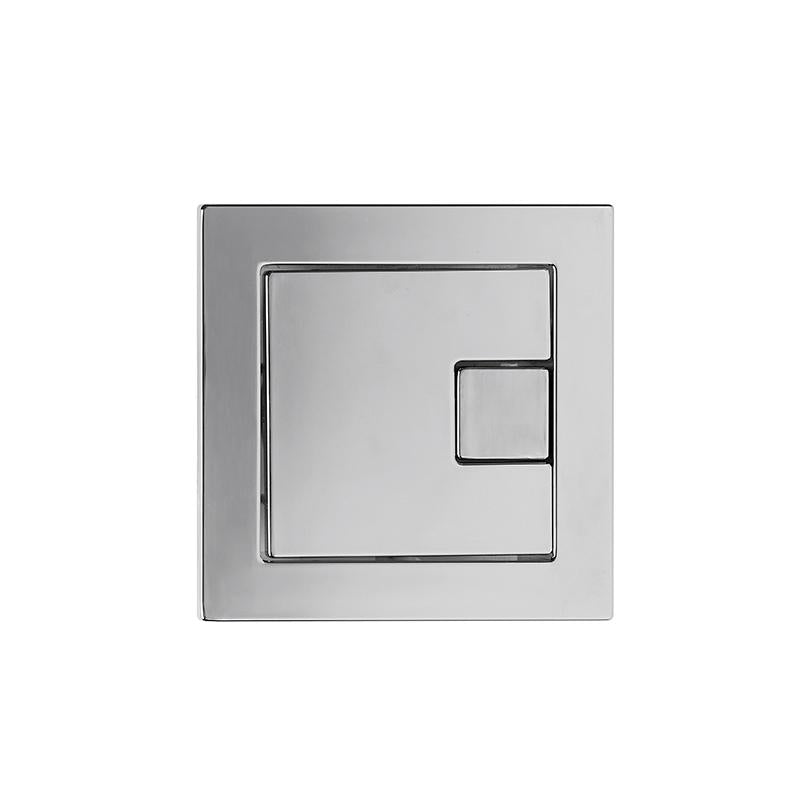

TR9003

A compact square design dual flush button. An alternative to the round flush button that comes with the concealed cisterns, Vortex and Comfort height.

Features

• Dual flush button
• Chrome finish
• Square design

Size: 72(w) x 72(h)mm

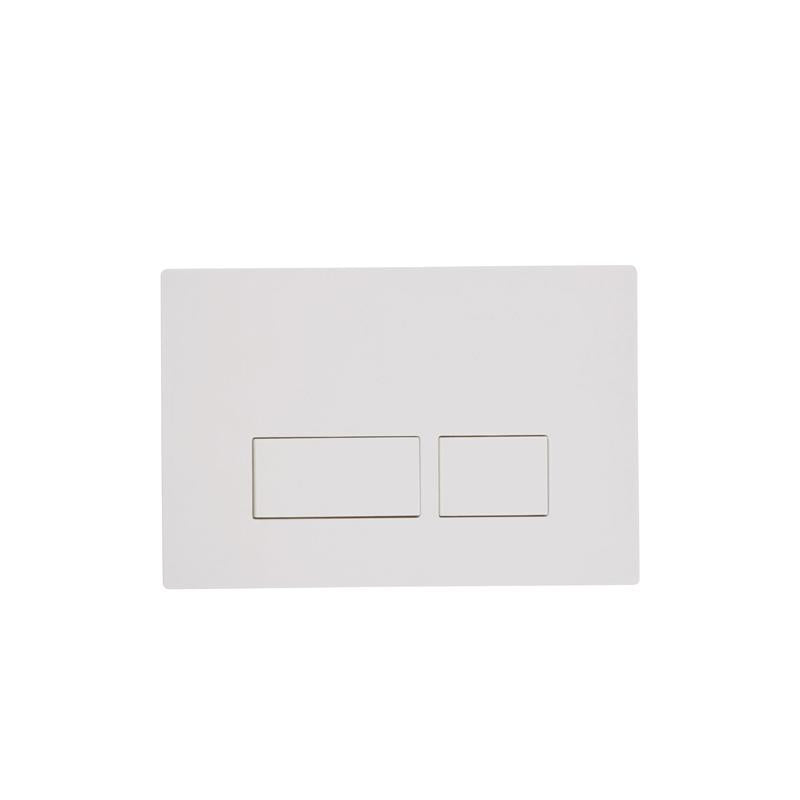

TR9011

A white dual flush plate with an angular button design. Designed to be used with the In-wall cistern and wall hung WC frames .

Features

• Dual flush
• White finish

Size: 210(w) x 137(h)mm

Illustrated Code

Downloads

Click for DC12009 Data Sheet

Click for DC12009-fitting-instruction Data Sheet

Click for VOR790-fitting-instruction Data Sheet
