Burlington 2 Tap Hole Arch Mixer with 230mm Centres Curved Spout

Save £85.00
Original price £441.00
Current price £356.00
CODE: CL28

Description

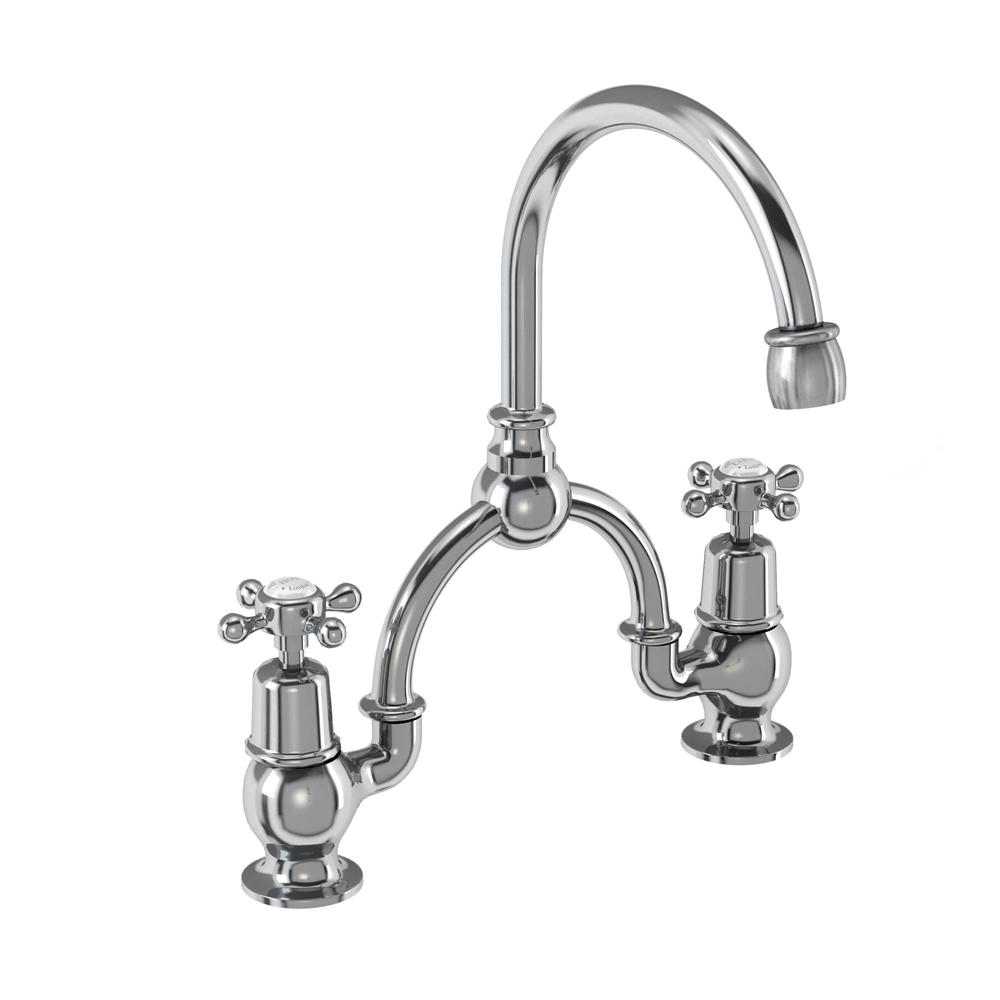

Illustrated Code

CL28
  • T25: 2 tap hole arch mixer with curved spout (230mm centers)
  • T1: Claremont tap handles (pair)
  • TOTAL: Code: CL28

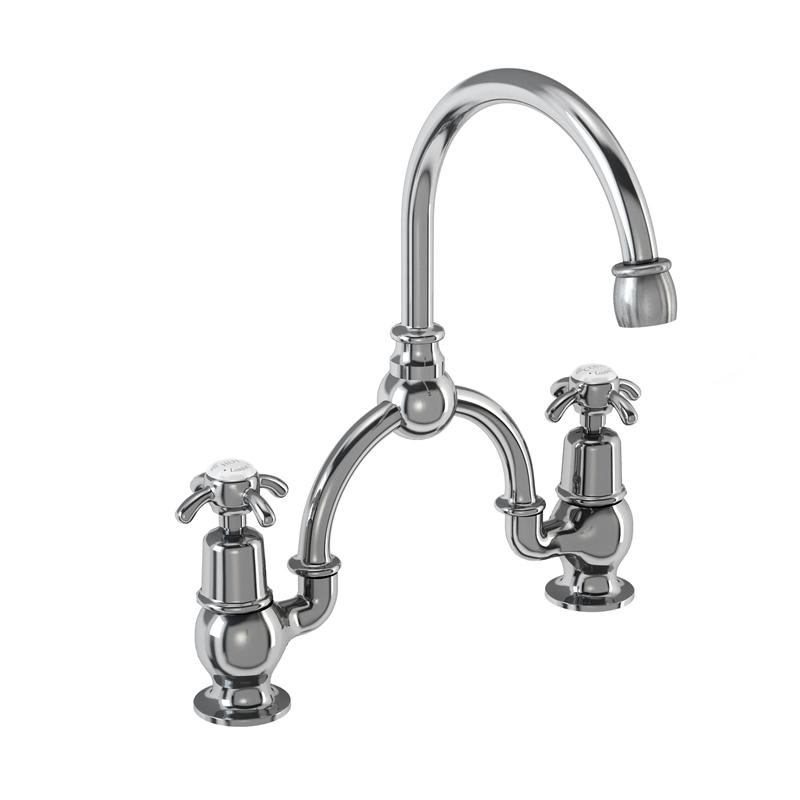

AN28
  • T25: 2 tap hole arch mixer with curved spout (230mm centers)
  • T2: Anglesey tap handles (pair)
  • TOTAL: Code: AN28
BI28
  • T25: 2 tap hole arch mixer with curved spout (230mm centers)
  • T3: Birkenhead tap handle (pair)
  • TOTAL: Code: BI28

Additional Information

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

This tap is for fitting to classic basins with invisible overflow B14, B16

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

  • SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
  • SP931 decorative cap of Burlington tap handles: Cold
  • SP930 decorative cap of Burlington tap handles: Hot
  • SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
  • SP1006: O rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
  • SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
  • SP27: T9, T24, T25 3, 4 full turn cartridge

Specification

Product Type Traditional
Material T1: Tap handles - Brass
T2: Tap handles - Brass
T25: Tap - Brass
T25-QT: Tap - Brass
T3: Tap handles - Brass
T4: Tap handles - Brass
T4B: Regent tap base - Brass
Size T1: 267 x 267 x 65mm
T2: 64 x 64 x 237mm
T25: 390 x 270 x 48mm
T25-QT: 390 x 270 x 48mm
T3: 65 x 65 x 233mm
T4: 94 x 28 x 28mm
T4B: 545 x 545 x 273mm
Nett Weight T1: Tap handles - 0.18kg
T2: Tap handles - 0.15kg
T25: Tap - 1.8kg
T25-QT: Tap - 1.75kg
T3: Tap handles - 0.15kg
T4: Tap handles - 0.25kg
T4B: Regent tap base - 0.3kg
Gross Weight Including Packaging T1: Tap handles - 0.2kg
T2: Tap handles - 0.2kg
T25: Tap - 2.2kg
T25-QT: Tap - 2.4kg
T3: Tap handles - 0.2kg
T4: Tap handles - 0.3kg
T4B: Regent tap base - 0.5kg
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T2: 52 x 52 x 65 = 0.0002 m3
T25: 75 x 510 x 430 = 0.0164 m3
T25-QT: 510 x 430 x 75 = 0.0164 m3
T3: 70 x 65 x 65 = 0.0003 m3
T4: 105 x 70 x 35 = 0.0003 m3
T4B: 110 x 70 x 88 = 0.0007 m3
Colour T2: Tap handles - Chrome plated
T25: Tap - Chrome plated
T25-QT: Tap - Chrome plated
T4: Tap handles - Chrome plated
T4B: Regent tap base - Chrome plated
Barcode T1: 5055806006683
T25: 5055806010758
T2: 5055806006928
T3: 5055806007000
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T2: 52 x 52 x 65 = 0.0002 m3
T25: 75 x 510 x 430 = 0.0164 m3
T25-QT: 510 x 430 x 75 = 0.0164 m3
T3: 70 x 65 x 65 = 0.0003 m3
T4: 105 x 70 x 35 = 0.0003 m3
T4B: 110 x 70 x 88 = 0.0007 m3
Colour T2: Tap handles - Chrome plated
T25: Tap - Chrome plated
T25-QT: Tap - Chrome plated
T4: Tap handles - Chrome plated
T4B: Regent tap base - Chrome plated

Downloads

Click for Instructions T25 (English)

Click for Instructions T25 (French)
