Burlington 2 Tap Hole Arch Mixer with Curved Spout, 200mm Centres

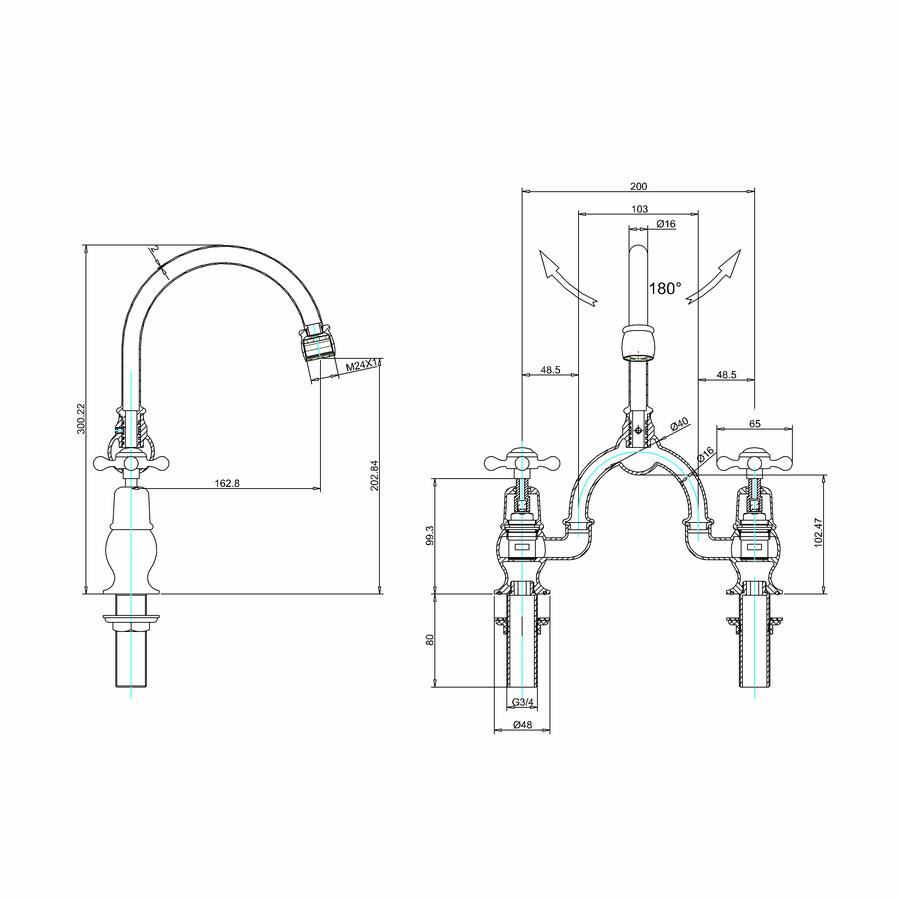

Illustrated Code

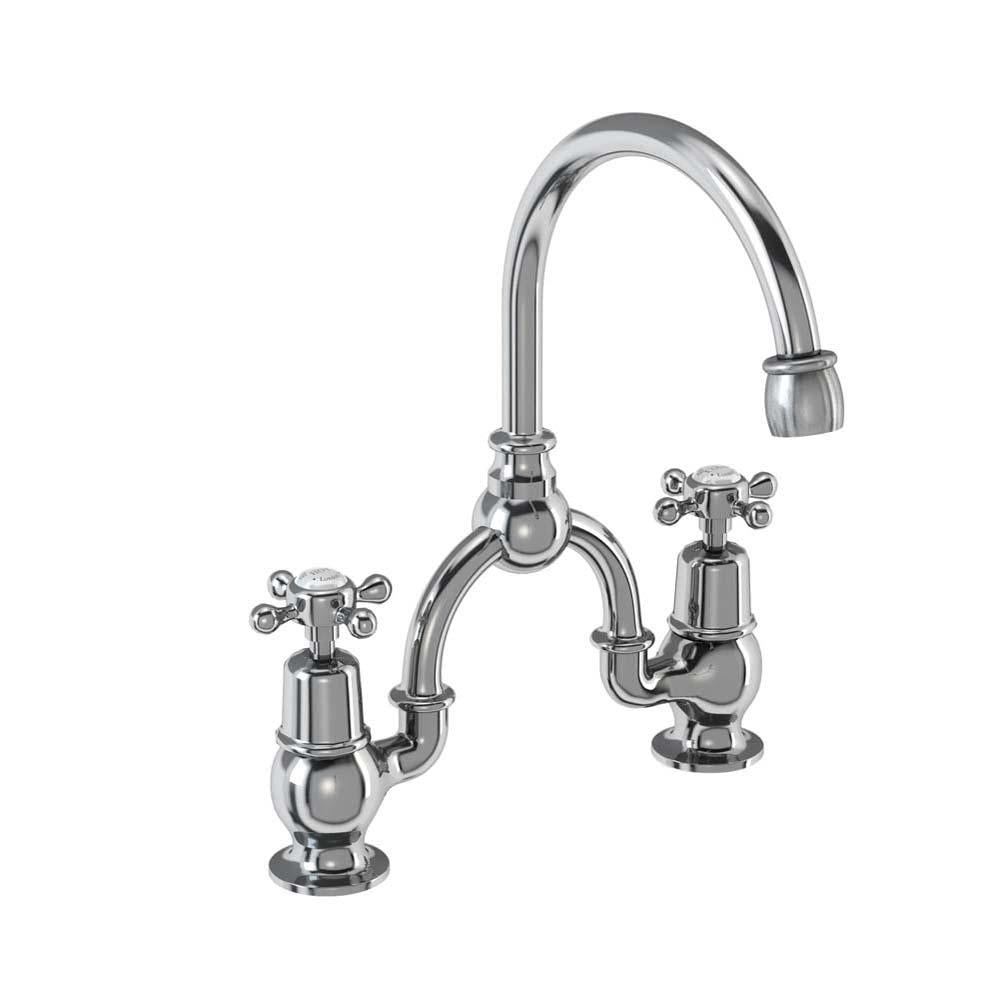

CL27

• T24: 2 tap hole arch mixer with curved spout (200mm centers)
• T1: Claremont tap handles (pair)

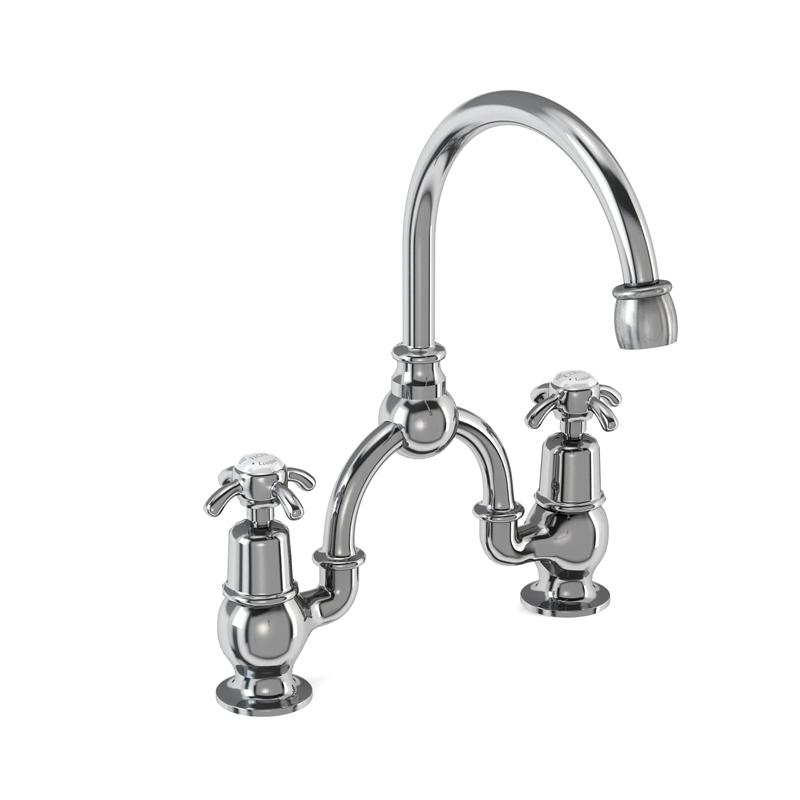

AN27

• T24: 2 tap hole arch mixer with curved spout (200mm centers)
• T2: Anglesey tap handles (pair)

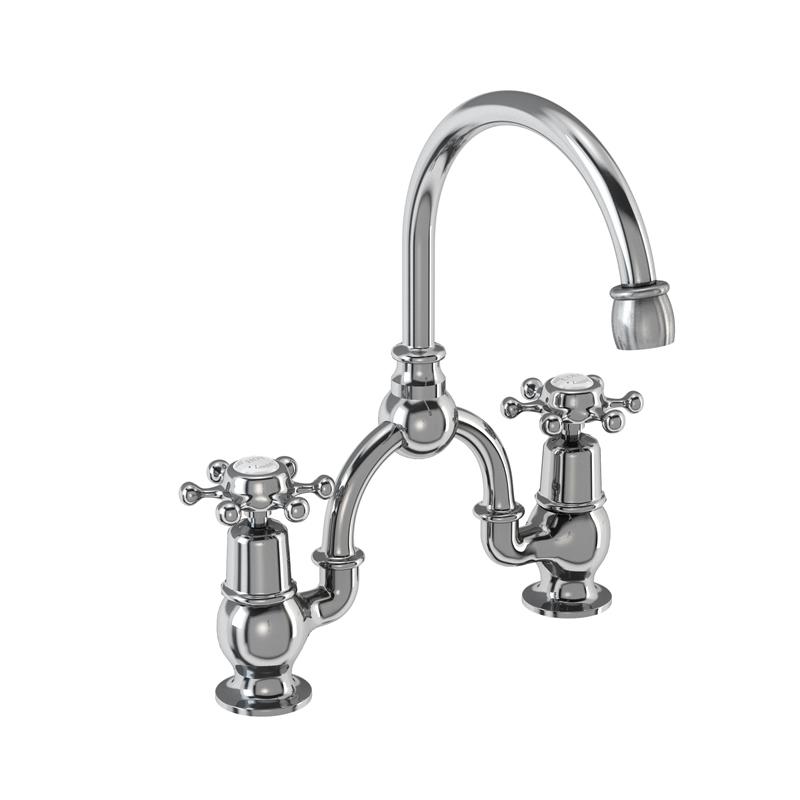

BI27

• T24: 2 tap hole arch mixer with curved spout (200mm centers)
• T3: Birkenhead tap handle (pair)

Details

Supplied with Flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Supplied without a basin waste

The 200mm tap centres is standard tap hole spacing for basins.

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP1006: O rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP27: T9, T24, T25 3, 4 full turn cartridge

Specifications

Product Finish	Chrome Plated
Product Style	Traditional
Material	T1: Tap handles - Brass T2: Tap handles - Brass T24: Tap - Brass T3: Tap handles - Brass
Size	T1: 267 x 267 x 65mm T2: 64 x 64 x 237mm T24: 380 x 240 x 48mm T3: 65 x 65 x 233mm
Packed Dimension	T1: 52 x 52 x 65 = 0.0002 m3 T2: 52 x 52 x 65 = 0.0002 m3 T24: 510 x 430 x 75 = 0.0164 m3 T3: 70 x 65 x 65 = 0.0003 m3
Colour	T2: Tap handles - Chrome plated T24: Tap - Chrome plated
Barcode	T1: 5055806006683 T24: 5055806010727 T2: 5055806006928 T3: 5055806007000
Nett Weight	T1: Tap handles - 0.18kg T2: Tap handles - 0.15kg T24: Tap - 1.765kg T3: Tap handles - 0.15kg
Gross Weight Including Packaging	T1: Tap handles - 0.2kg T2: Tap handles - 0.2kg T24: Tap - 2.21kg T3: Tap handles - 0.2kg

Downloads

Click for Instructions T24 (English)

Click for Instructions T24 (French)
