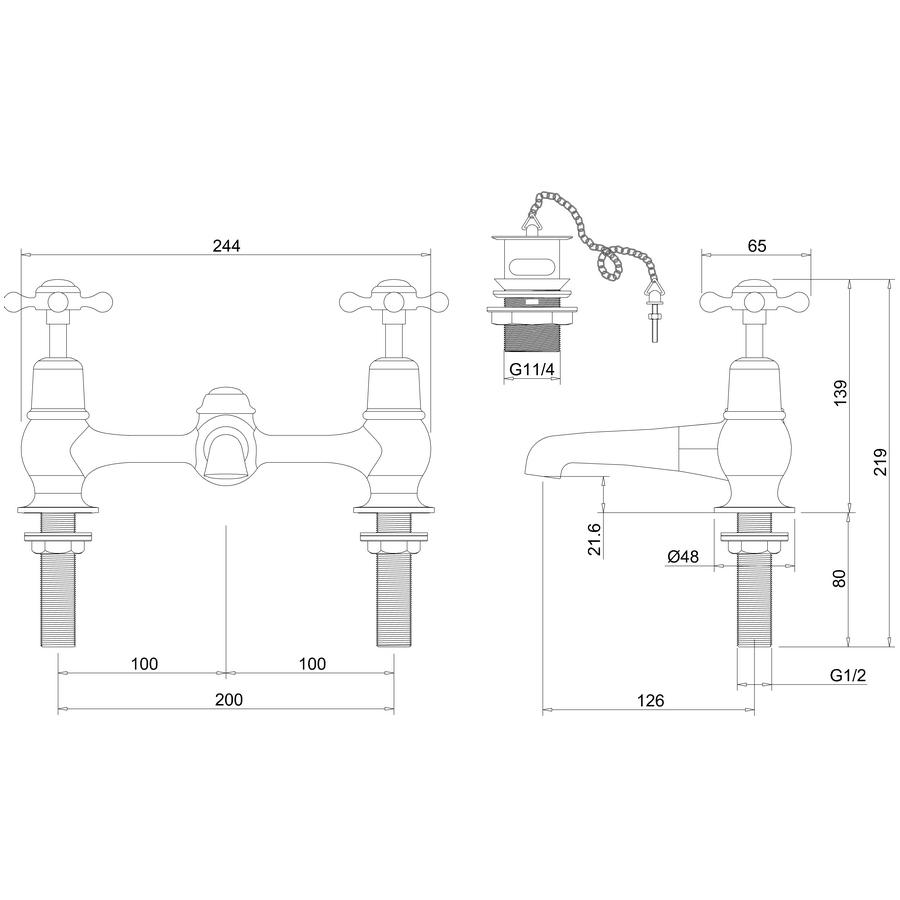

Burlington 2 Tap Hole Bridge Low Central Indice Basin Mixer with Plug and Chain

Illustrated Code

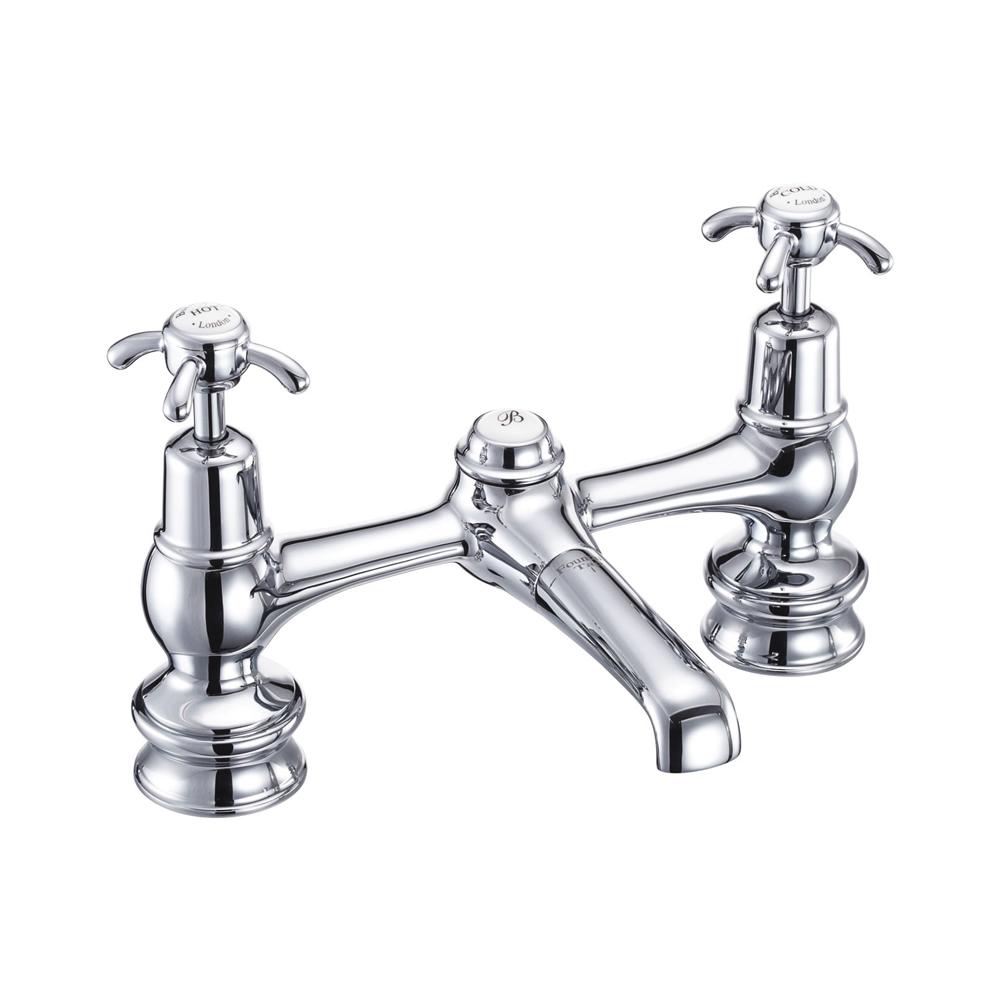

ANR10

• T16: Bridge basin mixer, with plug & chain waste (excluding tap heads & base)
• T2: Anglesey tap handles (pair)
• T4B-2: Regent small pair of tap bases (for basin taps & bridge tap - pair)
• TOTAL: Code: ANR10

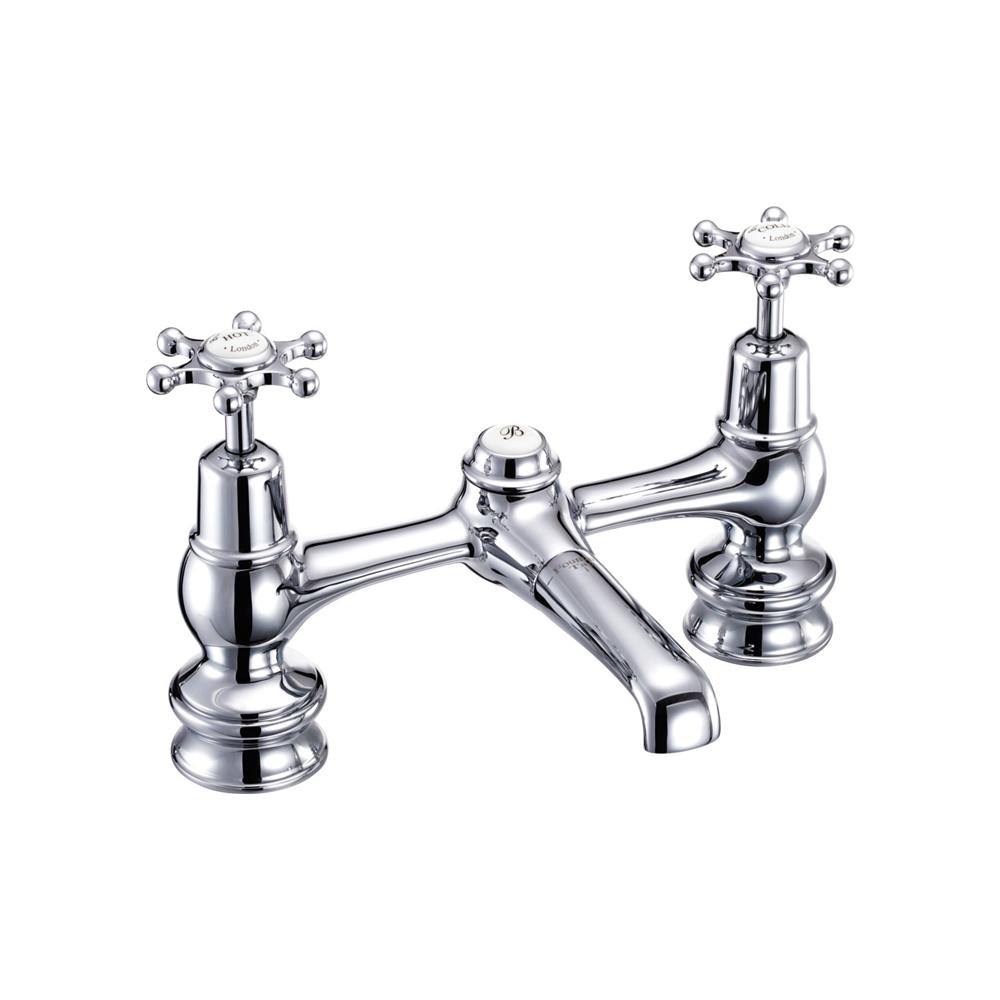

BIR10

• T16: Bridge basin mixer, with plug & chain waste (excluding tap heads & base)
• T3: Birkenhead tap handle (pair)
• T4B-2: Regent small pair of tap bases (for basin taps & bridge tap - pair)
• TOTAL: Code: BIR10

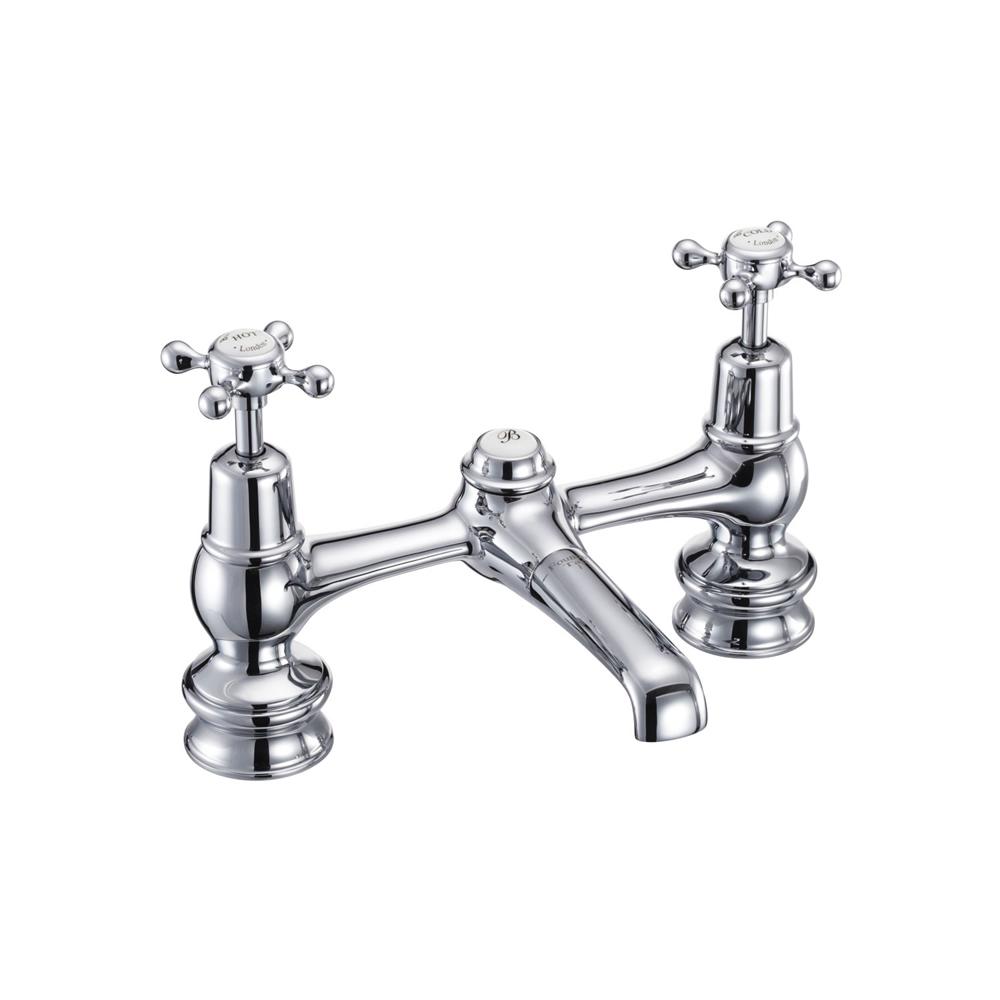

CLR10

• T16: Bridge basin mixer, with plug & chain waste (excluding tap heads & base)
• T1: Claremont tap handles (pair)
• T4B-2: Regent small pair of tap bases (for basin taps & bridge tap - pair)
• TOTAL: Code: CLR10

Additional Information

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

• SP882: Aerator for product T16, T16-QT
• SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
• SP931 decorative cap of Burlington tap handles: Cold
• SP930 decorative cap of Burlington tap handles: Hot
• SP934: Decorative head of product T16, T16-QT, T15, T15-QT
• SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
• SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
• SP451: Key for T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
• SP884: Plug (including the chain, stuo and nut) of product W1, T16, T16-QT, T13, T13-QT
• SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
• SP48: T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
• SP28: T5, T6, T7, T16 1, 2 full turn cartridge
• SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT

Specification

Product Type	Traditional
Material	T1: Tap handles - Brass T16: Tap - Brass T16-QT: Tap - Brass T2: Tap handles - Brass T3: Tap handles - Brass T4: Tap handles - Brass T4B-2: Regent tap base - Brass
Size	T1: 267 x 267 x 65mm T16: 2439 x 150 x 1584mm T16-QT: 2439 x 150 x 1584mm T2: 64 x 64 x 237mm T3: 65 x 65 x 233mm T4: 94 x 28 x 28mm T4B-2: 545 x 545 x 273mm
Nett Weight	T1: Tap handles - 0.18kg T16: Tap - 2kg T16-QT: Tap - 2.05kg T2: Tap handles - 0.15kg T3: Tap handles - 0.15kg T4: Tap handles - 0.25kg T4B-2: Regent tap base - 0.35kg
Gross Weight Including Packaging	T1: Tap handles - 0.2kg T16: Tap - 2.75kg T16-QT: Tap - 2.8kg T2: Tap handles - 0.2kg T3: Tap handles - 0.2kg T4: Tap handles - 0.3kg T4B-2: Regent tap base - 0.45kg
Packed Dimension	T1: 52 x 52 x 65 = 0.0002 m3 T16: 290 x 250 x 188 = 0.0136 m3 T16-QT: 290 x 250 x 188 = 0.0136 m3 T2: 52 x 52 x 65 = 0.0002 m3 T3: 70 x 65 x 65 = 0.0003 m3 T4: 105 x 70 x 35 = 0.0003 m3 T4B-2: 120 x 110 x 88 = 0.0012 m3
Colour	T16: Tap - Chrome plated T16-QT: Tap - Chrome plated T2: Tap handles - Chrome plated T4: Tap handles - Chrome plated T4B-2: Regent tap base - Chrome plated
Barcode	T16: 5055806006867 T2: 5055806006928 T4B-2: 5055806007352 T3: 5055806007000 T1: 5055806006683
Packed Dimension	T1: 52 x 52 x 65 = 0.0002 m3 T16: 290 x 250 x 188 = 0.0136 m3 T16-QT: 290 x 250 x 188 = 0.0136 m3 T2: 52 x 52 x 65 = 0.0002 m3 T3: 70 x 65 x 65 = 0.0003 m3 T4: 105 x 70 x 35 = 0.0003 m3 T4B-2: 120 x 110 x 88 = 0.0012 m3
Colour	T16: Tap - Chrome plated T16-QT: Tap - Chrome plated T2: Tap handles - Chrome plated T4: Tap handles - Chrome plated T4B-2: Regent tap base - Chrome plated

Downloads

Click for Instructions T16 (English)

Click for Instructions T16 (French)
