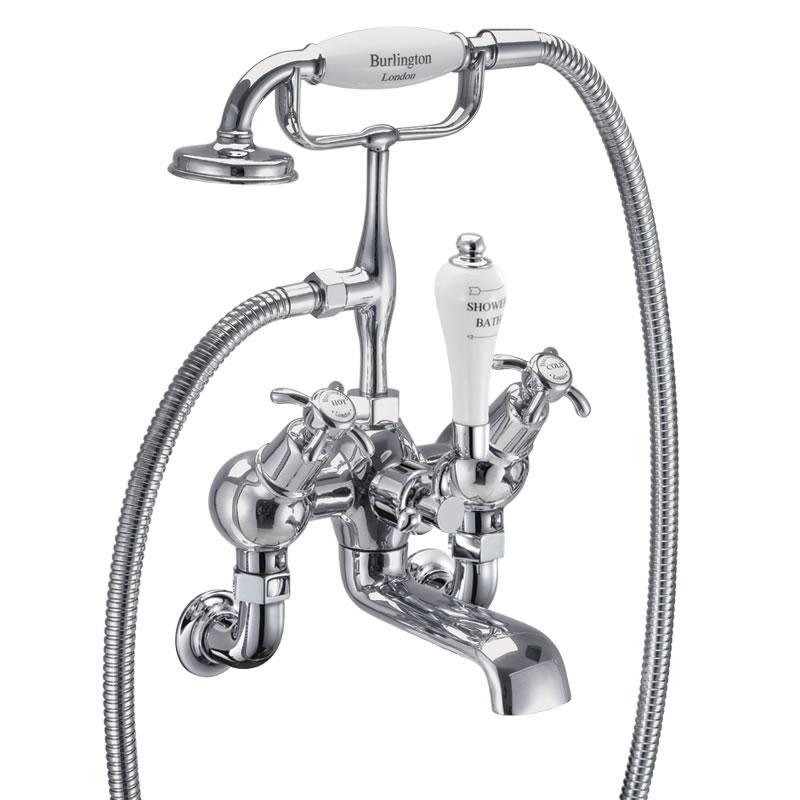

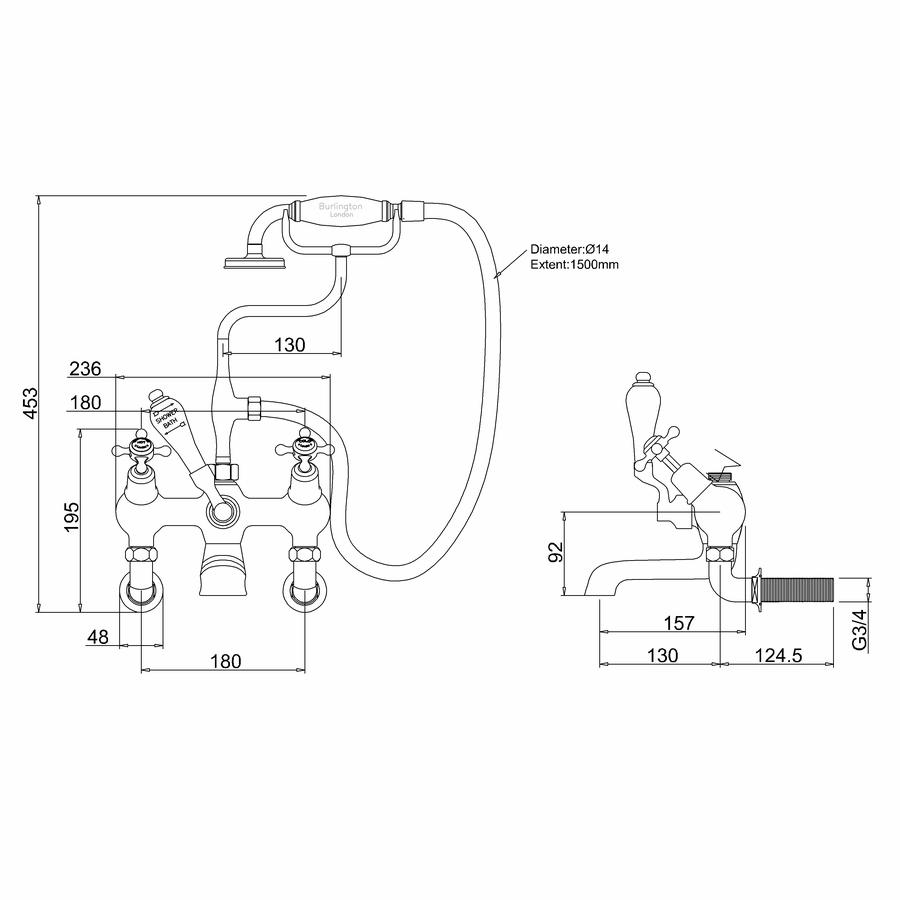

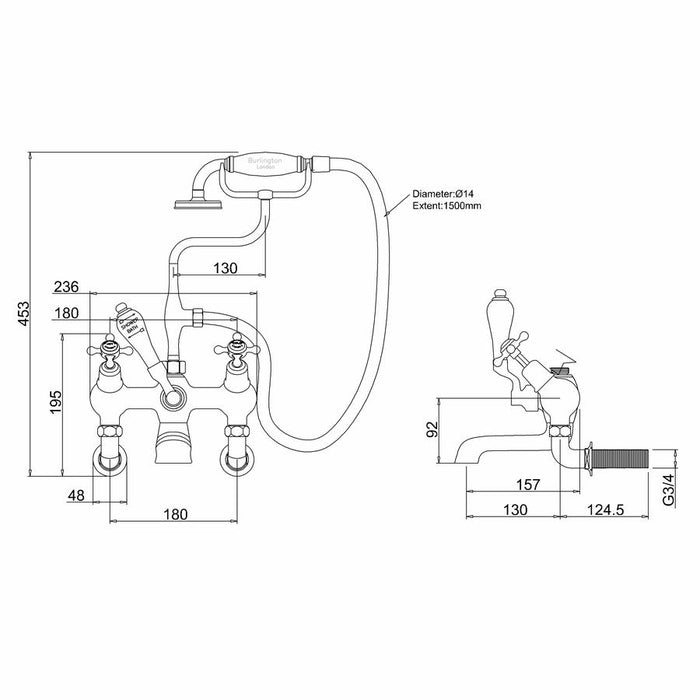

AN21
- T9: Angled bath shower mixer (Including the standard cradle, 'S' adjuster, Claremont, Anglesey & Birkenhead divertor handle, hose, ceramic telephone handset , excluding tap heads, base and unions)
- T17-2: Wall mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
- T2: Anglesey tap handles (pair)

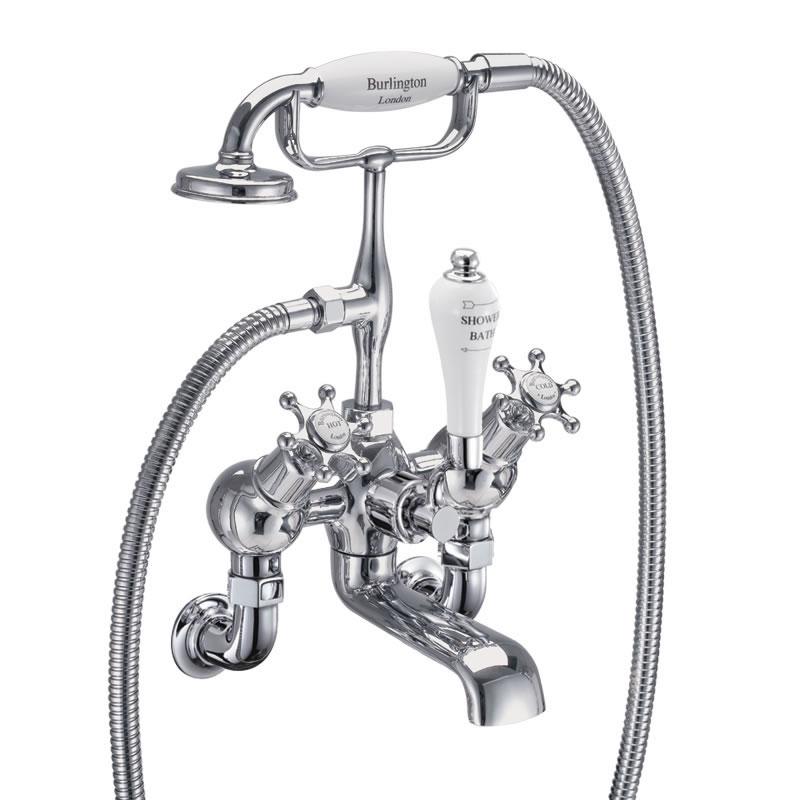

BI21
- T9: Angled bath shower mixer (Including the standard cradle, 'S' adjuster, Claremont, Anglesey & Birkenhead divertor handle, hose, ceramic telephone handset , excluding tap heads, base and unions)
- T17-2: Wall mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
- T3: Birkenhead tap handle (pair)

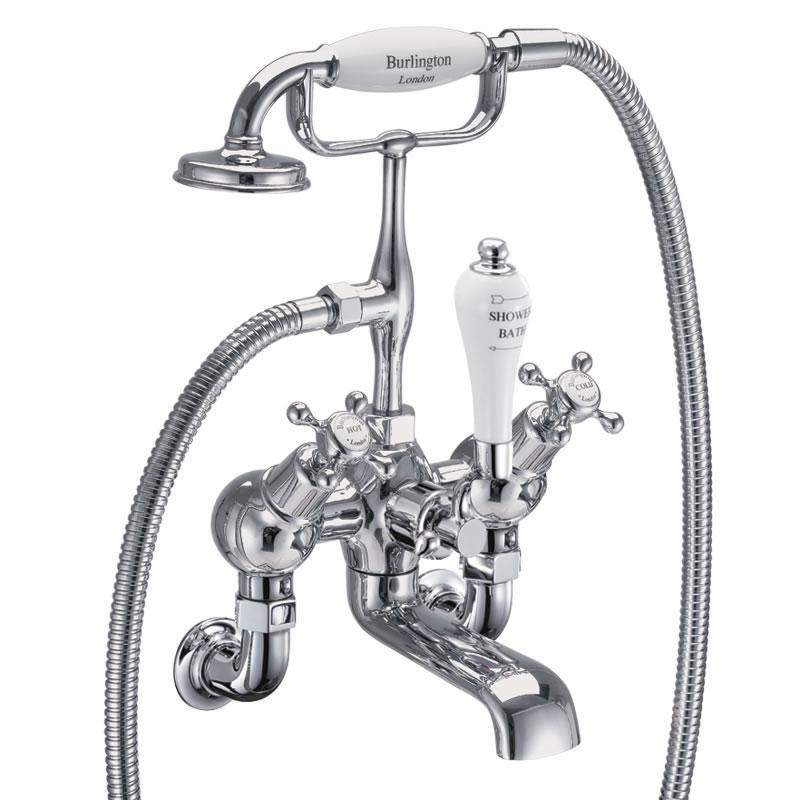

CL21
- T9: Angled bath shower mixer (Including the standard cradle, 'S' adjuster, Claremont, Anglesey & Birkenhead divertor handle, hose, ceramic telephone handset , excluding tap heads, base and unions)
- T17-2: Wall mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
- T1: Claremont tap handles (pair)
Details
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Guarantee
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Available Spare Parts
SP162: Aerator & flow straightener for product T8, T8-QT, T9, T9-QT, T10, T10-QT, T11, T11-QT, T24, T24-QT, T25, T25-QT, V32, ARCV32 NKL, ARC44
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
V29: Ceramic telephone handset
SP715: Cover plate for T17, T17-2
SP557: Cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP191: Diverter for T8, T8-QT, T9, T9-QT
SP378: Diverter handle for T8, T8-QT, T9, T9-QT
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP1006: O rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP200: Part B for T8, T9 diverter
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP40: T9 'Shower, Bath' ceramic indice
SP27: T9, T24, T25 3, 4 full turn cartridge
Specifications
Product Finish |
Chrome Plated |
Product Style |
Traditional |
Material |
T1: Tap handles - Brass T17-2: Accessories - Brass T2: Tap handles - Brass T3: Tap handles - Brass T9: Tap - Brass |
Size |
T1: 267 x 267 x 65mm T17-2: 137 x 64 x 48mm T2: 64 x 64 x 237mm T3: 65 x 65 x 233mm T9: 280 x 230 x 176mm |
Packed Dimension |
T1: 52 x 52 x 65 = 0.0002 m3 T17-2: 180 x 168 x 73 = 0.0022 m3 T2: 52 x 52 x 65 = 0.0002 m3 T3: 70 x 65 x 65 = 0.0003 m3 T9: 330 x 315 x 240 = 0.0249 m3 |
Colour |
T17-2: Accessories - Chrome plated T2: Tap handles - Chrome plated T9: Tap - Chrome plated |
Barcode |
T9: 5055806007710 T2: 5055806006928 T17-2: 5055806006898 T3: 5055806007000 T1: 5055806006683 |
Flow Rates |
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar Spout (straigthener) 22 22.6 25.2 27.2 29 Spout (aerator) 5.6 10.7 11.6 14.3 15.6 Handset 3.56 4.19 7.06 11.36 15.55 |
Nett Weight |
T1: Tap handles - 0.18kg T17-2: Accessories - 0.7kg T2: Tap handles - 0.15kg T3: Tap handles - 0.15kg T9: Tap - 3.85kg |
Gross Weight Including Packaging |
T1: Tap handles - 0.2kg T17-2: Accessories - 0.85kg T2: Tap handles - 0.2kg T3: Tap handles - 0.2kg T9: Tap - 4.75kg |
Downloads
Click for Instructions T9 (English)
Click for Instructions T9 (French)
