Burlington Avon Thermostatic Exposed Bath Shower Valve Single Outlet with Fixed Shower Arm Rose

by Burlington
Save £192
£769.00
£577.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

AF1S+V60
  • AF1S: Avon Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm (excluding Shower Head)
  • V60: 12 inch shower rose
  • TOTAL: Code: AF1S+V60
AF1S+V16
  • AF1S: Avon Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm (excluding Shower Head)
  • V16: 6 inch shower rose
  • TOTAL: Code: AF1S+V16
AF1S+V17
  • AF1S: Avon Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm (excluding Shower Head)
  • V17: 9 inch shower rose
  • TOTAL: Code: AF1S+V17

Additional Information

Traditional brass body, Claremont handle, with ceramic levers

390mm adjustable fixed shower arm

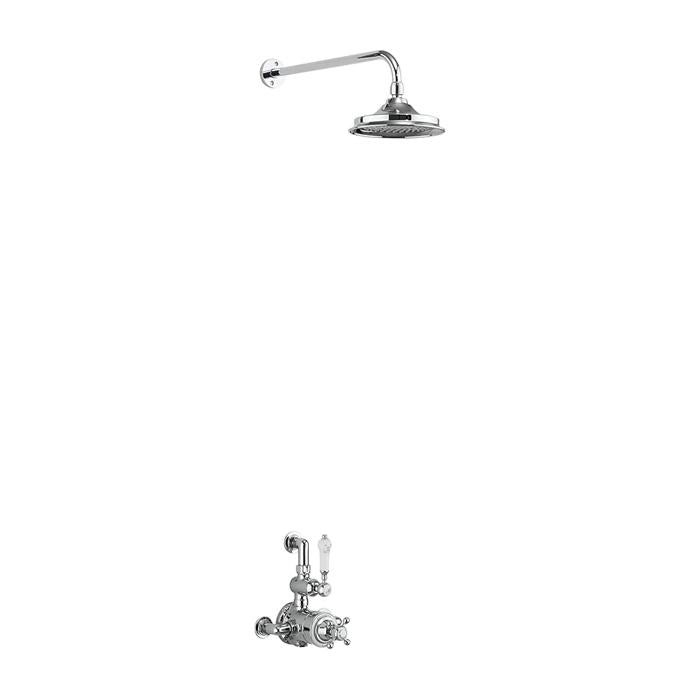

Image shown is with 6" Airburst shower head. (as shown on image)

The shower head has anti-limescale silicon nipples.

Hot & cold inlet ?15mm

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)

Available Spare Parts

  • SP376: Adaptor(pair) G1, 2 male thread to 15mm pipe
  • SP175: Back plate of product AF3S, AF1S, ARC74 CHR
  • SP578: Bottom blanking plate for AF1S
  • SP958: Cartridge cap of product AF1S, AF3S
  • SP163: Ceramic B indices with Chrome for V34 and V36
  • V10-1: Ceramic lever for shower valve (single)
  • SP52: Ceramic part of lever for Burlington showering products (plain version, without any texts)
  • SP108: Ceramic ring of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP155: Cover plate for V25, AF3S, AF1S, ARC74 CHR
  • SP725: Elbow for AF1S excluding the top and bottom nuts
  • SP478: Filter & washer for shower roses
  • SP553: Fixing nut & retaining ring of product AF1S, AF3S, ARC74 CHR
  • SP599: Grub screw (M4x4)
  • SP603: Grub screw for SF1S, SF3S, AF1S, AF3S (M5x5)
  • SP37: Hent F5 flow control cartridge
  • SP753: Lever holder for Trent, Severn, Avon, Spey shower valves
  • SP935: Lower water flow control section of product AF1S, AF3S
  • SP714: Optional elbow for V25, ARC74 CHR, AF1S, AF3S (one pair)
  • SP997: Retaining sleeve of products AF1S, AF3S, ARC74 CHR
  • SP130: Single top, bottom control knob for flow of product AF1S, AF3S, ARC74 CHR
  • SP601: Small grub screw (M4x4)
  • SP592: Top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
  • SP1004: Top outlet elbow (including cover plate, fixing nut, compression ring, O rings) for product AF1S
  • SP32: Vernet T1 temperature control cartridge
  • SP929: Wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H

Specification

Product Type Traditional
Material AF1S: Shower kit - Brass
V16: Shower rose - Brass
V17: Shower rose - Brass
V60: Shower rose - Brass

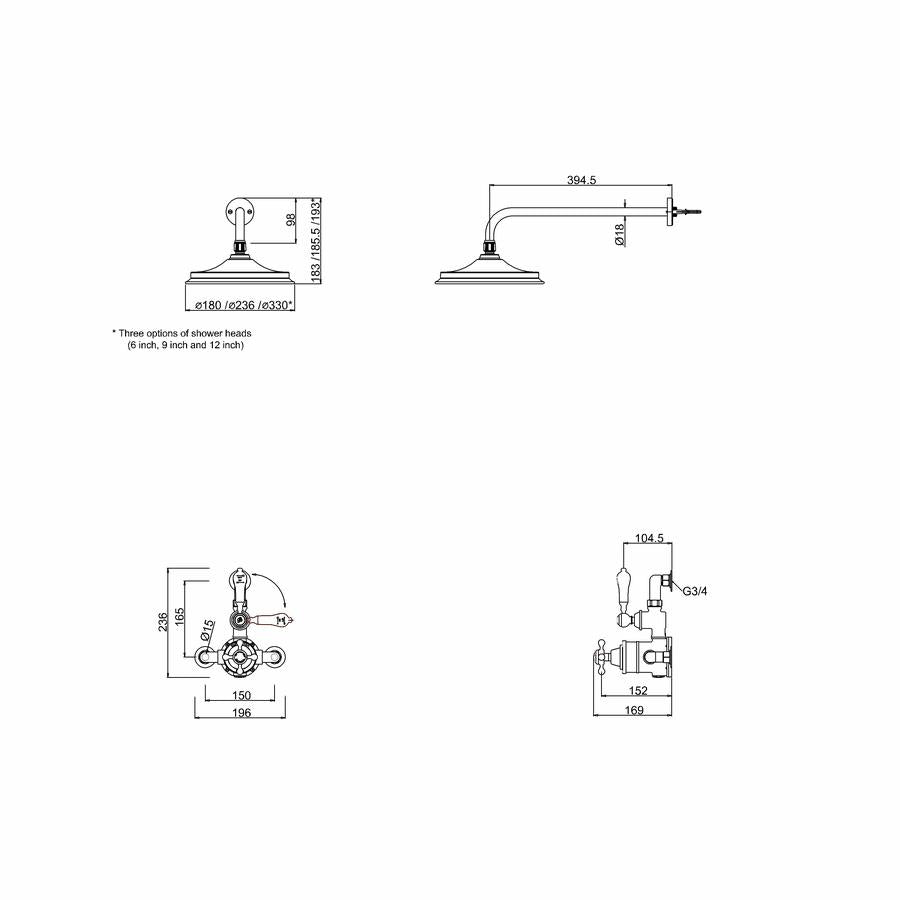

Size AF1S: 236 x 196 x 169mm
V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V60: 330.5 x 330.5 x 95mm
Nett Weight AF1S: Shower kit - 3.51kg
V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V60: Shower rose - 1.6kg
Gross Weight Including Packaging AF1S: Shower kit - 4.6kg
V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V60: Shower rose - 2.1kg
Packed Dimension AF1S: 480 x 295 x 170 = 0.0241 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour AF1S: Shower kit - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated
Barcode V60: 5055806013759
AF1S: 5055806015265
V16: 5055806007888
V17: 5055806007895
Packed Dimension AF1S: 480 x 295 x 170 = 0.0241 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour AF1S: Shower kit - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated

Downloads

Click for Instructions V60 (English)

Click for Instructions AF1S (English)

Click for Instructions V60 (French)

Click for Instructions AF1S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions AF1S (French)
