Burlington Basin Mixer with High Central Indice with Plug and Chain Waste

by Burlington
Save £56
£224.00
£168.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

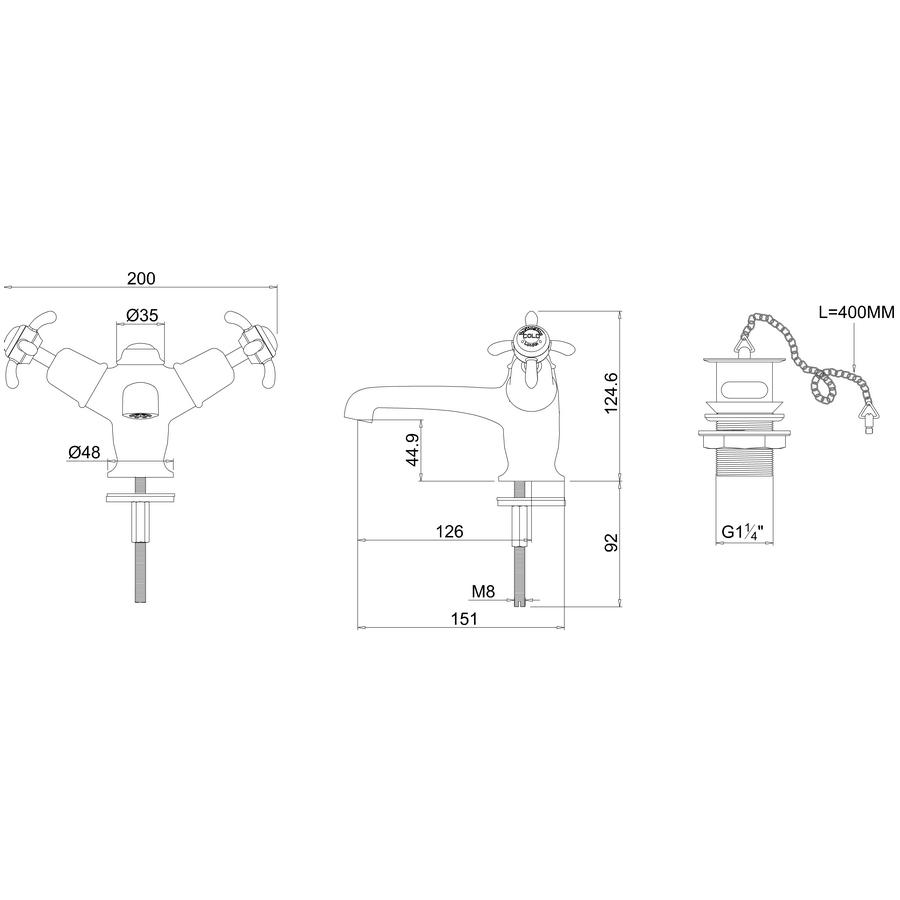

Illustrated Code

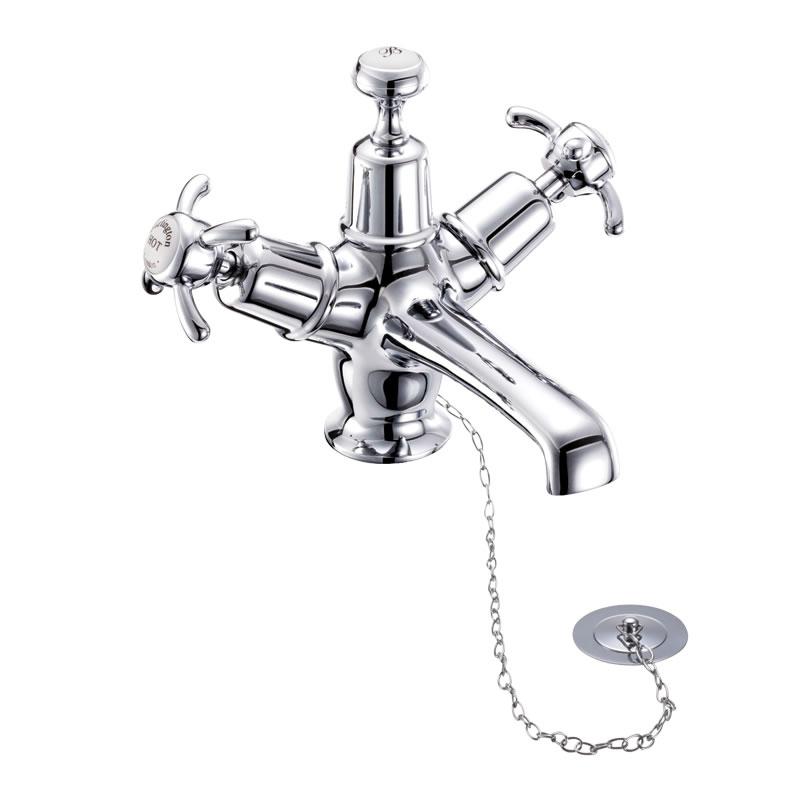

AN5
  • T13: Basin mixer, with plug & chain (excluding tap heads & base)
  • T2: Anglesey tap handles (pair)

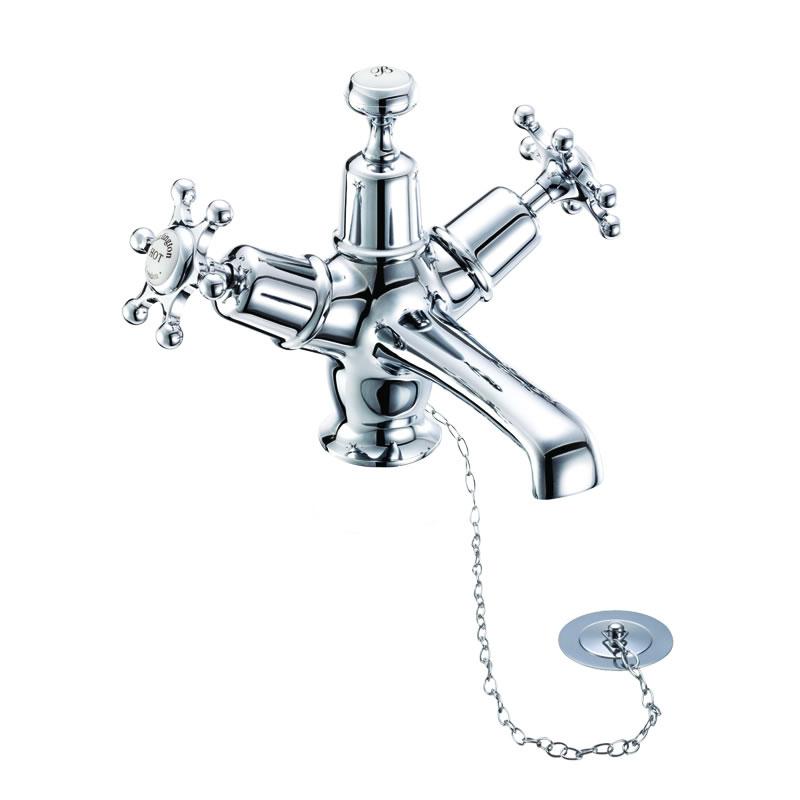

BI5
  • T13: Basin mixer, with plug & chain (excluding tap heads & base)
  • T3: Birkenhead tap handle (pair)

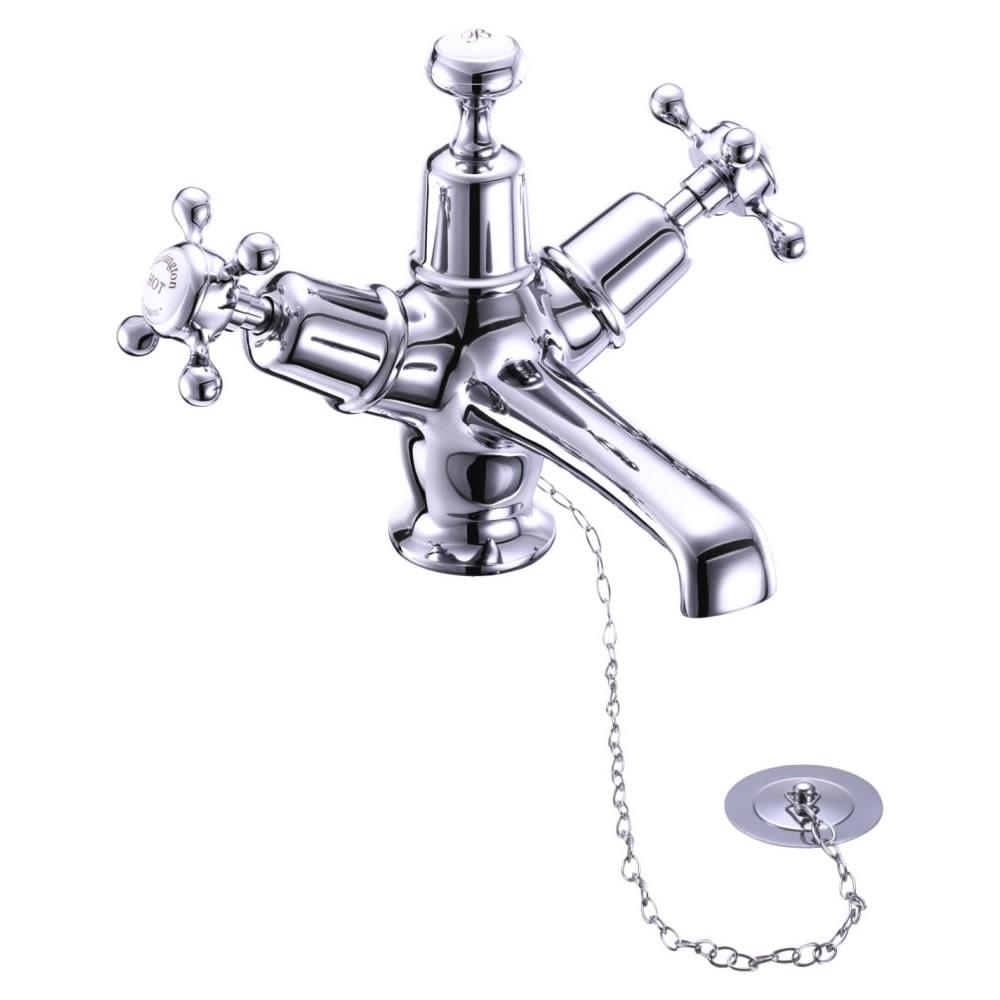

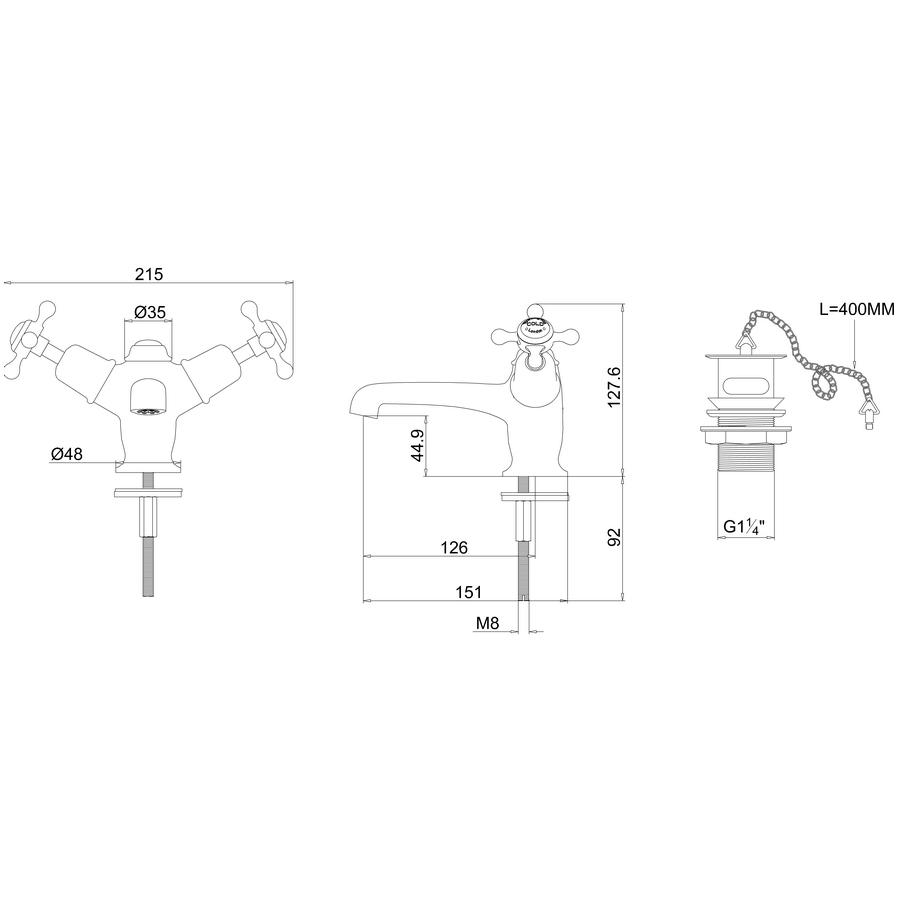

CL5
  • T13: Basin mixer, with plug & chain (excluding tap heads & base)
  • T1: Claremont tap handles (pair)

Details

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

SP450: Aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP817: Chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451: Key for T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP194: O ring for T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP655: Pair of flexible hose for T12, T13, CH19, CH20, CH21, CH22, CH23
SP884: Plug (including the chain, stuo and nut) of product W1, T16, T16-QT, T13, T13-QT
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP48: T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP29: T13, T15 1, 2 full turn cartridge
SP942: Tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT

Specifications

Product Finish Chrome Plated
Product Style Traditional
Material T1: Tap handles - Brass
T13: Tap - Brass
T2: Tap handles - Brass
T3: Tap handles - Brass
Size T1: 267 x 267 x 65mm
T13: 170 x 160 x 150mm
T2: 64 x 64 x 237mm
T3: 65 x 65 x 233mm
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T13: 295 x 270 x 182 = 0.0145 m3
T2: 52 x 52 x 65 = 0.0002 m3
T3: 70 x 65 x 65 = 0.0003 m3
Colour T13: Tap - Chrome plated
T2: Tap handles - Chrome plated
Barcode T13: 5055806006799
T2: 5055806006928
T3: 5055806007000
T1: 5055806006683
Flow Rates System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straigthener) 12 13.2 15.2 19.4 21.4
Spout (aerator) 4.5 7.8 8.7 9.8 12
Nett Weight T1: Tap handles - 0.18kg
T13: Tap - 1.7kg
T2: Tap handles - 0.15kg
T3: Tap handles - 0.15kg
Gross Weight Including Packaging T1: Tap handles - 0.2kg
T13: Tap - 2kg
T2: Tap handles - 0.2kg
T3: Tap handles - 0.2kg

Downloads

Click for Instructions T13 (English)

Click for Instructions T13 (French)
