Burlington Chelsea Curved Basin Mixer

by Burlington
Save £55
£219.00
£164.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

CH22

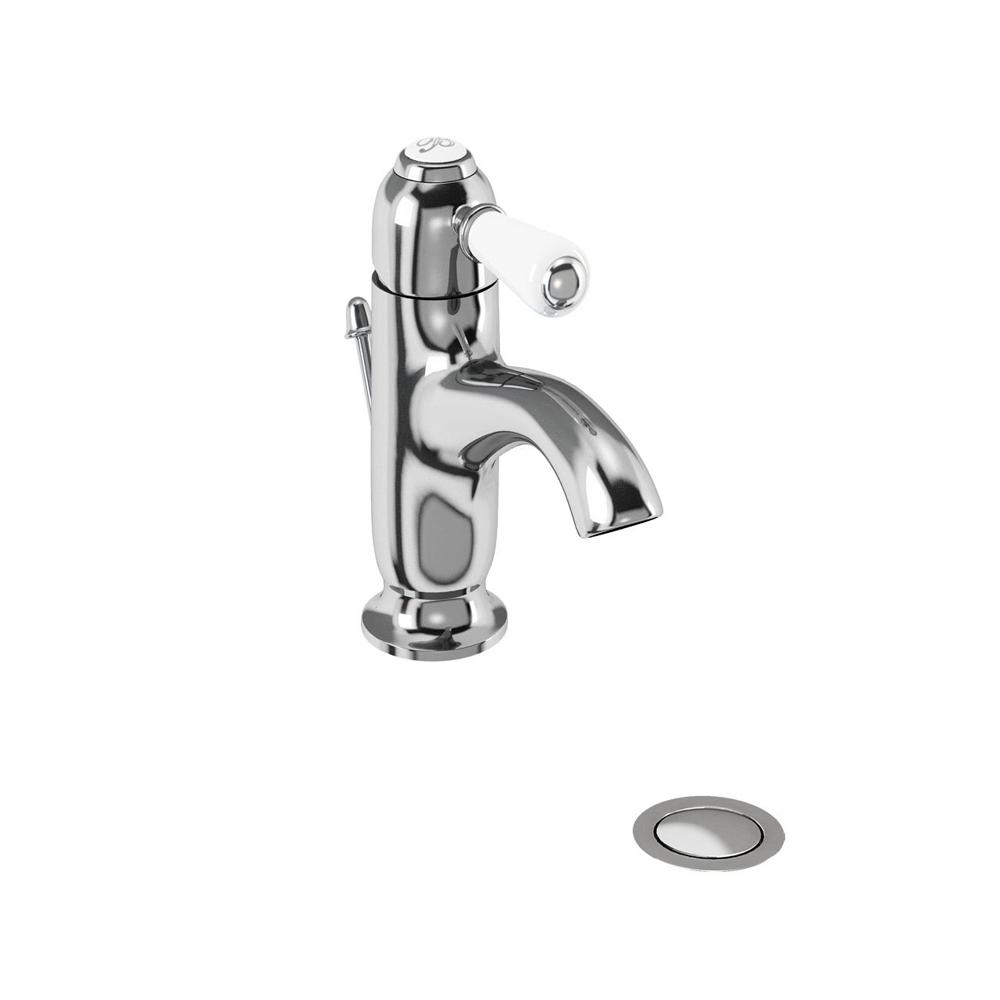

  • CH22: Chelsea curved basin mono tap with pop up waste
CH21

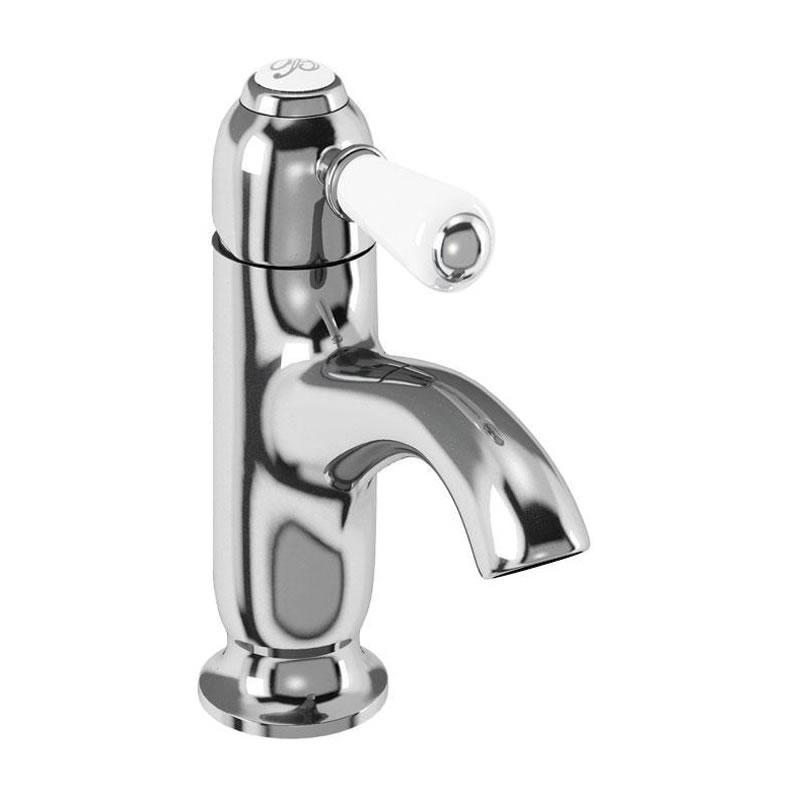

  • CH21: Chelsea curved basin mono tap without pop up waste

Additional Information

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

  • SP450: Aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
  • SP47: B logo ceramic indice (D=21.4mm) for V12, CH19, R6 CHR, R7 CHR
  • SP579: Cartridge of product CH19, CH20, CH21, CH22, CH23
  • SP799: Fixing kit for CH21
  • SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
  • SP194: O ring for T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
  • SP655: Pair of flexible hose for T12, T13, CH19, CH20, CH21, CH22, CH23
  • SP942: Tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23

Specification

Product Type Traditional
Material CH21: Tap - Brass
CH22: Tap - Brass
T4B: Regent tap base - Brass

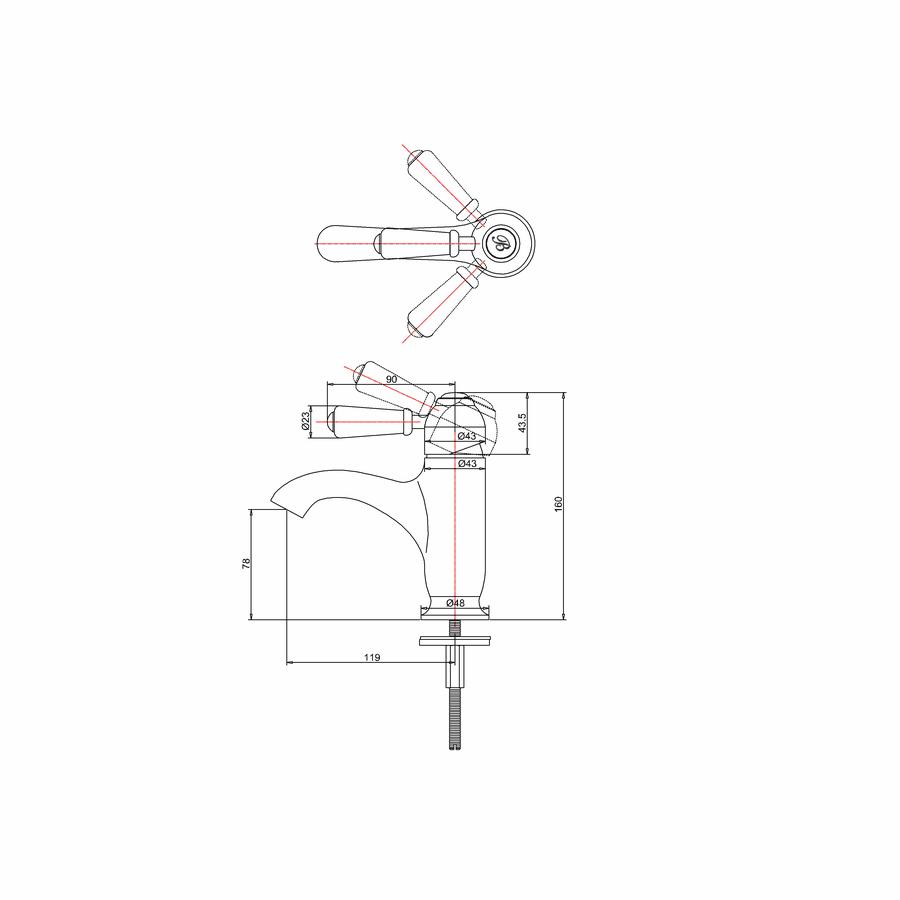

Size CH21: 124 x 124 x 160mm
CH22: 124 x 124 x 160mm
T4B: 545 x 545 x 273mm
Nett Weight CH21: Tap - 1.22kg
CH22: Tap - 1.55kg
T4B: Regent tap base - 0.15kg
Gross Weight Including Packaging CH21: Tap - 1.41kg
CH22: Tap - 1.85kg
T4B: Regent tap base - 0.25kg
Packed Dimension CH21: 195 x 190 x 85 = 0.0031 m3
CH22: 305 x 230 x 100 = 0.007 m3
T4B: 110 x 70 x 88 = 0.0007 m3
Colour CH21: Tap - Chrome plated
CH22: Tap - Chrome plated
T4B: Regent tap base - Chrome plated
Barcode CH22: 5055806002555
CH21: 5055806002548
Packed Dimension CH21: 195 x 190 x 85 = 0.0031 m3
CH22: 305 x 230 x 100 = 0.007 m3
T4B: 110 x 70 x 88 = 0.0007 m3
Colour CH21: Tap - Chrome plated
CH22: Tap - Chrome plated
T4B: Regent tap base - Chrome plated

Downloads

Click for Instructions CH22 (English)

Click for Instructions CH22 (French)

Click for Instructions CH21 (English)

Click for Instructions CH21 (French)
