Burlington Claremont Basin Mixer with Low Central Indice

Save £56.00
Original price £224.00
Current price £168.00
SKU CL5-Low

Illustrated Code

CL5

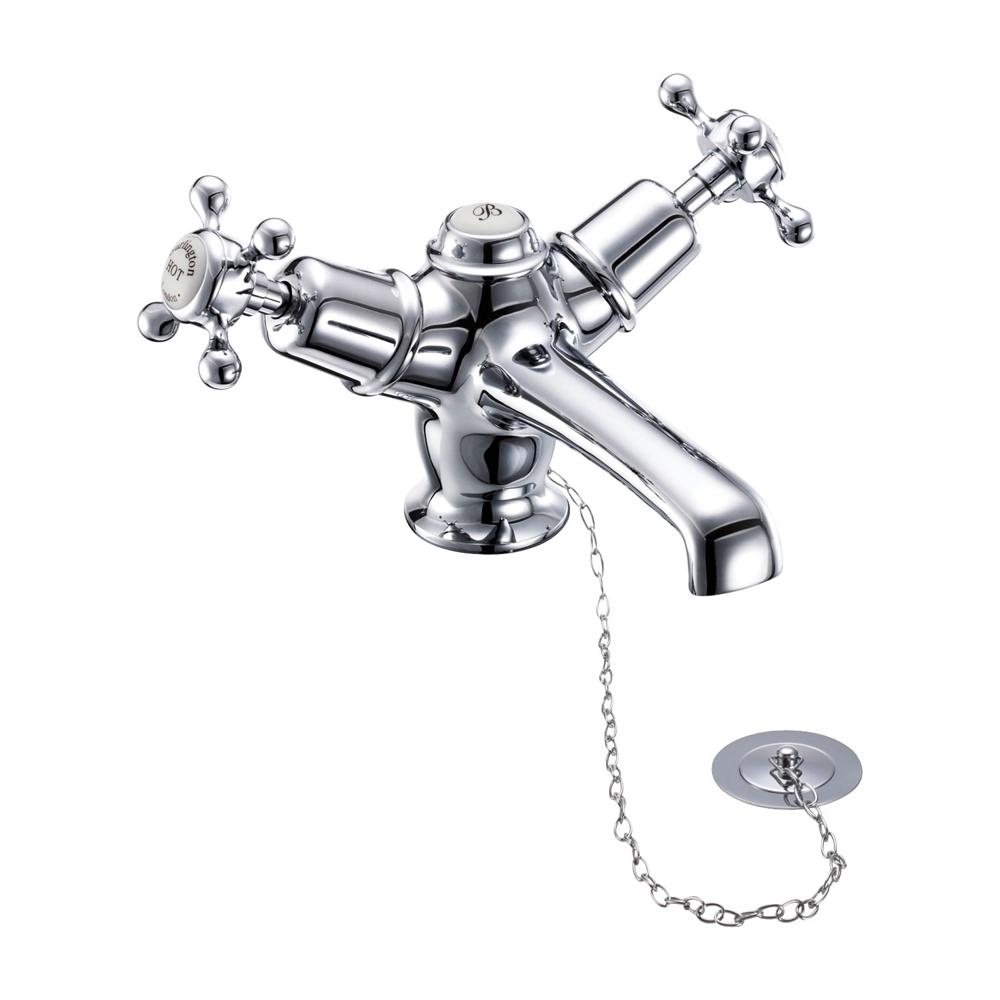

  • T13: Basin mixer, with plug & chain (excluding tap heads & base)
  • T1: Claremont tap handles (pair)
  • TOTAL: Code: CL5
CL4

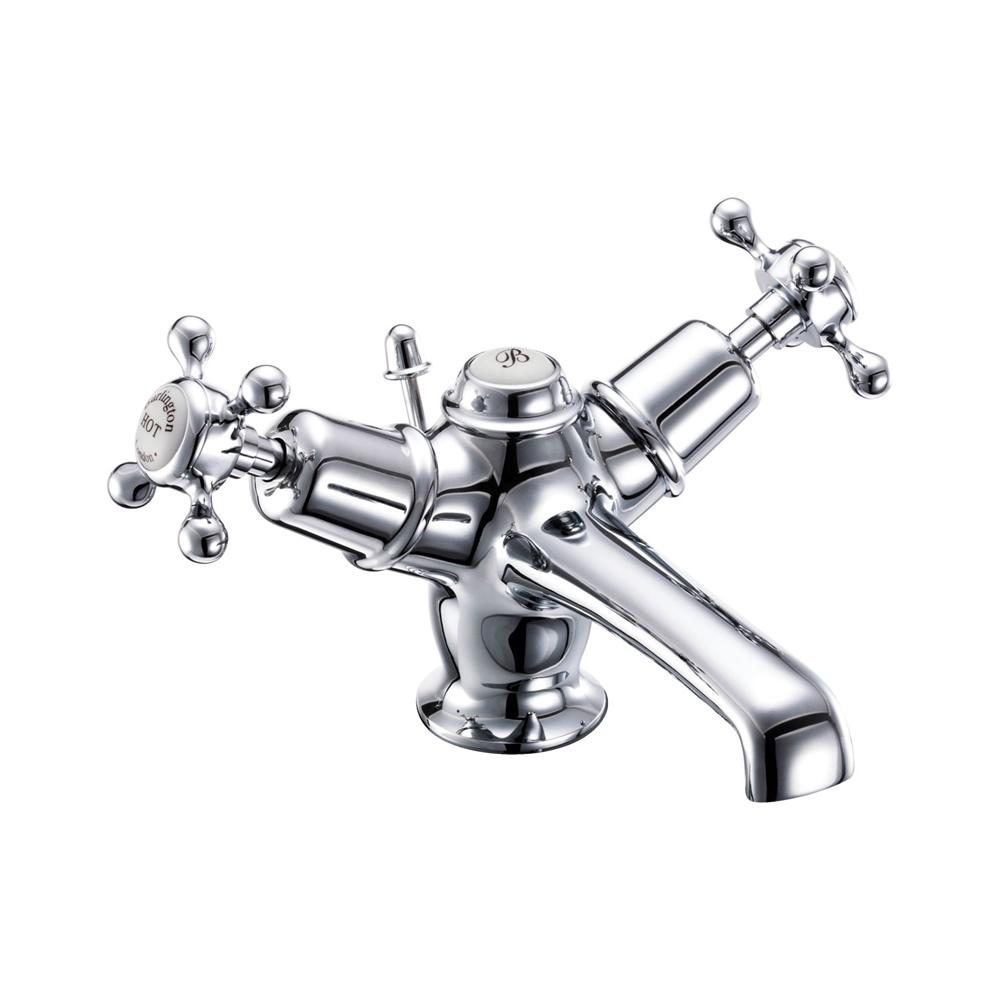

  • T12: Basin mixer, with pop up (excluding tap heads & base)
  • T1: Claremont tap handles (pair)
  • TOTAL: Code: CL4

Additional Information

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

  • SP450: Aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
  • SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
  • SP817: Chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
  • SP931 decorative cap of Burlington tap handles: Cold
  • SP930 decorative cap of Burlington tap handles: Hot
  • SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
  • SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
  • SP451: Key for T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
  • SP194: O ring for T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
  • SP655: Pair of flexible hose for T12, T13, CH19, CH20, CH21, CH22, CH23
  • SP884: Plug (including the chain, stuo and nut) of product W1, T16, T16-QT, T13, T13-QT
  • SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
  • SP48: T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
  • SP29: T13, T15 1, 2 full turn cartridge
  • SP942: Tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
  • SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
  • SP133: Connector for horizontal control rod
  • SP150: DECORATIVE HEAD &POP-UP CONTROL ROD-T12
  • SP825: Lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
  • SP974: Plug of pop up waste for product T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
  • SP807: Pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
  • SP31: T12 1, 2 full turn cartridge
  • SP151: Waste for T12

Specification

Product Type Traditional
Material T1: Tap handles - Brass
T12: Tap - Brass
T12-QT: Tap - Brass
T13: Tap - Brass
T13-QT: Tap - Brass
T2: Tap handles - Brass
T3: Tap handles - Brass
T4: Tap handles - Brass
W11: Waste - Brass
T4B: Regent tap base - Brass
Size T1: 267 x 267 x 65mm
T12: 170 x 159 x 150mm
T12-QT: 170 x 159 x 150mm
T13: 170 x 160 x 150mm
T13-QT: 170 x 160 x 150mm
T2: 64 x 64 x 237mm
T3: 65 x 65 x 233mm
T4: 94 x 28 x 28mm
W11: 604 x 61 x 71mm
T4B: 545 x 545 x 273mm
Nett Weight T1: Tap handles - 0.18kg
T12: Tap - 2.3kg
T12-QT: Tap - 1.75kg
T13: Tap - 1.7kg
T13-QT: Tap - 1.7kg
T2: Tap handles - 0.15kg
T3: Tap handles - 0.15kg
T4: Tap handles - 0.25kg
W11: Waste - 0.36kg
T4B: Regent tap base - 0.15kg
Gross Weight Including Packaging T1: Tap handles - 0.2kg
T12: Tap - 2.6kg
T12-QT: Tap - 2.3kg
T13: Tap - 2kg
T13-QT: Tap - 2kg
T2: Tap handles - 0.2kg
T3: Tap handles - 0.2kg
T4: Tap handles - 0.3kg
W11: Waste - 0.4kg
T4B: Regent tap base - 0.25kg
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T12: 295 x 270 x 182 = 0.0145 m3
T12-QT: 295 x 270 x 182 = 0.0145 m3
T13: 295 x 270 x 182 = 0.0145 m3
T13-QT: 295 x 270 x 182 = 0.0145 m3
T2: 52 x 52 x 65 = 0.0002 m3
T3: 70 x 65 x 65 = 0.0003 m3
T4: 105 x 70 x 35 = 0.0003 m3
W11: 110 x 70 x 70 = 0.0005 m3
T4B: 110 x 70 x 88 = 0.0007 m3
Colour T12: Tap - Chrome plated
T12-QT: Tap - Chrome plated
T13: Tap - Chrome plated
T13-QT: Tap - Chrome plated
T2: Tap handles - Chrome plated
T4: Tap handles - Chrome plated
W11: Waste - Chrome plated
T4B: Regent tap base - Chrome plated
Barcode T13: 5055806006799
T1: 5055806006683
T12: 5055806006768
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T12: 295 x 270 x 182 = 0.0145 m3
T12-QT: 295 x 270 x 182 = 0.0145 m3
T13: 295 x 270 x 182 = 0.0145 m3
T13-QT: 295 x 270 x 182 = 0.0145 m3
T2: 52 x 52 x 65 = 0.0002 m3
T3: 70 x 65 x 65 = 0.0003 m3
T4: 105 x 70 x 35 = 0.0003 m3
W11: 110 x 70 x 70 = 0.0005 m3
T4B: 110 x 70 x 88 = 0.0007 m3
Colour T12: Tap - Chrome plated
T12-QT: Tap - Chrome plated
T13: Tap - Chrome plated
T13-QT: Tap - Chrome plated
T2: Tap handles - Chrome plated
T4: Tap handles - Chrome plated
W11: Waste - Chrome plated
T4B: Regent tap base - Chrome plated

Downloads

Click for Instructions T13 (English)

Click for Instructions T13 (French)

Click for Instructions T12 (English)

Click for Instructions T12 (French)
