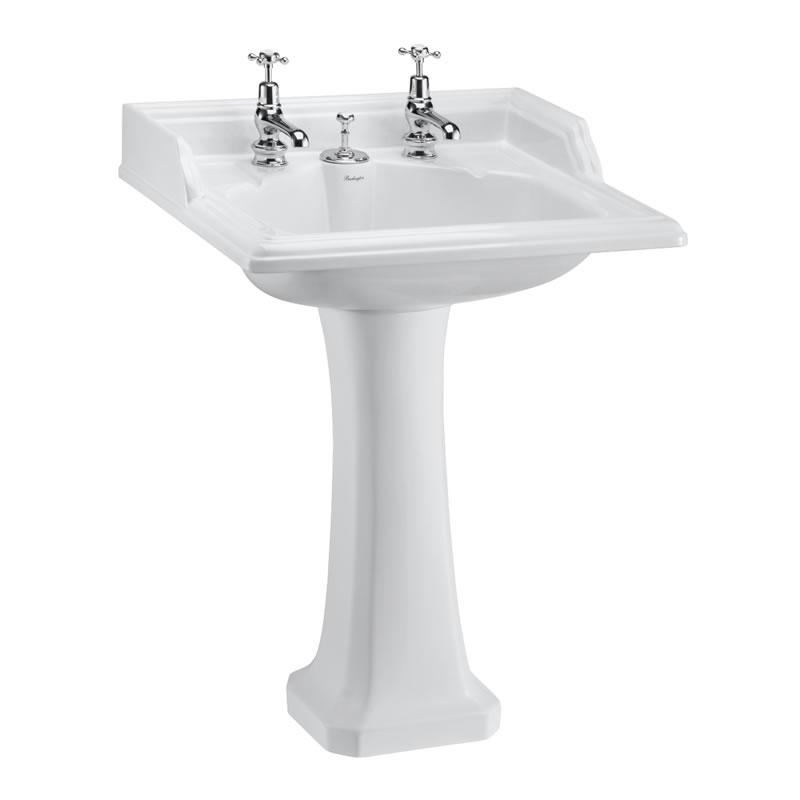

Burlington Classic 65cm Basin with Invisible Overflow and Classic Standard Pedestal

by Burlington
Save £167.01
£668.01
£501.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

B14+P6+W9
  • B14: Classic basin for integrated waste & overflow 65cm 2TH
  • P6: Classic pedestal
  • W9: Classic basin invisible overflow & waste

Additional Information

Available with two (2TH) tap holes only. This basin has 230mm tap hole centres which means it much be used with the arch basin mixer with 230mm tap centres or pillar taps.

The invisible overflow drains the water when the water level reaches the top of the basin.

Guarantee

25 years domestic installations
1 year commercial installations

Standards Information

BS EN 14688:2006 Sanitary appliances. Wash basins. Functional requirements and test methods
BS EN 31:2011 Pedestal wash basins. Connecting dimensions

Tap Hole Options

Available with two (2TH) tap holes only

Compatible Products

  • W9: Classic Basin Invisible Overflow & Waste

Available Spare Parts

  • SP433: Ceramic OPEN-CLOSE-LIFT knob for W9
  • SP140: Fixing screw for W9
  • SP919: Silicone gasket of product W9
  • SP442: Waste cover for W9

Specification

Product Type Traditional
Overall height 92cm
Overflow Class 15
Overflow rate 0.15 L/s
Material B14: Basin - Fire clay
W9: Basin - Brass
P6: Pedestal - Vitreous china
P9R: Pedestal - Fire clay
T38 ALU: Wash stand - Aluminium
T49A CHR: Wash stand - Brass

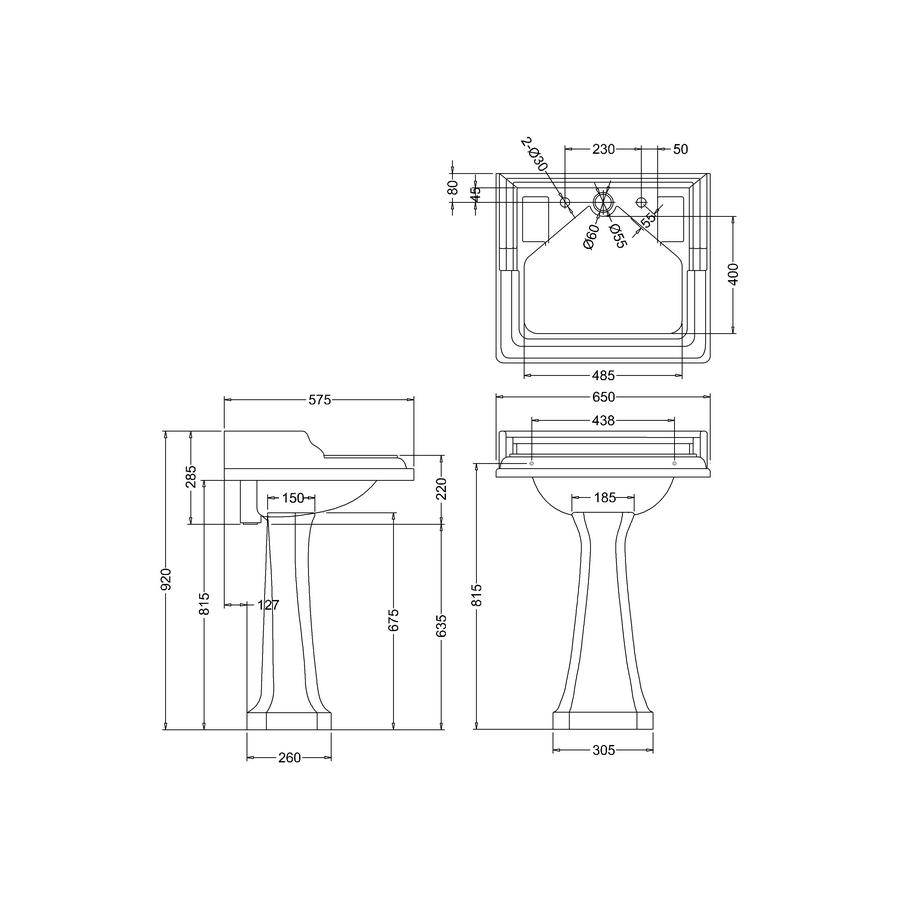

Size B14: 650 x 285 x 585mm
W9: 300 x 74 x 74mm
P6: 305 x 675 x 260mm
P9R: 335 x 290 x 715mm
T38 ALU: 780 x 460 x 100mm
T49A CHR: 538 x 558 x 785mm
Nett Weight B14: Basin - 19.2kg
W9: Basin - 1.1kg
P6: Pedestal - 12.15kg
P9R: Pedestal - 10kg
T38 ALU: Wash stand - 10.3kg
T49A CHR: Wash stand - 3.55kg
Gross Weight Including Packaging B14: Basin - 23.1kg
W9: Basin - 1.3kg
P6: Pedestal - 13.75kg
P9R: Pedestal - 11.5kg
T38 ALU: Wash stand - 12.5kg
T49A CHR: Wash stand - 4.35kg
Packed Dimension B14: 678 x 605 x 325 = 0.1333 m3
W9: 335 x 120 x 98 = 0.0039 m3
P6: 333 x 285 x 695 = 0.066 m3
P9R: 360 x 315 x 745 = 0.0845 m3
T38 ALU: 800 x 475 x 125 = 0.0475 m3
T49A CHR: 710 x 300 x 125 = 0.0266 m3
Colour B14: Basin - White
W9: Basin - Chrome plated
P6: Pedestal - White
P9R: Pedestal - White
T38 ALU: Wash stand - Polished
T49A CHR: Wash stand - Chrome plated
Barcode B14: 5055806001237
P6: 5055806005235
W9: 5055806008694
Packed Dimension B14: 678 x 605 x 325 = 0.1333 m3
W9: 335 x 120 x 98 = 0.0039 m3
P6: 333 x 285 x 695 = 0.066 m3
P9R: 360 x 315 x 745 = 0.0845 m3
T38 ALU: 800 x 475 x 125 = 0.0475 m3
T49A CHR: 710 x 300 x 125 = 0.0266 m3
Colour B14: Basin - White
W9: Basin - Chrome plated
P6: Pedestal - White
P9R: Pedestal - White
T38 ALU: Wash stand - Polished
T49A CHR: Wash stand - Chrome plated

Downloads

Click for Instructions P6 (English)

Click for Instructions W9 (English)

Click for Instructions P6 (French)

Click for Instructions W9 (French)
