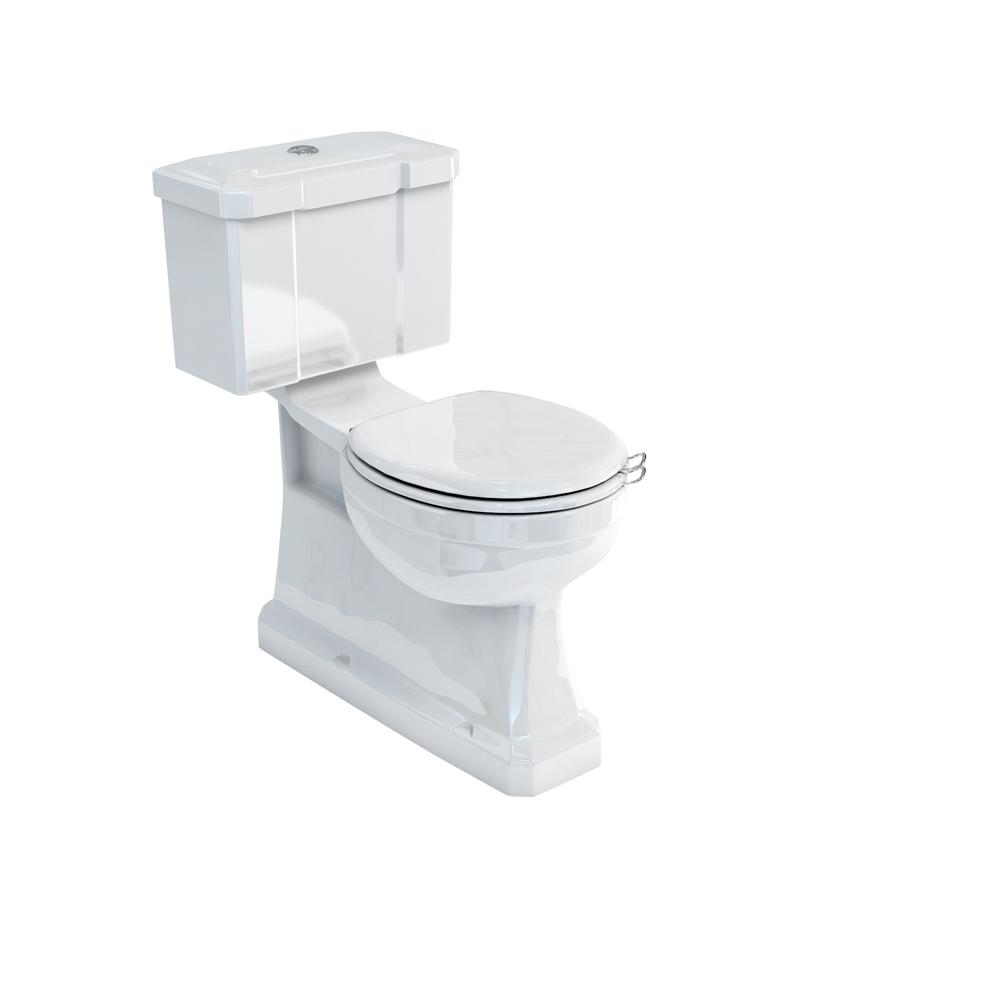

Burlington Close-Coupled Concealed Outlet Wc with Slimline Rear Or Bottom Entry Flush Button Cistern
Illustrated Code
C25+P18- C25: Close Coupled / Low level cistern 44cm Top Button (incl. back entry cistern fittings)
- P18: Burlington close coupled S trap pan for floor mounted outlet pipe
Additional Information
The S trap P18 pan & C1, C2, C3 , or C4 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 21cm
The soil pipe is fully enclosed and not visible
If the wall to soil pipe distance is less than 21cm, then use a low level pan ( P2) with a flush pipe kit ( T31CHR ) and S trap ceramic connector pipe ( C26 )
Water Inlet valve hole is located on the base of cistern tank on the right hand side
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug
Cistern connected to pan with internal bolts.
Close coupled wc must be used with standard Burlington toilet seats
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
Guarantee
10 years domestic installations1 year commercial installations
Standards Information
BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern. Connecting dimensionsBS EN 997:2012 WC pans and WC suites with integral trap
Available Spare Parts
- SP616: 44cm Cistern Lid for C25
Specification
| Product Type | Traditional |
| Overall height | 78cm |
| Material | C25: Cistern - Vitreous china P18: Trap - Vitreous china |
| Size | C25: 520 x 327 x 205mm P18: 660 x 420 x 355mm |
| Nett Weight | C25: Cistern - 14.5kg P18: Trap - 19.25kg |
| Gross Weight Including Packaging | C25: Cistern - 16.25kg P18: Trap - 21.65kg |
| Packed Dimension | C25: 225 x 540 x 370 = 0.045 m3 P18: 378 x 680 x 485 = 0.1247 m3 |
| Colour | C25: Cistern - White P18: Trap - White |
| Barcode | P18: 5055806012967 C25: 5055806012929 |
| Packed Dimension | C25: 225 x 540 x 370 = 0.045 m3 P18: 378 x 680 x 485 = 0.1247 m3 |
| Colour | C25: Cistern - White P18: Trap - White |
Downloads
Click for Instructions C25 (English)Delivery
