Burlington Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Swivel Shower Arm

by Burlington
Save £194
£778.00
£584.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

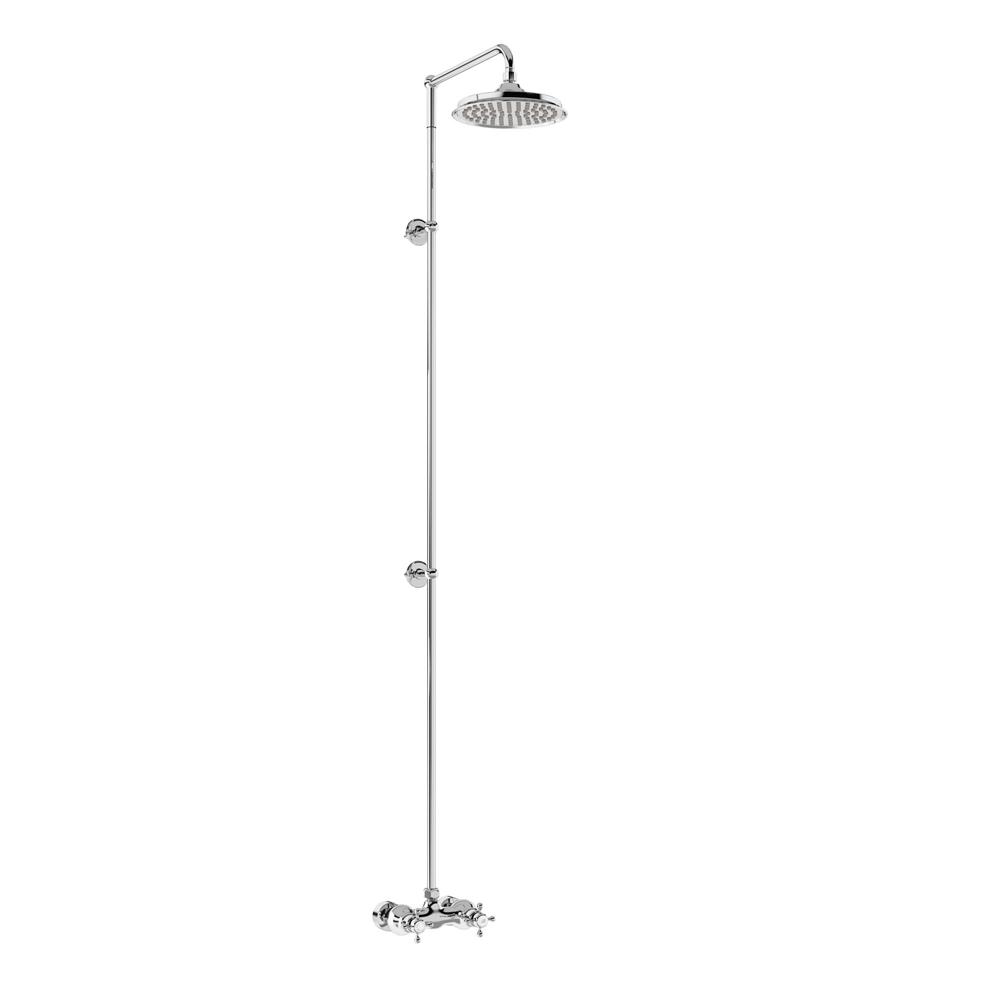

Illustrated Code

BEF1S.EXT-V60
  • EF1S: Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Swivel Shower Arm (excluding Shower Head and Rigid Riser)
  • V60: 12 inch shower rose
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • TOTAL: Code: BEF1S.EXT-V60
BEF1S.EXT-V16
  • EF1S: Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Swivel Shower Arm (excluding Shower Head and Rigid Riser)
  • V16: 6 inch shower rose
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • TOTAL: Code: BEF1S.EXT-V16

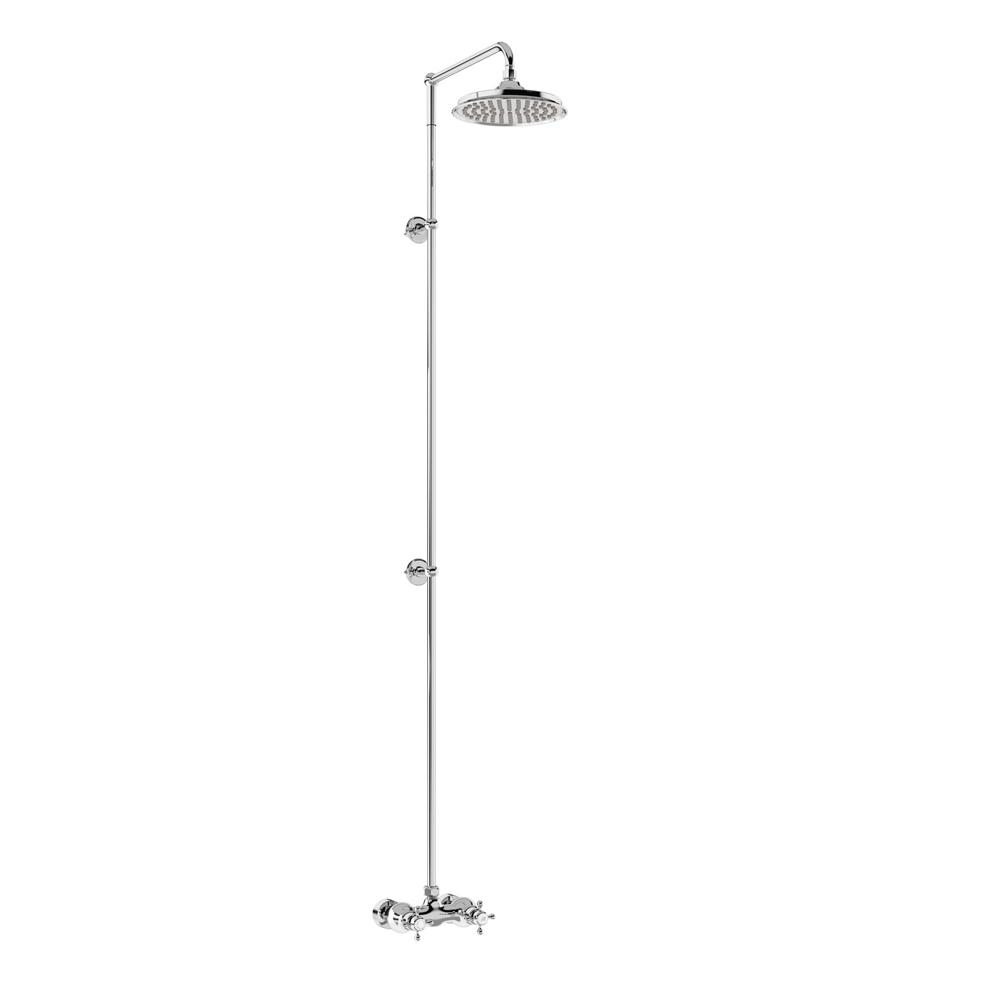

BEF1S.EXT-V17
  • EF1S: Eden Thermostatic Exposed Shower Bar Valve Single Outlet with Swivel Shower Arm (excluding Shower Head and Rigid Riser)
  • V17: 9 inch shower rose
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • TOTAL: Code: BEF1S.EXT-V17

Additional Information

Traditional brass body, Claremont handles, with ceramic indices

18mm diameter vertical brass shower riser

355mm adjustable swivel shower arm

Image shown is with 6" Airburst shower head.

Image shown is with 6 inch rose.

V22 Extended vertical riser is available if required and can be ordered as an option

The shower head has anti-limescale silicon nipples.

Hot & cold inlet ?15mm

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)
  • V23: Soap basket

Available Spare Parts

  • SP432: A pair of adjustable vertical riser wall brackets for the latest V22 (adjustment tolerance of the bracket is 28~125mm)
  • SP376: Adaptor(pair) G1, 2 male thread to 15mm pipe
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • SP110: Chrome compression nut and olive for V21 and V22 riser rail
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP478: Filter & washer for shower roses
  • SP599: Grub screw (M4x4)
  • SP580: Hent F4 flow control cartridge
  • SP695: On, off ceramic indice for EF1S
  • SP662: One unit of wall Bracket for V21and V22(28-171mm)
  • SP981: Pair of retaining Sleeve for product EF1S, EF2S, T2WS, T2WB
  • SP862: Sleeve connector for product EF1S
  • SP601: Small grub screw (M4x4)
  • V11-1: Straight shower arm for vertical riser mounting
  • SP668: Straight shower arm for vertical riser mounting (same as V11-1)
  • SP585: VQT2 cartridge temperature control cartridge
  • SP929: Wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
  • SP188: Wall Bracket for V21and V22(28-125mm)

Specification

Product Type Traditional
Material EF1S: Valve - Brass
V16: Shower rose - Brass
V17: Shower rose - Brass
V22: Riser - Brass
V60: Shower rose - Brass

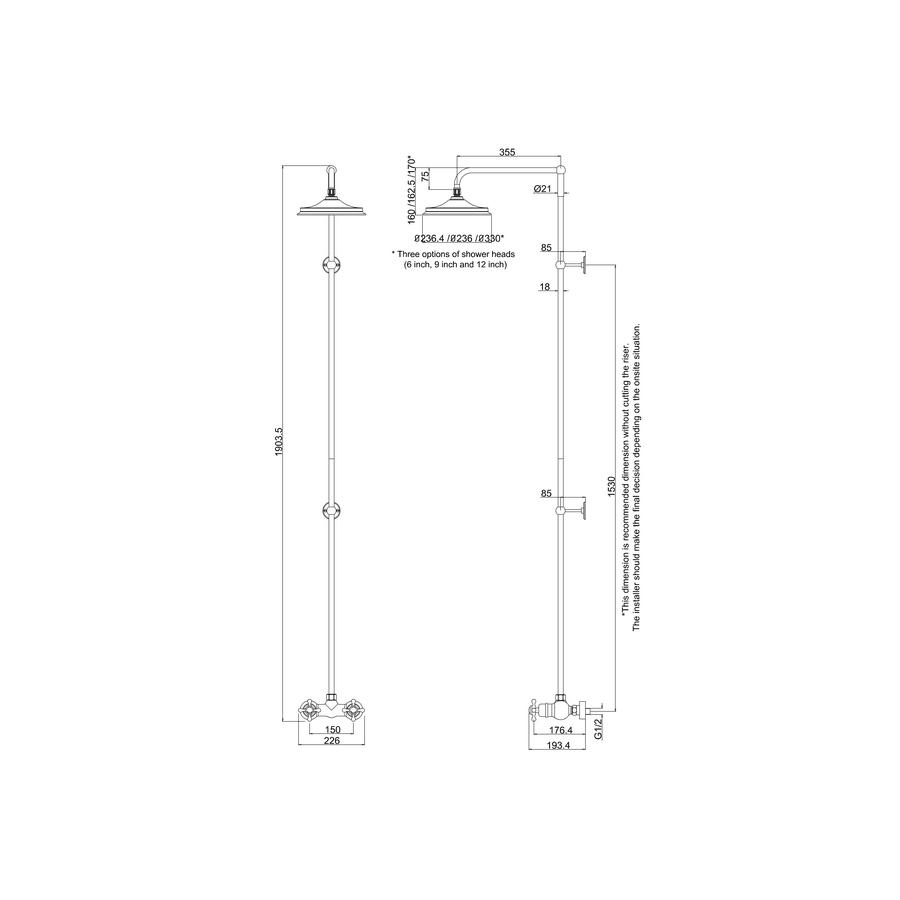

Size EF1S: 945.5 x 226 x 193.4mm
V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V22: 1700 x 120 x 60mm
V60: 330.5 x 330.5 x 95mm
Nett Weight EF1S: Valve - 4.03kg
V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V22: Riser - 1.35kg
V60: Shower rose - 1.6kg
Gross Weight Including Packaging EF1S: Valve - 4.55kg
V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V22: Riser - 1.48kg
V60: Shower rose - 2.1kg
Packed Dimension EF1S: 440 x 240 x 120 = 0.0127 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V22: 1750 x 135 x 70 = 0.0165 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour EF1S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V22: Riser - Chrome plated
V60: Shower rose - Chrome plated
Barcode V22: 5055806007963
V60: 5055806013759
EF1S: 5055806015319
V16: 5055806007888
V17: 5055806007895
Packed Dimension EF1S: 440 x 240 x 120 = 0.0127 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V22: 1750 x 135 x 70 = 0.0165 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour EF1S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V22: Riser - Chrome plated
V60: Shower rose - Chrome plated

Downloads

Click for Instructions V22 (English)

Click for Instructions V60 (English)

Click for Instructions EF1S (English)

Click for Instructions V22 (French)

Click for Instructions V60 (French)

Click for Instructions EF1S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions EF1S (French)
