Burlington Eden Thermostatic Exposed Shower Bar Valve Two Outlet Rigid Riser Swivel Shower Arm Handset & Holder with Hose

by Burlington
Save £234.01
£935.01
£701.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

BEF2S+V60
  • EF2S: Eden Thermostatic Exposed Shower Bar Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser)
  • V21: Standard vertical riser (with one adjustable vertical riser wall bracket)
  • V60: 12 inch shower rose
  • TOTAL: Code: BEF2S+V60
BEF2S+V16
  • EF2S: Eden Thermostatic Exposed Shower Bar Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser)
  • V16: 6 inch shower rose
  • V21: Standard vertical riser (with one adjustable vertical riser wall bracket)
  • TOTAL: Code: BEF2S+V16
BEF2S+V17
  • EF2S: Eden Thermostatic Exposed Shower Bar Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser)
  • V21: Standard vertical riser (with one adjustable vertical riser wall bracket)
  • V17: 9 inch shower rose
  • TOTAL: Code: BEF2S+V17

Additional Information

Traditional brass body, Claremont handles, with ceramic indices

Adjustable wall bracket, 1500mm shower hose, and handset with ceramic handle

18mm diameter vertical brass shower riser

355mm adjustable swivel shower arm

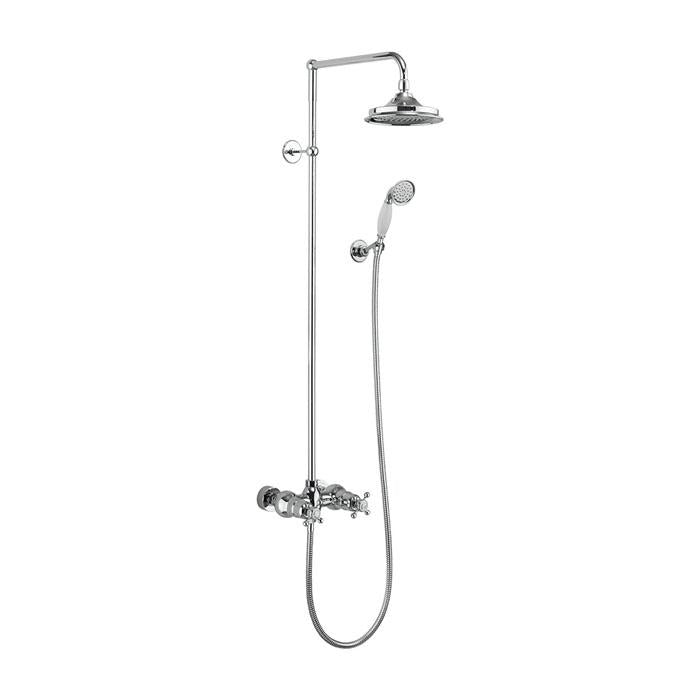

Image shown is with 6" Airburst shower head.

Image shown is with 6 inch rose.

The shower head has anti-limescale silicon nipples.

Large bore shower hose (11mm)

Hot & cold inlet ?15mm

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V33: Slide rail
  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)
  • V23: Soap basket
  • V24: Cradle

Available Spare Parts

  • SP806: 3x rubber o rings and 1x plastic washer for V21
  • SP376: Adaptor(pair) G1, 2 male thread to 15mm pipe
  • V28: Adjustable vertical riser wall brackets (pair) for V21
  • SP837: Ceramic indice with texts shower-Handset for product EF2S
  • V29: Ceramic telephone handset
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • SP110: Chrome compression nut and olive for V21 and V22 riser rail
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP478: Filter & washer for shower roses
  • SP599: Grub screw (M4x4)
  • V26: Hose
  • SP868: Inner box of product V21
  • SP726: Metal block for Trent, Severn, Eden, Spey shower valves
  • SP583: Mingshi F3 flow control cartridge
  • SP662: One unit of wall Bracket for V21and V22(28-171mm)
  • SP804: Pair of connectors for EF1S, EF2S, T2WS, T2WB
  • SP981: Pair of retaining Sleeve for product EF1S, EF2S, T2WS, T2WB
  • V18: Shower hook (for wall mounting of telephone shower head)
  • SP601: Small grub screw (M4x4)
  • V11-1: Straight shower arm for vertical riser mounting
  • SP585: VQT2 cartridge temperature control cartridge
  • SP188: Wall Bracket for V21and V22(28-125mm)

Specification

Product Type Traditional
Material EF2S: Valve - Brass
V16: Shower rose - Brass
V17: Shower rose - Brass
V21: Riser - Brass
V60: Shower rose - Brass
Size EF2S: 81 x 226 x 209.2mm
V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V21: 856 x 66 x 60mm
V60: 330.5 x 330.5 x 95mm
Nett Weight EF2S: Valve - 4.88kg
V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V21: Riser - 0.85kg
V60: Shower rose - 1.6kg
Gross Weight Including Packaging EF2S: Valve - 5.35kg
V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V21: Riser - 1.1kg
V60: Shower rose - 2.1kg
Packed Dimension EF2S: 695 x 270 x 120 = 0.0225 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V21: 860 x 95 x 70 = 0.0057 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour EF2S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V21: Riser - Chrome plated
V60: Shower rose - Chrome plated
Barcode V21: 5055806007956
V60: 5055806013759
EF2S: 5055806015326
V16: 5055806007888
V17: 5055806007895
Packed Dimension EF2S: 695 x 270 x 120 = 0.0225 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V21: 860 x 95 x 70 = 0.0057 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour EF2S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V21: Riser - Chrome plated
V60: Shower rose - Chrome plated

Downloads

Click for Instructions V21 (English)

Click for Instructions V60 (English)

Click for Instructions EF2S (English)

Click for Instructions V21 (French)

Click for Instructions V60 (French)

Click for Instructions EF2S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions EF2S (French)
