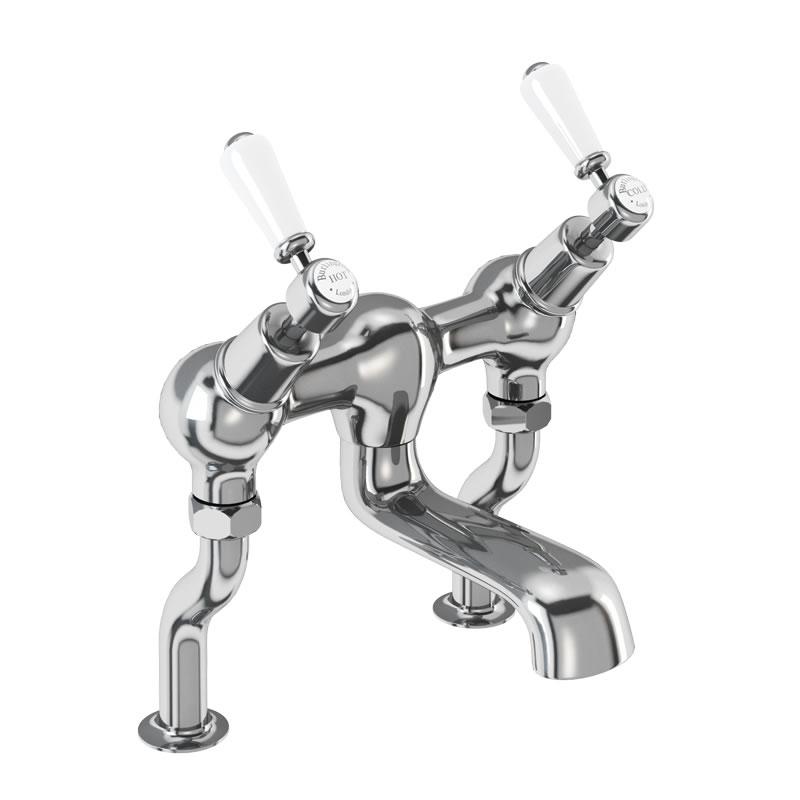

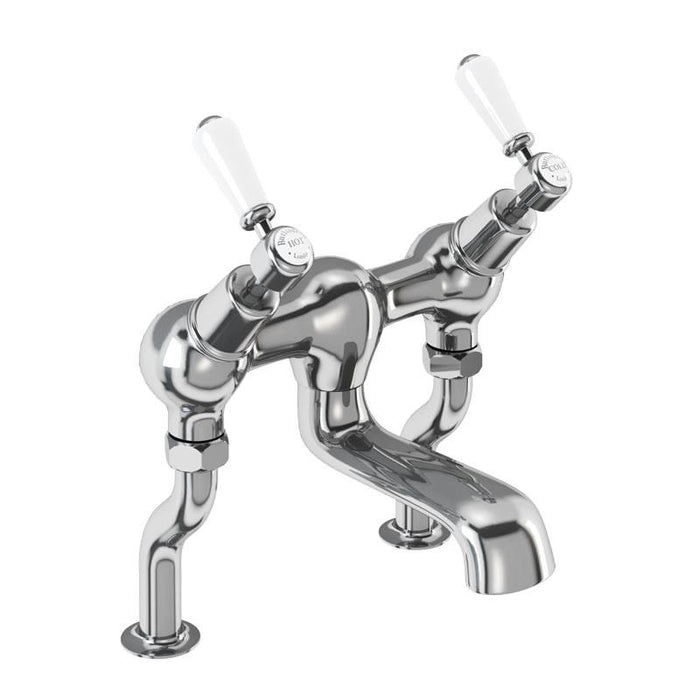

Burlington Kensington Angled Bath Filler - Deck Mounted

by Burlington
Save £90
£359.00
£269.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

KE25
  • T18: Deck mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
  • T4: Kensington tap handles (pair)
  • T11-QT: Quarter turn angled bath filler (excluding tap heads, bases and unions )

Details

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

SP162: Aerator & flow straightener for product T8, T8-QT, T9, T9-QT, T10, T10-QT, T11, T11-QT, T24, T24-QT, T25, T25-QT, V32, ARCV32 NKL, ARC44
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP92: G3, 4 fixing nut and washer for products T7, T18
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP26: T8, T10, T11 3, 4 full turn cartridge

Specifications

Product Finish Chrome Plated
Product Style Traditional
Material T11-QT: Tap - Brass
T18: Accessories - Brass
T4: Tap handles - Brass
Size T11-QT: 230 x 1762 x 160mm
T18: 197 x 617 x 46mm
T4: 94 x 28 x 28mm
Packed Dimension T11-QT: 252 x 228 x 188 = 0.0108 m3
T18: 245 x 175 x 73 = 0.0031 m3
T4: 105 x 70 x 35 = 0.0003 m3
Colour T11-QT: Tap - Chrome plated
T18: Accessories - Chrome plated
T4: Tap handles - Chrome plated
Barcode T18: 5055806006904
T11-QT: 5055806006751
T4: 5055806007260
Flow Rates System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straigthener) 21 21.7 24.2 26.5 28
Spout (aerator) 5.4 10.3 11.5 13.6 15.5
Nett Weight T11-QT: Tap - 1.9kg
T18: Accessories - 0.9kg
T4: Tap handles - 0.25kg
Gross Weight Including Packaging T11-QT: Tap - 2.31kg
T18: Accessories - 1.1kg
T4: Tap handles - 0.3kg

Downloads

Click for Instructions T11-QT (English)

Click for Instructions T4 (English)

Click for Instructions T11-QT (French)
