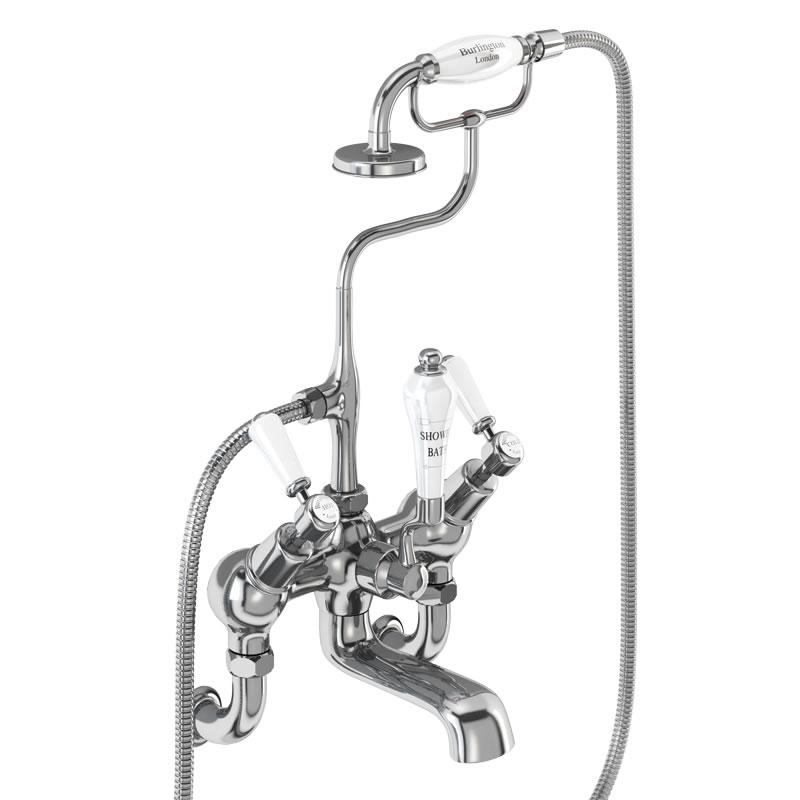

Burlington Kensington Angled Bath Shower Mixer - Wall Mounted

by Burlington
Save £140
£560.00
£420.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

KE21
  • T17-2: Wall mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
  • T4: Kensington tap handles (pair)
  • T9-QT: Quarter turn angled bath shower mixer (Including the standard cradle, 'S' adjuster, Claremont, Anglesey & Birkenhead divertor handle, hose, ceramic telephone handset , excluding tap heads, base and unions)

Details

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

SP162: Aerator & flow straightener for product T8, T8-QT, T9, T9-QT, T10, T10-QT, T11, T11-QT, T24, T24-QT, T25, T25-QT, V32, ARCV32 NKL, ARC44
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
V29: Ceramic telephone handset
SP715: Cover plate for T17, T17-2
SP557: Cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP191: Diverter for T8, T8-QT, T9, T9-QT
SP378: Diverter handle for T8, T8-QT, T9, T9-QT
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP1006: O rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP200: Part B for T8, T9 diverter
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP40: T9 'Shower, Bath' ceramic indice
SP27: T9, T24, T25 3, 4 full turn cartridge

Specifications

Product Finish Chrome Plated
Product Style Traditional
Material T17-2: Accessories - Brass
T4: Tap handles - Brass
T9-QT: Tap - Brass
Size T17-2: 137 x 64 x 48mm
T4: 94 x 28 x 28mm
T9-QT: 280 x 230 x 176mm
Packed Dimension T17-2: 180 x 168 x 73 = 0.0022 m3
T4: 105 x 70 x 35 = 0.0003 m3
T9-QT: 330 x 315 x 240 = 0.0249 m3
Colour T17-2: Accessories - Chrome plated
T4: Tap handles - Chrome plated
T9-QT: Tap - Chrome plated
Barcode T17-2: 5055806006898
T9-QT: 5055806007758
T4: 5055806007260
Flow Rates System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straigthener) 22 22.6 25.2 27.2 29
Spout (aerator) 5.6 10.7 11.6 14.3 15.6
Handset 3.56 4.19 7.06 11.36 15.55
Nett Weight T17-2: Accessories - 0.7kg
T4: Tap handles - 0.25kg
T9-QT: Tap - 3.8kg
Gross Weight Including Packaging T17-2: Accessories - 0.85kg
T4: Tap handles - 0.3kg
T9-QT: Tap - 4.5kg

Downloads

Click for Instructions T9-QT (English)

Click for Instructions T4 (English)

Click for Instructions T9-QT (French)
