Illustrated Code
KE4
- T4: Kensington tap handles (pair)

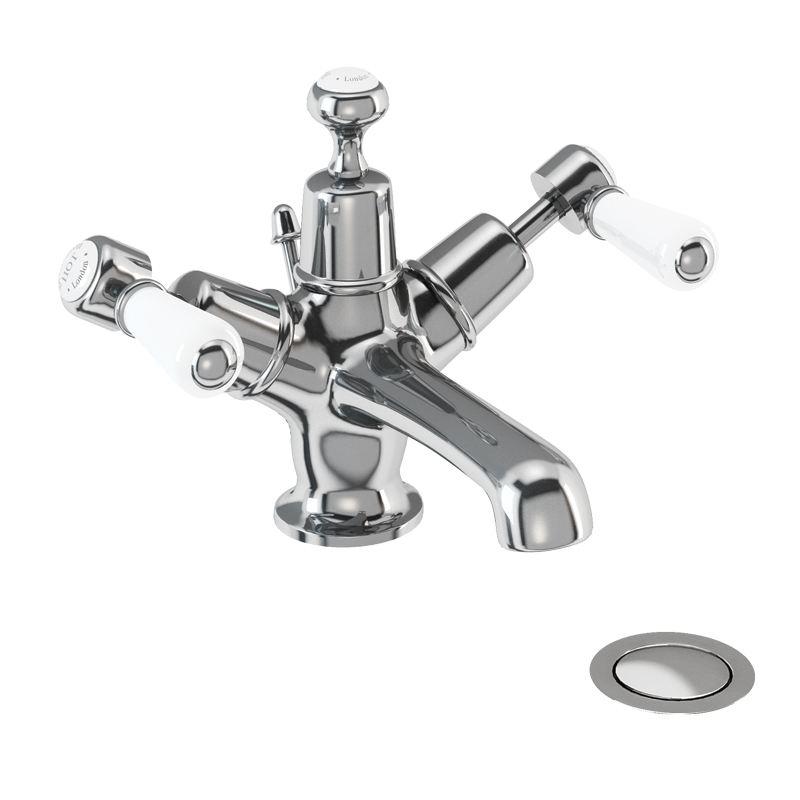

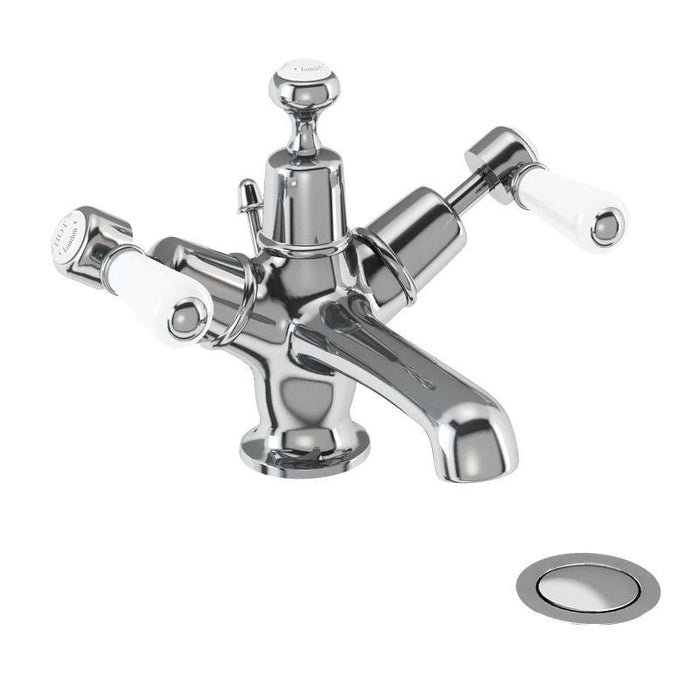

- T12-QT: Quarter turn basin mixer, with pop up (excluding tap heads & base)
Details
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Guarantee
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Available Spare Parts
SP450: Aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451: Key for T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP825: Lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP194: O ring for T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
SP974: Plug of pop up waste for product T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
SP807: Pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
SP78: T12 1, 2 quarter turn COLD cartridge
SP77: T12 1, 2 quarter turn HOT cartridge
SP942: Tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Specifications
Product Finish |
Chrome Plated |
Product Style |
Traditional |
Material |
T12-QT: Tap - Brass T4: Tap handles - Brass |
Size |

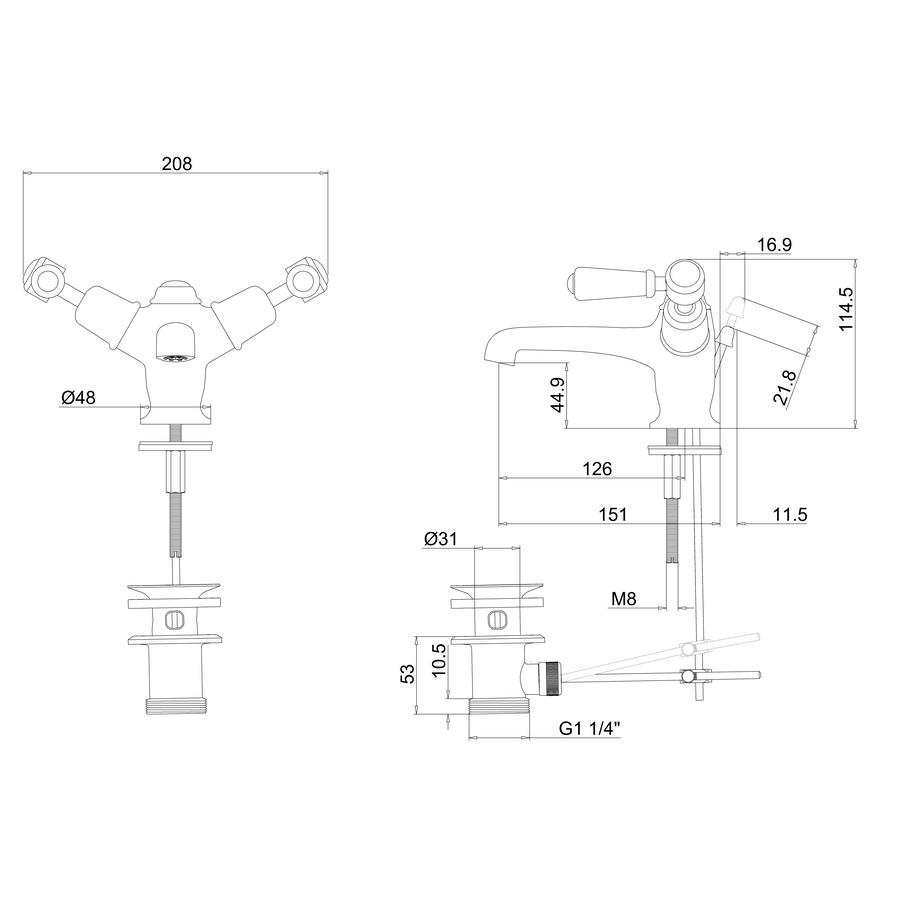

T12-QT: 170 x 159 x 150mm T4: 94 x 28 x 28mm |
Packed Dimension |
T12-QT: 295 x 270 x 182 = 0.0145 m3 T4: 105 x 70 x 35 = 0.0003 m3 |
Colour |
T12-QT: Tap - Chrome plated T4: Tap handles - Chrome plated |
Barcode |
T12-QT: 5055806006782 T4: 5055806007260 |
Flow Rates |
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar Spout (straigthener) 10.2 11.2 13.4 16.3 18.9 Spout (aerator) 4.5 8.1 8.6 10 12.1 |
Nett Weight |
T12-QT: Tap - 1.75kg T4: Tap handles - 0.25kg |
Gross Weight Including Packaging |
T12-QT: Tap - 2.3kg T4: Tap handles - 0.3kg |
Downloads
Click for Instructions T12-QT (English)
Click for Instructions T4 (English)
Click for Instructions T12-QT (French)
