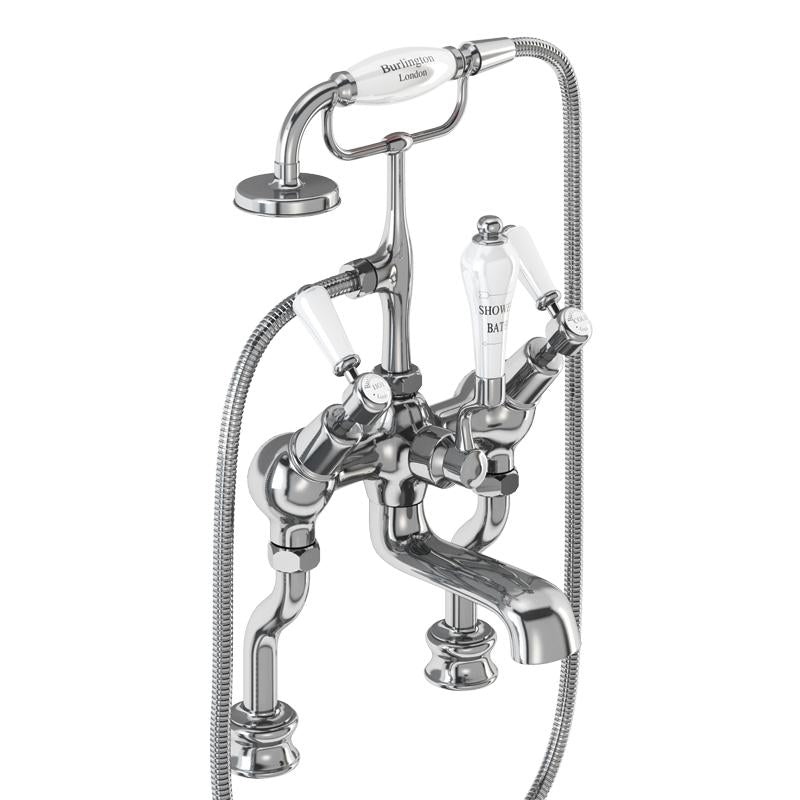

Burlington Kensington Deck Mounted Regent Angled Bath Shower Mixer

by Burlington
Save £149.99
£599.99
£450.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

KER19
  • T18: Deck mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
  • T4: Kensington tap handles (pair)
  • T4A: Regent large pair of tap bases (for bath taps, bath shower mixers & bath fillers - pair)
  • T9-QT: Quarter turn angled bath shower mixer (Including the standard cradle, 'S' adjuster, Claremont, Anglesey & Birkenhead divertor handle, hose, ceramic telephone handset , excluding tap heads, base and unions)
  • TOTAL: Code: KER19

Additional Information

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

  • SP162: Aerator & flow straightener for product T8, T8-QT, T9, T9-QT, T10, T10-QT, T11, T11-QT, T24, T24-QT, T25, T25-QT, V32, ARCV32 NKL, ARC44
  • SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
  • V29: Ceramic telephone handset
  • SP557: Cradle, handset holder, S adjuster for T8, T8-QT, T9, T9-QT
  • SP931 decorative cap of Burlington tap handles: Cold
  • SP930 decorative cap of Burlington tap handles: Hot
  • SP191: Diverter for T8, T8-QT, T9, T9-QT
  • SP378: Diverter handle for T8, T8-QT, T9, T9-QT
  • SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
  • SP92: G3, 4 fixing nut and washer for products T7, T18
  • SP1006: O rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
  • SP200: Part B for T8, T9 diverter
  • SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
  • SP40: T9 'Shower, Bath' ceramic indice
  • SP27: T9, T24, T25 3, 4 full turn cartridge

Specification

Product Type Traditional
Material T1: Tap handles - Brass
T18: Accessories - Brass
T2: Tap handles - Brass
T3: Tap handles - Brass
T4: Tap handles - Brass
T9: Tap - Brass
T9-QT: Tap - Brass
T4A: Regent tap base - Brass
Size T1: 267 x 267 x 65mm
T18: 197 x 617 x 46mm
T2: 64 x 64 x 237mm
T3: 65 x 65 x 233mm
T4: 94 x 28 x 28mm
T9: 280 x 230 x 176mm
T9-QT: 280 x 230 x 176mm
T4A: 545 x 545 x 273mm
Nett Weight T1: Tap handles - 0.18kg
T18: Accessories - 0.9kg
T2: Tap handles - 0.15kg
T3: Tap handles - 0.15kg
T4: Tap handles - 0.25kg
T9: Tap - 3.85kg
T9-QT: Tap - 3.8kg
T4A: Regent tap base - 0.38kg
Gross Weight Including Packaging T1: Tap handles - 0.2kg
T18: Accessories - 1.1kg
T2: Tap handles - 0.2kg
T3: Tap handles - 0.2kg
T4: Tap handles - 0.3kg
T9: Tap - 4.75kg
T9-QT: Tap - 4.5kg
T4A: Regent tap base - 0.5kg
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T18: 245 x 175 x 73 = 0.0031 m3
T2: 52 x 52 x 65 = 0.0002 m3
T3: 70 x 65 x 65 = 0.0003 m3
T4: 105 x 70 x 35 = 0.0003 m3
T9: 330 x 315 x 240 = 0.0249 m3
T9-QT: 330 x 315 x 240 = 0.0249 m3
T4A: 120 x 110 x 88 = 0.0012 m3
Colour T18: Accessories - Chrome plated
T2: Tap handles - Chrome plated
T4: Tap handles - Chrome plated
T9: Tap - Chrome plated
T9-QT: Tap - Chrome plated
T4A: Regent tap base - Chrome plated
Barcode T18: 5055806006904
T4A: 5055806007338
T9-QT: 5055806007758
T4: 5055806007260
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T18: 245 x 175 x 73 = 0.0031 m3
T2: 52 x 52 x 65 = 0.0002 m3
T3: 70 x 65 x 65 = 0.0003 m3
T4: 105 x 70 x 35 = 0.0003 m3
T9: 330 x 315 x 240 = 0.0249 m3
T9-QT: 330 x 315 x 240 = 0.0249 m3
T4A: 120 x 110 x 88 = 0.0012 m3
Colour T18: Accessories - Chrome plated
T2: Tap handles - Chrome plated
T4: Tap handles - Chrome plated
T9: Tap - Chrome plated
T9-QT: Tap - Chrome plated
T4A: Regent tap base - Chrome plated

Downloads

Click for Instructions T9-QT (English)

Click for Instructions T4 (English)

Click for Instructions T9-QT (French)
