Illustrated Code
KER27
- T4: Kensington tap handles (pair)
- T4B: 2x Regent small single tap base (for basin & bidet monoblocs - single)

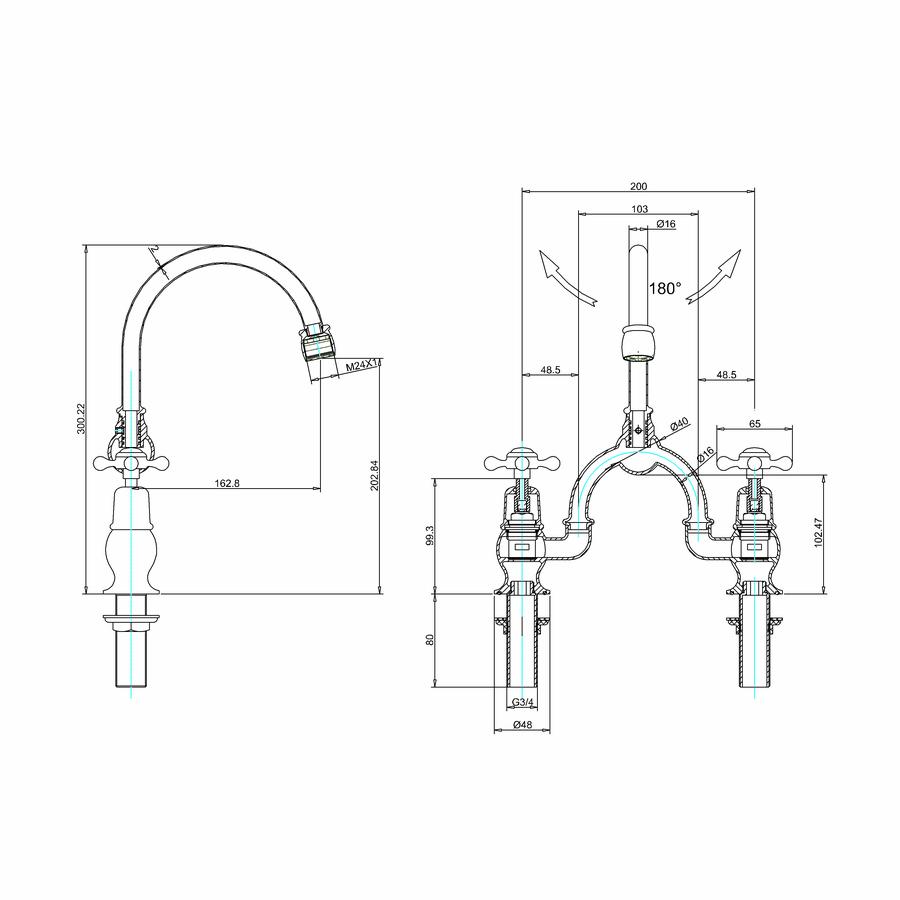

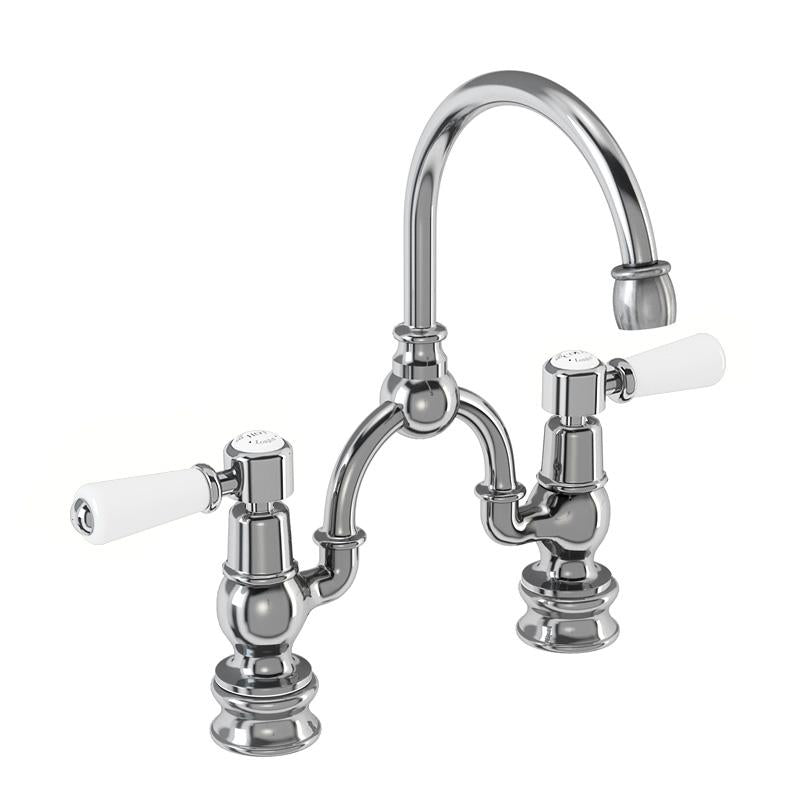

- T24-QT: Quarter turn 2 tap hole arch mixer with curved spout (200mm centers)
Details
Supplied with Flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Supplied without a basin waste
The 200mm tap centres is standard tap hole spacing for basins.
Guarantee
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Available Spare Parts
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP1006: O rings of spout for product T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP27: T9, T24, T25 3, 4 full turn cartridge
Specifications
Product Finish |
Chrome Plated |
Product Style |
Traditional |
Material |
T24-QT: Tap - Brass T4: Tap handles - Brass T4B: Regent tap base - Brass |
Size |
T24-QT: 380 x 240 x 48mm T4: 94 x 28 x 28mm T4B: 545 x 545 x 273mm |
Packed Dimension |
T24-QT: 510 x 430 x 75 = 0.0164 m3 T4: 105 x 70 x 35 = 0.0003 m3 T4B: 110 x 70 x 88 = 0.0007 m3 |
Colour |
T24-QT: Tap - Chrome plated T4: Tap handles - Chrome plated T4B: Regent tap base - Chrome plated |
Barcode |
T4B: 5055806007345 T4: 5055806007260 T24-QT: 5055806010734 |
Nett Weight |
T24-QT: Tap - 1.7kg T4: Tap handles - 0.25kg T4B: Regent tap base - 0.3kg |
Gross Weight Including Packaging |
T24-QT: Tap - 2.4kg T4: Tap handles - 0.3kg T4B: Regent tap base - 0.5kg |
Downloads
Click for Instructions T4 (English)
Click for Instructions T24-QT (English)
