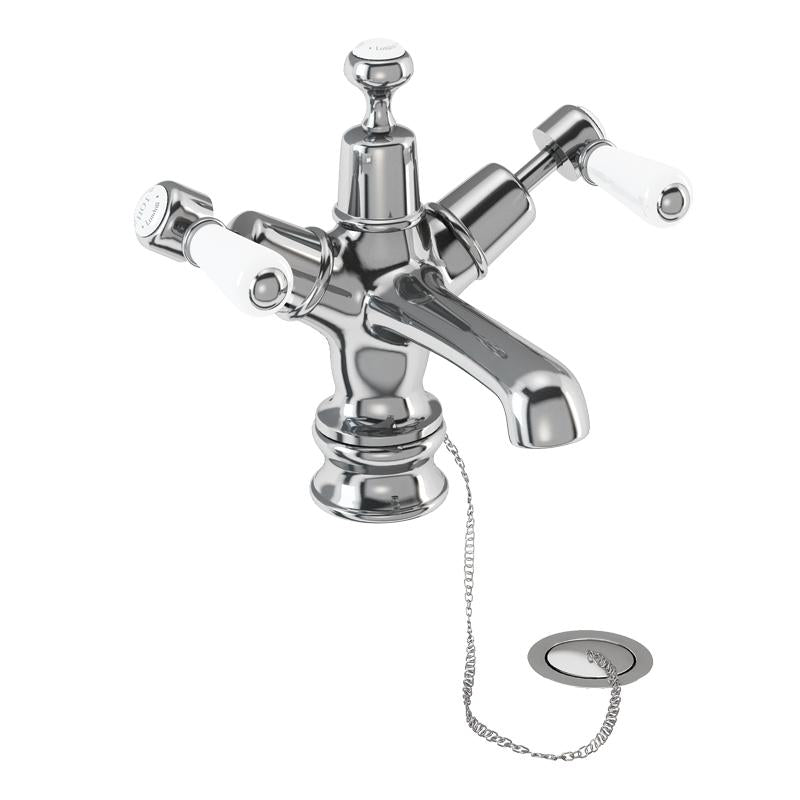

Illustrated Code
KER5
- T4: Kensington tap handles (pair)
- T4B: Regent small single tap base (for basin & bidet monoblocs - single)
- T13-QT: Quarter turn basin mixer, with plug & chain (excluding tap heads & base)
- TOTAL: Code: KER5
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Guarantee
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Available Spare Parts
- SP450: Aerator for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
- SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
- SP931 decorative cap of Burlington tap handles: Cold
- SP930 decorative cap of Burlington tap handles: Hot
- SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
- SP451: Key for T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
- SP194: O ring for T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
- SP138: Plastic insert for T4B Regent small tap base
- SP884: Plug (including the chain, stuo and nut) of product W1, T16, T16-QT, T13, T13-QT
- SP74: T13, T15 1, 2 quarter turn COLD cartridge
- SP73: T13, T15 1, 2 quarter turn HOT cartridge
- SP942: Tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
- SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Specification
Product Type |
Traditional |
Material |
T1: Tap handles - Brass T12: Tap - Brass T12-QT: Tap - Brass T13: Tap - Brass T13-QT: Tap - Brass T2: Tap handles - Brass T3: Tap handles - Brass T4: Tap handles - Brass W11: Waste - Brass T4B: Regent tap base - Brass |

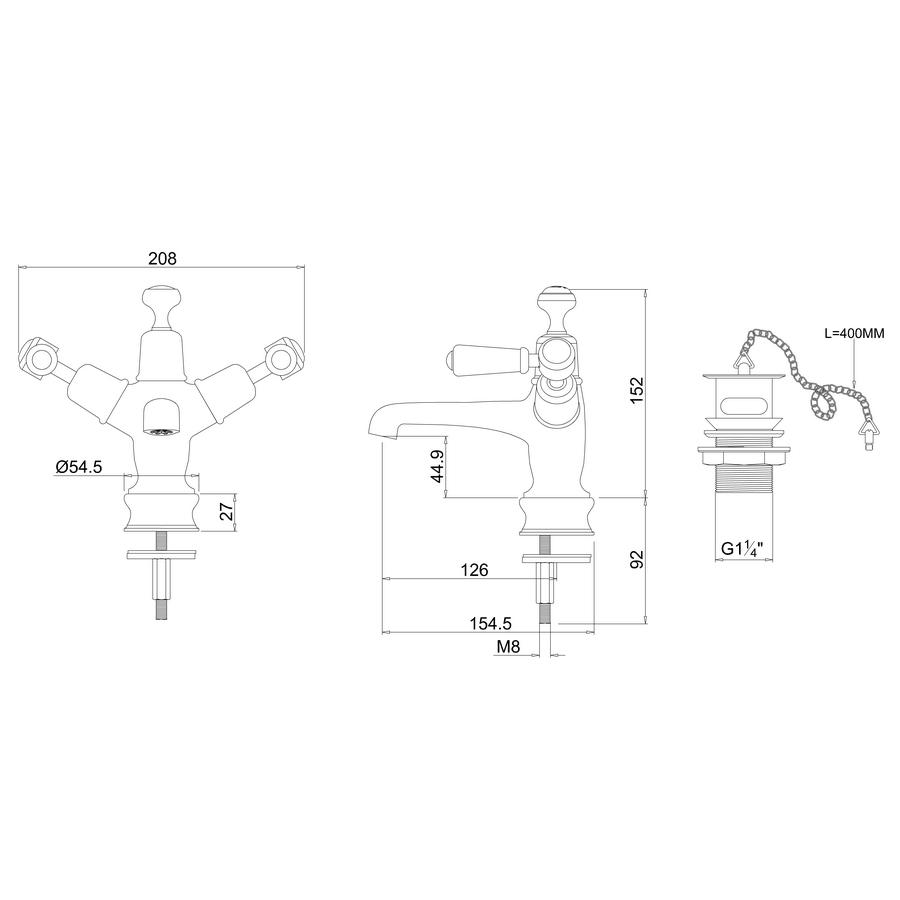

Size |
T1: 267 x 267 x 65mm T12: 170 x 159 x 150mm T12-QT: 170 x 159 x 150mm T13: 170 x 160 x 150mm T13-QT: 170 x 160 x 150mm T2: 64 x 64 x 237mm T3: 65 x 65 x 233mm T4: 94 x 28 x 28mm W11: 604 x 61 x 71mm T4B: 545 x 545 x 273mm |
Nett Weight |
T1: Tap handles - 0.18kg T12: Tap - 2.3kg T12-QT: Tap - 1.75kg T13: Tap - 1.7kg T13-QT: Tap - 1.7kg T2: Tap handles - 0.15kg T3: Tap handles - 0.15kg T4: Tap handles - 0.25kg W11: Waste - 0.36kg T4B: Regent tap base - 0.15kg |
Gross Weight Including Packaging |
T1: Tap handles - 0.2kg T12: Tap - 2.6kg T12-QT: Tap - 2.3kg T13: Tap - 2kg T13-QT: Tap - 2kg T2: Tap handles - 0.2kg T3: Tap handles - 0.2kg T4: Tap handles - 0.3kg W11: Waste - 0.4kg T4B: Regent tap base - 0.25kg |
Packed Dimension |
T1: 52 x 52 x 65 = 0.0002 m3 T12: 295 x 270 x 182 = 0.0145 m3 T12-QT: 295 x 270 x 182 = 0.0145 m3 T13: 295 x 270 x 182 = 0.0145 m3 T13-QT: 295 x 270 x 182 = 0.0145 m3 T2: 52 x 52 x 65 = 0.0002 m3 T3: 70 x 65 x 65 = 0.0003 m3 T4: 105 x 70 x 35 = 0.0003 m3 W11: 110 x 70 x 70 = 0.0005 m3 T4B: 110 x 70 x 88 = 0.0007 m3 |
Colour |
T12: Tap - Chrome plated T12-QT: Tap - Chrome plated T13: Tap - Chrome plated T13-QT: Tap - Chrome plated T2: Tap handles - Chrome plated T4: Tap handles - Chrome plated W11: Waste - Chrome plated T4B: Regent tap base - Chrome plated |
Barcode |
T4B: 5055806007345 T13-QT: 5055806006812 T4: 5055806007260 |
Packed Dimension |
T1: 52 x 52 x 65 = 0.0002 m3 T12: 295 x 270 x 182 = 0.0145 m3 T12-QT: 295 x 270 x 182 = 0.0145 m3 T13: 295 x 270 x 182 = 0.0145 m3 T13-QT: 295 x 270 x 182 = 0.0145 m3 T2: 52 x 52 x 65 = 0.0002 m3 T3: 70 x 65 x 65 = 0.0003 m3 T4: 105 x 70 x 35 = 0.0003 m3 W11: 110 x 70 x 70 = 0.0005 m3 T4B: 110 x 70 x 88 = 0.0007 m3 |
Colour |
T12: Tap - Chrome plated T12-QT: Tap - Chrome plated T13: Tap - Chrome plated T13-QT: Tap - Chrome plated T2: Tap handles - Chrome plated T4: Tap handles - Chrome plated W11: Waste - Chrome plated T4B: Regent tap base - Chrome plated |
Downloads
Click for Instructions T13-QT (English)
Click for Instructions T4 (English)
Click for Instructions T13-QT (French)
