Illustrated Code

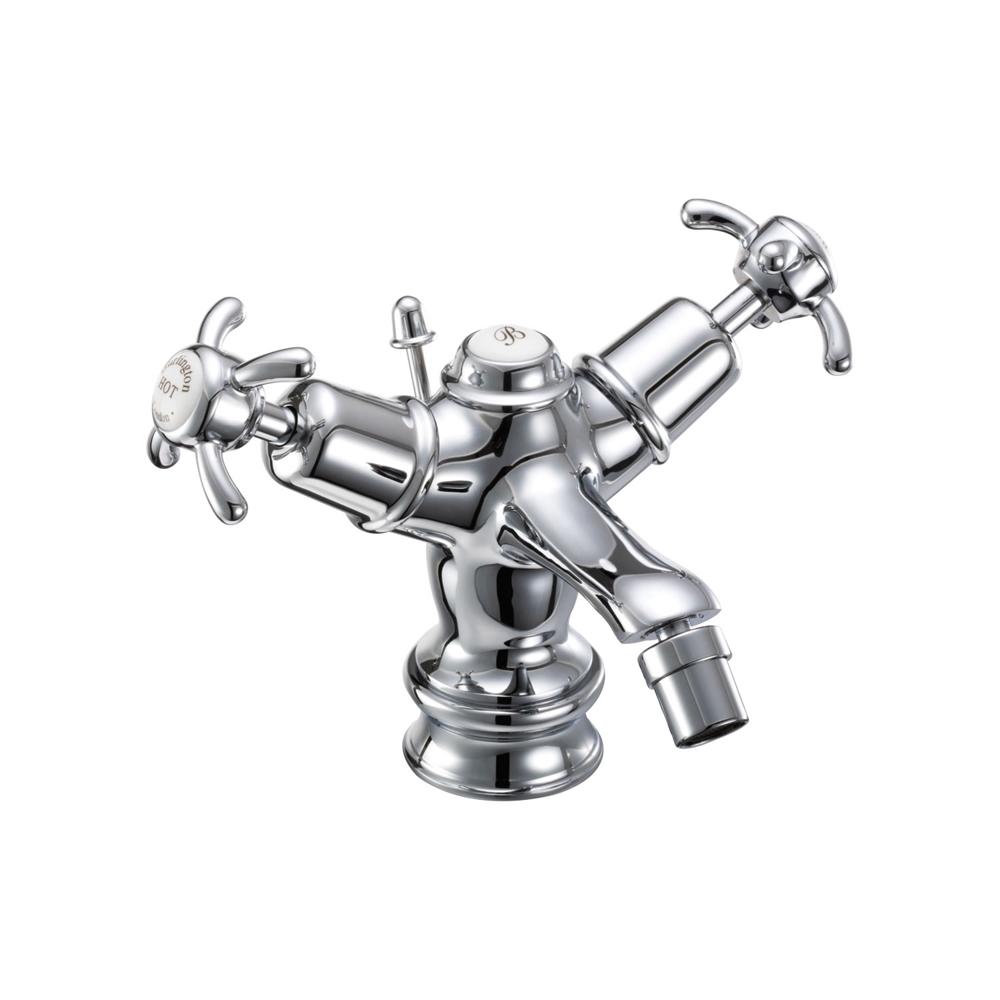

ANR13
- T15: Bidet mixer, with pop up (excluding tap heads & base)
- T2: Anglesey tap handles (pair)
- T4B: Regent small single tap base (for basin & bidet monoblocs - single)
- TOTAL: Code: ANR13

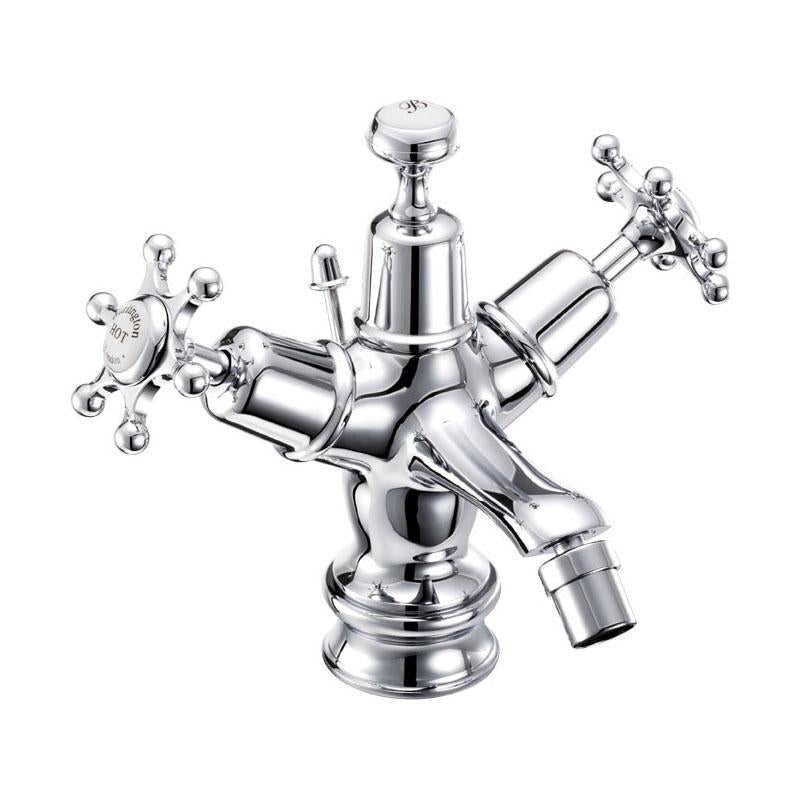

BIR13
- T15: Bidet mixer, with pop up (excluding tap heads & base)
- T3: Birkenhead tap handle (pair)
- T4B: Regent small single tap base (for basin & bidet monoblocs - single)
- TOTAL: Code: BIR13

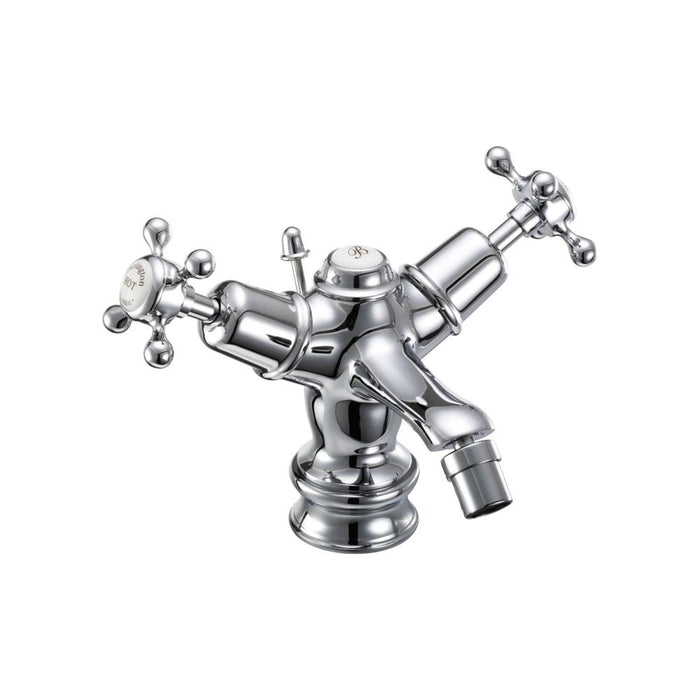

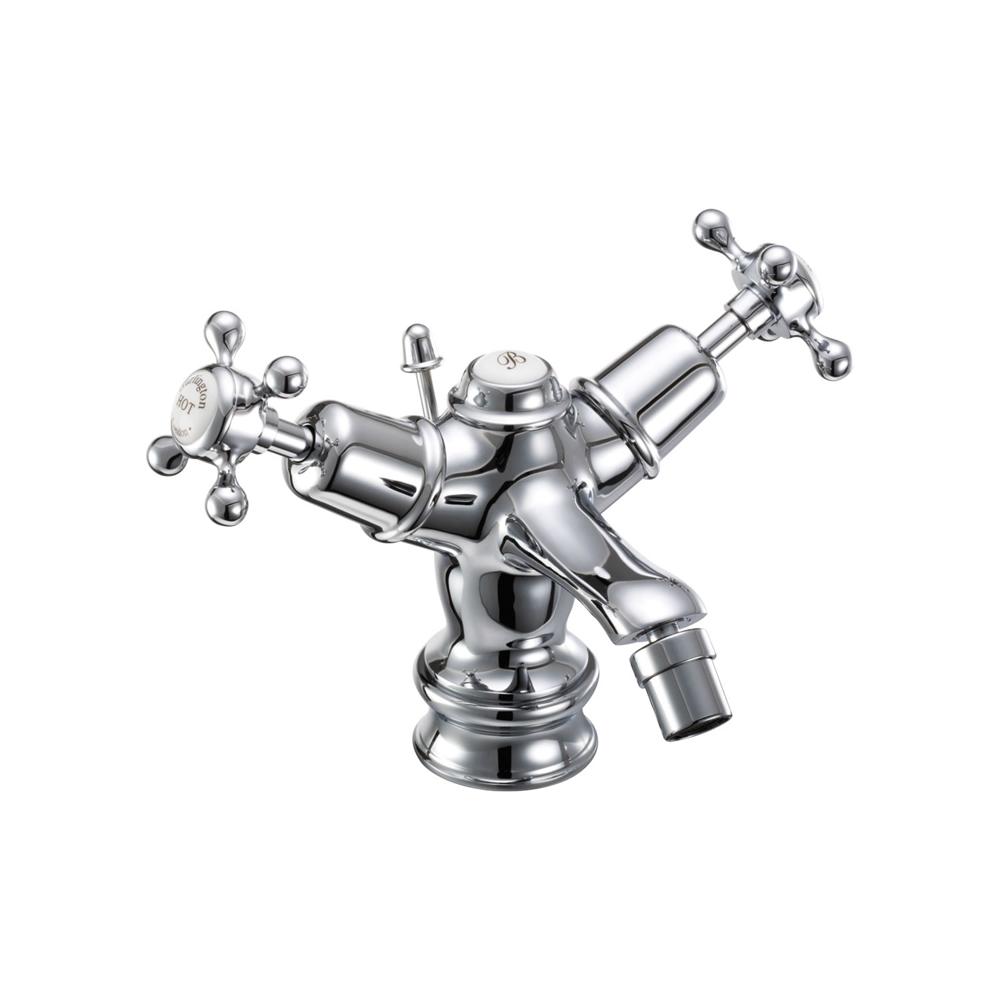

CLR13
- T15: Bidet mixer, with pop up (excluding tap heads & base)
- T1: Claremont tap handles (pair)
- T4B: Regent small single tap base (for basin & bidet monoblocs - single)
- TOTAL: Code: CLR13
Additional Information
Supplied with flow straighter - this is for use with low water pressure
Supplied with neoperl aerator - this is for use with high water pressure
Guarantee
10 years domestic installations
1 year commercial installations
Standards Information
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Available Spare Parts
- SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
- SP817: Chrome blanking plug of pop up hole for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
- SP931 decorative cap of Burlington tap handles: Cold
- SP930 decorative cap of Burlington tap handles: Hot
- SP934: Decorative head of product T16, T16-QT, T15, T15-QT
- SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
- SP825: Lower vertical and horizontal control rods of product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
- SP194: O ring for T13, T13-QT, T12, T12-QT, T19, T20, T21, T22, T15, T15-QT
- SP974: Plug of pop up waste for product T12, T12-QT, CH20, CH22, T15, T15-QT, CH23
- SP807: Pop up basin waste for product T12, T12-QT, T15, T15-QT, CH20, CH22, CH23
- SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
- SP48: T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
- SP29: T13, T15 1, 2 full turn cartridge
- SP942: Tap fixings (including black washer, metal plate, stud and nut) for product T13, T13-QT, T12, T12-QT, T15, T15-QT, CH19, CH20, CH21, CH22, CH23
- SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT
Specification
Product Type |
Traditional |
Material |
T1: Tap handles - Brass T15: Tap - Brass T15-QT: Tap - Brass T2: Tap handles - Brass T3: Tap handles - Brass T4: Tap handles - Brass T4B: Regent tap base - Brass |
Size |
T1: 267 x 267 x 65mm T15: 190 x 1704 x 150mm T15-QT: 190 x 1704 x 150mm T2: 64 x 64 x 237mm T3: 65 x 65 x 233mm T4: 94 x 28 x 28mm T4B: 545 x 545 x 273mm |
Nett Weight |
T1: Tap handles - 0.18kg T15: Tap - 1.65kg T15-QT: Tap - 1.65kg T2: Tap handles - 0.15kg T3: Tap handles - 0.15kg T4: Tap handles - 0.25kg T4B: Regent tap base - 0.15kg |
Gross Weight Including Packaging |
T1: Tap handles - 0.2kg T15: Tap - 2.3kg T15-QT: Tap - 2.2kg T2: Tap handles - 0.2kg T3: Tap handles - 0.2kg T4: Tap handles - 0.3kg T4B: Regent tap base - 0.25kg |
Packed Dimension |
T1: 52 x 52 x 65 = 0.0002 m3 T15: 295 x 270 x 182 = 0.0145 m3 T15-QT: 295 x 270 x 182 = 0.0145 m3 T2: 52 x 52 x 65 = 0.0002 m3 T3: 70 x 65 x 65 = 0.0003 m3 T4: 105 x 70 x 35 = 0.0003 m3 T4B: 110 x 70 x 88 = 0.0007 m3 |
Colour |
T15: Tap - Chrome plated T15-QT: Tap - Chrome plated T2: Tap handles - Chrome plated T4: Tap handles - Chrome plated T4B: Regent tap base - Chrome plated |
Barcode |
T15: 5055806006843 T2: 5055806006928 T4B: 5055806007345 T3: 5055806007000 T1: 5055806006683 |
Packed Dimension |
T1: 52 x 52 x 65 = 0.0002 m3 T15: 295 x 270 x 182 = 0.0145 m3 T15-QT: 295 x 270 x 182 = 0.0145 m3 T2: 52 x 52 x 65 = 0.0002 m3 T3: 70 x 65 x 65 = 0.0003 m3 T4: 105 x 70 x 35 = 0.0003 m3 T4B: 110 x 70 x 88 = 0.0007 m3 |
Colour |
T15: Tap - Chrome plated T15-QT: Tap - Chrome plated T2: Tap handles - Chrome plated T4: Tap handles - Chrome plated T4B: Regent tap base - Chrome plated |
Downloads
Click for Instructions T15 (English)
Click for Instructions T15 (French)
