Description
Illustrated Code

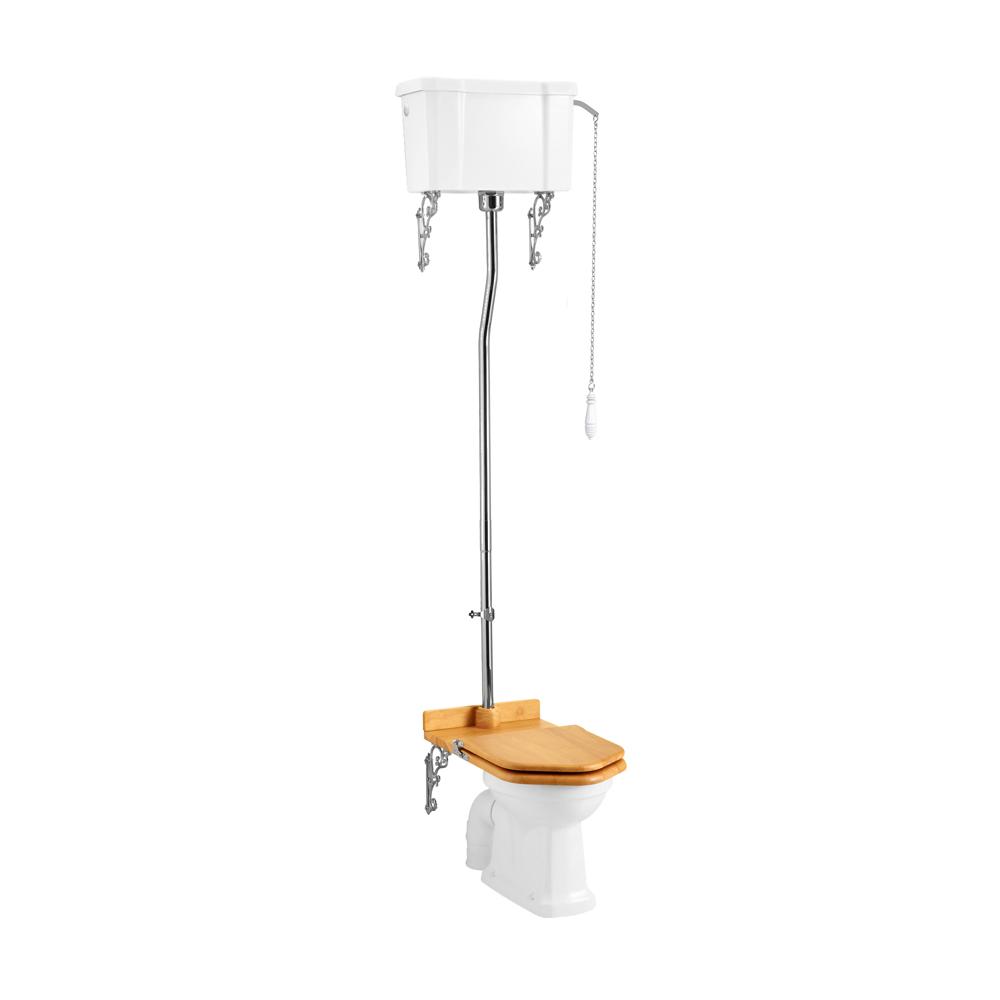

T30 CHR+C28S+P2- T30 CHR: High level flush pipe kit including lever, rigid pull chain, flush pipes, reverse screw cistern connector, stopper and ornate brackets
- C28S: Single flush high level cistern tank with chain & ceramic handle (including cistern fittings)
- P2: Low/high level pan
Guarantee
10 years domestic installations1 year commercial installations
Standards Information
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-CrBS EN 997:2012 WC pans and WC suites with integral trap
Available Spare Parts
- SP459: Black rubber wedge for T30CHR
- SP82: Brass fixing nut for T30 CHR, T33 CHR, T34 CHR
- SP429: Buffer Clip for T30CHR without black rubber wedge
- SP104: Control bracket for T30CHR
- SP119: Decorative cover of cistern connection for T30 CHR & T33 CHR
- SP15: Handle for high level cistern from T30CHR kit
- SP14: High Level Rod
- SP721: High level single flush cistern fittings for C28S
- SP16: Long pull arm for High level cistern from T30CHR kit
- SP146: Pin screw for T30 CHR
- SP918: Plastic hole stopper of cistern fittings for high level cisterns
- SP169: Rubber insert for SP20 clip
- SP17: Screw fixing pack for pan and bidet
- SP105: Spares for T30CHR: allen key x 1, screw x 12, rawl plug x 12, rubber spacing washer x 4, pin screw x 1
- SP18: The bottom section of the H, L flush pipe
- SP729: The complete set of internals of C28S ( including cistern fittings, lever and chain )
- SP537: The lever and chain used for C28, C28S
- SP103: Upper flush pipe for T30CHR
- SP95: Washers & plastic fixing nut for flush pipe
Specification
Product Type | Traditional |
Overall height | max 240cm, min 232cm |
Material | C28S: Vitreous china P2: Pan - Vitreous china T30 CHR: Fittings - Brass |
Size | C28S: 520 x 327 x 205mm P2: 530 x 410 x 360mm T30 CHR: 170 x 37 x 1720mm |
Nett Weight | C28S: 17.5kg P2: Pan - 16.75kg T30 CHR: Fittings - 3.5kg |
Gross Weight Including Packaging | C28S: 19kg P2: Pan - 18.55kg T30 CHR: Fittings - 5.1kg |
Packed Dimension | C28S: 540 x 370 x 225 = 0.045 m3 P2: 380 x 550 x 438 = 0.0915 m3 T30 CHR: 1140 x 380 x 105 = 0.0455 m3 |
Colour | P2: Pan - White |
Barcode | T30 CHR: 5055806007024 P2: 5055806005198 C28S: 5055806029774 |
Packed Dimension | C28S: 540 x 370 x 225 = 0.045 m3 P2: 380 x 550 x 438 = 0.0915 m3 T30 CHR: 1140 x 380 x 105 = 0.0455 m3 |
Colour | P2: Pan - White |
Downloads
Click for Instructions T30 CHR (English)
