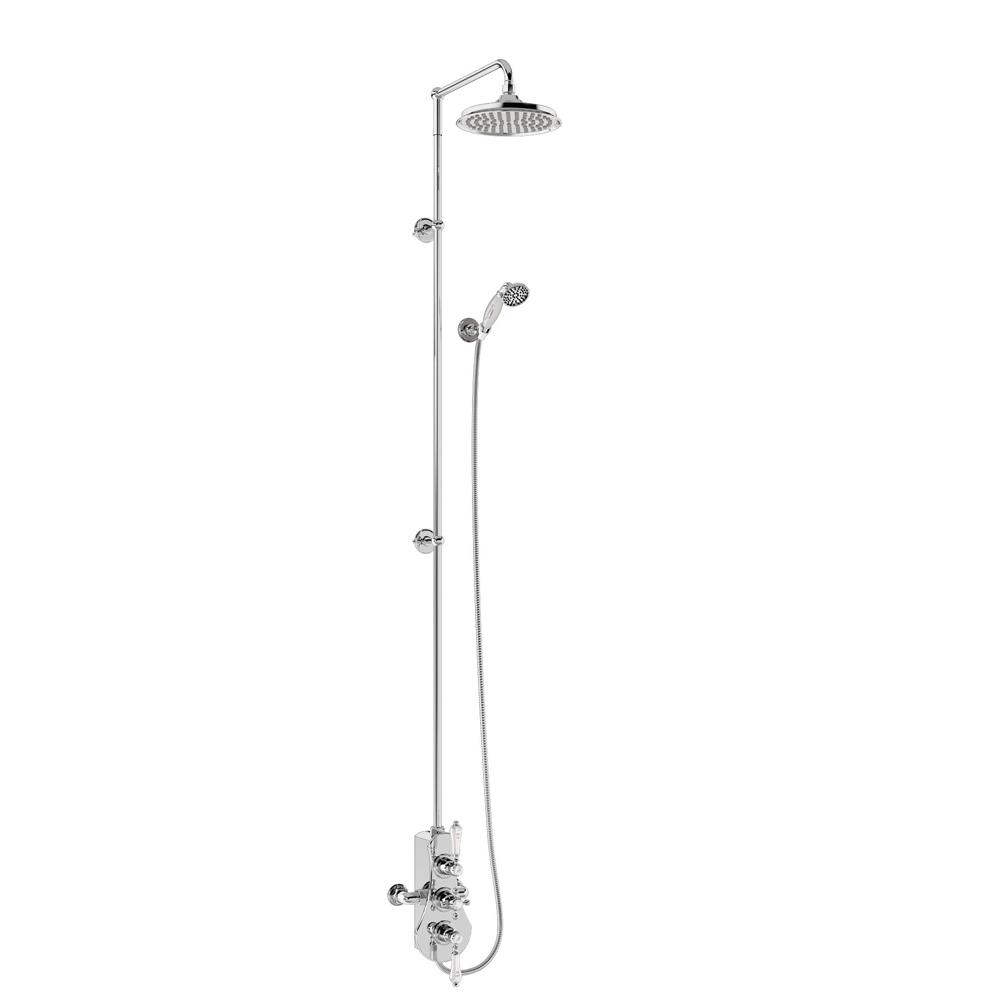

Burlington Spey Thermostatic Exposed Shower Valve Two Outlet Extended Riser with Swivel Shower Arm Handset & Holder Hose and Rose

by Burlington
Save £262
£1,048.00
£786.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

BSF3S.EXT-V60
  • SF3S: Spey Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser)
  • V60: 12 inch shower rose
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • TOTAL: Code: BSF3S.EXT-V60
BSF3S.EXT-V16
  • SF3S: Spey Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser)
  • V16: 6 inch shower rose
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • TOTAL: Code: BSF3S.EXT-V16
BSF3S.EXT-V17
  • SF3S: Spey Thermostatic Exposed Shower Valve Two Outlet, Swivel Shower Arm, Handset & Holder with Hose (excluding Shower Head and Rigid Riser)
  • V17: 9 inch shower rose
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • TOTAL: Code: BSF3S.EXT-V17

Additional Information

Traditional brass faceplate, Claremont handle, with ceramic levers

Adjustable wall bracket, 1500mm shower hose, and handset with ceramic handle

18mm diameter vertical brass shower riser

355mm adjustable swivel shower arm

Image shown is with 6" Airburst shower head.

Image shown is with 6 inch rose.

V22 Extended vertical riser is available if required and can be ordered as an option

Hot & cold inlet ?22mm

The shower head has anti-limescale silicon nipples.

Large bore shower hose (11mm)

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V33: Slide rail
  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)
  • V23: Soap basket
  • V24: Cradle

Available Spare Parts

  • SP432: A pair of adjustable vertical riser wall brackets for the latest V22 (adjustment tolerance of the bracket is 28~125mm)
  • SP375: Adaptor (pair) G3, 4 male thread to 22mm pipe
  • SP720: Adaptor(pair) G 1, 2 male thread to 22mm
  • SP593: Bottom lever (including thread) for two outlets valves (on, off indices)
  • V10-2: Ceramic levers for Avon & Clyde dual control valves (pair)
  • SP52: Ceramic part of lever for Burlington showering products (plain version, without any texts)
  • V29: Ceramic telephone handset
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • SP110: Chrome compression nut and olive for V21 and V22 riser rail
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP702: Cover plate for V4, SF1S, SF3S, BF1S, BF2S, BF3S
  • SP607: Face plates for SF3S
  • SP478: Filter & washer for shower roses
  • SP955: Fixing nut and compression ring of inlet elbow for product SF1S, SF3S
  • SP554: Fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S
  • SP599: Grub screw (M4x4)
  • SP603: Grub screw for SF1S, SF3S, AF1S, AF3S (M5x5)
  • SP315: Hent F2 flow control cartridge
  • SP313: Hent F3 flow control cartridge
  • V26: Hose
  • SP662: One unit of wall Bracket for V21and V22(28-171mm)
  • SP959: Retaining nut of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC73 CHR, ARC64, ARC64 CHR
  • SP815: Retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR
  • V18: Shower hook (for wall mounting of telephone shower head)
  • SP601: Small grub screw (M4x4)
  • SP719: Straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S
  • V11-1: Straight shower arm for vertical riser mounting
  • SP592: Top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
  • SP314: VQT1 temperature control cartridge
  • SP929: Wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
  • SP188: Wall Bracket for V21and V22(28-125mm)

Specification

Product Type Traditional
Material SF3S: Valve - Brass
V16: Shower rose - Brass
V17: Shower rose - Brass
V22: Riser - Brass
V60: Shower rose - Brass

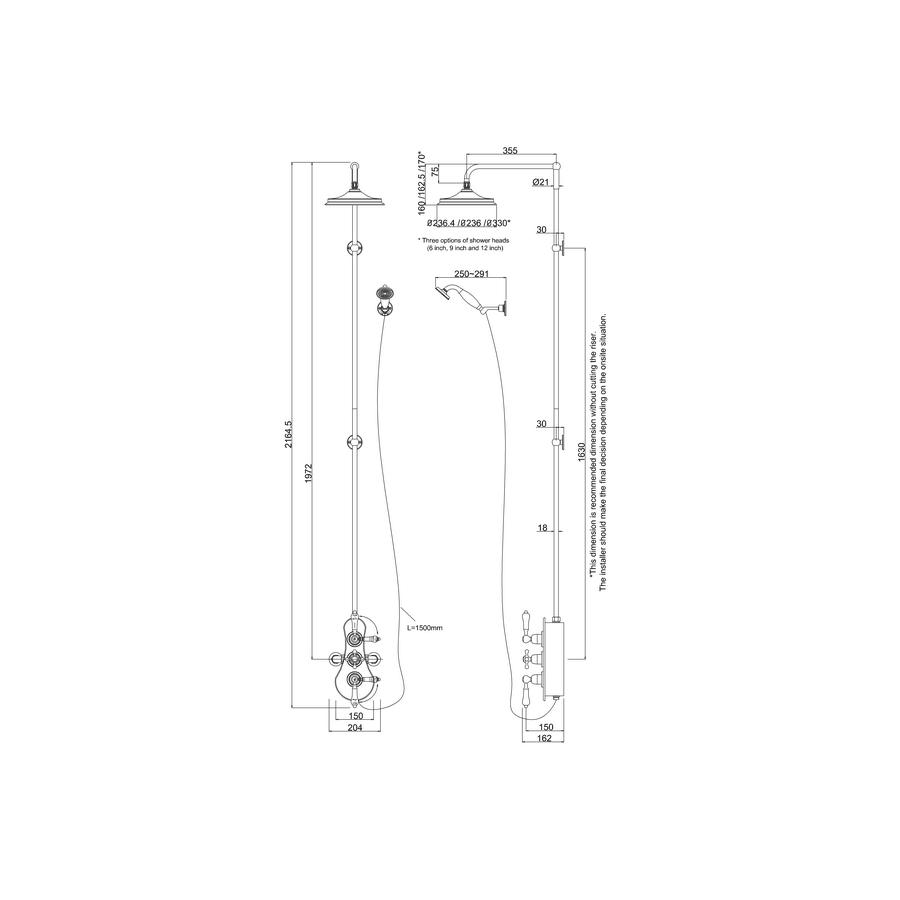

Size SF3S: 385.9 x 204 x 162mm
V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V22: 1700 x 120 x 60mm
V60: 330.5 x 330.5 x 95mm
Nett Weight SF3S: Valve - 7.31kg
V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V22: Riser - 1.35kg
V60: Shower rose - 1.6kg
Gross Weight Including Packaging SF3S: Valve - 7.75kg
V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V22: Riser - 1.48kg
V60: Shower rose - 2.1kg
Packed Dimension SF3S: 470 x 460 x 190 = 0.0411 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V22: 1750 x 135 x 70 = 0.0165 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour SF3S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V22: Riser - Chrome plated
V60: Shower rose - Chrome plated
Barcode V22: 5055806007963
V60: 5055806013759
SF3S: 5055806015340
V16: 5055806007888
V17: 5055806007895
Packed Dimension SF3S: 470 x 460 x 190 = 0.0411 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V22: 1750 x 135 x 70 = 0.0165 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour SF3S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V22: Riser - Chrome plated
V60: Shower rose - Chrome plated

Downloads

Click for Instructions V22 (English)

Click for Instructions V60 (English)

Click for Instructions SF3S (English)

Click for Instructions V22 (French)

Click for Instructions V60 (French)

Click for Instructions SF3S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions SF3S (French)
