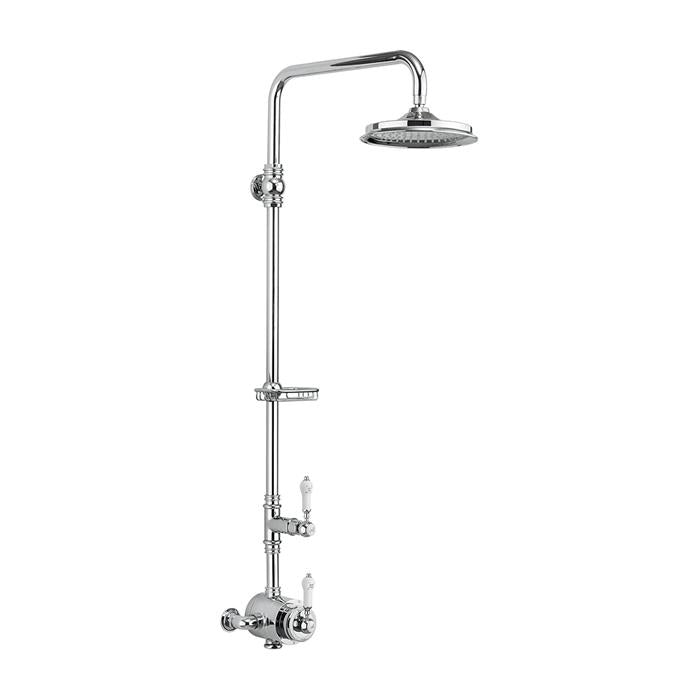

Burlington Stour Thermostatic Exposed Shower Valve Single Outlet Rigid Riser with Fixed Shower Arm & Soap Basket and Rose

by Burlington
Save £330.01
£1,319.01
£989.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

BF2S+V60
  • BF2S: Stour Thermostatic Exposed Shower Valve Single Outlet, Rigid Riser, Fixed Shower Arm & Soap Basket (excluding Shower Head)
  • V60: 12 inch shower rose
  • TOTAL: Code: BF2S+V60
BF2S+V16
  • BF2S: Stour Thermostatic Exposed Shower Valve Single Outlet, Rigid Riser, Fixed Shower Arm & Soap Basket (excluding Shower Head)
  • V16: 6 inch shower rose
  • TOTAL: Code: BF2S+V16
BF2S+V17
  • BF2S: Stour Thermostatic Exposed Shower Valve Single Outlet, Rigid Riser, Fixed Shower Arm & Soap Basket (excluding Shower Head)
  • V17: 9 inch shower rose
  • TOTAL: Code: BF2S+V17

Additional Information

Traditional brass body, ceramic handle, with ceramic levers

28mm diameter vertical brass shower riser

450mm adjustable fixed shower arm

Soap basket

Image shown is with 6" Airburst shower head. (as shown on image)

Hot & cold inlet ?22mm

The shower head has anti-limescale silicon nipples.

it is not possible to extend the length of the rigid riser but it can be cut to size on site.

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)

Available Spare Parts

  • SP375: Adaptor (pair) G3, 4 male thread to 22mm pipe
  • SP720: Adaptor(pair) G 1, 2 male thread to 22mm
  • V10-1: Ceramic lever for shower valve (single)
  • SP108: Ceramic ring of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
  • V1: Claremont valve handle 1 (single)
  • SP478: Filter & washer for shower roses
  • SP554: Fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S
  • SP604: Grub screw for BF1S, BF2S, BF3S (M5x8)
  • SP693: Grub screw for BF2S, BF3S (M5*4)
  • SP605: Grub screw for BF2S, BF3S (M5x5)
  • SP581: Hent F7 flow control cartridge
  • SP913: Metal block of product BF1S, BF2S, BF3S
  • SP920: Riser of product BF2S, BF3S (including the washer and O ring)
  • SP598: Riser rail mounted straight showering arm (including grub screw) for Stour
  • SP613: Soap basket for Stour (including grub screw)
  • SP719: Straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S
  • SP668: Straight shower arm for vertical riser mounting (same as V11-1)
  • SP594: Thermostatic lever for Stour valves (including thread), hot, code indices
  • SP899: Top flow control of product BF1S, BF2S, BF3S
  • SP592: Top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
  • SP32: Vernet T1 temperature control cartridge

Specification

Product Type Traditional
Material BF2S: Valve - Brass
V16: Shower rose - Brass
V17: Shower rose - Brass
V60: Shower rose - Brass

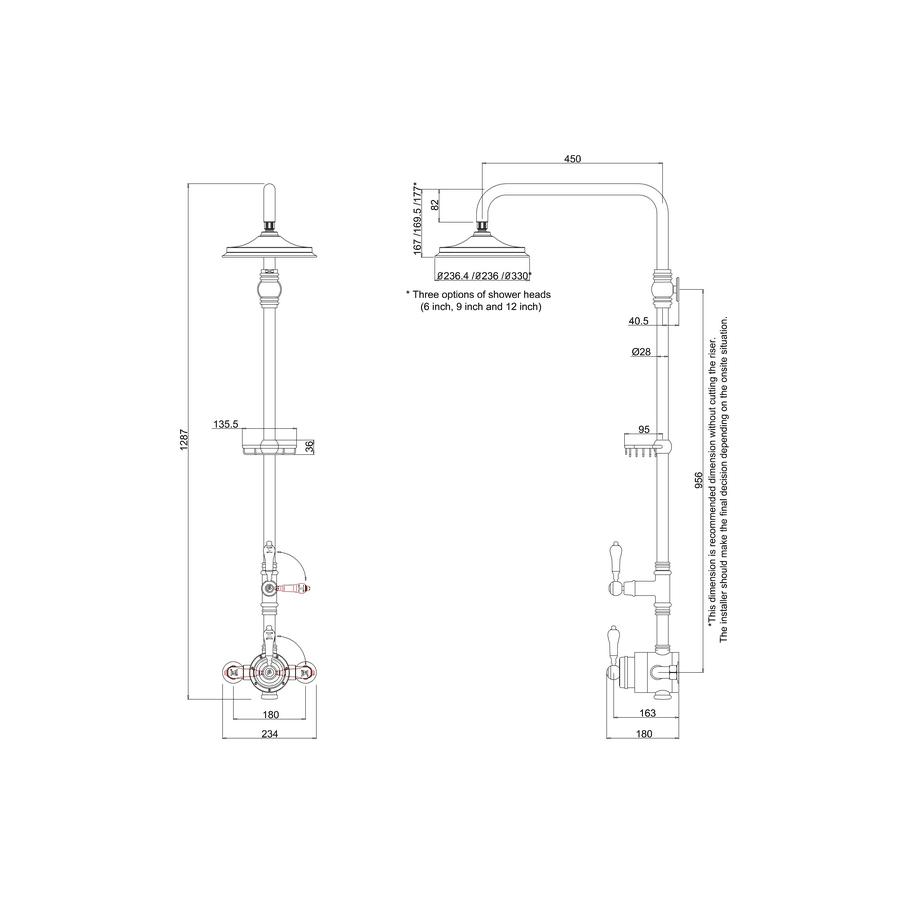

Size BF2S: 1287 x 234 x 180mm
V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V60: 330.5 x 330.5 x 95mm
Nett Weight BF2S: Valve - 9.12kg
V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V60: Shower rose - 1.6kg
Gross Weight Including Packaging BF2S: Valve - 9.7kg
V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V60: Shower rose - 2.1kg
Packed Dimension BF2S: 775 x 415 x 200 = 0.0643 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour BF2S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated
Barcode V60: 5055806013759
BF2S: 5055806015296
V16: 5055806007888
V17: 5055806007895
Packed Dimension BF2S: 775 x 415 x 200 = 0.0643 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour BF2S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated

Downloads

Click for Instructions V60 (English)

Click for Instructions BF2S (English)

Click for Instructions V60 (French)

Click for Instructions BF2S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions BF2S (French)
