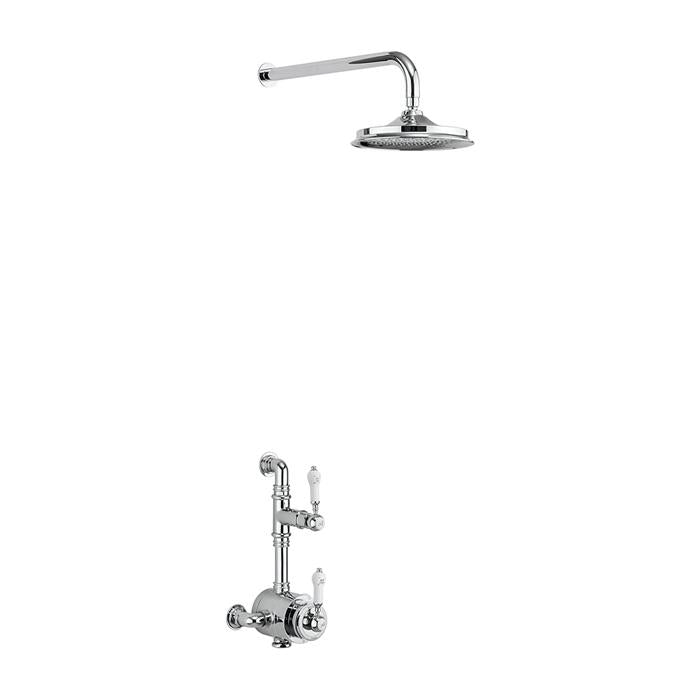

Burlington Stour Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm

by Burlington
Save £302
£1,209.00
£907.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

BF1S+V60
  • BF1S: Stour Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm (excluding Shower Head)
  • V60: 12 inch shower rose
  • TOTAL: Code: BF1S+V60
BF1S+V16
  • BF1S: Stour Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm (excluding Shower Head)
  • V16: 6 inch shower rose
  • TOTAL: Code: BF1S+V16
BF1S+V17
  • BF1S: Stour Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm (excluding Shower Head)
  • V17: 9 inch shower rose
  • TOTAL: Code: BF1S+V17

Additional Information

Traditional brass body, ceramic handle, with ceramic levers

Image shown is with 6" Airburst shower head. (as shown on image)

Hot & cold inlet ?22mm

The shower head has anti-limescale silicon nipples.

shower arm: 28mm diameter pipe, 450mm length with swivel joint

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)
  • V23: Soap basket

Available Spare Parts

  • SP816: 3, 4 x 1, 2 Reducing Nipple of product BF1S
  • SP375: Adaptor (pair) G3, 4 male thread to 22mm pipe
  • SP720: Adaptor(pair) G 1, 2 male thread to 22mm
  • V10-1: Ceramic lever for shower valve (single)
  • SP108: Ceramic ring of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
  • V1: Claremont valve handle 1 (single)
  • SP702: Cover plate for V4, SF1S, SF3S, BF1S, BF2S, BF3S
  • SP478: Filter & washer for shower roses
  • SP554: Fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S
  • SP599: Grub screw (M4x4)
  • SP604: Grub screw for BF1S, BF2S, BF3S (M5x8)
  • SP37: Hent F5 flow control cartridge
  • SP913: Metal block of product BF1S, BF2S, BF3S
  • SP814: Outlet elbow of product BF1S
  • SP834: Spare parts of outlet for product BF1S
  • SP719: Straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S
  • SP594: Thermostatic lever for Stour valves (including thread), hot, code indices
  • SP899: Top flow control of product BF1S, BF2S, BF3S
  • SP592: Top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices)
  • SP32: Vernet T1 temperature control cartridge
  • SP597: Wall mounted straight showering arm for Stour

Specification

Product Type Traditional
Material BF1S: Valve - Brass
V16: Shower rose - Brass
V17: Shower rose - Brass
V60: Shower rose - Brass

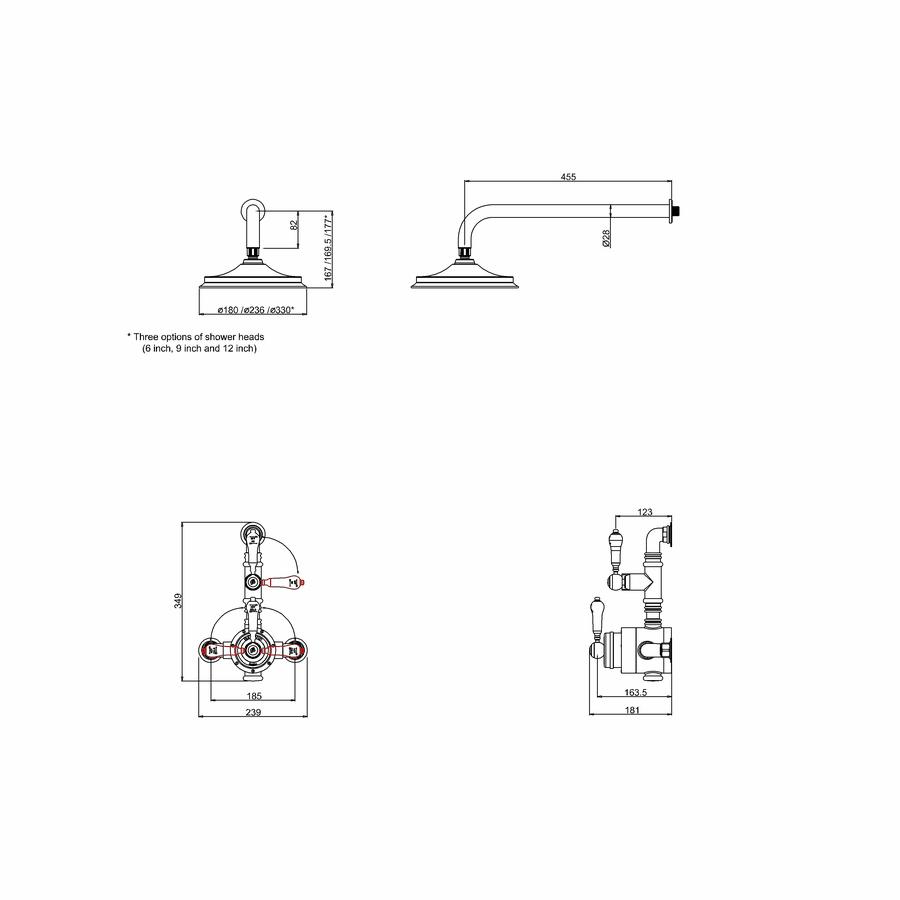

Size BF1S: 349 x 239 x 181mm
V16: 180 x 180 x 85mm
V17: 231 x 231 x 100mm
V60: 330.5 x 330.5 x 95mm
Nett Weight BF1S: Valve - 6.8kg
V16: Shower rose - 0.3kg
V17: Shower rose - 1.1kg
V60: Shower rose - 1.6kg
Gross Weight Including Packaging BF1S: Valve - 7.32kg
V16: Shower rose - 0.6kg
V17: Shower rose - 1.26kg
V60: Shower rose - 2.1kg
Packed Dimension BF1S: 530 x 350 x 200 = 0.0371 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour BF1S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated
Barcode V60: 5055806013759
BF1S: 5055806015289
V16: 5055806007888
V17: 5055806007895
Packed Dimension BF1S: 530 x 350 x 200 = 0.0371 m3
V16: 200 x 189 x 100 = 0.0038 m3
V17: 280 x 270 x 130 = 0.0098 m3
V60: 356 x 342 x 102 = 0.0124 m3
Colour BF1S: Valve - Chrome plated
V16: Shower rose - Chrome plated
V17: Shower rose - Chrome plated
V60: Shower rose - Chrome plated

Downloads

Click for Instructions V60 (English)

Click for Instructions BF1S (English)

Click for Instructions V60 (French)

Click for Instructions BF1S (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions BF1S (French)
