Burlington Tay Thermostatic Bath Shower Mixer Deck Mounted with Rigid Riser & Swivel Shower Arm

by Burlington
Save £324
£1,297.00
£973.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

BT2DS.EXT+V60
  • T2DS: Tay Thermostatic Bath Shower Mixer Deck Mounted with Swivel Shower Arm (excluding Shower Head and Rigid Riser)
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • V60: 12 inch shower rose
  • TOTAL: Code: BT2DS.EXT+V60
BT2DS.EXT+V16
  • T2DS: Tay Thermostatic Bath Shower Mixer Deck Mounted with Swivel Shower Arm (excluding Shower Head and Rigid Riser)
  • V16: 6 inch shower rose
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • TOTAL: Code: BT2DS.EXT+V16
BT2DS.EXT+V17
  • T2DS: Tay Thermostatic Bath Shower Mixer Deck Mounted with Swivel Shower Arm (excluding Shower Head and Rigid Riser)
  • V22: Extended vertical riser (with two adjustable vertical riser wall brackets)
  • V17: 9 inch shower rose
  • TOTAL: Code: BT2DS.EXT+V17

Additional Information

This product is supplied with both a straightener for low pressure and an aerator for high pressure (screws into the nozzle on the front of the spout) a small plastic toll is supplied to make changing the aerator straightener an easy operation.

Traditional brass body, and Claremont handles, with ceramic indices

Brass bath spout with swivel function

Available deck or wall mounted

18mm diameter vertical brass shower riser

355mm adjustable swivel shower arm

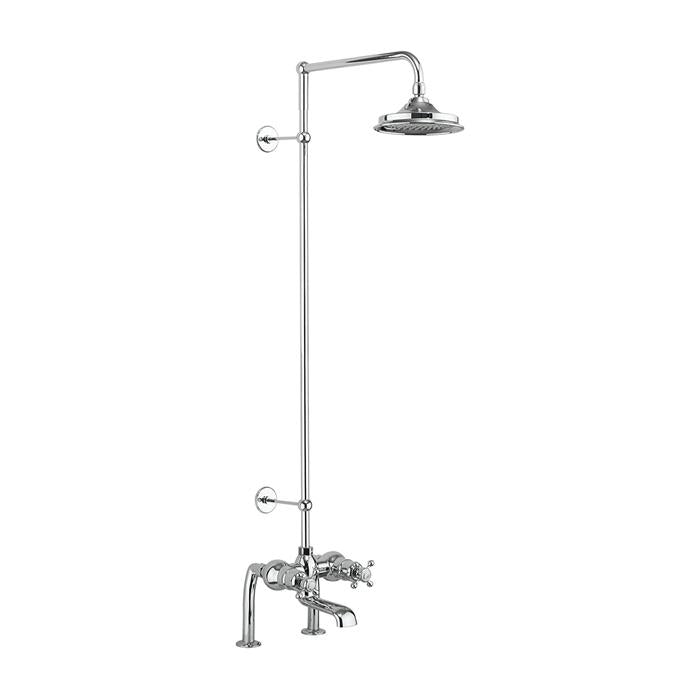

Image shown is with 6" Airburst shower head.

Image shown is with 6 inch rose.

Extended vertical riser V22 is produced in two parts and then joined together as one riser.

The shower head has anti-limescale silicon nipples.

Minimum recommended pressure of 2 Bar

Hot & cold inlet ?15mm

Guarantee

10 years domestic installations
1 year commercial installations

Available Spare Parts

  • SP432: A pair of adjustable vertical riser wall brackets for the latest V22 (adjustment tolerance of the bracket is 28~125mm)
  • SP839: Ceramic indice with texts shower-Bath for product T2WB, T2DB, T2WS, T2DS
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • SP110: Chrome compression nut and olive for V21 and V22 riser rail
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP478: Filter & washer for shower roses
  • SP599: Grub screw (M4x4)
  • SP583: Mingshi F3 flow control cartridge
  • SP662: One unit of wall Bracket for V21and V22(28-171mm)
  • SP995: Pair of deck mounted unions of product T2DB, T2DS
  • SP601: Small grub screw (M4x4)
  • V11-1: Straight shower arm for vertical riser mounting
  • SP585: VQT2 cartridge temperature control cartridge
  • SP929: Wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H
  • SP188: Wall Bracket for V21and V22(28-125mm)

Specification

Product Type Traditional
Material T2DS: Tap - Brass
V16: Shower rose - Brass
V22: Riser - Brass

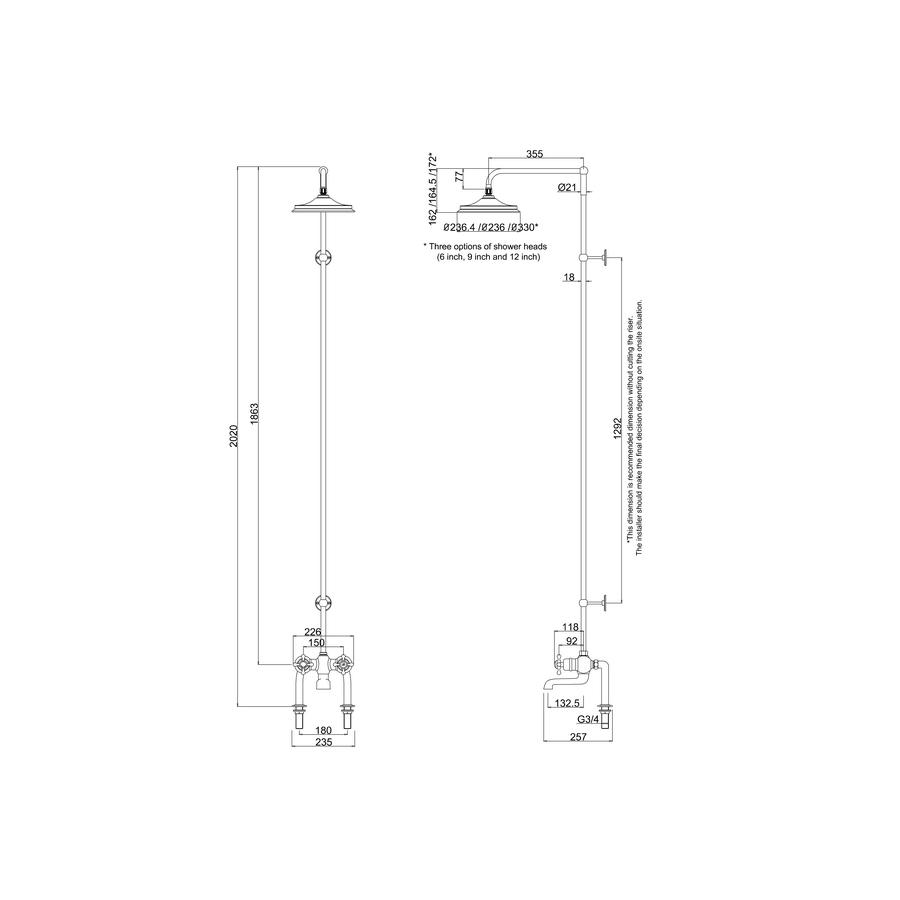

Size T2DS: 157 x 35 x 257mm
V16: 180 x 180 x 85mm
V22: 1700 x 120 x 60mm
Nett Weight T2DS: Tap - 4.68kg
V16: Shower rose - 0.3kg
V22: Riser - 1.35kg
Gross Weight Including Packaging T2DS: Tap - 5.1kg
V16: Shower rose - 0.6kg
V22: Riser - 1.48kg
Packed Dimension T2DS: 600 x 300 x 150 = 0.027 m3
V16: 200 x 189 x 100 = 0.0038 m3
V22: 1750 x 135 x 70 = 0.0165 m3
Colour T2DS: Tap - Chrome plated
V16: Shower rose - Chrome plated
V22: Riser - Chrome plated
Barcode V22: 5055806007963
V60: 5055806013759
T2DS: 5055806015364
V16: 5055806007888
V17: 5055806007895
Packed Dimension T2DS: 600 x 300 x 150 = 0.027 m3
V16: 200 x 189 x 100 = 0.0038 m3
V22: 1750 x 135 x 70 = 0.0165 m3
Colour T2DS: Tap - Chrome plated
V16: Shower rose - Chrome plated
V22: Riser - Chrome plated

Downloads

Click for Instructions V22 (English)

Click for Instructions V60 (English)

Click for Instructions T2DS (English)

Click for Instructions V22 (French)

Click for Instructions V60 (French)

Click for Instructions T2DS (French)

Click for Instructions V16 (English)

Click for Instructions V17 (English)

Click for Instructions T2DS (French)
