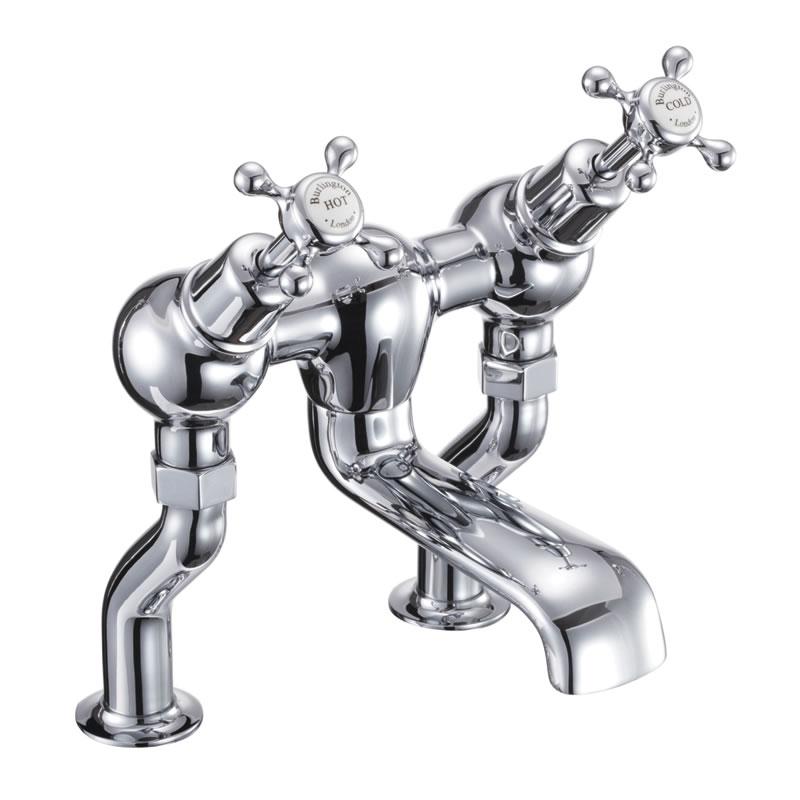

Burlington Traditional Angled Bath Filler - Deck Mounted

Save £98.90
Original price £394.90
Current price £296.00
CODE: AN25

Illustrated Code

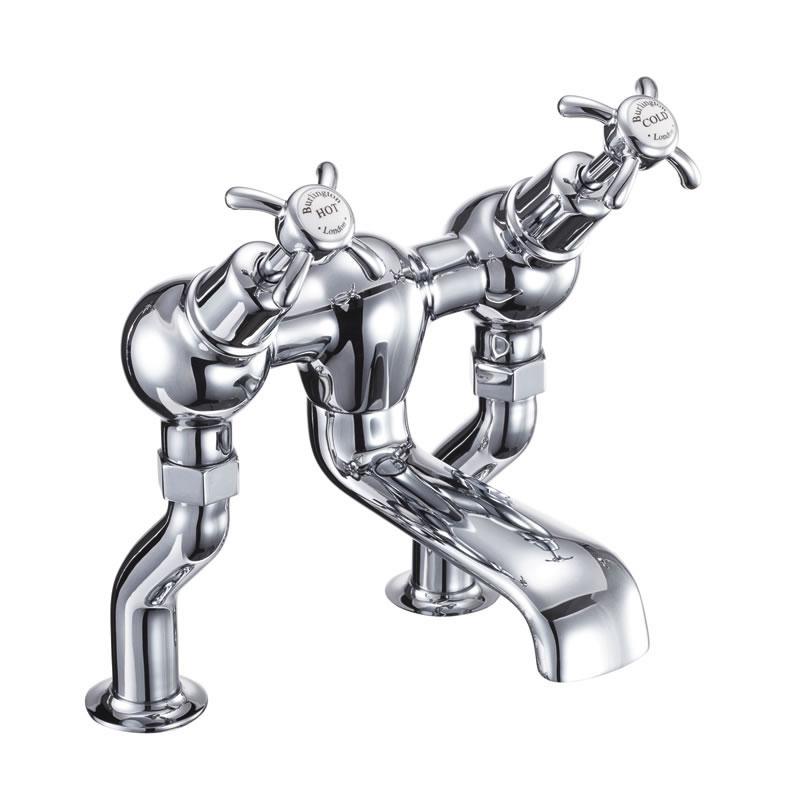

AN25
  • T11: Angled bath filler (excluding tap heads, bases and unions)
  • T18: Deck mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
  • T2: Anglesey tap handles (pair)

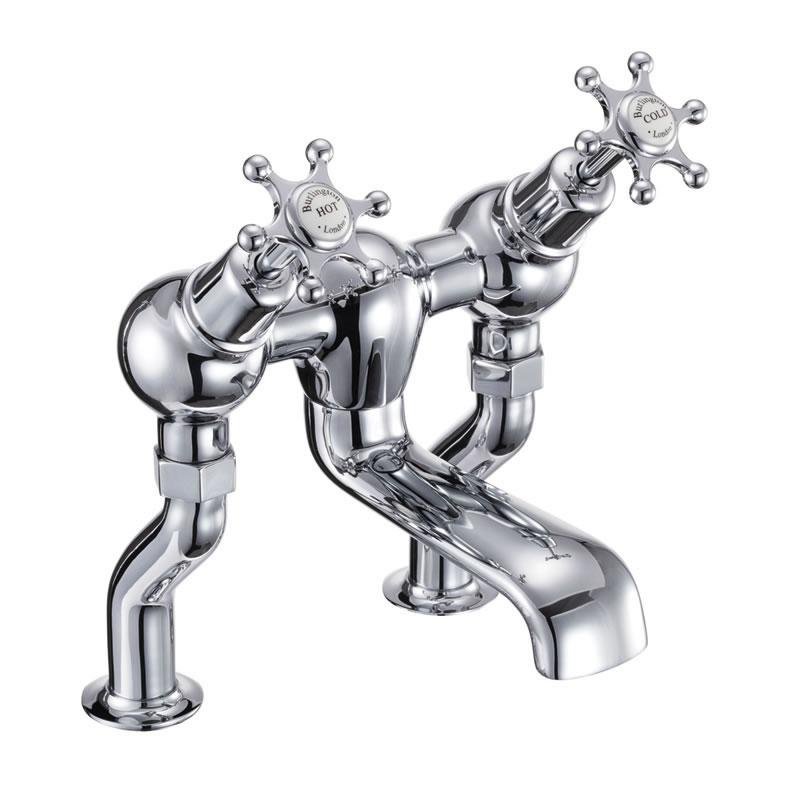

BI25
  • T11: Angled bath filler (excluding tap heads, bases and unions)
  • T18: Deck mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
  • T3: Birkenhead tap handle (pair)
CL25
  • T11: Angled bath filler (excluding tap heads, bases and unions)
  • T18: Deck mounting unions (for Bath Shower Mixer & Bath Filler, 3/4)
  • T1: Claremont tap handles (pair)

Details

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

SP162: Aerator & flow straightener for product T8, T8-QT, T9, T9-QT, T10, T10-QT, T11, T11-QT, T24, T24-QT, T25, T25-QT, V32, ARCV32 NKL, ARC44
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP92: G3, 4 fixing nut and washer for products T7, T18
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP26: T8, T10, T11 3, 4 full turn cartridge

Specifications

Product Finish Chrome Plated
Product Style Traditional
Material T1: Tap handles - Brass
T11: Tap - Brass
T18: Accessories - Brass
T2: Tap handles - Brass
T3: Tap handles - Brass

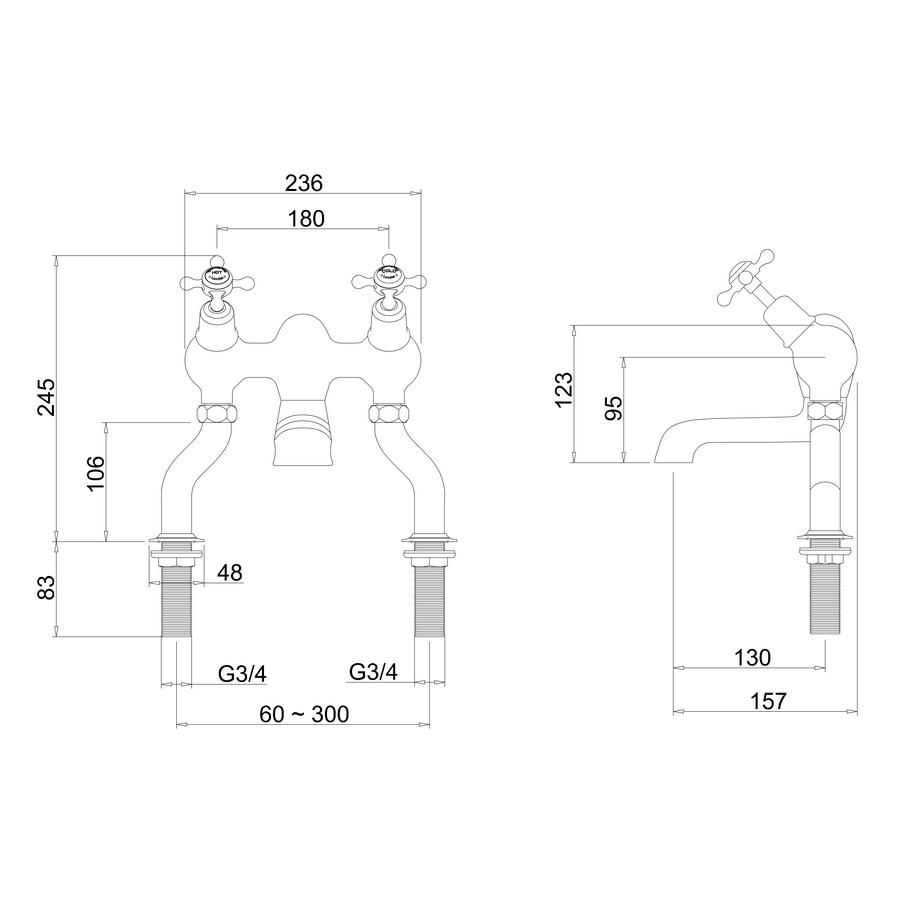

Size T1: 267 x 267 x 65mm
T11: 230 x 1762 x 160mm
T18: 197 x 617 x 46mm
T2: 64 x 64 x 237mm
T3: 65 x 65 x 233mm
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T11: 252 x 228 x 188 = 0.0108 m3
T18: 245 x 175 x 73 = 0.0031 m3
T2: 52 x 52 x 65 = 0.0002 m3
T3: 70 x 65 x 65 = 0.0003 m3
Colour T11: Tap - Chrome plated
T18: Accessories - Chrome plated
T2: Tap handles - Chrome plated
Barcode T11: 5055806006737
T18: 5055806006904
T2: 5055806006928
T3: 5055806007000
T1: 5055806006683
Flow Rates System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straigthener) 21 21.7 24.2 26.5 28
Spout (aerator) 5.4 10.3 11.5 13.6 15.5
Nett Weight T1: Tap handles - 0.18kg
T11: Tap - 1.9kg
T18: Accessories - 0.9kg
T2: Tap handles - 0.15kg
T3: Tap handles - 0.15kg
Gross Weight Including Packaging T1: Tap handles - 0.2kg
T11: Tap - 2.31kg
T18: Accessories - 1.1kg
T2: Tap handles - 0.2kg
T3: Tap handles - 0.2kg

Downloads

Click for Instructions T11 (English)

Click for Instructions T11 (French)
