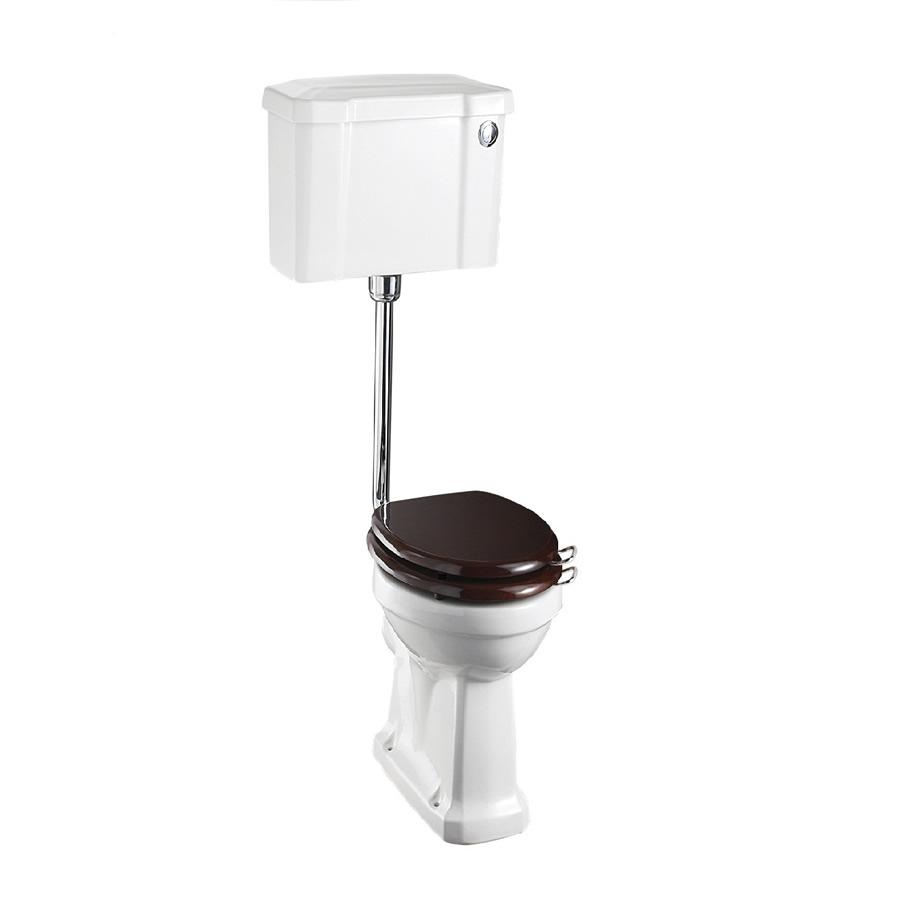

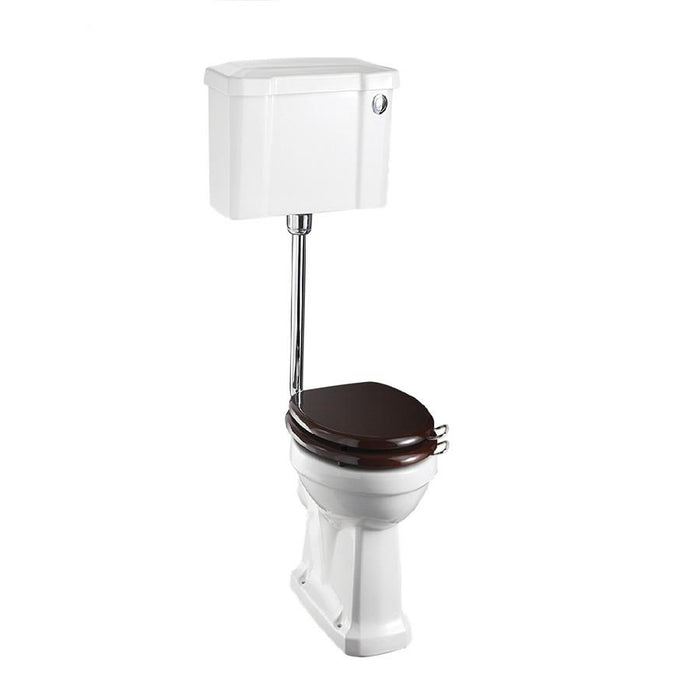

Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.

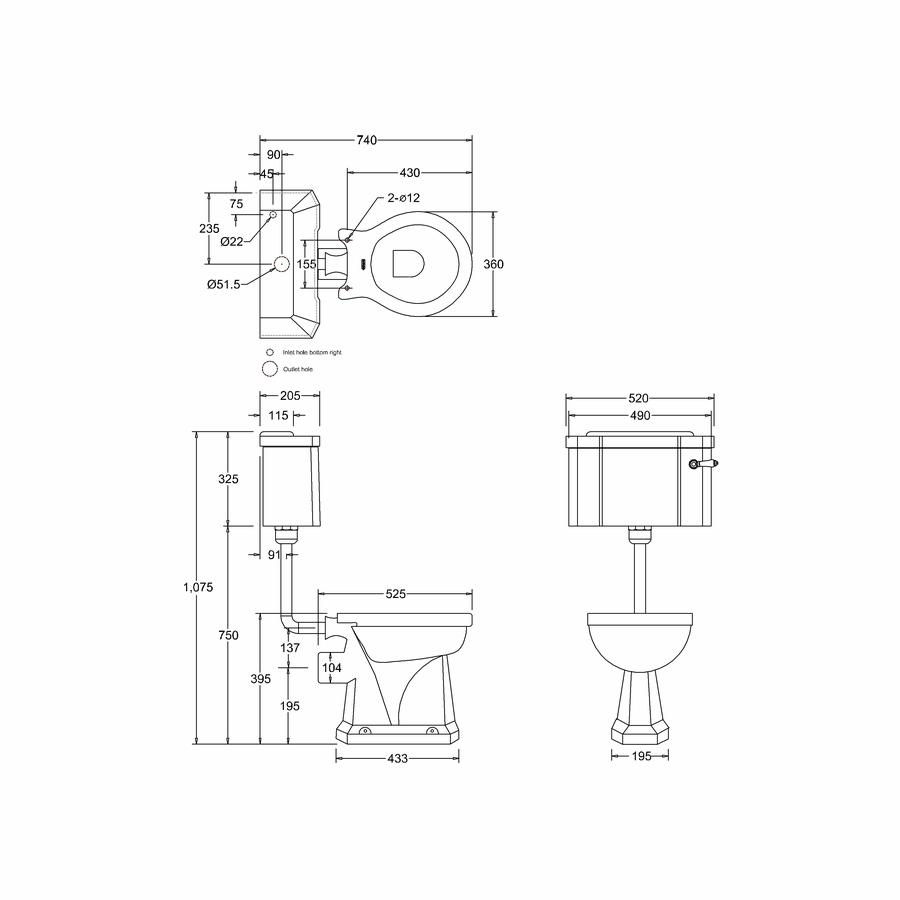

The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,075mm to the top of the cistern, minimum height is 900mm.
Water Inlet valve hole is located on the base of cistern tank on the right hand side
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug
Dual flush cistern fittings with ceramic lever on the right.
Press lever down for 6 litre flush and up for 3 litre flush.
P trap standard height pan - height from floor to pan rim is 40cm.
Regal Height pan ( floor to pan rim height 48cm ) available : P16
Cistern can be used with optional decorative Ornate Brackets T32 CHR
Low level wc must be used with standard Burlington toilet seats
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
Ceramic soil connection pipes. The S trap connector bending down to the floor : C26
| Product Type | Traditional |
| Overall height | max 114cm, min 96cm |
| Material | P2: Pan - Vitreous china C1: Cistern - Ceramic & brass C2: Cistern - Vitreous china C3: Cistern - Vitreous china C4: Cistern - Vitreous china T31 CHR: Fittings - Brass |
| Size | P2: 530 x 410 x 360mm C1: 520 x 327 x 205mm C2: 515 x 205 x 327mm C3: 454 x 327 x 218mm C4: 454 x 327 x 218mm T31 CHR: 221 x 38 x 461mm |
| Nett Weight | P2: Pan - 16.75kg C1: Cistern - 16kg C2: Cistern - 16kg C3: Cistern - 14.05kg C4: Cistern - 14.05kg T31 CHR: Fittings - 1.19kg |
| Gross Weight Including Packaging | P2: Pan - 18.55kg C1: Cistern - 18.25kg C2: Cistern - 18.25kg C3: Cistern - 16.25kg C4: Cistern - 16.25kg T31 CHR: Fittings - 1.64kg |
| Packed Dimension | P2: 380 x 550 x 438 = 0.0915 m3 C1: 225 x 540 x 370 = 0.045 m3 C2: 225 x 540 x 370 = 0.045 m3 C3: 235 x 475 x 365 = 0.0407 m3 C4: 235 x 475 x 365 = 0.0407 m3 T31 CHR: 505 x 240 x 70 = 0.0085 m3 |
| Colour | P2: Pan - White C3: Cistern - White C4: Cistern - White T31 CHR: Fittings - Crome plated |
| Barcode | T31 CHR: 5055806007048 P2: 5055806005198 C2: 5055806002159 |
| Packed Dimension | P2: 380 x 550 x 438 = 0.0915 m3 C1: 225 x 540 x 370 = 0.045 m3 C2: 225 x 540 x 370 = 0.045 m3 C3: 235 x 475 x 365 = 0.0407 m3 C4: 235 x 475 x 365 = 0.0407 m3 T31 CHR: 505 x 240 x 70 = 0.0085 m3 |
| Colour | P2: Pan - White C3: Cistern - White C4: Cistern - White T31 CHR: Fittings - Crome plated |
Click for Instructions T31 CHR (English)
Click for Instructions C2 (English)
