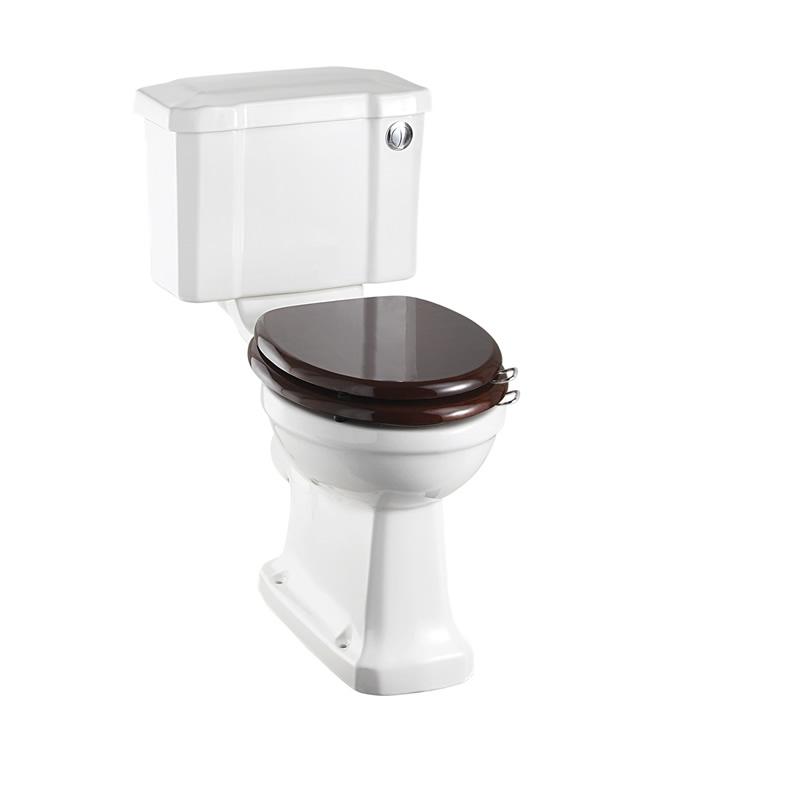

Burlington Traditional Regal Close Coupled Pan with Slimline Push Button Cistern

by Burlington
Save £120
£480.00
£360.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

P12+C4
  • P12: Regal close coupled pan
  • C4: Close Coupled / Low level cistern 44 cm Front Button (incl. bottom entry cistern fittings)

Additional Information

Regal Height pan P12 ( floor to pan rim height 48cm ) is 8cm taller than a standard pan.

Water Inlet valve hole is located on the base of cistern tank on the right hand side

Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).

SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug

Dual flush cistern fittings with ceramic lever on the right.

Press lever down for 6 litre flush and up for 3 litre flush.

Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26

Metal connection bracket.

Supplied with floor fixings.

Recommended to be used with cistern tank isolation valve W25

Guarantee

25 years domestic installations
1 year commercial installations

Standards Information

BS EN 997:2012 WC pans and WC suites with integral trap
BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern. Connecting dimensions

Available Spare Parts

  • SP11: 51cm Cistern Lid For C1 & C2
  • SP511: Back entry kit for C1, C3, C24, including back entry inlet valve with flexible hose and plug
  • SP8: Ceramic Cistern lever for Close Coupled, Low Level Cistern
  • SP84: Cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
  • SP973: Cone shaped washer, plastic washer and plastic fixing nut of cistern fittings C1, C2, C3, C4, C30, C1D
  • SP390: Extra parts in gold finish for SP5 cistern fittings
  • SP5A: Lever Flush Bottom Entry cistern fitting with ceramic lever
  • SP802: The bigger stopper for SP5A

Specification

Product Type Traditional
Overall height 84.5cm
Material P12: Pan - Vitreous china
C1: Cistern - Ceramic & brass
C2: Cistern - Vitreous china
C3: Cistern - Vitreous china
C4: Cistern - Vitreous china

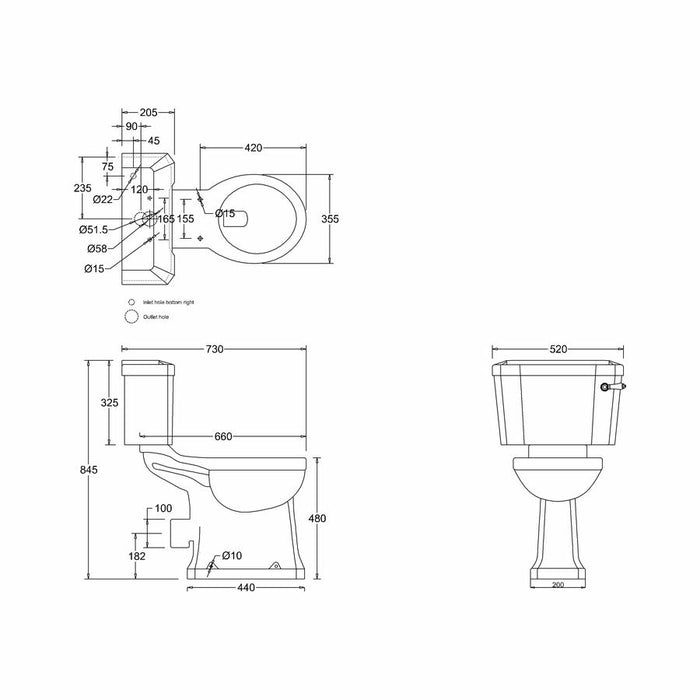

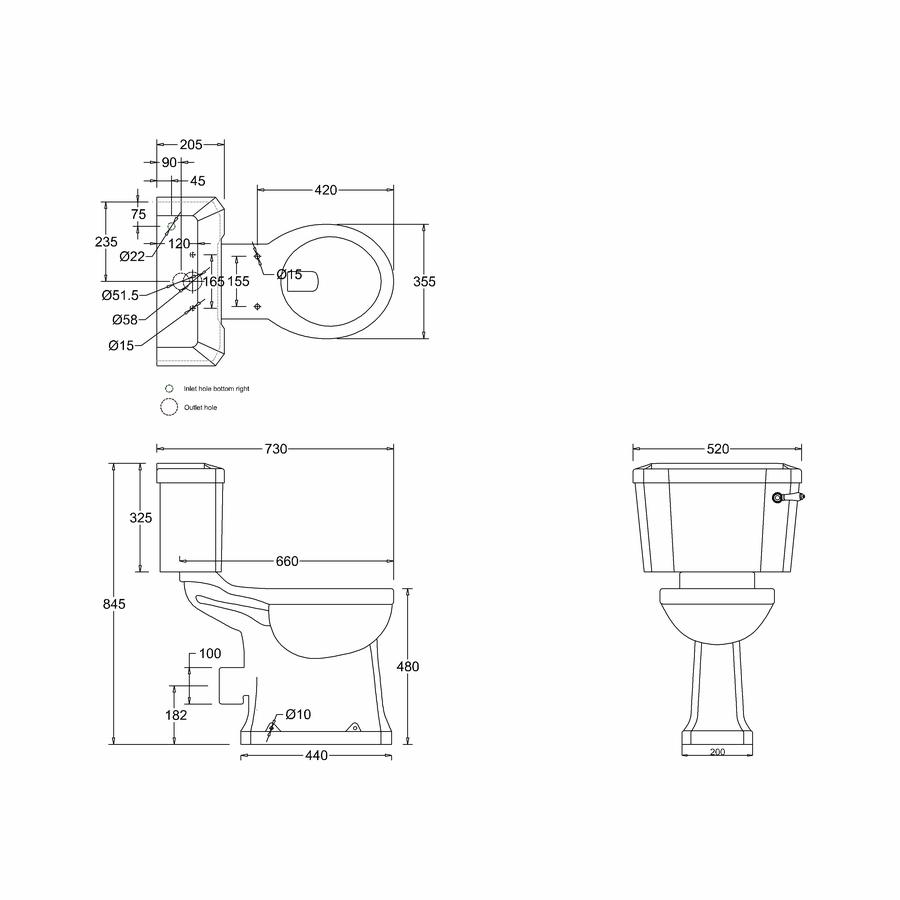

Size P12: 730 x 520 x 845mm
C1: 520 x 327 x 205mm
C2: 515 x 205 x 327mm
C3: 454 x 327 x 218mm
C4: 454 x 327 x 218mm
Nett Weight P12: Pan - 21.7kg
C1: Cistern - 16kg
C2: Cistern - 16kg
C3: Cistern - 14.05kg
C4: Cistern - 14.05kg
Gross Weight Including Packaging P12: Pan - 24.45kg
C1: Cistern - 18.25kg
C2: Cistern - 18.25kg
C3: Cistern - 16.25kg
C4: Cistern - 16.25kg
Packed Dimension P12: 680 x 373 x 550 = 0.1395 m3
C1: 225 x 540 x 370 = 0.045 m3
C2: 225 x 540 x 370 = 0.045 m3
C3: 235 x 475 x 365 = 0.0407 m3
C4: 235 x 475 x 365 = 0.0407 m3
Colour P12: Pan - White
C3: Cistern - White
C4: Cistern - White
Barcode P12: 5055806005136
C4: 5055806002333
Packed Dimension P12: 680 x 373 x 550 = 0.1395 m3
C1: 225 x 540 x 370 = 0.045 m3
C2: 225 x 540 x 370 = 0.045 m3
C3: 235 x 475 x 365 = 0.0407 m3
C4: 235 x 475 x 365 = 0.0407 m3
Colour P12: Pan - White
C3: Cistern - White
C4: Cistern - White

Downloads

Click for Instructions C4 (English)

Click for Instructions C4 (French)
