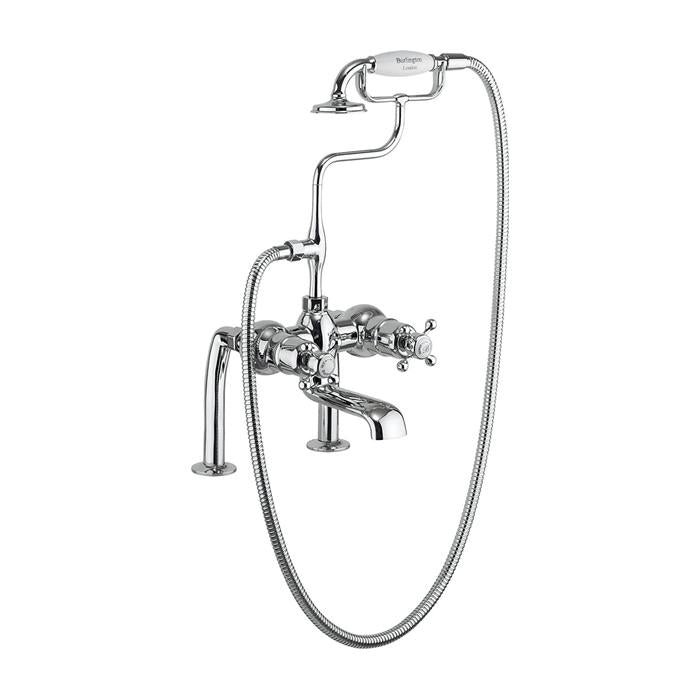

Burlington Traditional Tay Thermostatic Deck Mounted Bath Shower Mixer

by Burlington
Save £212
£849.00
£637.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

T2DB
  • T2DB: Tay Thermostatic Bath Shower Mixer Deck Mounted

Additional Information

Traditional brass body, and Claremont handles, with ceramic indices

Brass bath spout with swivel function

Available deck or wall mounted

S connector and bracket, 1500mm shower hose, and handset with ceramic handle

This product is compatible with the W7 floor mounting leg set

Minimum recommended pressure of 2 Bar

This product is supplied with both a straightener for low pressure and an aerator for high pressure (screws into the nozzle on the front of the spout) a small plastic toll is supplied to make changing the aerator straightener an easy operation.

The length of the shower hose is 1.5m

Large bore shower hose (11mm)

Hot & cold inlet ?15mm

Guarantee

10 years domestic installations
1 year commercial installations

Available Spare Parts

  • SP839: Ceramic indice with texts shower-Bath for product T2WB, T2DB, T2WS, T2DS
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • SP164: Chrome linking splines and chrome for V34 & V36
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP600: Grub screw (M3x5)
  • SP599: Grub screw (M4x4)
  • SP602: Grub screw for T2WB and T2DB (M4x3)
  • SP583: Mingshi F3 flow control cartridge
  • SP995: Pair of deck mounted unions of product T2DB, T2DS
  • SP679: Spout for T2DB
  • SP585: VQT2 cartridge temperature control cartridge

Specification

Product Type Traditional
Material Tap - Brass

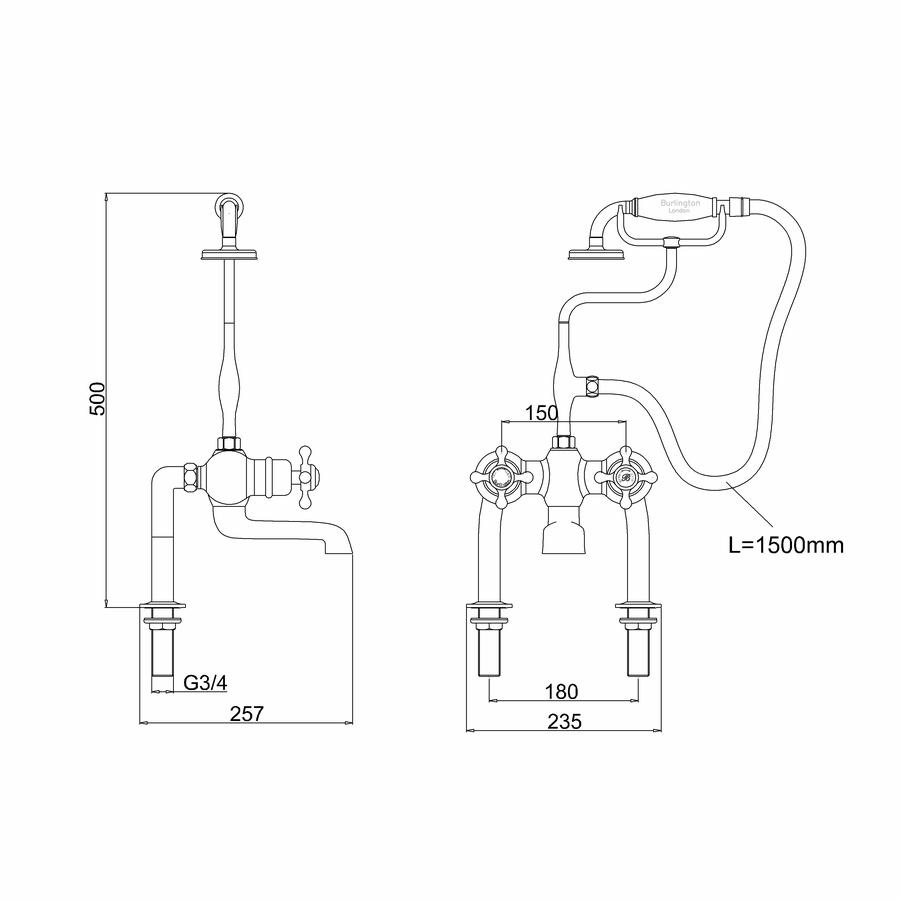

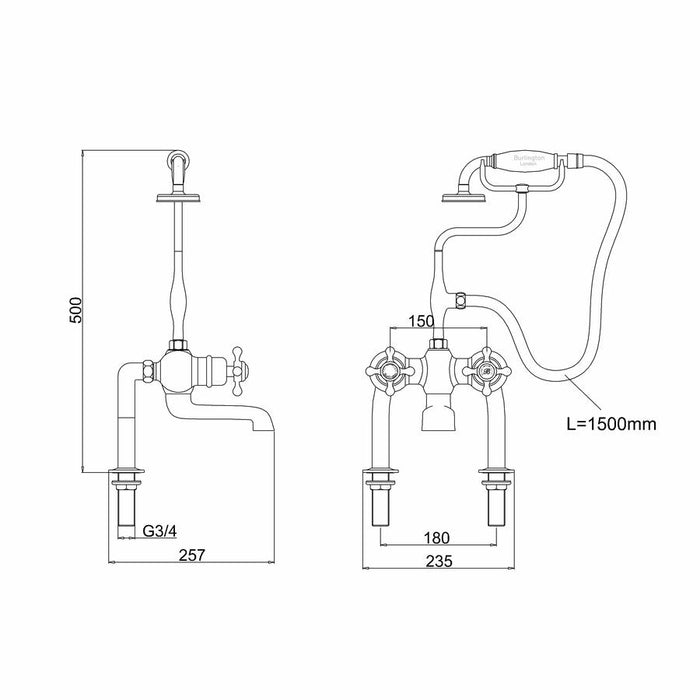

Size 500 x 235 x 257mm
Nett Weight Tap - 5.67kg
Gross Weight Including Packaging Tap - 6.19kg
Packed Dimension 470 x 350 x 160 = 0.0263 m3
Colour Tap - Chrome plated
Barcode 5055806015357
Packed Dimension 470 x 350 x 160 = 0.0263 m3
Colour Tap - Chrome plated

Downloads

Click for Instructions T2DB (English)

Click for Instructions T2DB (French)
