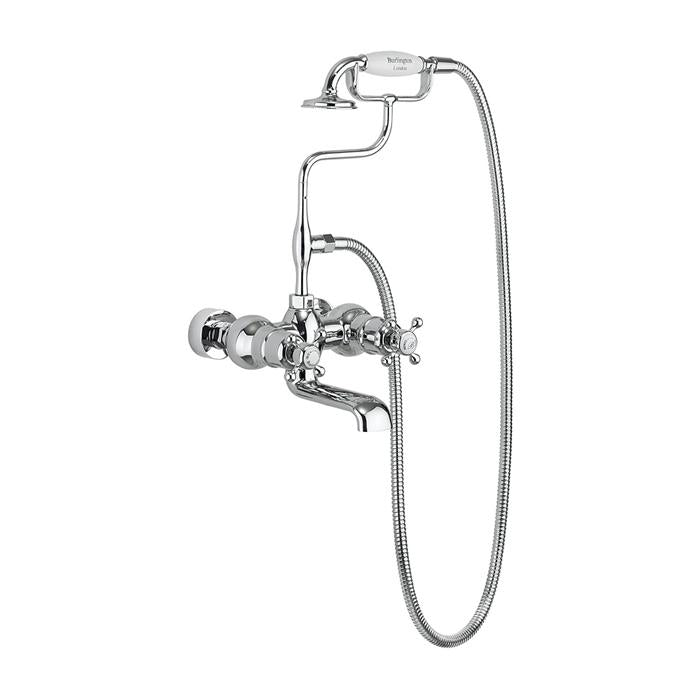

Burlington Traditional Tay Thermostatic Wall Mounted Bath Shower Mixer

by Burlington
Save £200
£799.00
£599.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

T2WB
  • T2WB: Tay Thermostatic Bath Shower Mixer Wall Mounted

Additional Information

Traditional brass body, and Claremont handles, with ceramic indices

Brass bath spout with swivel function

Available deck or wall mounted

S connector and bracket, 1500mm shower hose, and handset with ceramic handle

Minimum recommended pressure of 2 Bar

This product is supplied with both a straightener for low pressure and an aerator for high pressure (screws into the nozzle on the front of the spout) a small plastic toll is supplied to make changing the aerator straightener an easy operation.

The length of the shower hose is 1.5m

Large bore shower hose (11mm)

Hot & cold inlet ?15mm

Guarantee

10 years domestic installations
1 year commercial installations

Compatible Products

  • V2: Anglesey Valve Handle (single)
  • V3: Birkenhead Valve Handle (single)

Available Spare Parts

  • SP376: Adaptor(pair) G1, 2 male thread to 15mm pipe
  • SP839: Ceramic indice with texts shower-Bath for product T2WB, T2DB, T2WS, T2DS
  • SP873: Chrome bevel and threaded part of Burlington & Arcade valve handles
  • V1: Claremont valve handle 1 (single)
  • SP596: Claremont valve handle for all valves, (except Stour)
  • SP600: Grub screw (M3x5)
  • SP599: Grub screw (M4x4)
  • SP602: Grub screw for T2WB and T2DB (M4x3)
  • SP583: Mingshi F3 flow control cartridge
  • SP804: Pair of connectors for EF1S, EF2S, T2WS, T2WB
  • SP981: Pair of retaining Sleeve for product EF1S, EF2S, T2WS, T2WB
  • SP585: VQT2 cartridge temperature control cartridge

Specification

Product Type Traditional
Material Tap - Brass

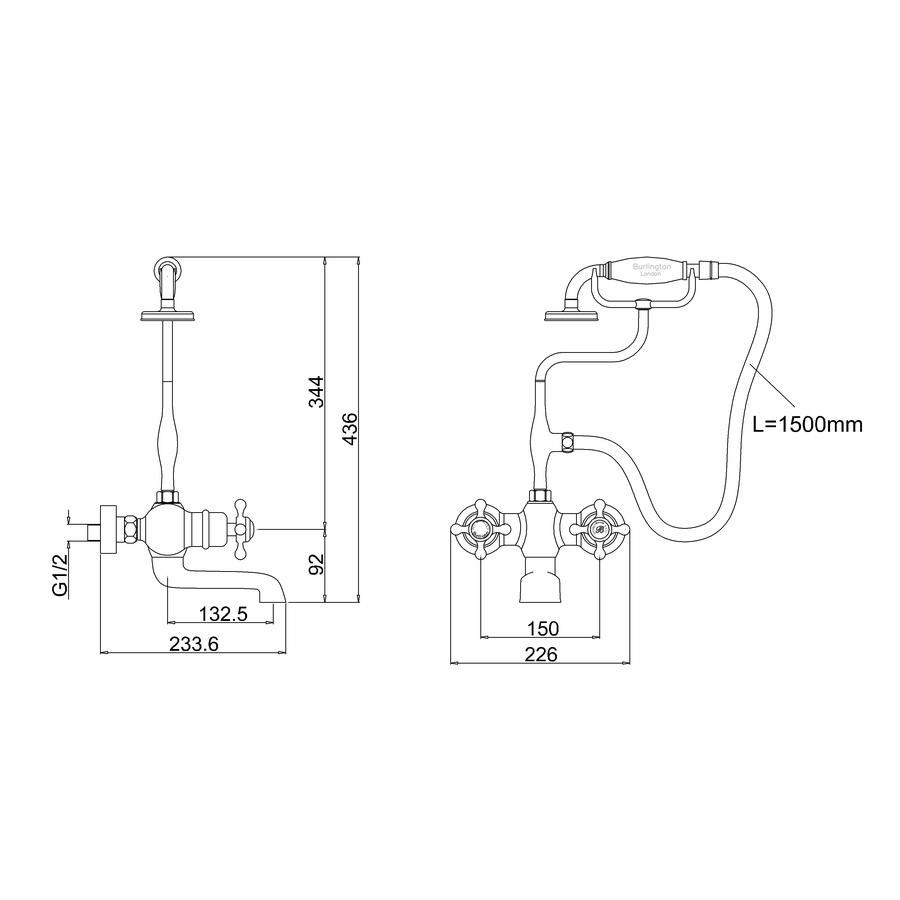

Size 436 x 226 x 233.6mm
Nett Weight Tap - 4.63kg
Gross Weight Including Packaging Tap - 5.15kg
Packed Dimension 470 x 350 x 160 = 0.0263 m3
Colour Tap - Chrome plated
Barcode 5055806015371
Packed Dimension 470 x 350 x 160 = 0.0263 m3
Colour Tap - Chrome plated

Downloads

Click for Instructions T2WB (English)

Click for Instructions T2WB (French)
