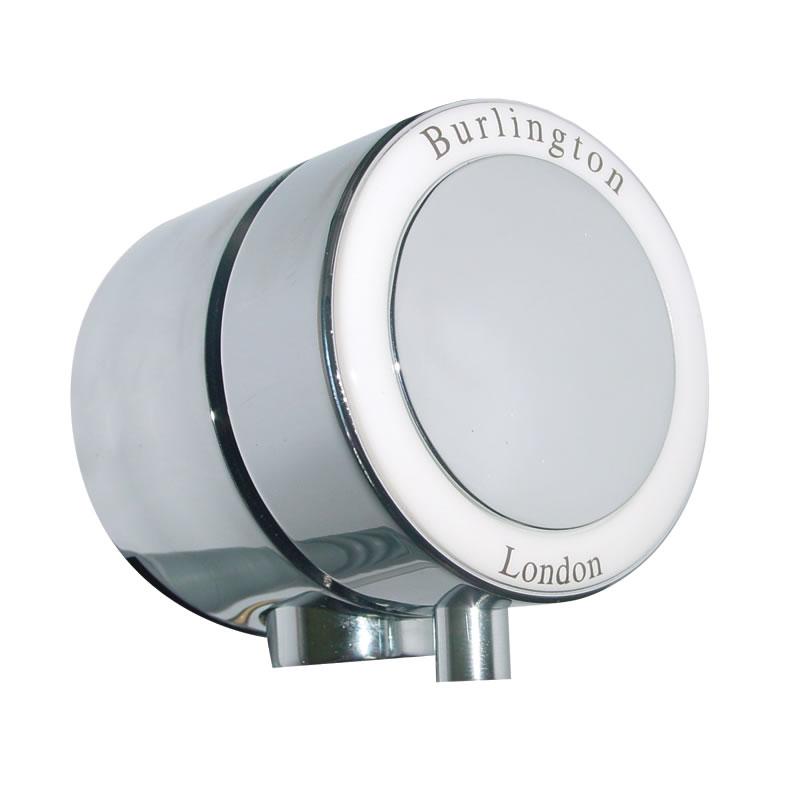

Burlington Traditional Traditional Overflow Single Bath Filler

by Burlington
Save £35
£139.00
£104.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

W15
  • W15: Bath overflow filler for single ended bath

Additional Information

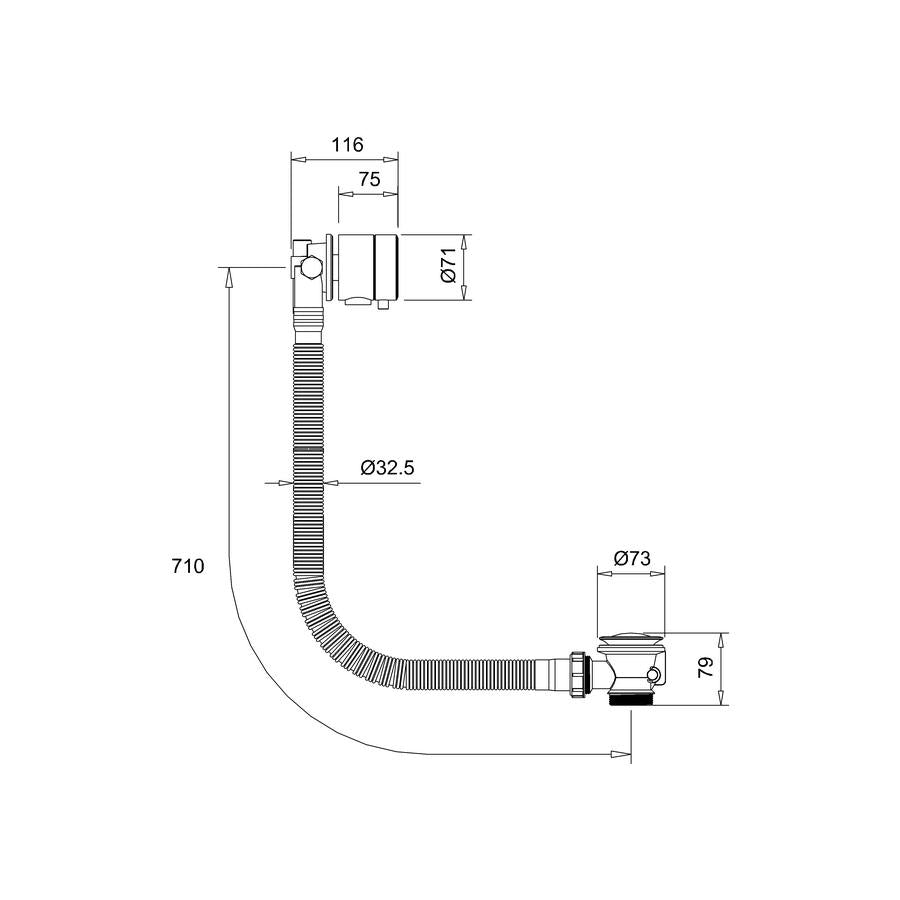

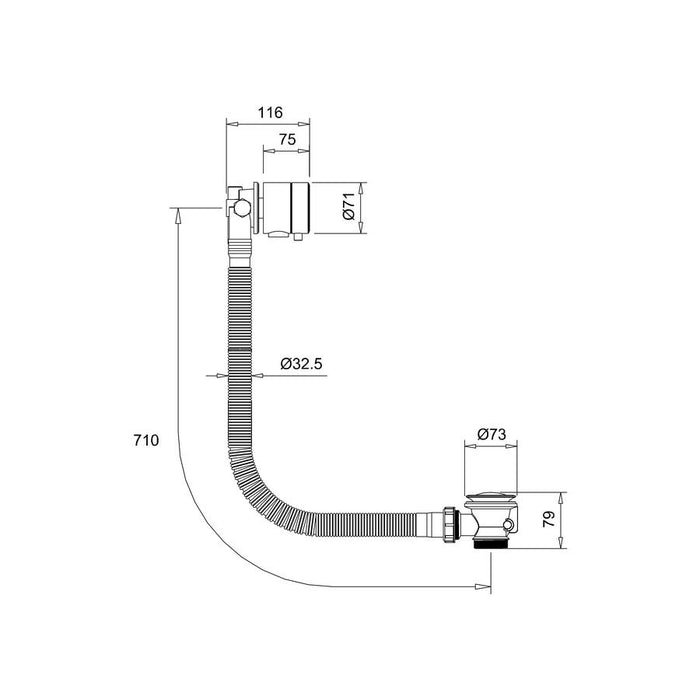

For use with single ended baths where the distance of the centre of the overflow to the centre of the waste is up to 710mm

The horizontal waste pipe can be cut to length on site

The vertical height of the bottle trap is adjustable by 80mm

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

N/A

Available Spare Parts

  • SP417: Bolt for CW9, W2, W15
  • SP108: Ceramic ring of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4
  • SP915: Overflow cover of bath filler W2, W15 (including grub screw & handle)
  • SP808: Plug of bath waste for product W15, W2, CW9
  • SP107: W2 W15-Washer

Specification

Product Type Traditional
Material W15: Waste - Brass
W2: Waste - Brass
Size W15: 780 x 116 x 73mm
W2: 1010 x 116 x 71mm
Nett Weight W15: Waste - 1.3kg
W2: Waste - 1.95kg
Gross Weight Including Packaging W15: Waste - 1.95kg
W2: Waste - 2.25kg
Packed Dimension W15: 800 x 120 x 120 = 0.0115 m3
W2: 1100 x 120 x 120 = 0.0158 m3
Colour Waste - Chrome plated
Barcode 5055806008298
Packed Dimension W15: 800 x 120 x 120 = 0.0115 m3
W2: 1100 x 120 x 120 = 0.0158 m3
Colour Waste - Chrome plated

Downloads

Click for Instructions W15 (English)

Click for Instructions W15 (French)
