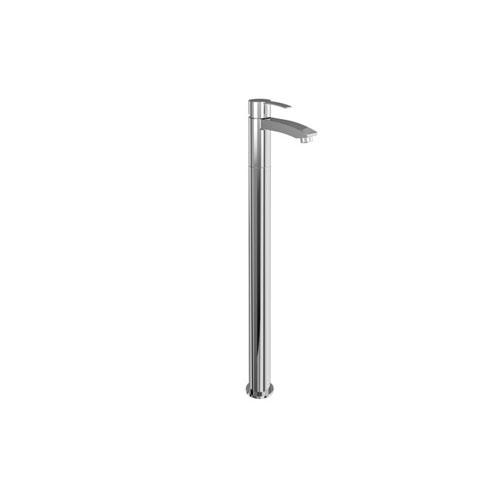

Clearwater Sapphire Single-Lever Bath Filler on Stand Pipe Floor Standing

by Clearwater
Save £162
£649.00
£487.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

CTA14+W24
  • CTA14: Sapphire single Lever bath filler
  • W24: Crystal single shroud

Additional Information

Mixers are fitted with a flow Straightener for low pressure installations

Spare high pressure aerator is provided with every mixer for high pressure installations

All mixers work on 0.2 bar to 5 bar pressure

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

Level 10 salt spray tested
Chrome plated to EN248:2002
EN817:2008
Sanitary tapware. Mechanical mixing valves (PN 10). General technical specifications
EN200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (Straightener) 7.74 14.65 21.83 31.96 39.83
Spout (aerator) 6.74 11.45 16.45 23.51 28.83

Available Spare Parts

  • SP197: Aerator for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SP591: Cartridge for CTA5, CTA14
  • SP822: Fixing nut of product CTA1, CTA2, CTA3, CTA4, CTA5, CTA8, CTA9, CTA10, CTA11, CTA12, CTA13, CTA14
  • SP812: Flexible pipes (hot & cold) - pair for product CTA5, CTA14
  • SP196: Flow straightener for CTA6, CTA7, CTA15, CTA16, CTA5, CTA14
  • SP929: Wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H

Specification

Finish Chrome plated
Product Type Modern

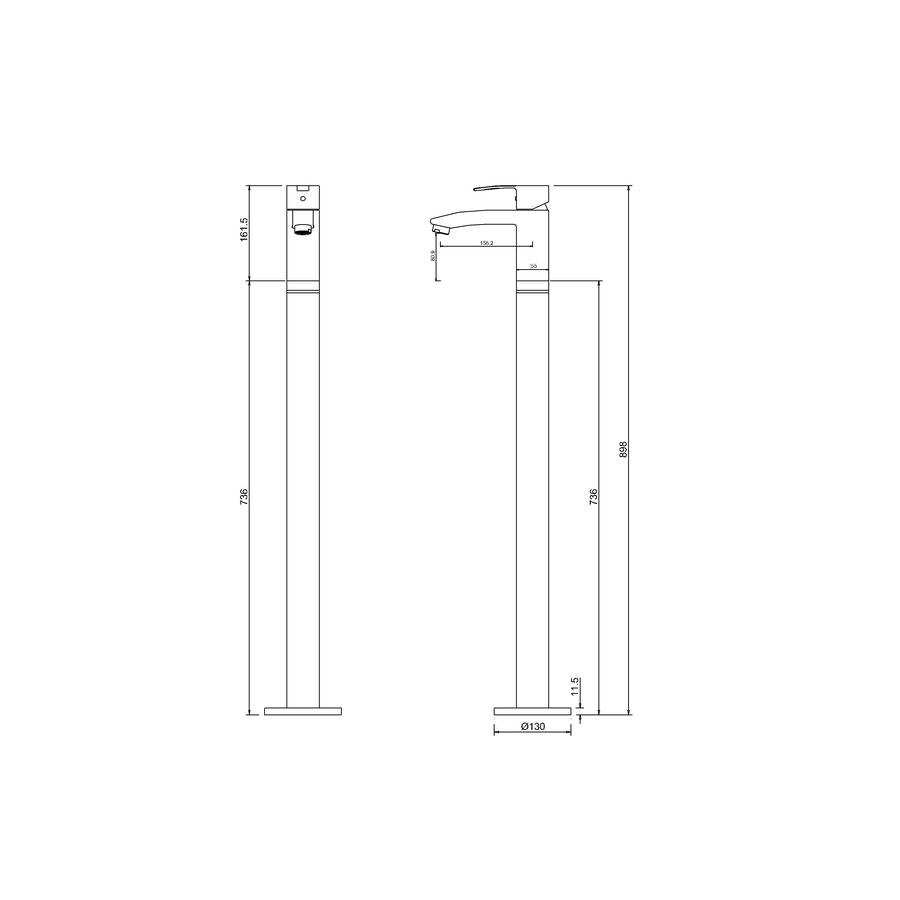

Overall Height 898
Material CTA14: Tap - Brass
W24: Shrouds - Brass
Size CTA14: 201 x 55 x 162mm
W24: 1035 x 1035 x 7375mm
Barcode W24: 5055806008403
CTA14: 5055806002739
Nett Weight CTA14: Tap - 2kg
W24: Shrouds - 5.76kg
Gross Weight Including Packaging CTA14: Tap - 2.3kg
W24: Shrouds - 5.86kg
Packed Dimension CTA14: 430 x 275 x 215 = 0.0254 m3
W24: 575 x 240 x 95 = 0.0131 m3
Colour CTA14: Tap - Chrome plated
W24: Shrouds - Chrome plated

Downloads

Click for Instructions W24 (English)

Click for Instructions CTA14 (English)

Click for Instructions W24 (French)

Click for Instructions CTA14 (French)
