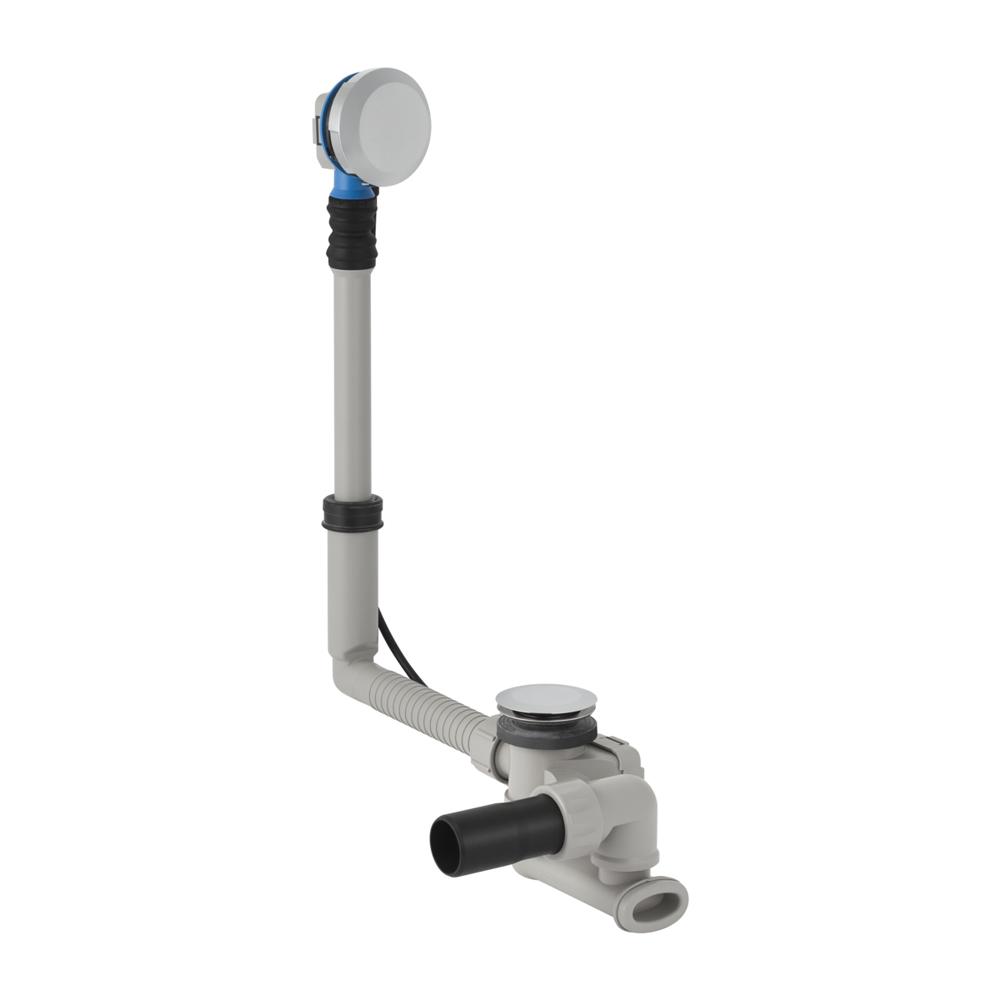

Geberit Bathtub Drain Turn Handle Actuation with Ready to Fit Set and Straight Connector

by Geberit
Save £10.25
Original price £82.25
Current price £72.00
CODE: 150.535.21.1

Description

Characteristics

  • Quality-monitored in accordance with EN 274-3
  • With overflow
  • Double-sided seals on drain and overflow
  • Overflow head with extendible mount can be fastened

Technical data

  • Discharge rate : 0.8 l/s
  • Overflow discharge rate : 0.6 l/s
  • Depth of water seal : 50 mm

Scope of delivery

  • Waste outlet
  • Trap
  • Straight connector made of PE-HD, ø 43 mm
  • Ready-to-fit set
  • Protection box
  • Fastening material

Application purposes

  • For bathtubs made of steel, plastic or cast iron
  • For standard-size bathtubs
  • For bathtubs with valve hole ø 52 mm

Spare Parts

Art. No. Description
240.465.00.1 Waste outlet set for Geberit bathtub drain
854.454.00.1 Geberit connection bend with union nut made of PE: d=40-50mm
241.995.00.1 Geberit compression joint
240.569.00.1 Geberit straight connector with ball joint
241.675.00.1 Geberit straight connector with union nut
240.464.06.1 Extension to overflow pipe, for Geberit bathtub drain: Rg=40 x 1/8", granite grey
240.463.06.1 Geberit overflow bend: granite grey
854.406.06.1 Geberit union nut: granite grey
894.050.16.1 Geberit compression ring: black
891.210.00.1 Geberit compression seal
150.245.06.1 Geberit overflow pipe with supplementary connection and sleeve: granite grey
252.888.06.1 Geberit union with blind plug: granite grey
854.713.00.1 Geberit flat gasket
240.462.00.1 Geberit sleeve
240.461.00.1 Geberit bellows for overflow head
240.459.00.1 Geberit fastening set for overflow head
241.712.16.1 Section seal for Geberit bathtub drain with push actuation Push Control: black
240.458.00.1 Catch for turn handle actuation, for Geberit bathtub drain with overflow

Product Details

Art. no. Surface / Colour
150.535.21.1 Gloss chrome-plated

Downloads

Click for Data Sheet

Click for Installation instructions

Click for Installation instructions
