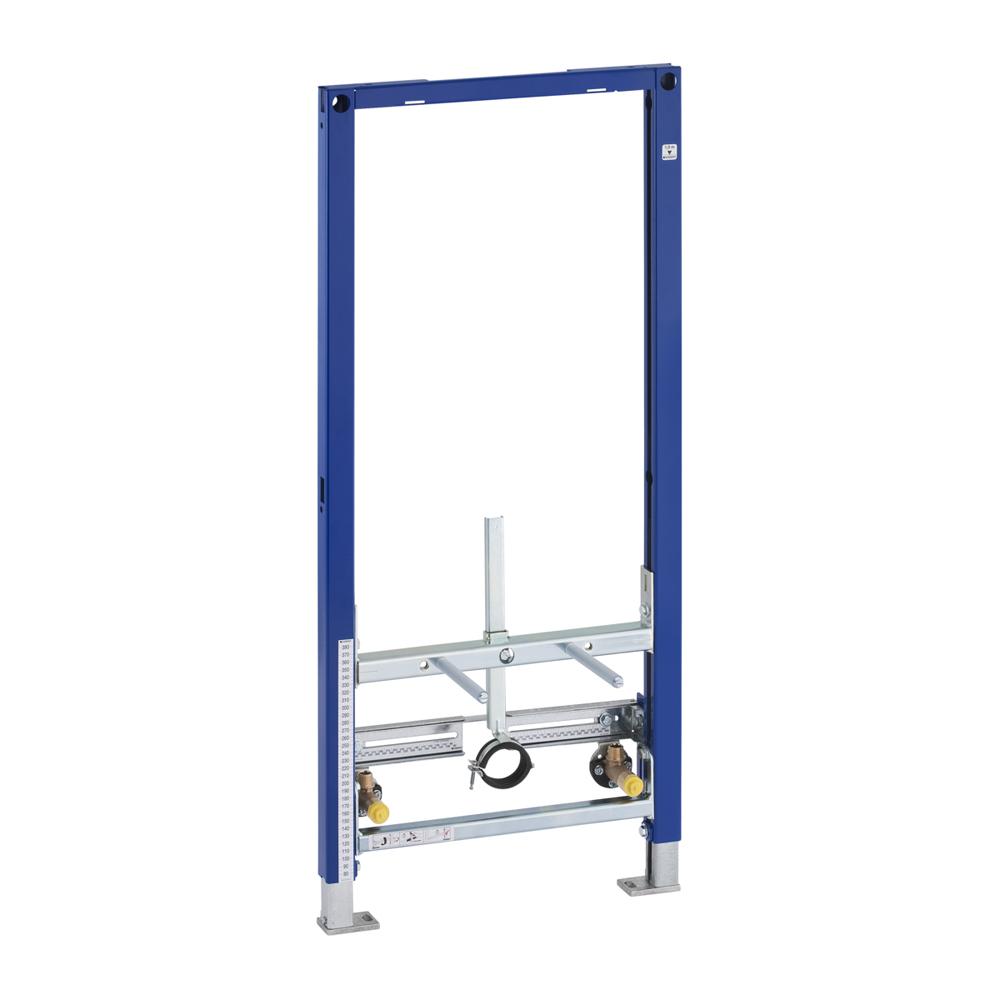

Description
Characteristics
- Self-supporting frame, powder-coated
- Frame with ø?9 mm drilling holes for fastening in wood frame construction
- Galvanized feet
- Feet adjustable 0-20 cm
- Fastening distance for wall-hung bidet 18 or 23 cm
- Height-adjustable bidet fastening
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Fastening for connection bend, height-adjustable and sound-absorbing
- Tap attachments adjustable in width and height
- Self-adhesive sealing washer, fleece-laminated
- Protection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa

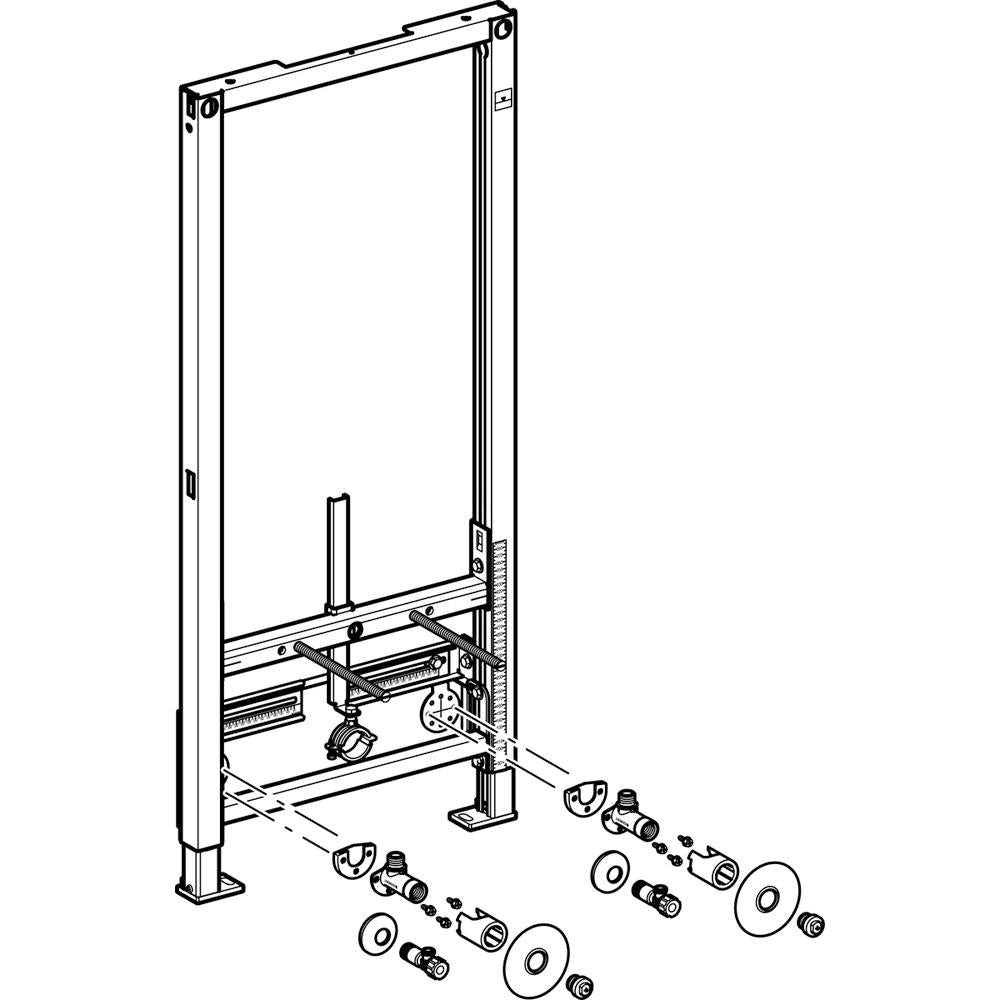

Scope of delivery
- 2 angle stop valves 1/2"
- 2 elbow tap connectors Rp 1/2" / R 1/2", compatible with MF
- 2 sealing washers
- 2 sound insulation bases
- 2?insulating sleeves
- 2 protection plugs
- 2 threaded rods M12
- Fastening material
Application purposes
- For drywall construction
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For installation in part- or room-height Geberit Duofix system walls
- For wall-hung bidets with deck-mounted tap
- For floor constructions 0-20 cm
Spare Parts
Art. No. | Description |
111.892.00.1 | Geberit Duofix hexagon head setscrew with crosshead, self-cutting |
465.034.00.2 | Geberit elbow tap connector 90° for MeplaFix: RMF 1/2'' Rp1/2'' L7.3cm |
602.287.00.2 | Geberit elbow tap connector 90° for MeplaFix: RMF 1/2'' Rp1/2'' L7.3cm |
601.802.00.1 | Sound insulation base for Geberit tap connector, straight |
216.197.00.1 | Geberit TAPTITE® screw set (6 pc.) |
601.812.00.1 | Geberit sealing washer for connections: da=12-35mm |
632.001.00.1 | Geberit MeplaFix adaptor: Material=Brass CW617N, d=MF20mm, Rp=1/2" |
240.189.00.1 | Geberit set of threaded rods M12 (2 pc.) |
217.713.11.1 | Geberit cover cap sets (2 pc.): white alpine |
217.713.46.1 | Geberit cover cap sets (2 pc.): matt chrome-plated |
216.179.00.1 | Geberit fastening set |
241.066.00.1 | Geberit pipe bracket for connector bend for bidet |
241.067.16.1 | Geberit connection bend for bidet |
152.682.00.1 | Geberit sleeve: d=32mm, di=44mm |
240.306.00.1 | Geberit protective plug with punching tip d40 |
305.904.14.1 | Geberit Silent-db20 connection bend 90°, extended: d=56mm, di=46mm |
