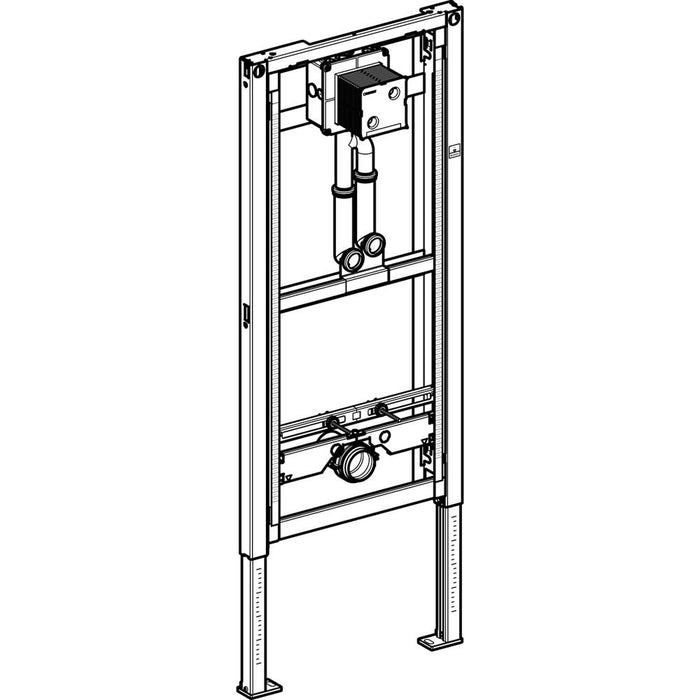

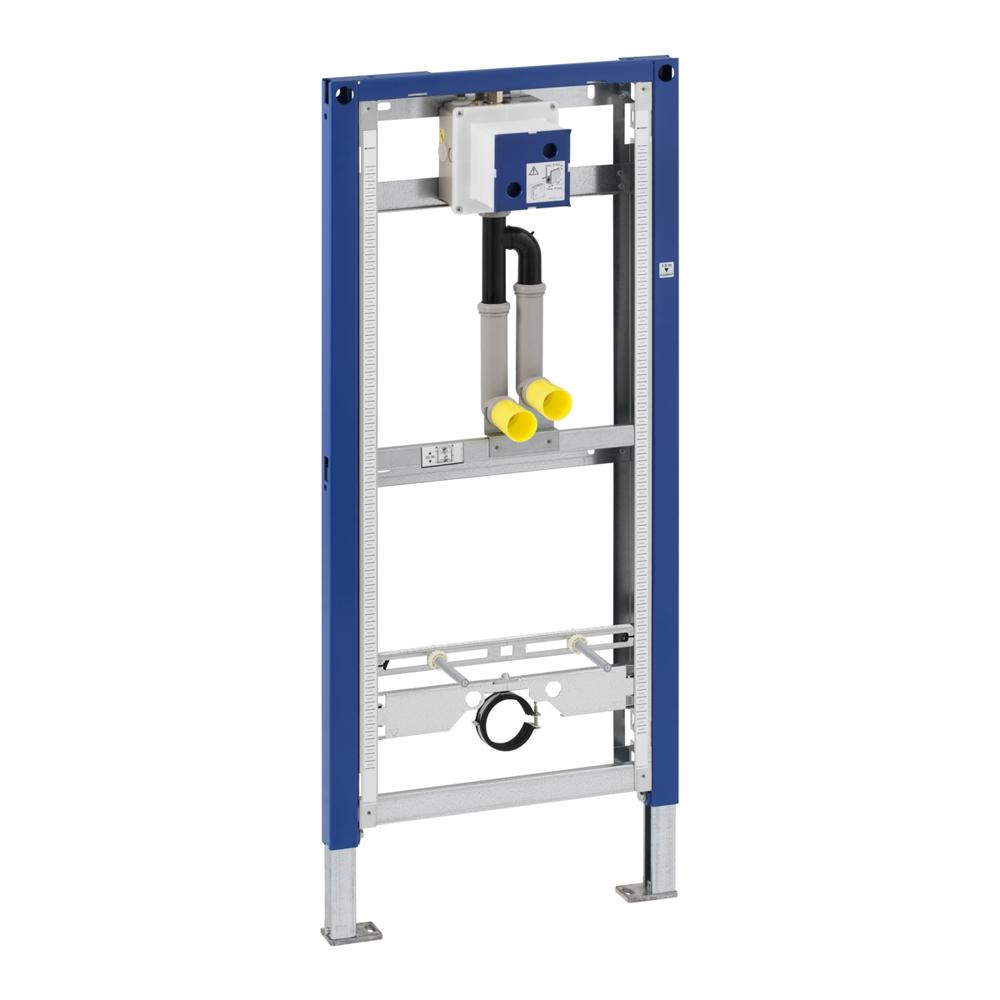

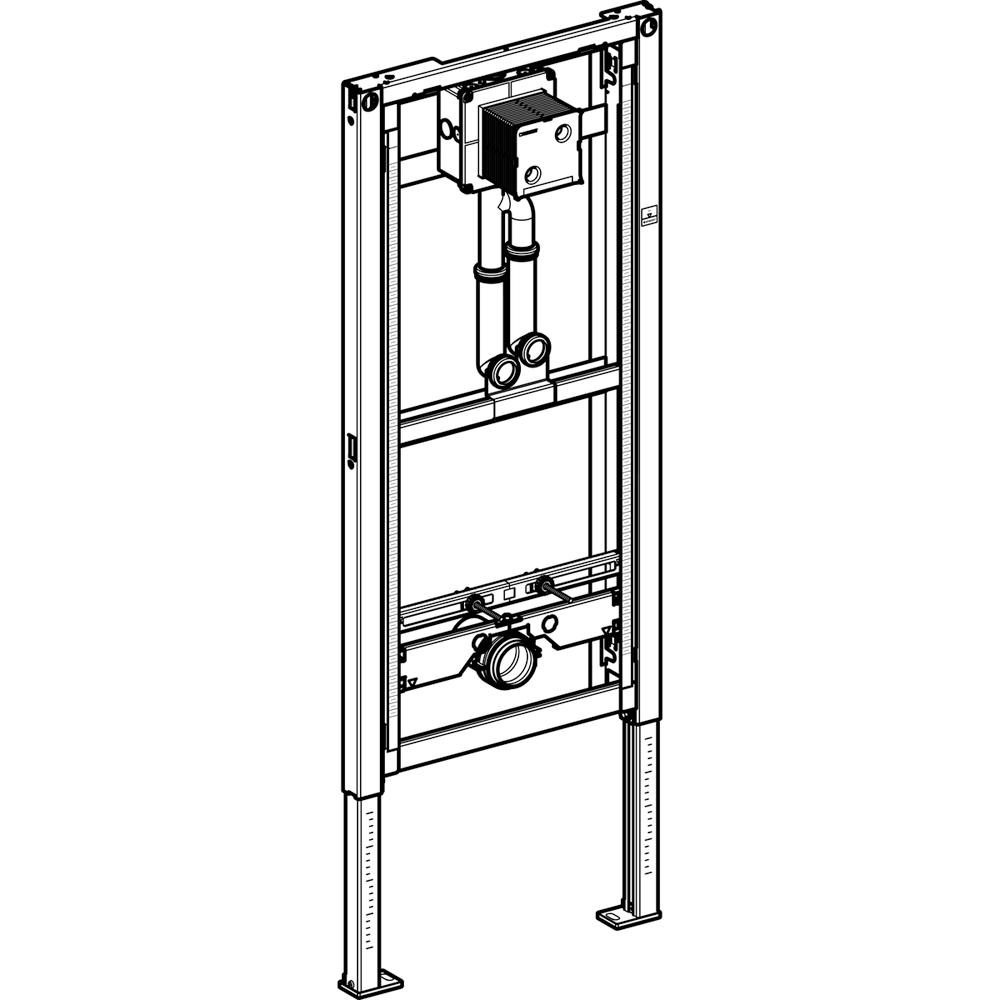

Geberit Duofix Urinal Frame with Pipe Interruptor

by Geberit
Save £67.21
Original price £555.21
Current price £488.00
CODE: 111.622.00.1

Description

Characteristics

  • Self-supporting frame, powder-coated
  • Frame with ø?9 mm drilling holes for fastening in wood frame construction
  • Galvanized feet
  • Feet adjustable 0-20 cm
  • Non-slip leg supports
  • Rotatable foot plates
  • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
  • Flush bend fitted, with pipe interrupter
  • Universal concealed housing for Geberit urinal flush controls
  • Terminal for electrical connection in concealed housing
  • Water supply connection on the top, on the concealed housing
  • Premounted stop valve with throttle
  • With built-in conduit pipe to rinse the pipeline
  • Protection box for service opening 10.5 x 10.5 cm can be cut to length without tools
  • Fastening for inlet ø 32 mm, height-adjustable
  • Fastening for connection bend, height-adjustable and sound-absorbing
  • Urinal fasteners M8 width- and height-adjustable
  • Crossbars with centring marks, adjustable without tools
  • Additional fastening possible for urinal with accessories

Technical data

  • Flow pressure : 1-8 bar
  • Maximum test pressure, water : 16 bar
  • Maximum test pressure, air / inert gas : 3 bar
  • Maximum operating temperature, water : 30 °C
  • Flow rate at 1 bar without flow limiter : 0.3 l/s
  • Flow rate at 1 bar with flow limiter : 0.24 l/s

Scope of delivery

  • Water supply connection R 1/2"
  • Protection box with cover
  • Connection pipe between inlet ø 32 mm and urinal, with seal to urinal
  • 2 protection plugs
  • Straight connector made of PVC, ø 50 mm
  • Urinal trap ø 50 mm, with seal on urinal
  • 2 threaded rods M8
  • Fastening material

Application purposes

  • For drywall construction
  • For installation in part- or room-height prewall installations
  • For installation in room-height installation walls
  • For installation in part- or room-height Geberit Duofix system walls
  • For mounting urinals
  • For installation of Geberit urinal flush controls (from year of manufacture 2009)
  • For floor constructions 0-20 cm

Spare Parts

Art. No. Description
Geberit installation set, for Geberit urinal flush control with electronic flush actuation
242.039.00.1 Geberit Inlet crossbar di32, for element for urinal
362.790.00.1 Geberit HDPE round cord ring: d=32mm
152.489.16.1 Geberit flush bend extension with sleeve
119.669.00.1 Geberit sleeve for flush pipe connection: d=28mm
242.044.00.1 Geberit crossbar to fasten urinals
242.045.00.1 Geberit threaded rod set for urinal (2 pc.)
242.046.00.1 Geberit set of plastic union nuts for threaded rod M8 (2 pc.)
240.027.46.1 Geberit cover cap set for threaded rod M8 (2 pc.)
242.047.00.1 Geberit crossbar with pipe bracket d59/64 for urinal
152.950.11.1 Geberit urinal trap, horizontal outlet: d=50mm, white alpine
Geberit urinal trap
853.614.92.1 Geberit protection plug: d=50mm, di=4.8mm
240.315.00.1 Geberit connection bend for urinal d63/50
152.693.00.1 Geberit sleeve: d=50mm, di=57mm
242.516.00.1 Geberit straight connector d50
111.892.00.1 Geberit Duofix hexagon head setscrew with crosshead, self-cutting
