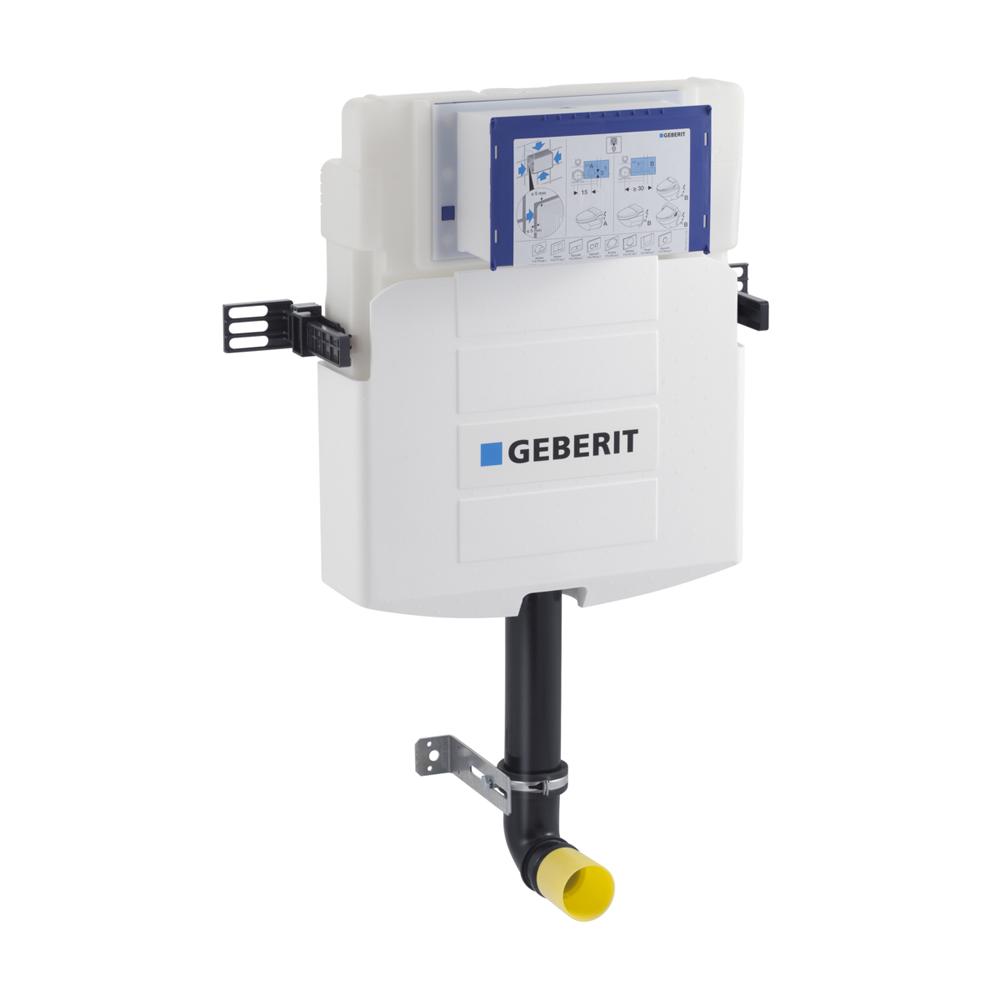

Geberit Sigma 12cm Concealed Cistern

by Geberit
Save £31.61
Original price £268.61
Current price £237.00
CODE: 109.309.00.5

Description

Characteristics

  • Concealed cistern with front actuation
  • Concealed cistern fully insulated against condensation
  • Cistern fulfils standard requirements in accordance with EN 14055, Class II
  • Immediate post flush possible with factory setting
  • Flush bend fitted
  • Tool-free installation and maintenance work on concealed cistern
  • Water supply connection on the rear or top centre
  • Protection cover box for service opening protects against moisture and dirt
  • Protection box for service opening can be cut to length

Technical data

  • Flow pressure : 0.1-10 bar
  • Maximum operating temperature, water : 25 °C
  • Flush volume, factory setting : 5.8 and 3 l
  • Flush volume small, adjustment range : 3-4 l

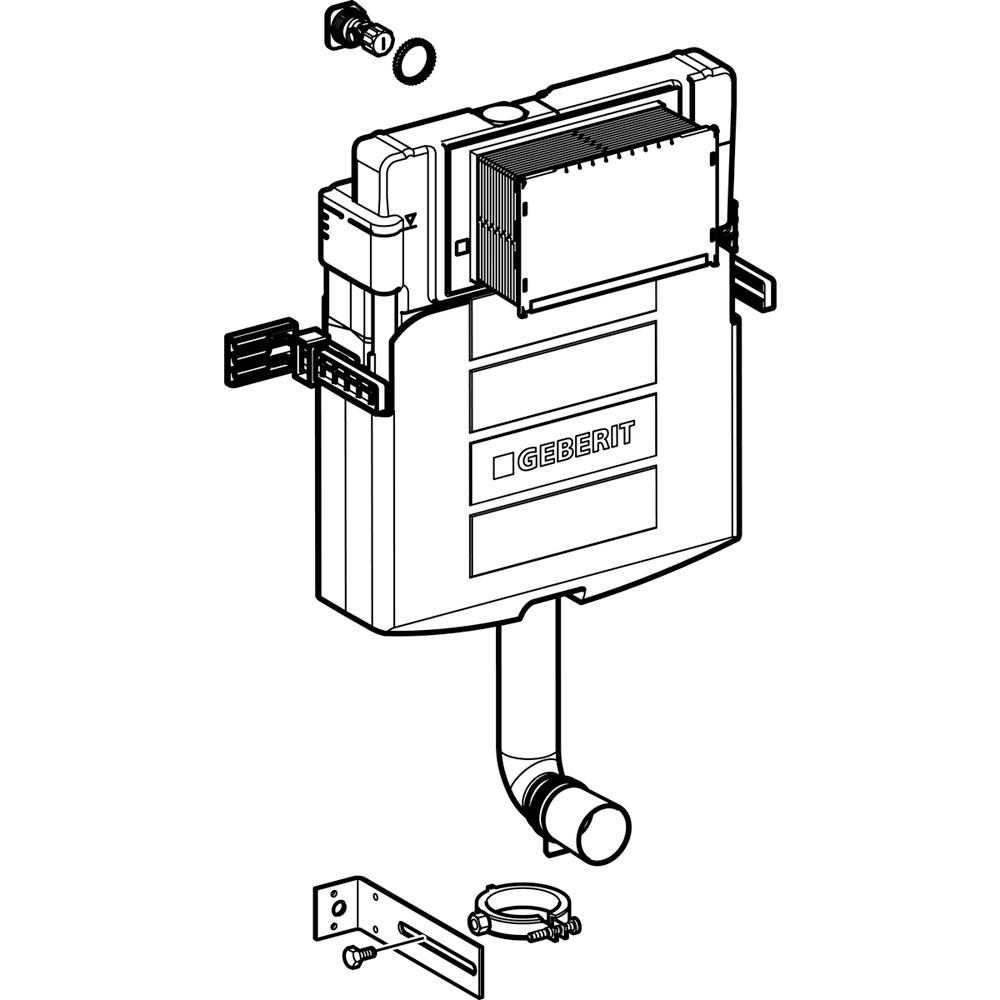

Scope of delivery

  • Water supply connection Rp 1/2" - R?1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
  • Protection box for service opening
  • Flush bend 90°
  • Fastening for flush bend
  • Protection plug
  • Cup for flush volume reduction 4.0 / 2.6 l
  • 2 slotted flat irons
  • 2 fixing brackets
  • Fastening material
  • Flush bend extension, ø 45 mm

Application purposes

  • For drywall construction

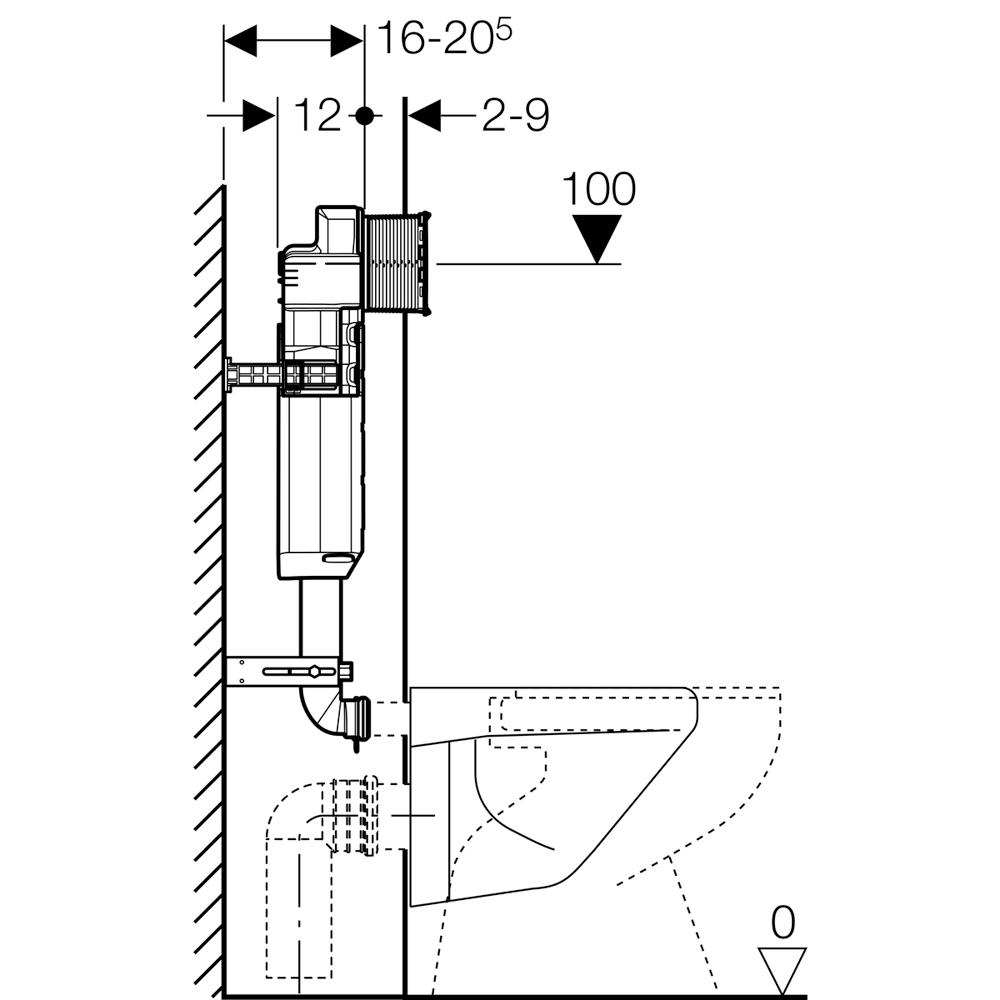

  • For installation in part- or room-height prewall installations
  • For installation in room-height installation walls

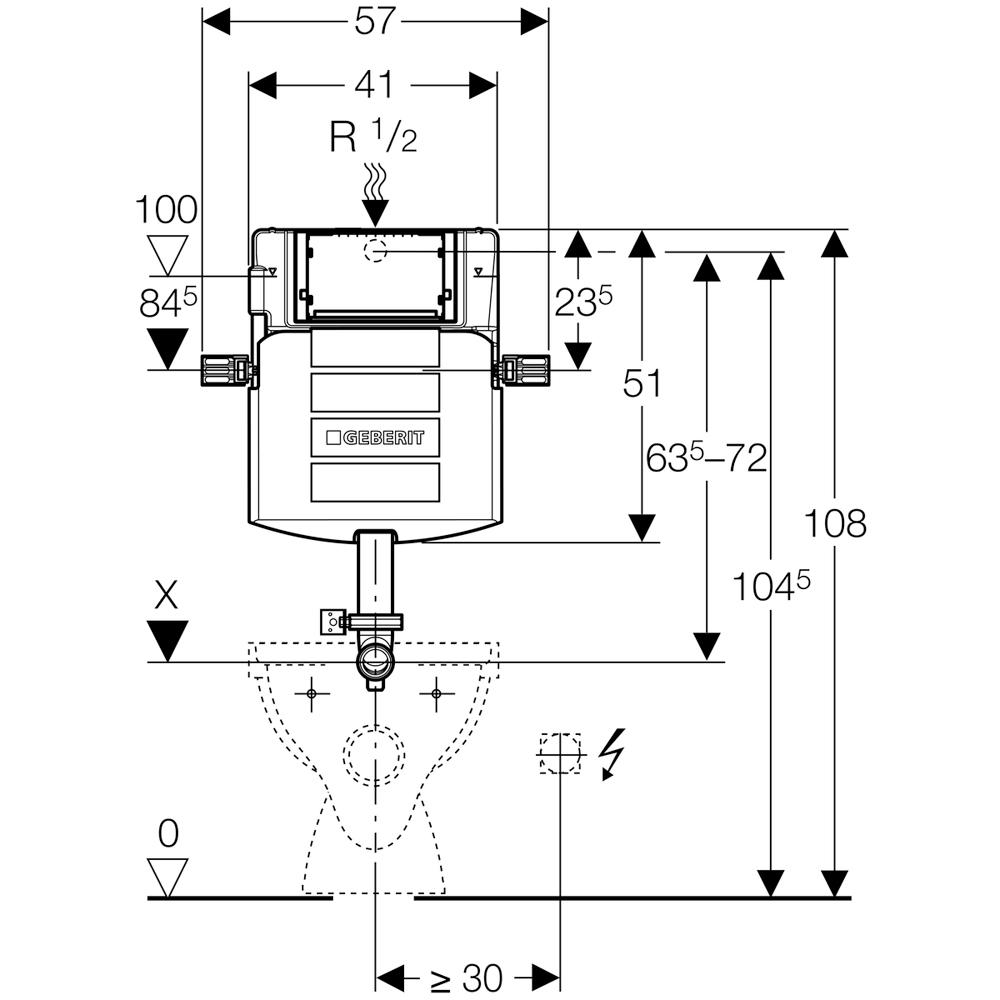

  • For floor-standing WCs

Spare Parts

Art. No. Description
632.001.00.1 Geberit MeplaFix adaptor: Material=Brass CW617N, d=MF20mm, Rp=1/2"
240.269.00.1 Geberit water supply connection with integrated angle stop valve
240.847.00.1 Geberit water supply connection with integrated angle stop valve
240.298.00.1 Geberit regulation spindle for angle stop valve
241.857.00.1 Geberit counternut
240.853.00.1 Geberit angle stop valve
240.851.00.1 Geberit elbow tap connector
240.923.00.1 Mounting clip for Geberit fill valve type 380
242.984.00.1 Geberit fill valve type 380, lateral water supply connection, 3/8", nipple made of brass
243.408.00.1 Geberit fill valve type 380, lateral water supply connection, 3/8"
Geberit fill valve type 380, side connection
240.921.00.1 Reinforced braided hose for Geberit concealed cistern
241.854.00.1 Reinforced braided hose, dezincification-resistant, for Geberit concealed cistern
240.922.00.1 Geberit set of seals for reinforced braided hose
465.027.00.1 Geberit fixing bracket 16 cm
889.711.00.1 Geberit fixing slider
241.829.00.1 Support block for Geberit Sigma concealed cistern 12 cm
241.824.00.1 Protection plate for Geberit Sigma concealed cistern 12 cm
241.826.00.1 Protection box for service opening, for Geberit Sigma concealed cistern
243.345.00.1 Protection box for Geberit Sigma concealed cistern
241.858.00.1 Geberit flush valve with basket
240.622.00.1 Geberit flush valve
241.167.00.1 Flush valve bracket for Geberit flush valves
816.418.00.1 Flat gasket for Geberit flush valves of exposed and concealed cisterns
241.859.00.1 Basket for Geberit concealed cistern
241.868.00.1 Geberit section seal for basket
119.652.16.1 Geberit flush bend set 90°, insulated: d=56mm
362.771.00.1 Lip seal for Geberit flush pipe: d=45mm
362.796.92.1 Geberit protection plug: d=44.6mm
241.378.00.1 Geberit flush pipe fastening
241.017.00.1 Geberit slotted flat iron with screws
892.975.00.1 Geberit O-ring for outlet connection piece

Downloads

Click for Data Sheet

Click for Installation instructions
