Geberit Urinal Flush Control with Pneumatic Flush Actuation

by Geberit
Save £40.01
Original price £329.01
Current price £289.00
CODE: 116.017.KH.1

Description

Characteristics

  • Flush plate with securing bar
  • Flush time setting with air nozzles (pneumatic)
  • Low flush actuation force
  • Short stroke movement
  • Flush actuation when the actuator button is released
  • Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set

Technical data

  • Flow pressure : 1-8 bar
  • Maximum test pressure, water : 16 bar
  • Maximum test pressure, air / inert gas : 3 bar
  • Relative humidity :< 100 %
  • Maximum operating temperature, water : 30 °C
  • Actuation force :< 12 N
  • Flow rate at 1 bar without flow limiter : 0.3 l/s
  • Flow rate at 1 bar with flow limiter : 0.24 l/s
  • Calculated flow rate : 0.3 l/s
  • Minimum flow pressure for calculated flow rate : 1 bar
  • Flush time, adjustment range : 4/8/12 s

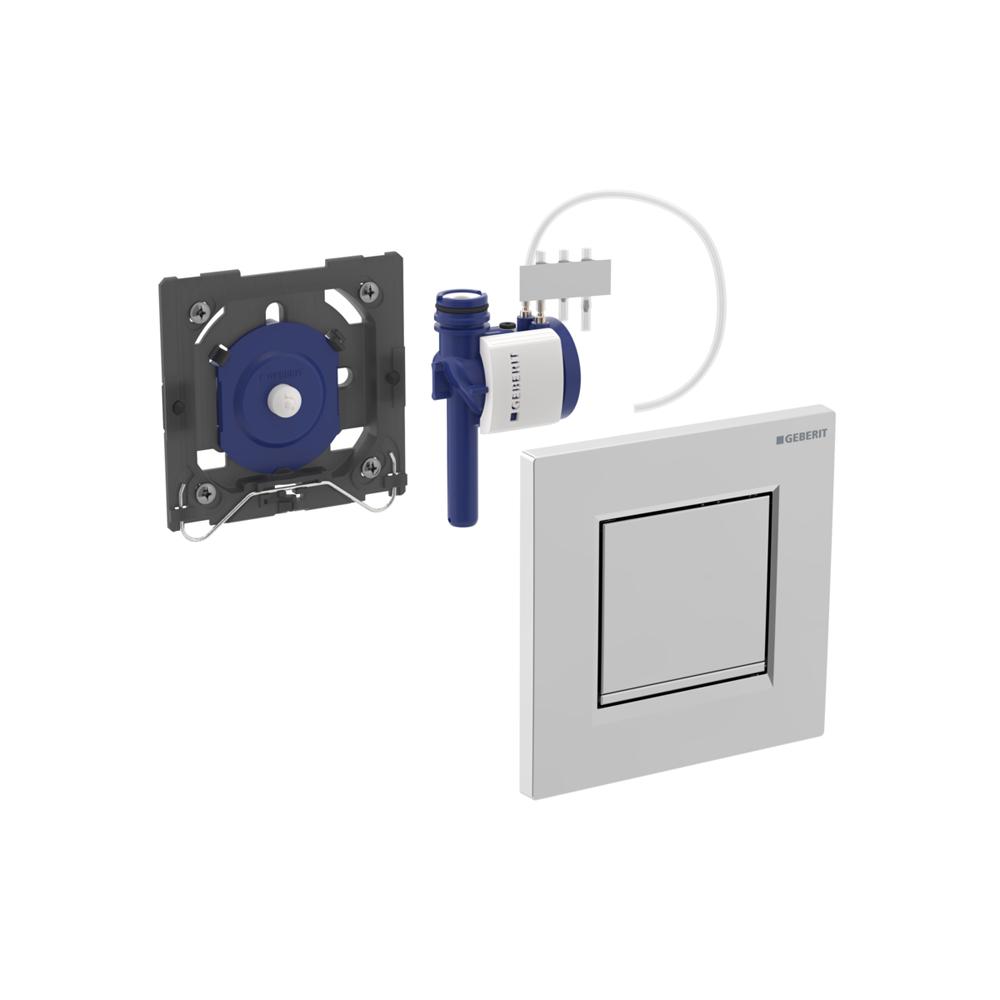

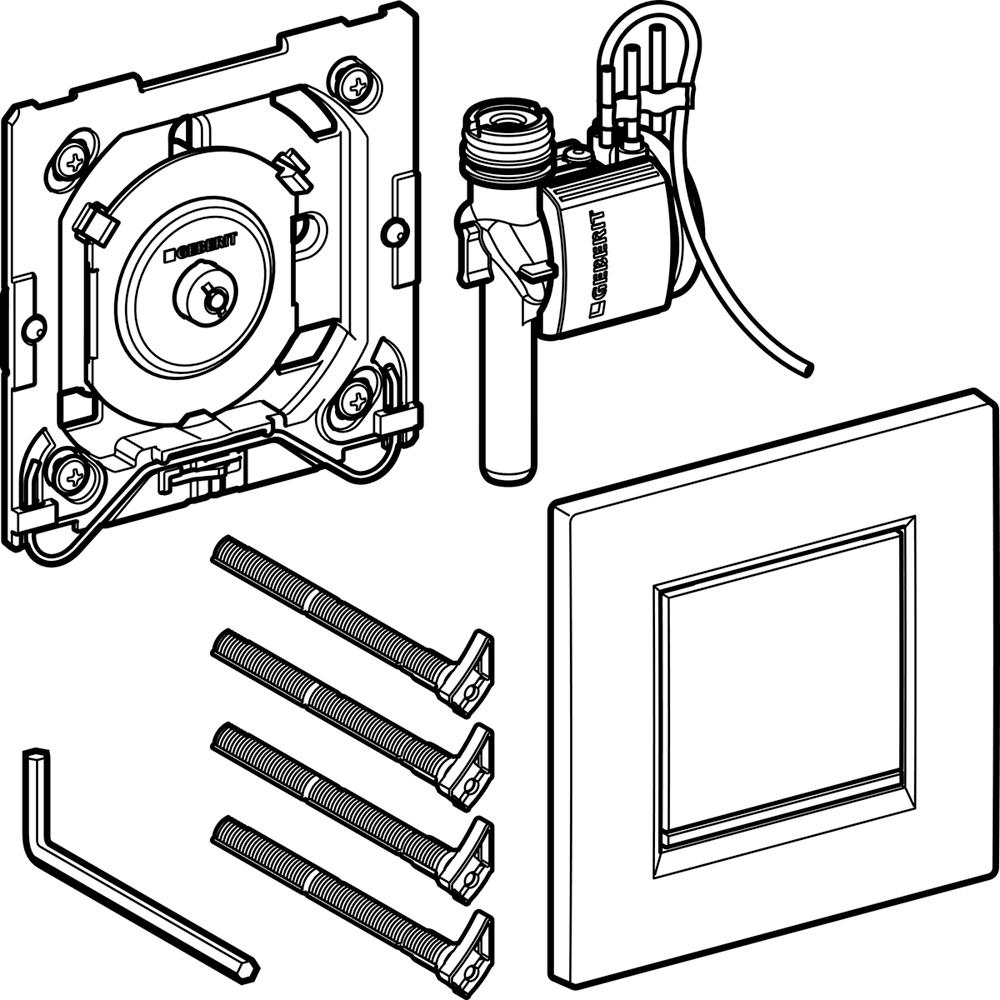

Scope of delivery

  • Flush plate type 30
  • Pneumatic flush actuation, premounted on mounting frame
  • Pneumatic valve
  • Fastening material

Application purposes

  • For manual flush actuation of urinals
  • For Geberit frames for urinal with front actuation
  • For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)

Spare Parts

Art. No. Description
241.934.00.1 Geberit throttle
241.933.00.1 Geberit regulating screw
241.931.00.1 Geberit set of distance bolts (4 pc.)
241.937.00.1 Geberit pneumatic actuator with mounting frame
242.811.11.1 Flush plate type 01 for Geberit urinal flush control with pneumatic flush actuation: white alpine
242.811.21.1 Flush plate type 01 for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated
242.811.46.1 Flush plate type 01 for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated
241.914.11.1 Flush plate Tango for Geberit urinal flush control with pneumatic flush actuation: white alpine
241.914.21.1 Flush plate Tango for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated
241.914.46.1 Flush plate Tango for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated
241.911.11.1 Flush plate Samba for Geberit urinal flush control with pneumatic flush actuation: white alpine
241.911.21.1 Flush plate Samba for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated
241.911.46.1 Flush plate Samba for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated
241.912.11.1 Flush plate Bolero for Geberit urinal flush control with pneumatic flush actuation: white alpine
241.912.21.1 Flush plate Bolero for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated
241.912.46.1 Flush plate Bolero for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated
241.913.FW.1 Flush plate Mambo for Geberit urinal flush control with pneumatic flush actuation: stainless steel brushed
241.915.KH.1 Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: gloss chrome-plated, matt chrome-plated
241.915.KJ.1 Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: white, gloss chrome-plated
241.915.KK.1 Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: white, gold-plated
241.915.KL.1 Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: white, matt chrome-plated
241.915.KM.1 Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: black, gloss chrome-plated
241.915.KN.1 Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: matt chrome-plated, gloss chrome-plated
241.915.SN.1 Flush plate type 10 for Geberit urinal flush control with pneumatic flush actuation: brushed, polished
242.764.00.1 Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: customised
242.764.11.1 Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: white alpine
242.764.DW.1 Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: jet black RAL 9005
242.764.GH.1 Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: brushed chrome
242.764.SD.1 Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: smoked glass reflective
242.764.SE.1 Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: satin glass / green
242.764.SQ.1 Flush plate type 50 for Geberit urinal flush control with pneumatic flush actuation: umber
241.947.00.1 Geberit terminal with cover
241.935.00.1 Geberit pneumatic valve for urinal
241.932.00.1 Geberit basket filter
241.936.00.1 Geberit set of nozzles, white
243.327.00.1 Geberit flow regulator
243.579.00.1 Flow regulator 9 l/min, for Geberit urinal flush controls
242.484.00.1 Flow limiter for Geberit urinal flush control with electronic flush actuation or Geberit urinal flush control with pneumatic flush actuation
242.156.00.1 Bayonet joint set with lip seal, for Geberit urinal flush control

Product Details

Art. no. Material designation Surface / Colour

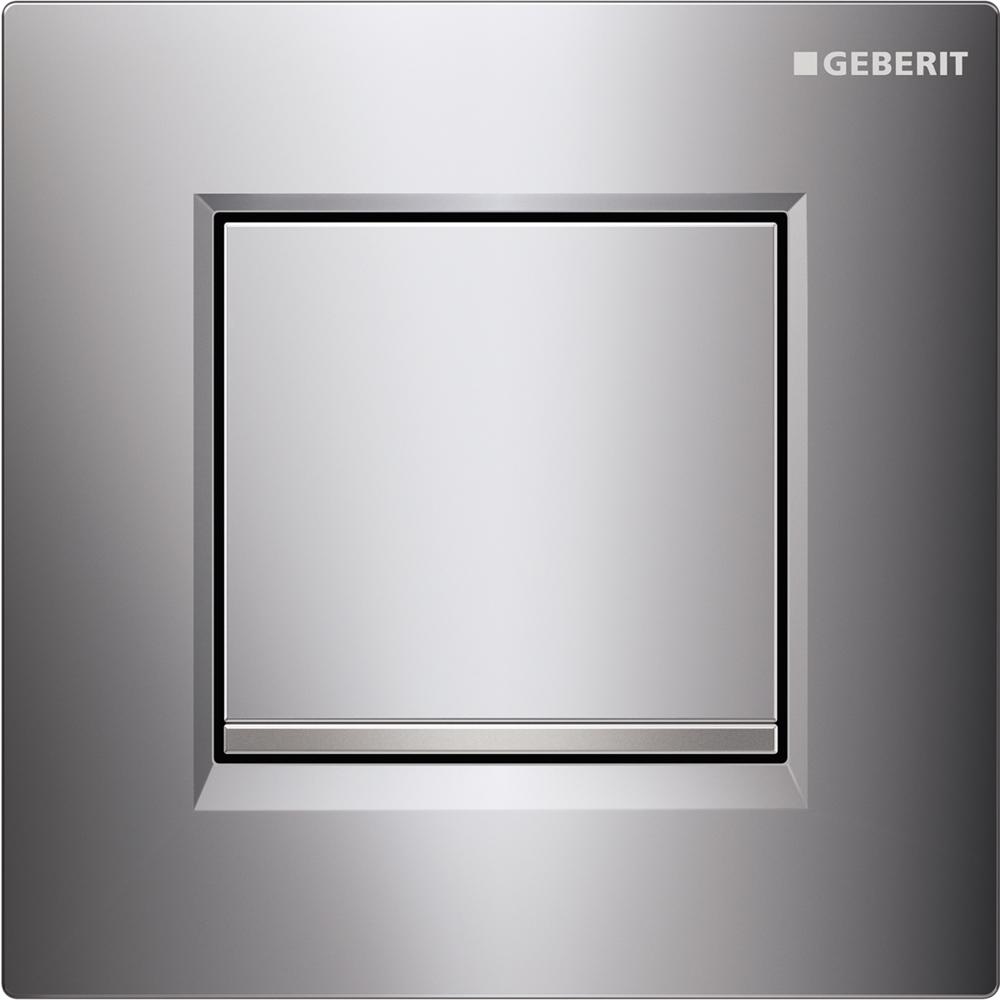

116.017.KH.1 Plastic Plate and button: gloss chrome-plated Design stripes: matt chrome-plated

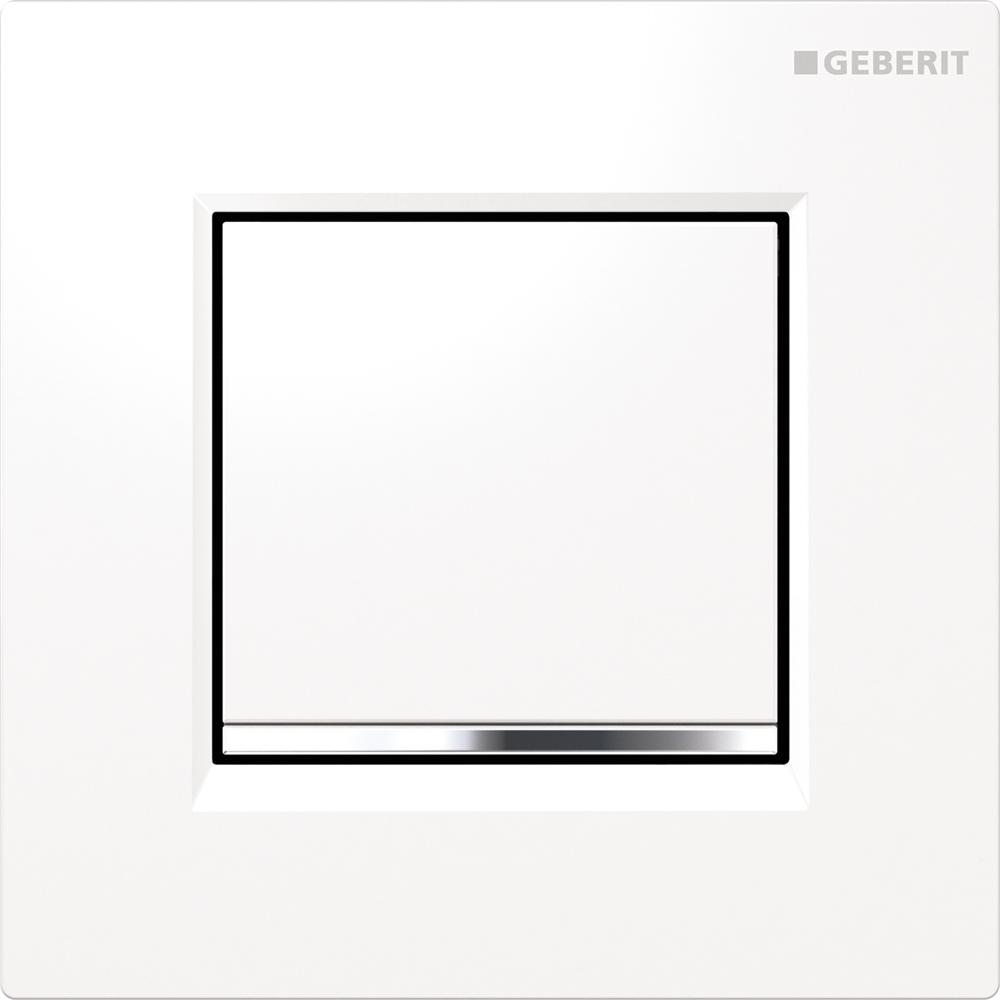

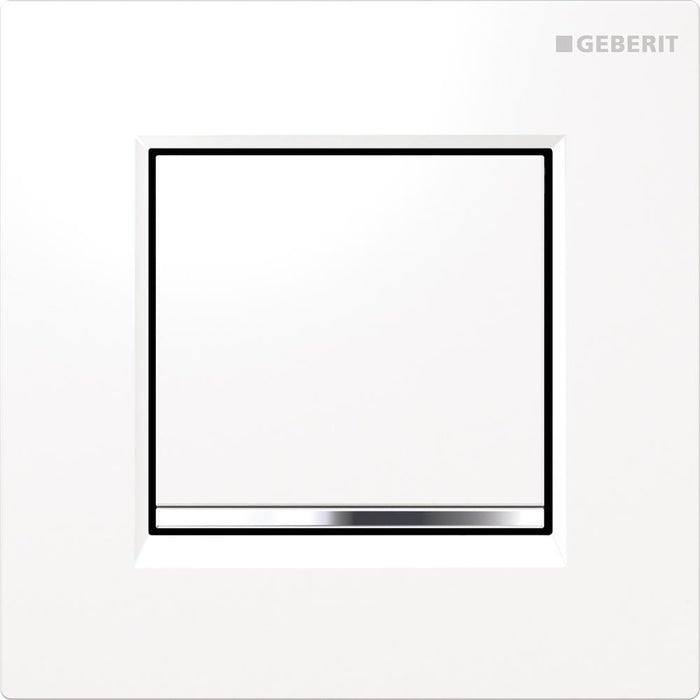

116.017.KJ.1 Plastic Plate and button: white Design stripes: gloss chrome-plated

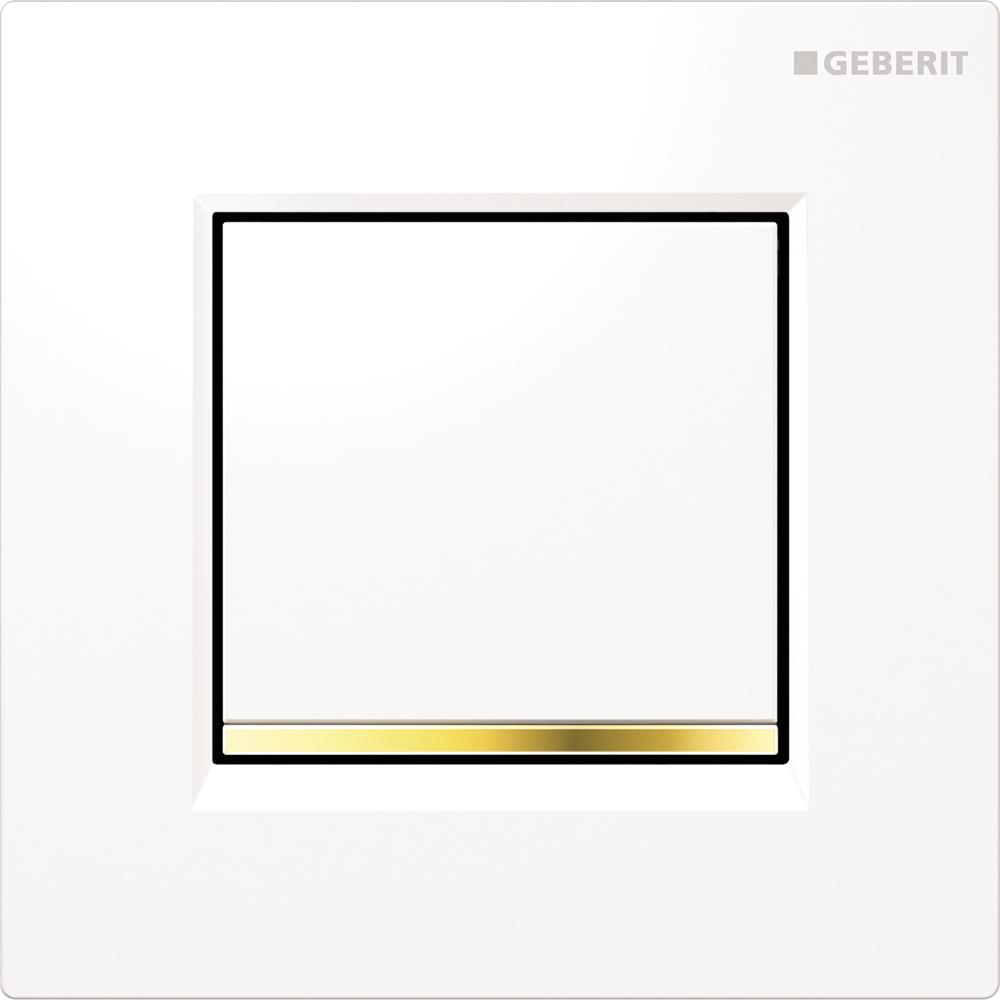

116.017.KK.1 Plastic Plate and button: white Design stripes: gold-plated

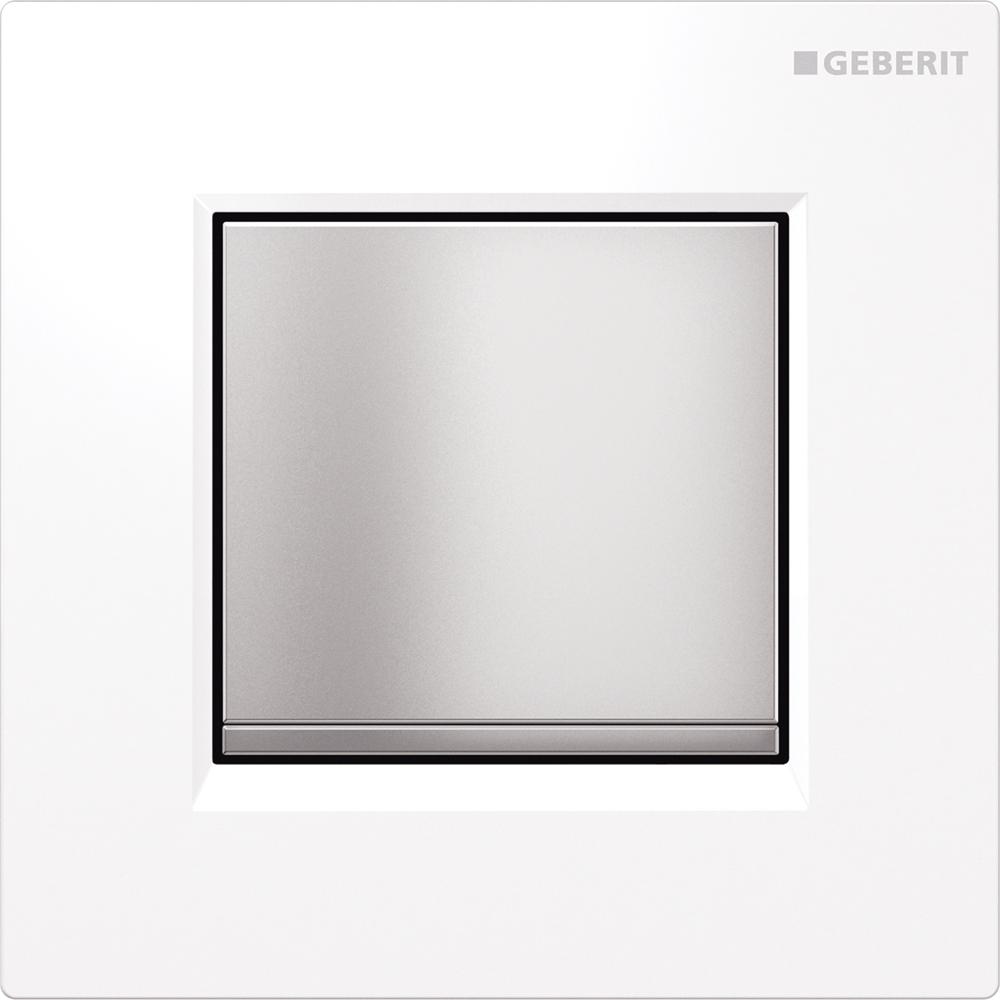

116.017.KL.1 Plastic Plate: white Button: matt chrome-plated

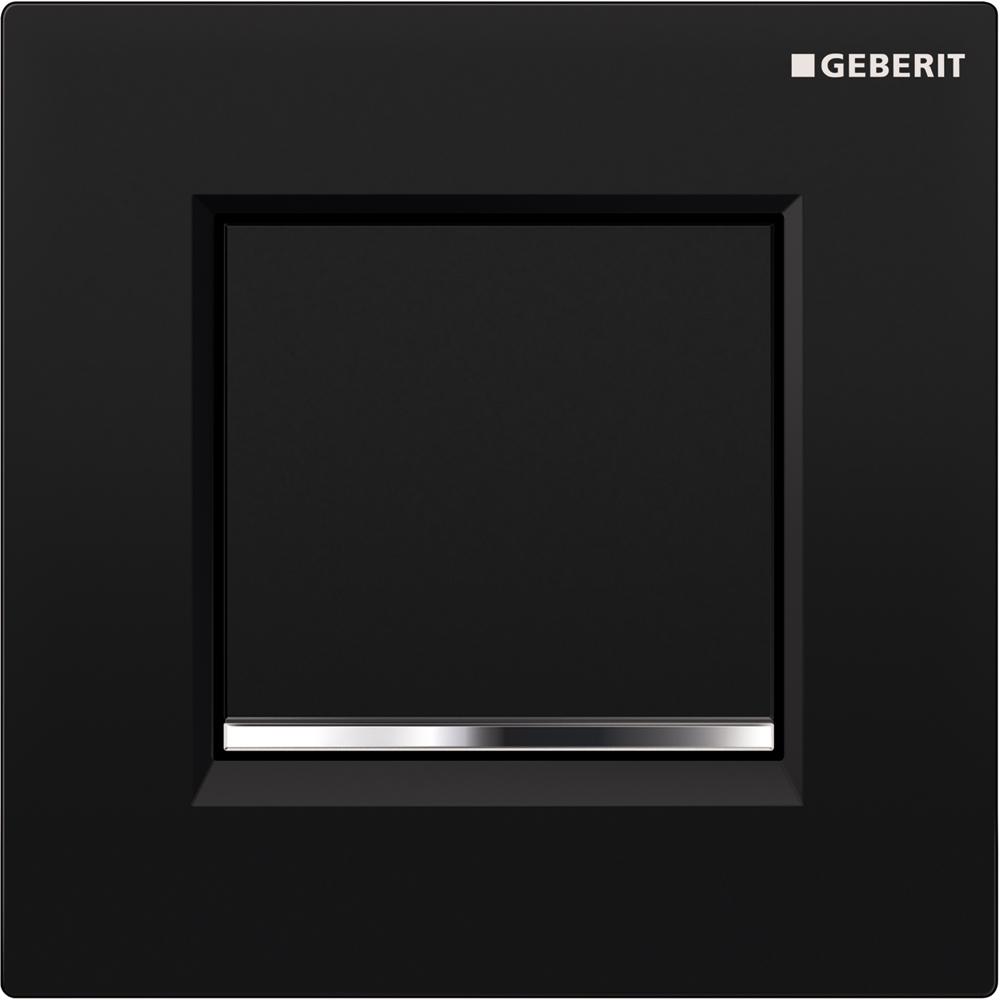

116.017.KM.1 Plastic Plate and button: black Design stripes: gloss chrome-plated

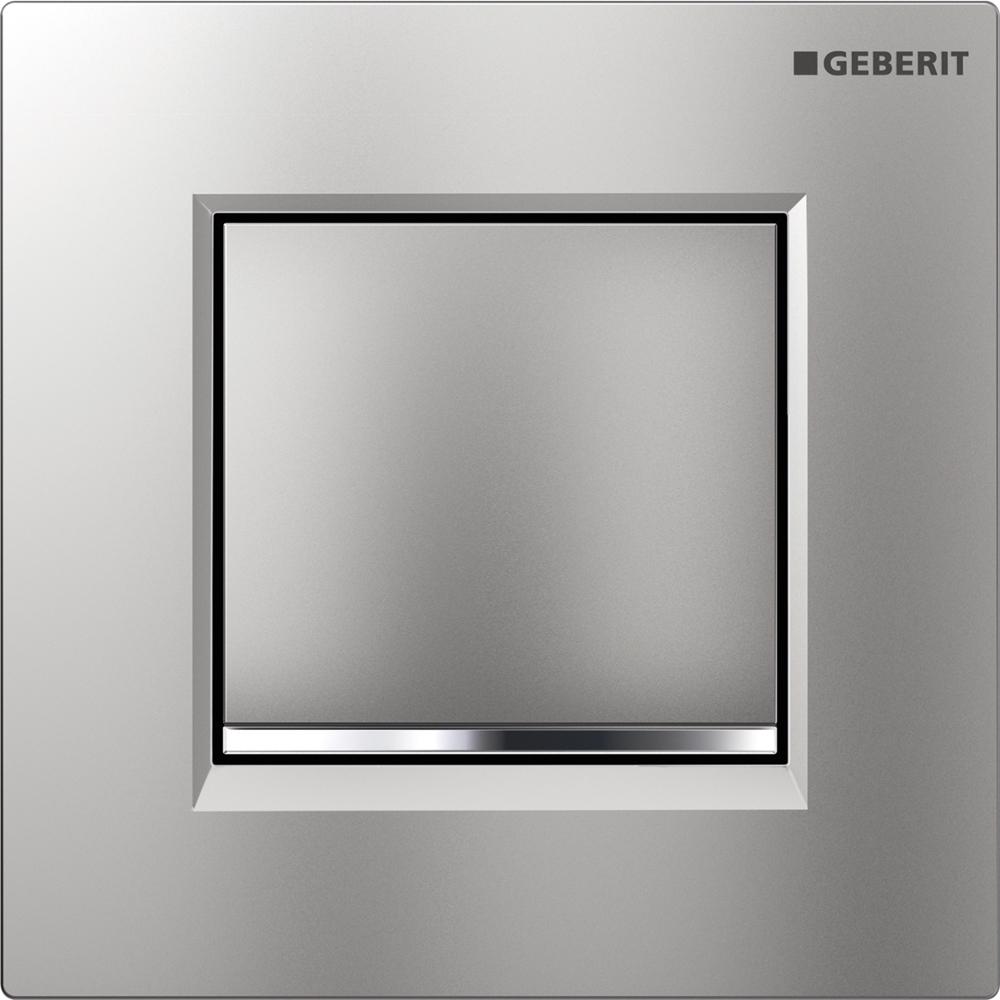

116.017.KN.1 Plastic Plate and button: matt chrome-plated Design stripes: gloss chrome-plated

Downloads

Click for Data Sheet

Click for Installation instructions

Click for Installation instructions
