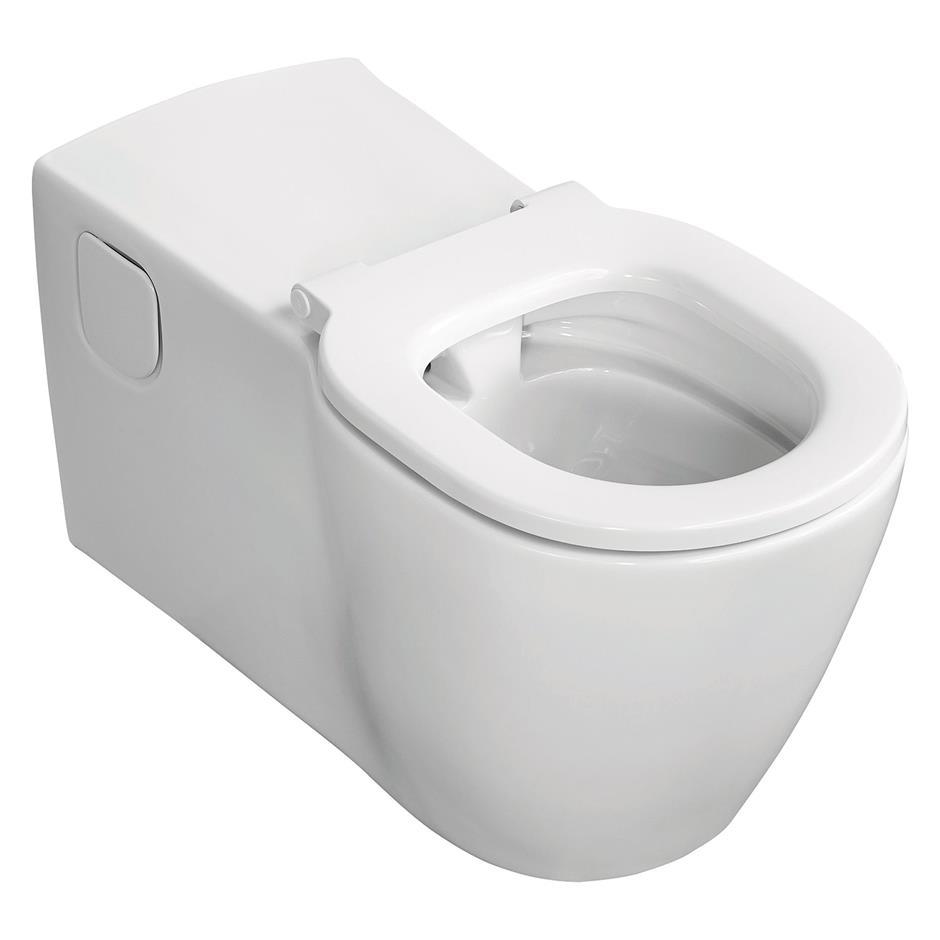

Ideal Standard Concept Freedom Wall Hung Elongated Rimless WC Suite

by Ideal Standard
Save £256.92
£855.92
£599.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Product Features

  • Domestic and commercial use
  • Part of the extensive Concept suite
  • Slow close seat option
  • 75cm projection
  • Doc M Compliant
  • Luxury design

Special notes

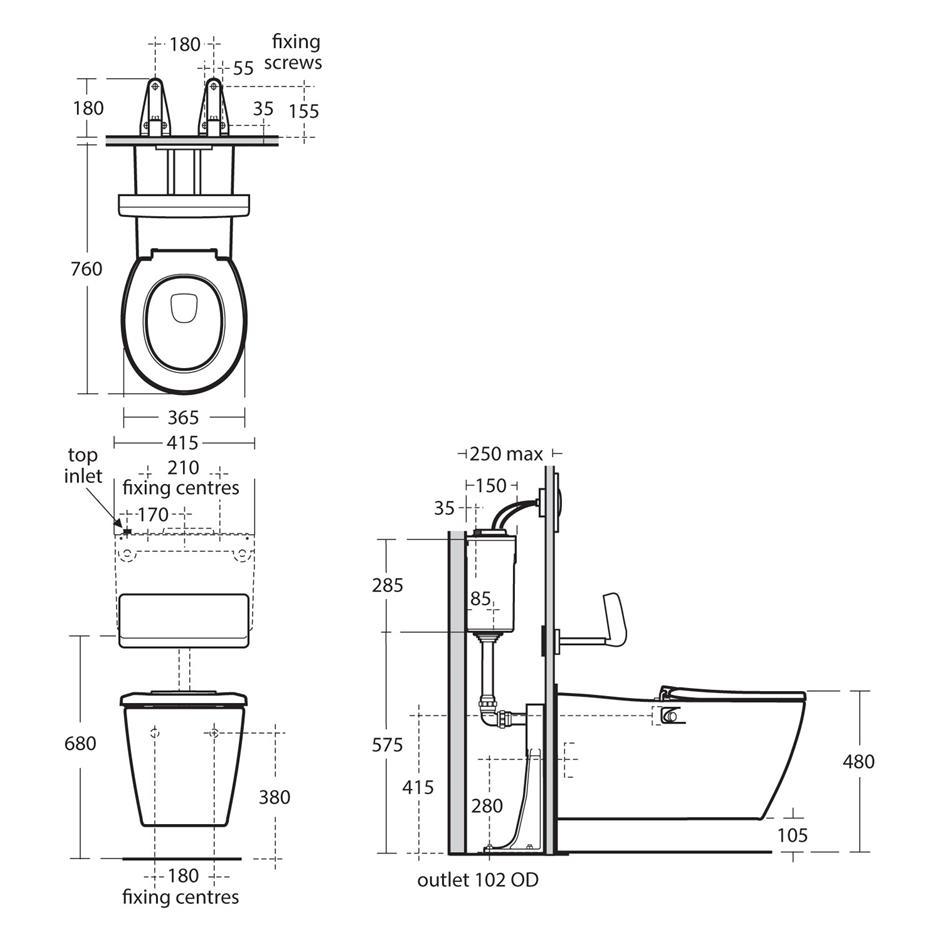

S9139 support brackets secured to floor within the duct, WC fixed to support brackets with bolts supplied. Joint sealed with waterproof sealant (not supplied). The S4302 constructed Flush bend should be used. S364367 Conceal cistern can be used at 4.5/3 only. The WC bowl should not be installed with a lever activated cistern fitted with siphon.

Illustrated Code

E819701+S362567+E822501

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • S362567: Conceala 2 universal height, bottom inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush
  • E822501: Seat and cover for elongated bowl

E819701+S362567+E822601

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • S362567: Conceala 2 universal height, bottom inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush
  • E822601: Seat ring only for elongated bowl

E819701+S362567

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • S362567: Conceala 2 universal height, bottom inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush

E819701+S364367+E822501

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • S364367: Conceala 2 side inlet cistern - pneumatic dual flush valve - no flush plate - 4 / 2.6 or 4.5/3 litre flush
  • E822501: Seat and cover for elongated bowl

E819701+S364367+E822601

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • S364367: Conceala 2 side inlet cistern - pneumatic dual flush valve - no flush plate - 4 / 2.6 or 4.5/3 litre flush
  • E822601: Seat ring only for elongated bowl

E819701+S364367

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • S364367: Conceala 2 side inlet cistern - pneumatic dual flush valve - no flush plate - 4 / 2.6 or 4.5/3 litre flush

E819701+E822501

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • E822501: Seat and cover for elongated bowl

E819701+E822601

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)
  • E822601: Seat ring only for elongated bowl

E819701

  • E819701: Concept Freedom elongated wall hung bowl (75cm projection)

S362567+E822501

  • S362567: Conceala 2 universal height, bottom inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush
  • E822501: Seat and cover for elongated bowl

S362567+E822601

  • S362567: Conceala 2 universal height, bottom inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush
  • E822601: Seat ring only for elongated bowl

S362567

  • S362567: Conceala 2 universal height, bottom inlet cistern - pneumatic dual flush valve - no flushplate - 6/4 litre flush

S364367+E822501

  • S364367: Conceala 2 side inlet cistern - pneumatic dual flush valve - no flush plate - 4 / 2.6 or 4.5/3 litre flush
  • E822501: Seat and cover for elongated bowl

S364367+E822601

  • S364367: Conceala 2 side inlet cistern - pneumatic dual flush valve - no flush plate - 4 / 2.6 or 4.5/3 litre flush
  • E822601: Seat ring only for elongated bowl

S364367

  • S364367: Conceala 2 side inlet cistern - pneumatic dual flush valve - no flush plate - 4 / 2.6 or 4.5/3 litre flush

E822501

  • E822501: Seat and cover for elongated bowl

E822601

  • E822601: Seat ring only for elongated bowl

Downloads

Click for E819701 Data Sheet
