Ideal Standard TMV Thermostatic mixing valve 15mm

by Ideal Standard
Save £41.66
£137.66
£96.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Thermostatic mixing valvea are to supply premixed water to a set temperature to basin, bidet, bath or shower. 15mm mixers are designed to be positioned under basin or bidet immediately below the hot water inlet. Mixers should be commissioned at installation to the application designated temperature. 22mm mixers designed to be positioned under basin, bidet or bath immediately below the hot water inlet. Mixers should be commissioned at installation to the application designated temperature. *For high pressure bath filler

Product Features

  • Automatic shut off if cold supply fails
  • Precise temperature control
  • Hygenic

Special notes

Operating pressures from 0.2 to 5.0 bar, 10 bar static pressure. Recommended supply temperatures, Hot 52-65 degrees Centigrade, Cold 5-20 degrees Centigrade. For best results both supplies should be at equal pressures. The valve is eminently suitable for multi point usage. The number of outlets that can be served by one valve is dependent on the flow performance of the terminal fitting selected. At 1bar 15mm valve could provide the following outlet options: 3 washbasins or 3 showers. (Assumes 8 LPM flow rate per outlet). At 1bar 22mm valve could provide the following outlet options: 2 baths or 4 washbasins or 4 showers. (Assumes 15LPM for bath outlet).

Illustrated Code

A5900AA

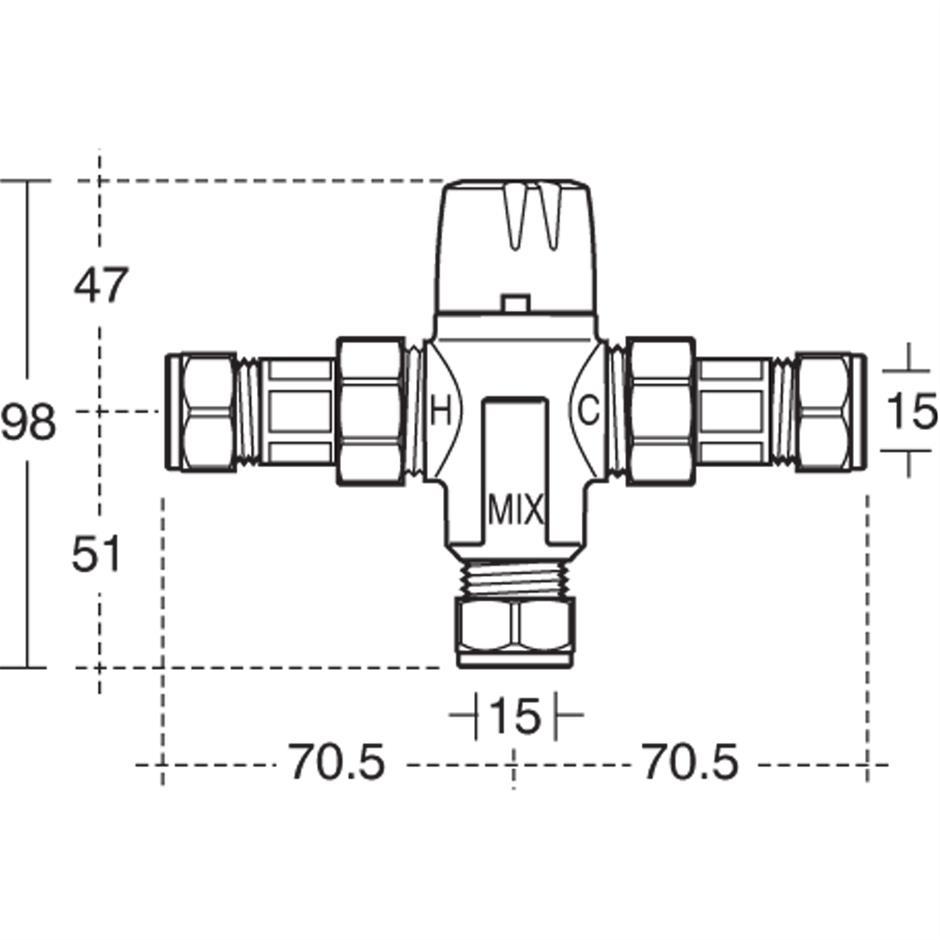

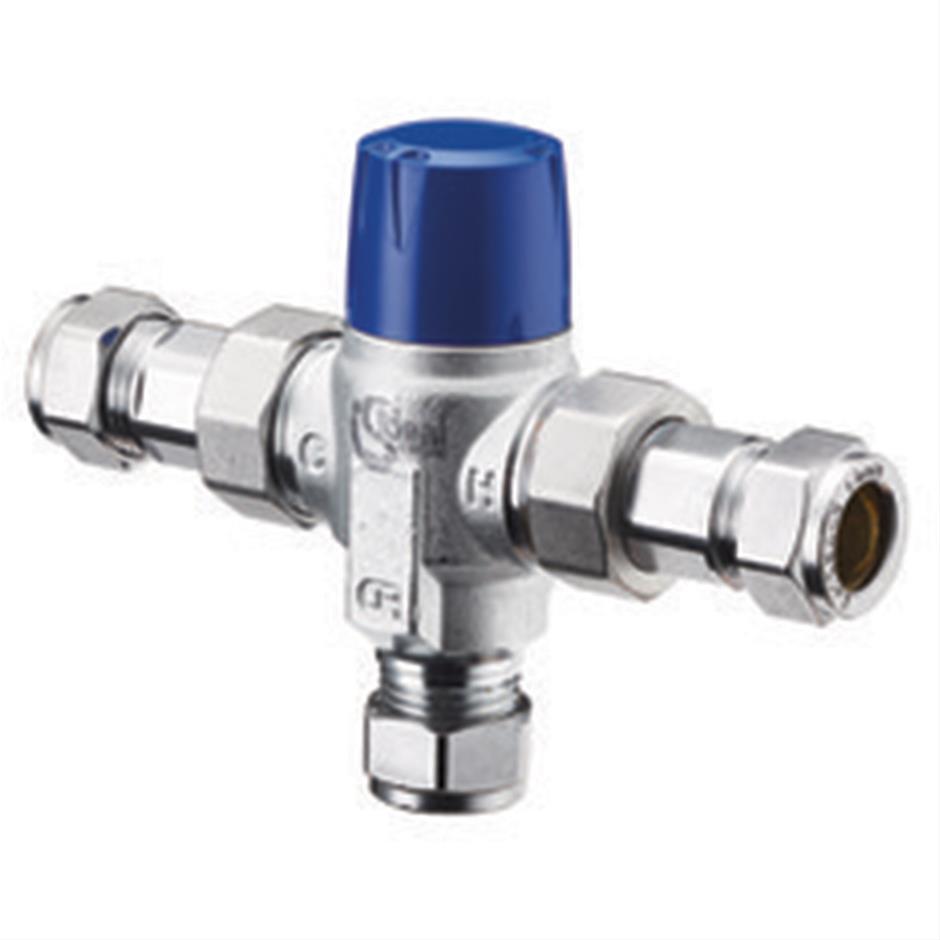

  • A5900AA: Thermostatic mixing valve 15mm (under basin), chrome

A5901AA

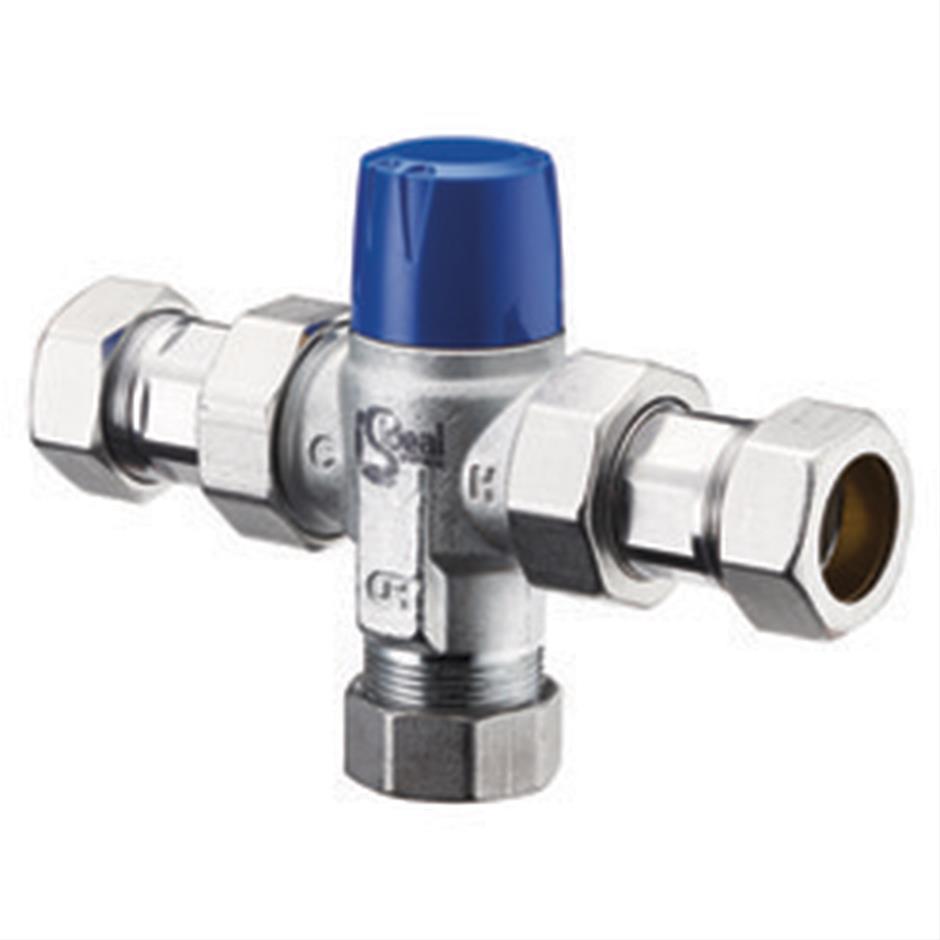

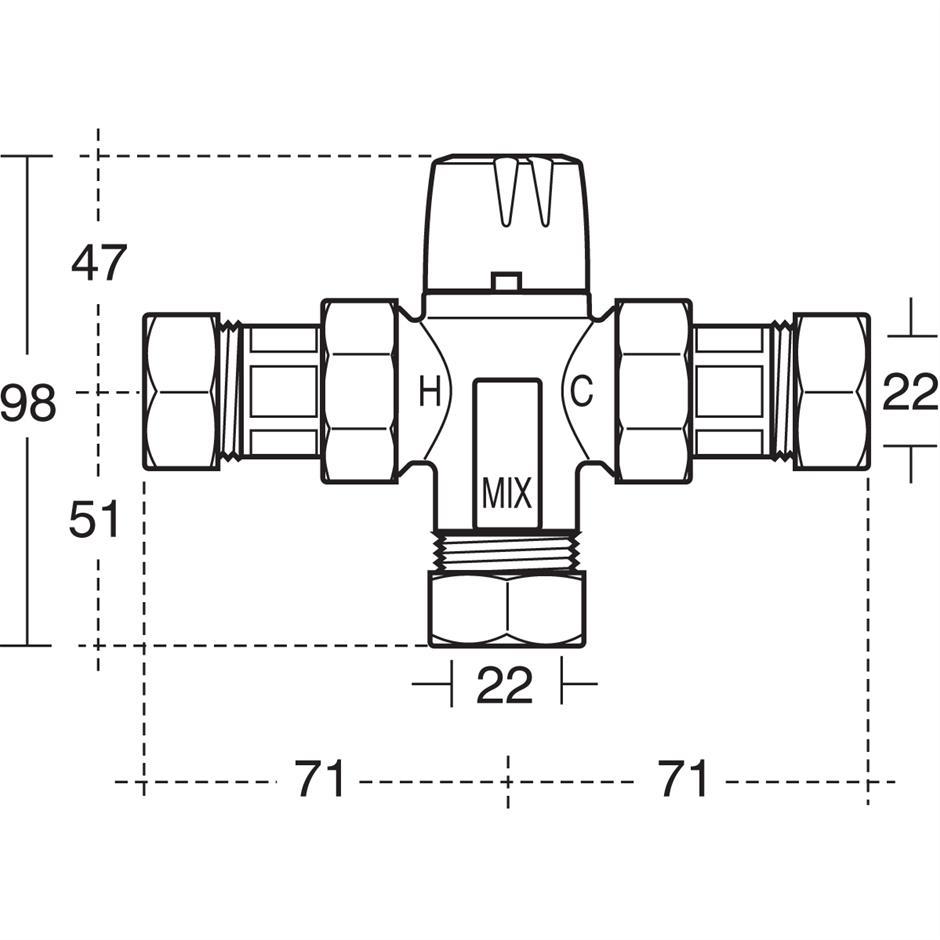

  • A5901AA: Thermostatic mixing valve 22mm (under bath), chrome

Downloads

Click for A5900AA Data Sheet

Click for A5901AA Data Sheet
