Description

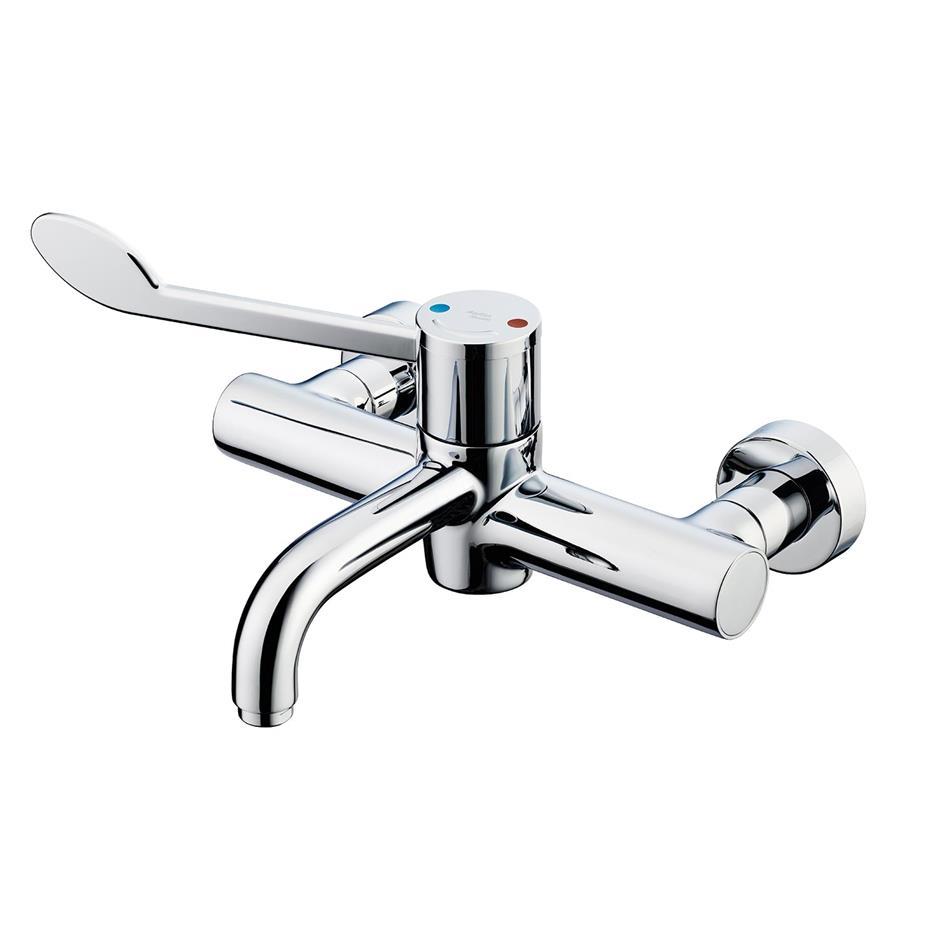

Panel mounted thermostatic basin mixer with lever operation. Mainly used as a healthcare hospital mixer (TB H2a).Single lever sequential operation ensures both hot and cold water is drawn on each use. Long lever gives precise control. Insulated technology keeps the 'hot' side of the mixer at a safe surface temperature. Includes a built-in thermal cleansing feature. Variant available with removable spout for autoclave sterilisation, body demounts from panel for submergible disinfection and Bioguard outlet also helps protect against bacteria.
Conformsto HTM64 (2006), PRH 8941.0.6, HTM04-01, HBN 00.09.
Features:
- Front access D-08 auditing & servicing
- Conforms to HBN 04-01 Addendum 2014
- Demount, submerge and disinfect
- Bioguard against bacteria
- Thermal disinfection feature
- Available with fixed or removable spout
Specifications:
- Material: Chrome Plated Brass
- Weight: 3.60Kg
Special notes
Single lever for on/off operation and temperature control. Especially suited to medium and large hospital pattern integral back outlet basins and washing associated with clinical or nursing procedures. Fitted with an Armitage Bioguard outlet which reduces the opportunity for biofilm attachment and is lined with anti-microbial copper. Unique built-in thermal disinfection cleansing feature. Body demounts for submergible disinfection. Suitable for high and low pressure systems. Flow rate regulated to maximum of 10 Litres per minute. A separate purging kit is available to facilitate initial installation flushing and water sampling.

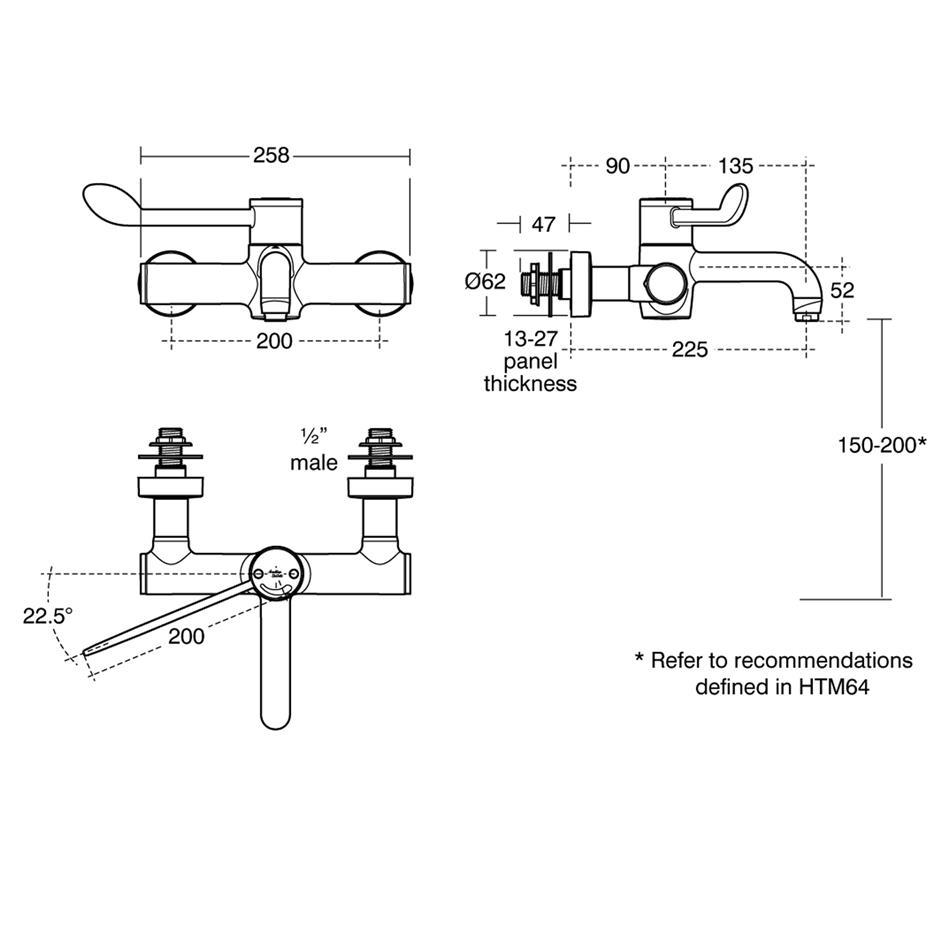

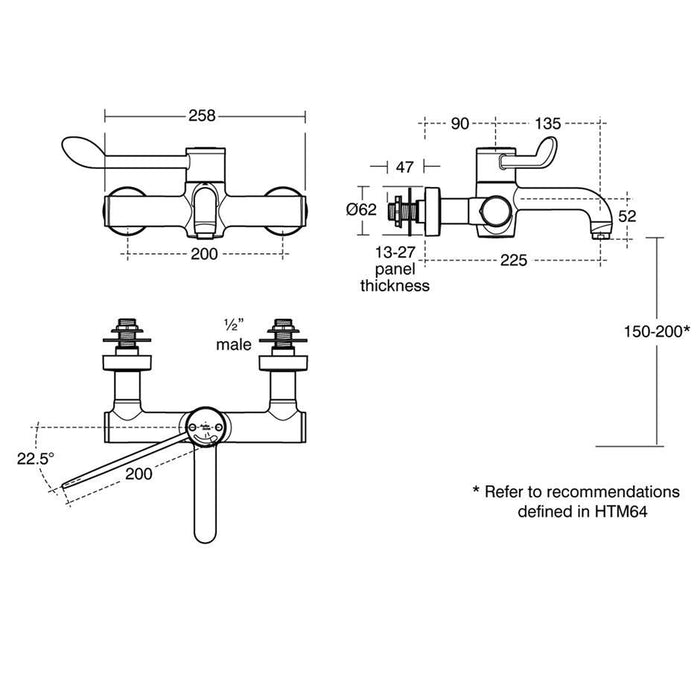

Illustrated Code
A6735AA
|
