Burlington 2 Tap Hole Bridge Basin Mixer with High Central Indice with Plug and Chain Waste and Swivel Spout

by Burlington
Save £85
£339.00
£254.00

Free UK Delivery

Estimated delivery 2-5 working days

90 Days Returns

30 days refund & 90 days exchange

100% Secure Checkout

Bank-grade PCI Level 1 security

Illustrated Code

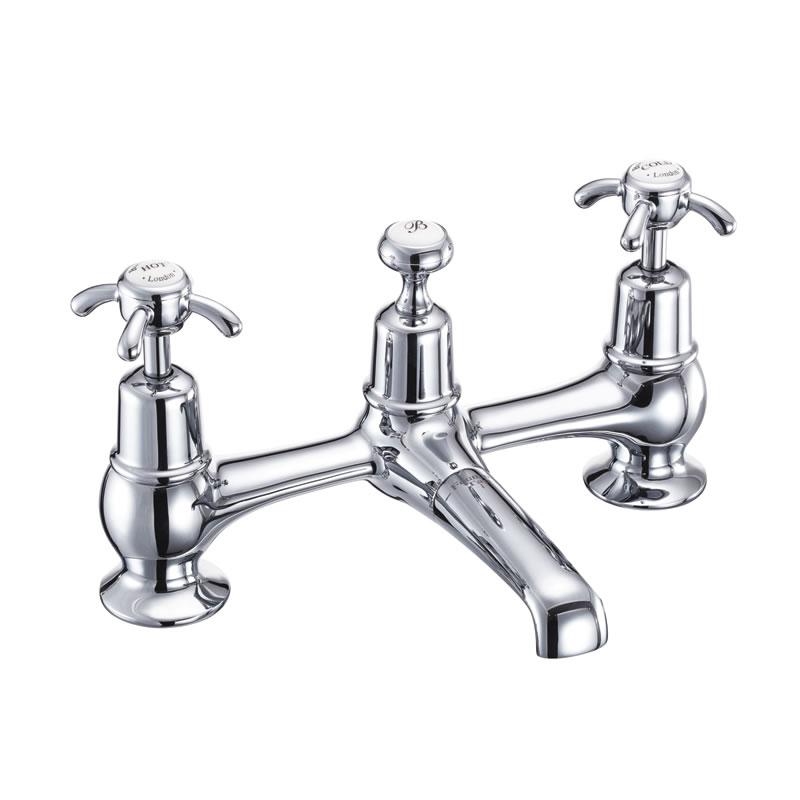

AN10
  • T16: Bridge basin mixer, with plug & chain waste (excluding tap heads & base)
  • T2: Anglesey tap handles (pair)

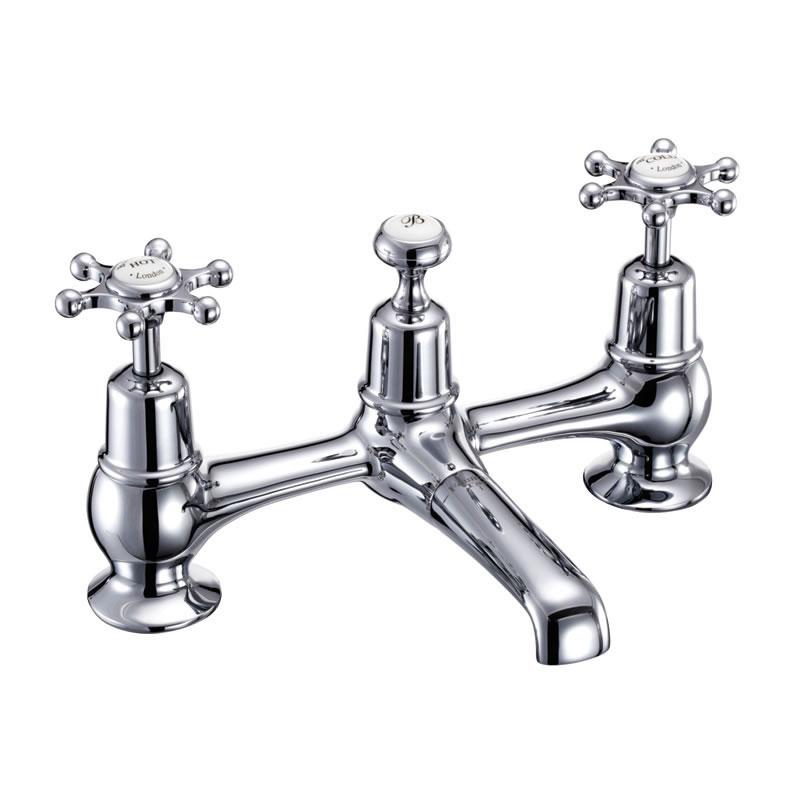

BI10
  • T16: Bridge basin mixer, with plug & chain waste (excluding tap heads & base)
  • T3: Birkenhead tap handle (pair)

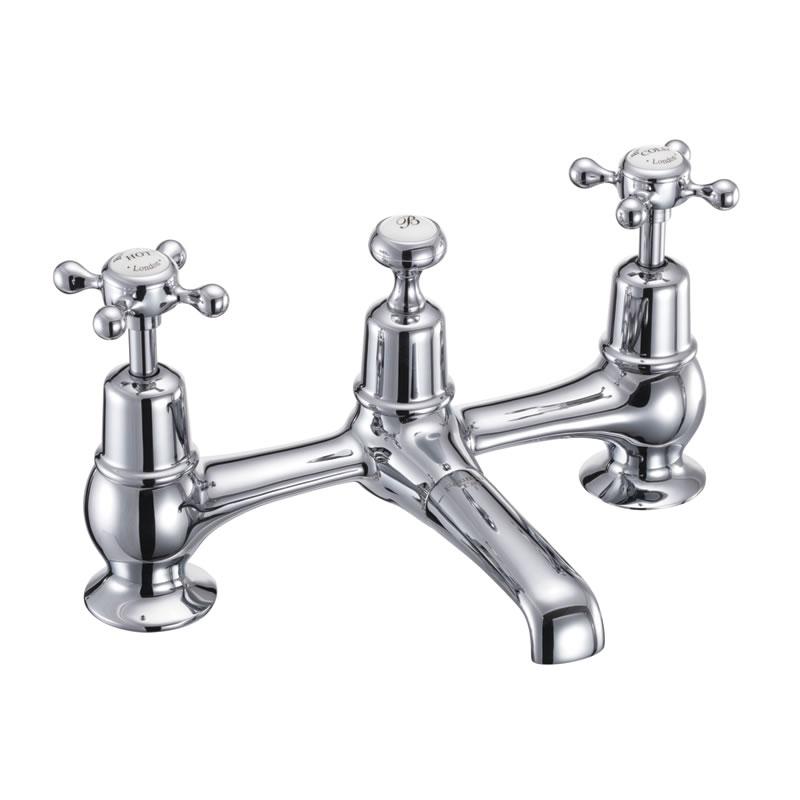

CL10
  • T16: Bridge basin mixer, with plug & chain waste (excluding tap heads & base)
  • T1: Claremont tap handles (pair)

Details

Supplied with flow straighter - this is for use with low water pressure

Supplied with neoperl aerator - this is for use with high water pressure

Supplied with a plug & chain waste. If a flip-top or click-clack waster is preferred then these can be purchased seperately.

Guarantee

10 years domestic installations
1 year commercial installations

Standards Information

BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)
BS EN 200:2008 Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification

Available Spare Parts

SP882: Aerator for product T16, T16-QT
SP523: Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles: Cold
SP930 decorative cap of Burlington tap handles: Hot
SP934: Decorative head of product T16, T16-QT, T15, T15-QT
SP93: Fixing screw and washer for valve handle (T1, T2, T3, V1, V2, V3)
SP449: Flow straightener for product T5, T5-QT, T6, T6-QT, T7, T7-QT, T12, T12-QT, T13, T13-QT, T14, T14-QT, T15, T15-QT, T16, T16-QT, T26, T26-QT, CH19, CH20, CH21, CH22, CH23
SP451: Key for T5, T5-QT, T13-QT, T13, T12-QT, T12, T16-QT, T16, T14, T14-QT
SP884: Plug (including the chain, stuo and nut) of product W1, T16, T16-QT, T13, T13-QT
SP45: T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP48: T12, T13, T14, T15, T16, V25, V34, V36 'B' logo ceramic indice (D=22.2mm)
SP28: T5, T6, T7, T16 1, 2 full turn cartridge
SP985: Top middle part of product T13, T13-QT, T12, T12-QT, T16, T16-QT, T26, T15, T15-QT

Specifications

Product Finish Chrome Plated
Product Style Traditional
Material T1: Tap handles - Brass
T16: Tap - Brass
T2: Tap handles - Brass
T3: Tap handles - Brass

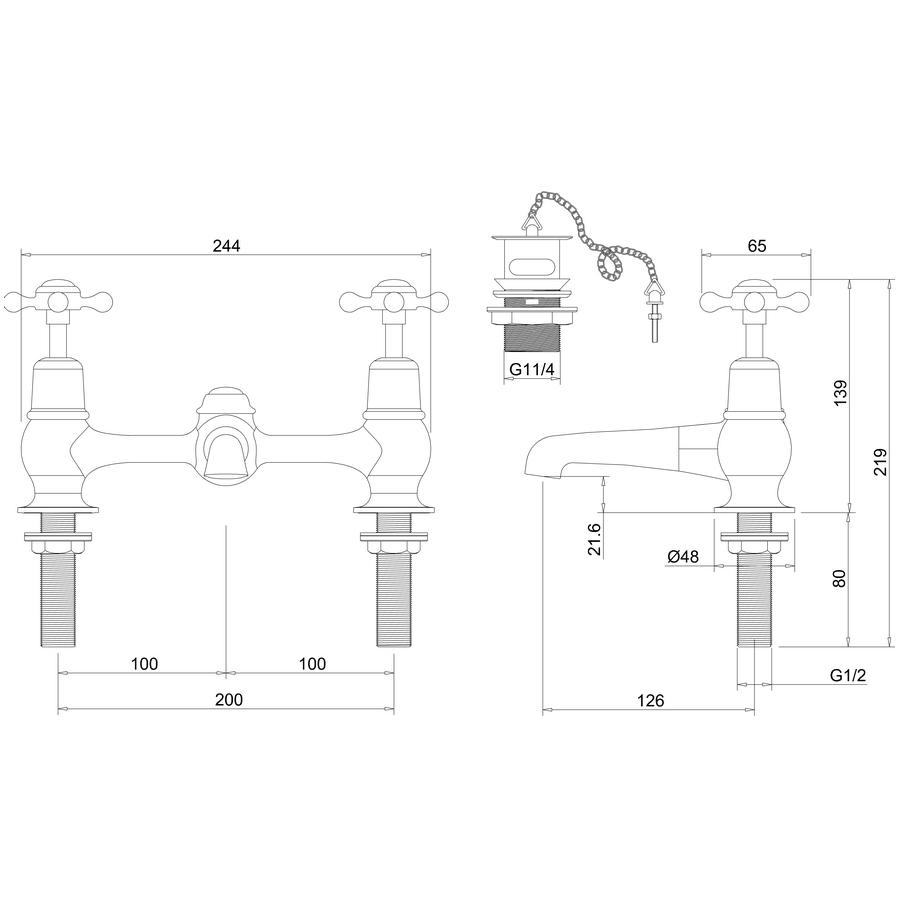

Size T1: 267 x 267 x 65mm
T16: 2439 x 150 x 1584mm
T2: 64 x 64 x 237mm
T3: 65 x 65 x 233mm
Packed Dimension T1: 52 x 52 x 65 = 0.0002 m3
T16: 290 x 250 x 188 = 0.0136 m3
T2: 52 x 52 x 65 = 0.0002 m3
T3: 70 x 65 x 65 = 0.0003 m3
Colour T16: Tap - Chrome plated
T2: Tap handles - Chrome plated
Barcode T16: 5055806006867
T2: 5055806006928
T3: 5055806007000
T1: 5055806006683
Flow Rates System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (straigthener) 10.1 16.9 18.1 20.5 23.7
Spout (aerator) 1.8 2.7 3 3.6 3.6
Nett Weight T1: Tap handles - 0.18kg
T16: Tap - 2kg
T2: Tap handles - 0.15kg
T3: Tap handles - 0.15kg
Gross Weight Including Packaging T1: Tap handles - 0.2kg
T16: Tap - 2.75kg
T2: Tap handles - 0.2kg
T3: Tap handles - 0.2kg

Downloads

Click for Instructions T16 (English)

Click for Instructions T16 (French)
